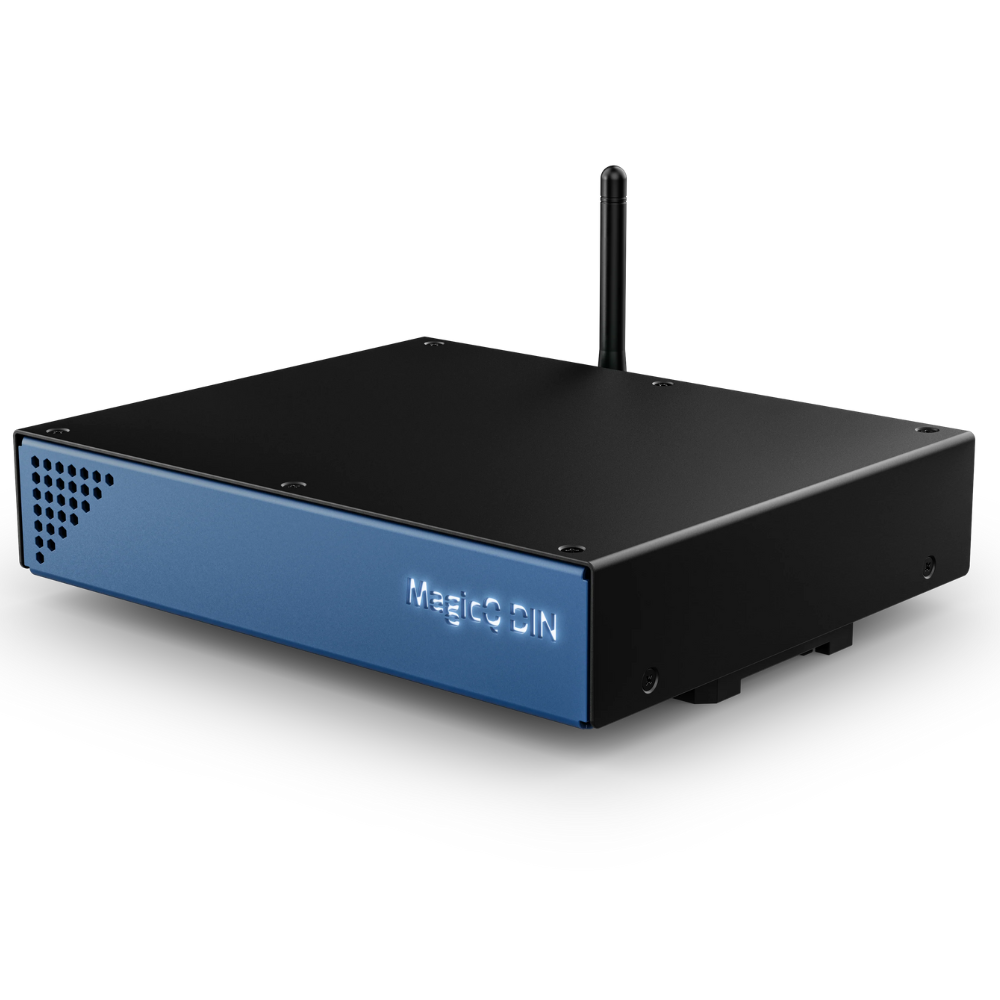

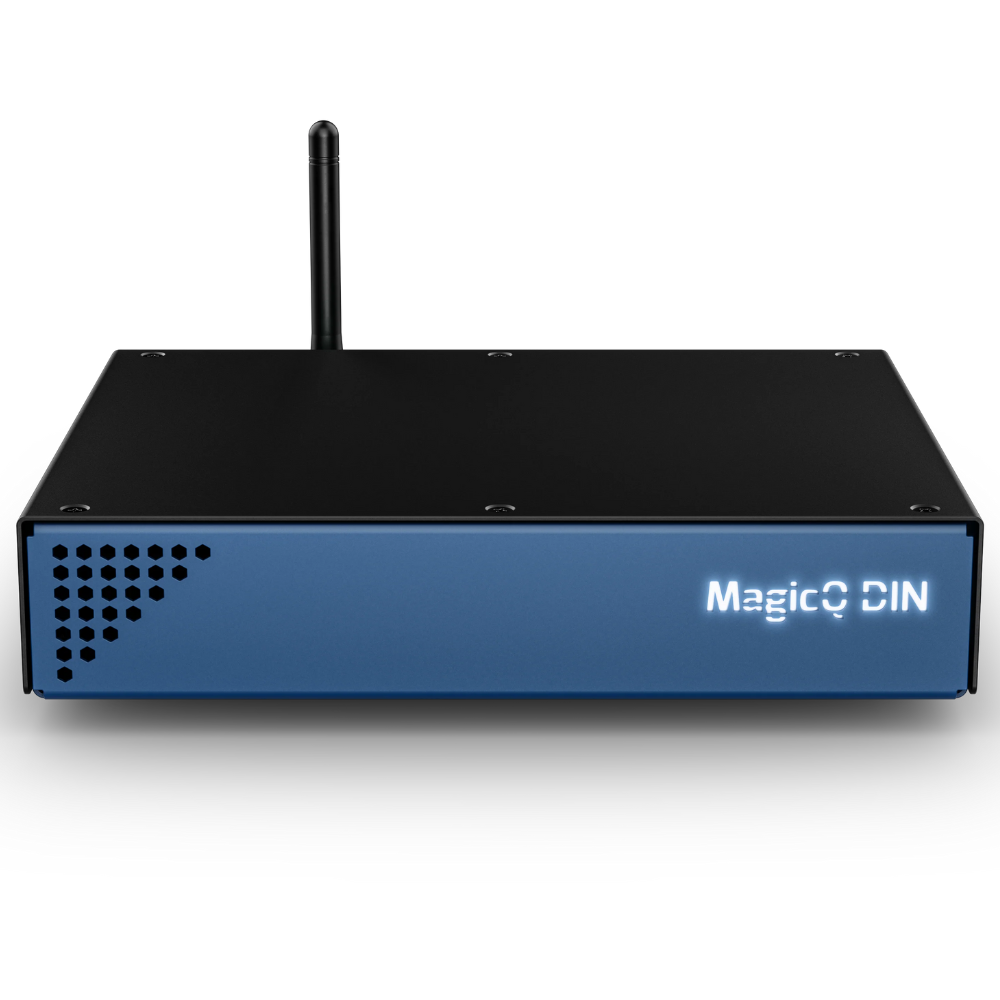

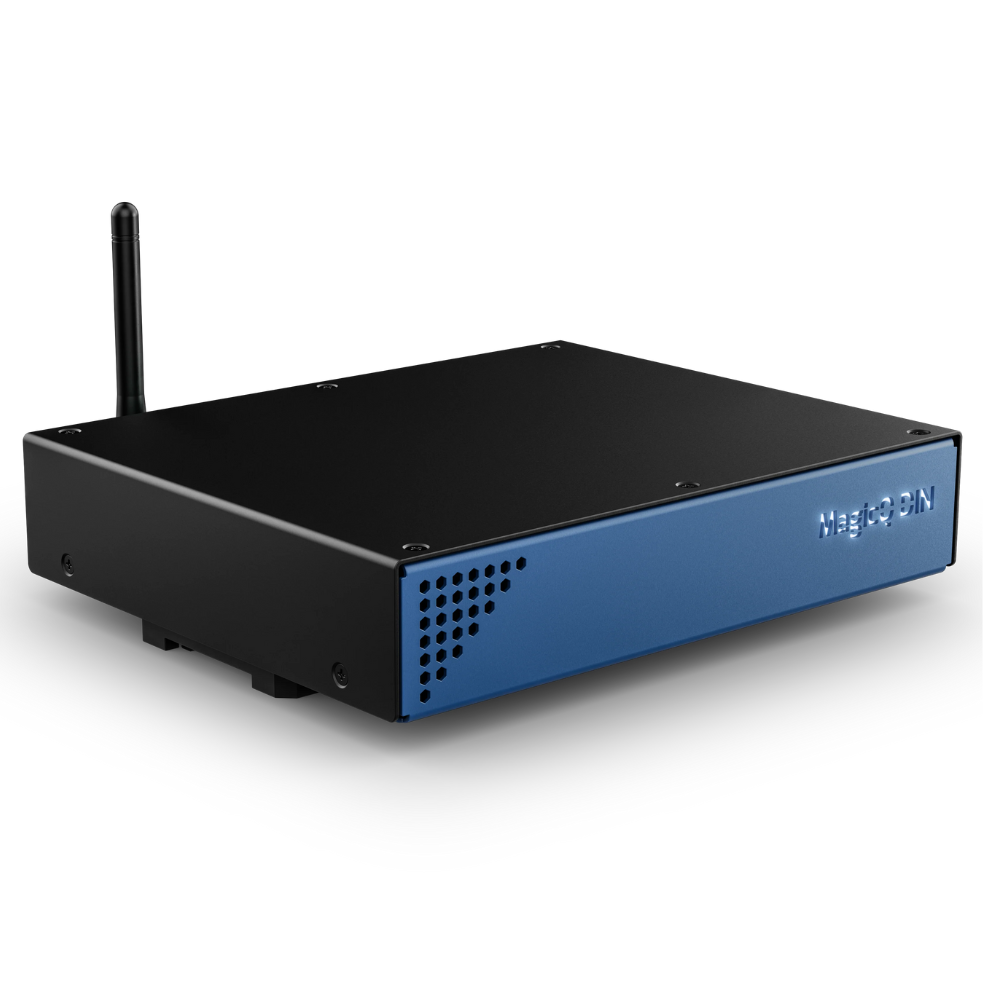

ChamSys MAGICQ-DIN MagicQ DIN

MagicQ DIN

Overview:

• Ideal for installations and architectural settings
• 24 universes direct, expandable to 48
• Two RDM-enabled DMX Outputs (Phoenix Screw Terminal connectors)
• Inbuilt Wi-Fi for programming and remote control
• Four 10Scene ports for connection of up to forty 10Scene wall plate
• Features the same software as MagicQ Consoles

The full power of MagicQ software in a DIN rail mount solution.

MagicQ DIN supports all MagicQ features, including scheduled events, UDP, OSC, and other remote protocols, making it ideal for cabinet installation in control rooms and suitable for theatres, houses of worship, and any venue requiring powerful control that offers advanced capabilities of MagicQ such as pixel mapping and multi-element fixture control.

Its 24 universes of DMX output are expandable to 48 and connectivity features include two RDM-enabled DMX outputs, inbuilt Wi-Fi for programming and remote control, and four 10Scene ports for connecting up to 40 10Scene wall plates.

MagicQ Software

MagicQ software offers powerful lighting control, full lighting visualization, pixel mapping, and HD media playback that lighting designers rely on for everything from simple to the most complex shows.

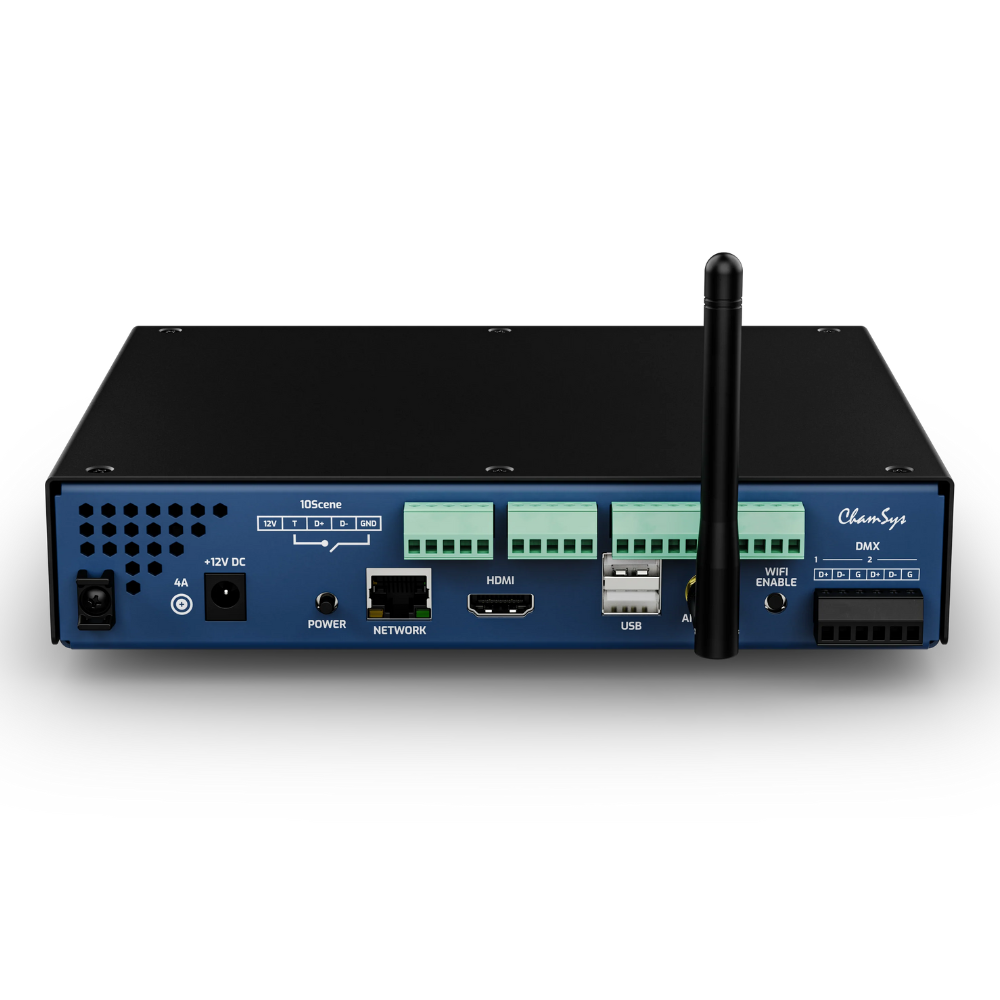

Hardware Specifications:

• Universes supported: 24, expandable to 48 via license upgrade
• DMX Outputs Pheonix Screw Terminal: 2
• External Monitor: 1920 x 1080 HDMI
• Inbuilt Wi-Fi: Yes
• Network Port: 1
• USB Ports: 2
• Power Input: 12v DC

Software Specifications:

• Max Number of DMX Channels: 12288 *expandable to 24576
• Max Number of Fixtures Supported: 12288 *expandable to 24576
• Max Number of Cues: 5000
• Max Number of Cue Stacks: 2000
• Max Number of Groups: 5000
• Max Number of Palettes: 4096
• Number of Media Server Layers Supported: 50 (each different content)
• OSC Supported: Yes
• RDM Autopatch for fast show patching
• Fixture library of over 48,000 fixture files
• Built-in FX generator
• Colour picker and Gel inbuilt Gel library

Rack Weights and Dimensions:

• Width: 200mm (7.8 inches)
• Depth: 165mm (6.5 inches)
• Height: 40mm (1.6 inches)
• Weight: 0.65kg (1.43lb)

Included Accessories:

• Wi-Fi Antenna: 1
• DIN Rail Mount Clips: 2
• 10Scene Connectors: 4
• 12v Power Supply: 1

Boxed Weights and Dimensions:

• Width: 268mm (10.5 inches)
• Depth: 220mm (8.7 inches)
• Height: 130mm (5.1 inches)
• Weight: 1.04kg (2.29 lb)
