Overview of Chauvet DJ COLORBANDQ4IP LED Linear Wash Light

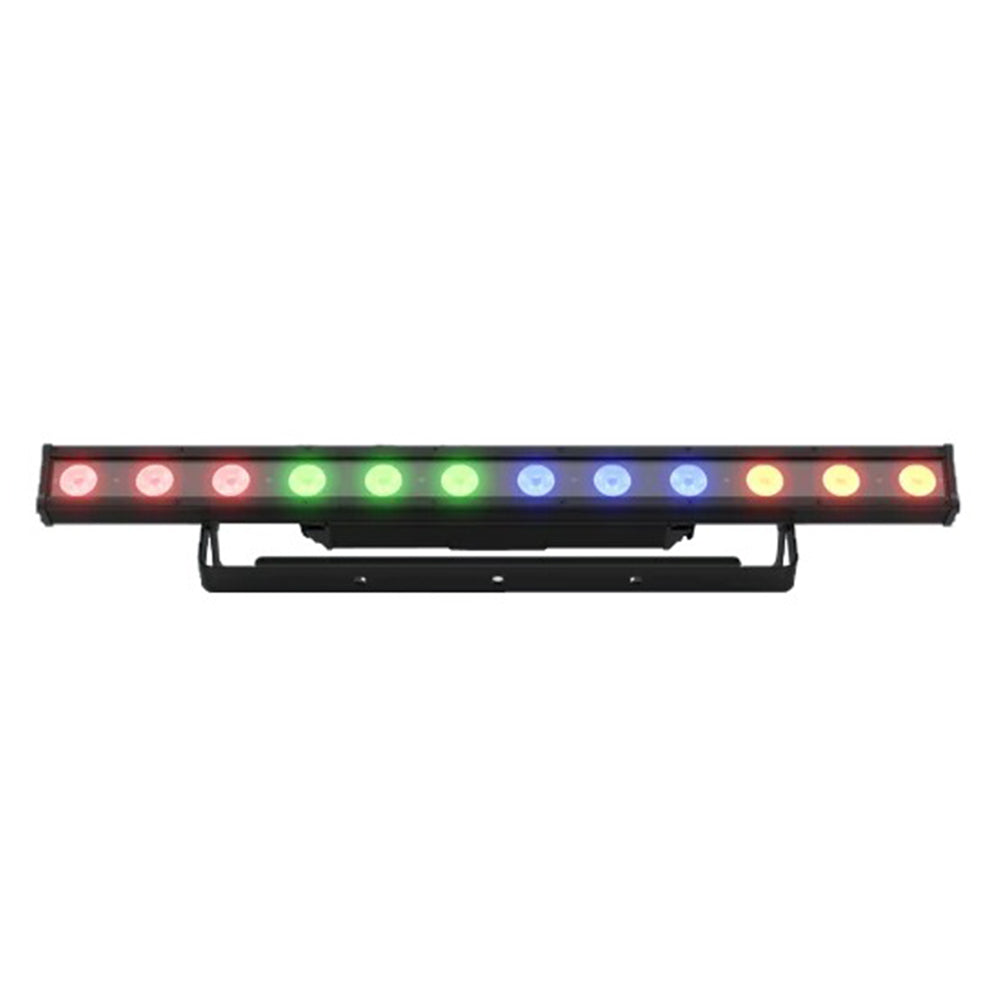

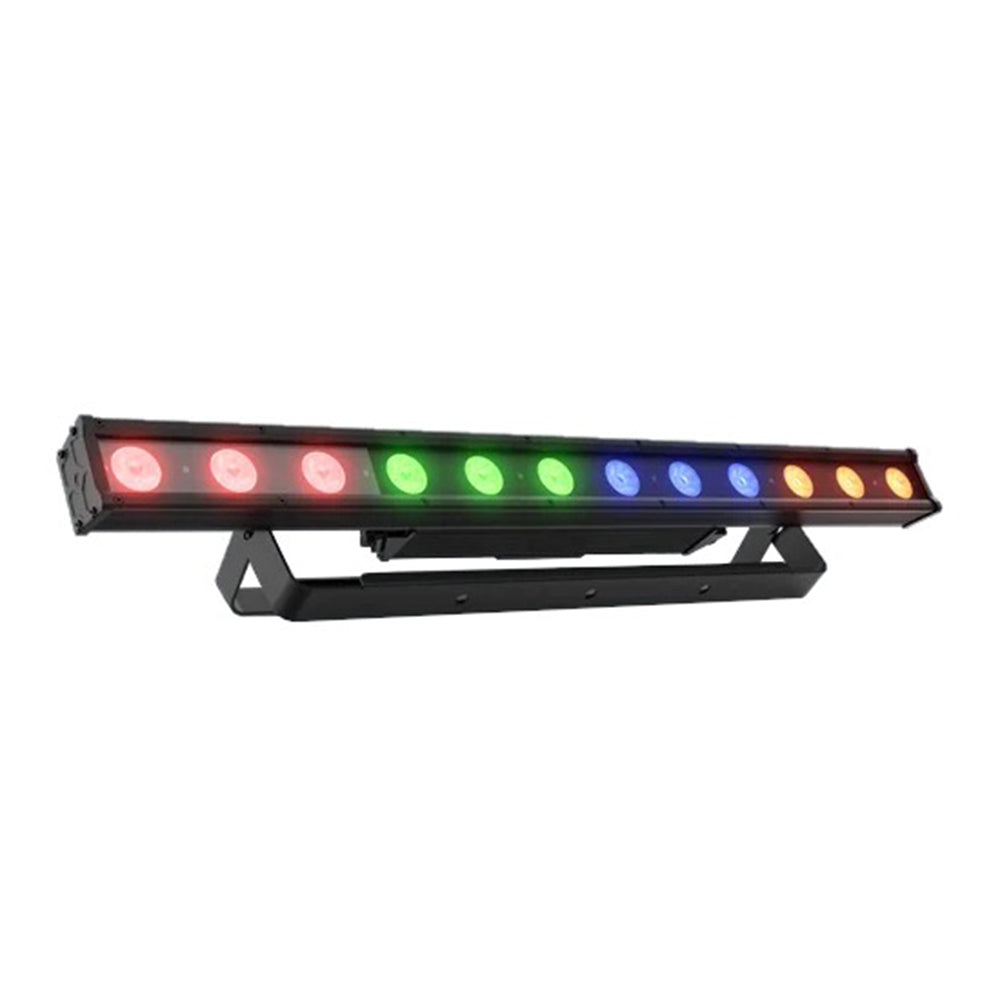

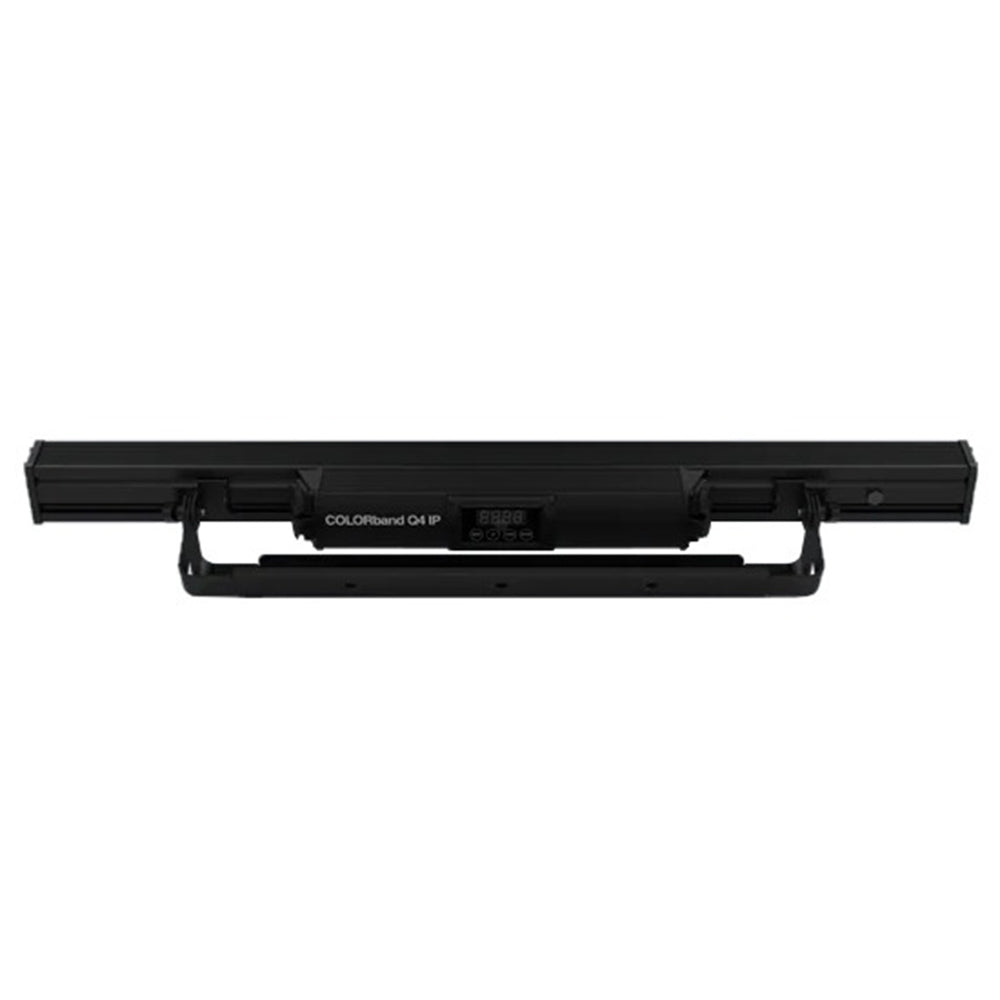

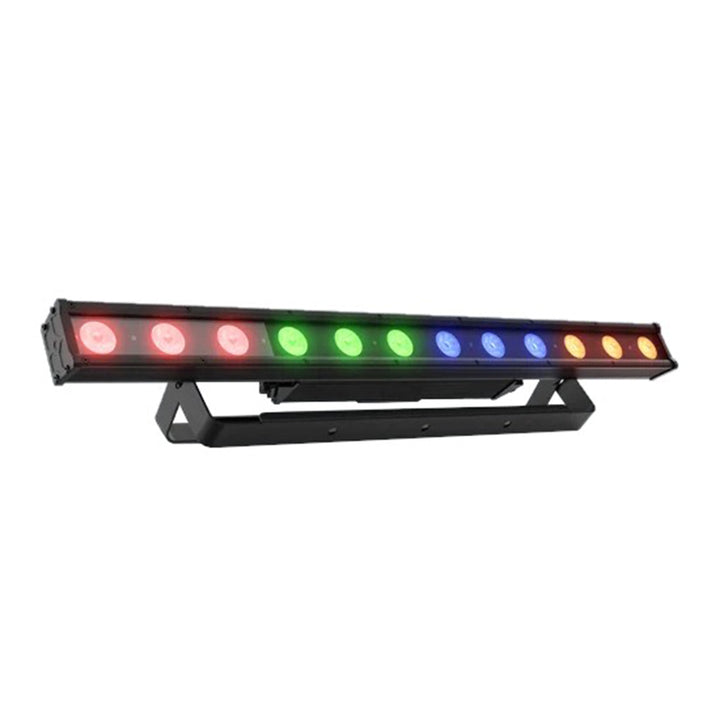

With COLORband Q4 IP, joy doesn’t depend on the weather! This weatherproof, outdoor-rated LED strip light delivers lighting joy inside or out because its robust housing repels water, snow, dirt, and sand for all-weather applications. COLORband Q4 IP is a versatile 4-zone effect that can be used for a wide variety of applications including as a blinder or wall washer. The touch-sensitive display can be password protected and powerCON® TRUE1 inputs make power connections secure and reduce cable clutter by linking multiple units. The integrated GORE® valve prevents internal humidity build-up and allows the fixture to breathe. COLORband Q4 IP is even great for on-camera work with its high-frequency LED dimming that gives the unit flicker-free video operation.
Specifications
- DMX Channels: 4, 7, 10, 16 or 22
- DMX Connectors: 3-pin XLR
- Light Source: 12 LEDs (quad-color RGBA) 6 W, (2.06 A), 50,000 hours life expectancy
- Strobe Rate: 0 to 20 Hz
- PWM Frequency: 4 KHz
- Beam Angle: 14°
- Field Angle: 27°
- Illuminance: 7,074 lux @ 2 m, 1,209 lux @ 5 m
- Lumens: 2,923
- IP Rating: IP65
- Length: 5 ft (1.5 m)
- Power Linking: 9 units @ 120 V; 16 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
-
Power and Current:
- 87 W, 1.18 A @ 120 V, 60 Hz
- 86 W, 0.67 A @ 230 V, 50 Hz
- Weight: 11.8 lb (5.35 kg)
- Size: 39.3 x 3.2 x 4.1 in (998 x 81 x 104 mm)
- Approvals: CE, MET
WHAT'S INCLUDED
- Power Cord
- DMX (in) adaptor
- DMX (out) adaptor
- Quick Reference Guide
- Warranty card
