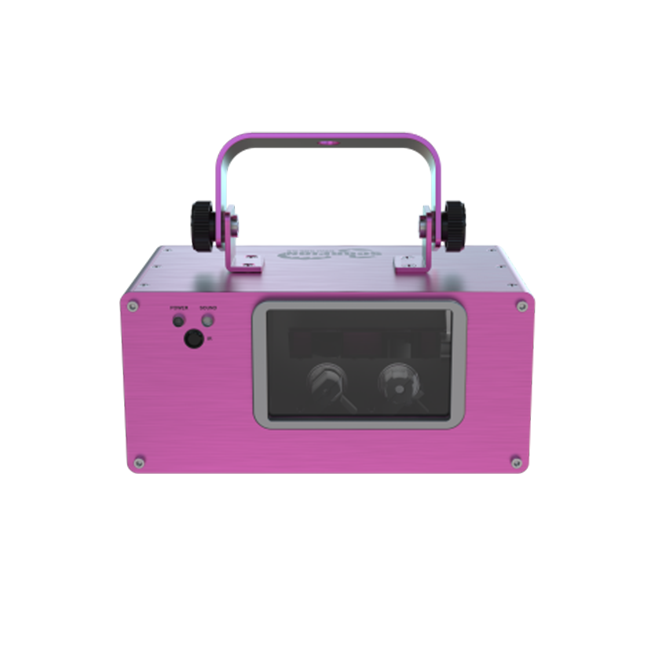

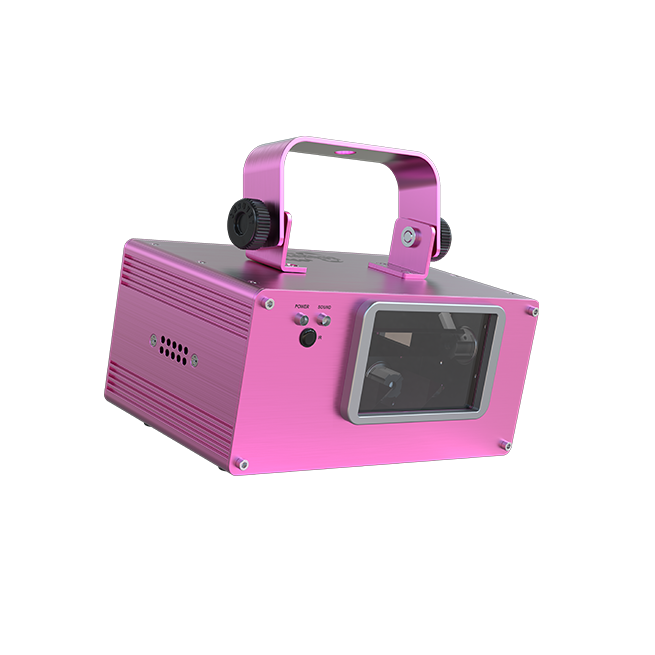

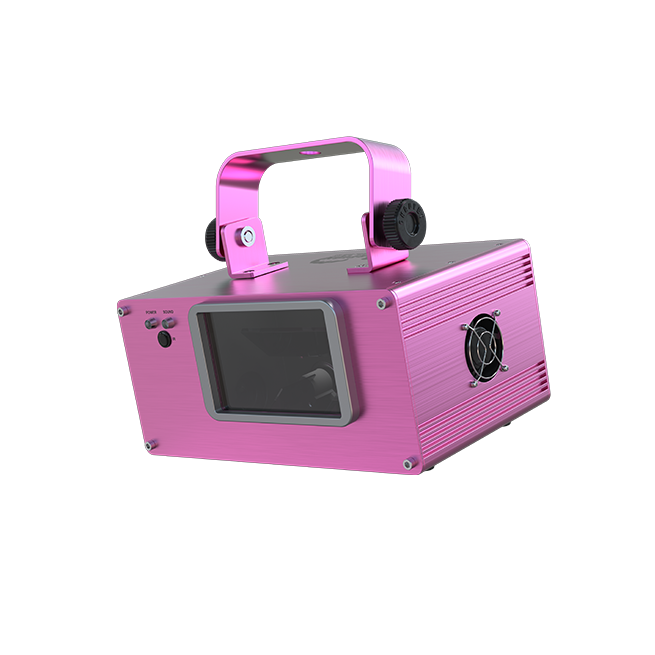

Chauvet DJ Dual RGB FAT BEAM™ aerial effect laser compatible with ILS

Overview of Chauvet DJ Dual RGB FAT BEAM™ aerial effect laser compatible with ILS

Scorpion Dual RGB ILS

• Compatible with ILS (Integrated Lighting System) products for wireless control

• Dual RGB FAT BEAMTM aerial effect laser, perfect for events with fog or haze

• D-FiTM USB compatibility for wireless Master/Slave or DMX control

• Create perfect color combinations by mixing red, green, and blue laser diodes

• Unique dual mirror output that makes a great centerpiece or side accent in pairs

• 32 built-patterns, including the popular “LaserSky” effect

• Wireless control using the optional IRC-6 remote

• Generate customized and ever-changing laser shows using

  programmable pan, tilt, and zoom effects with separate X, Y,

   and Z rolling effects and scan speed adjustment

• Fully FDA compliant, variance-free, and ready to use right

  out of the box

• Easily operate in automatic, Master/Slave, manual or sound-

  activated mode

• Fits best in the CHS - 40 VIP gear bag

Specifications

• • DMX Channels: 10

  • DMX Connectors: 3-pin XLR

  • Panand Tilt: 30°/30°

  • Light Source: 638 nm/30mW (red) laser diode, 520 nm/20

    mW (green) laser diode, 450 nm/ 50 mW (blue) laser diode

  • Strobe Rate: 0 to 27 Hz

  • Coverage Angle: 36°

  • Zoom Angle: 1° to 29°

  • Power Linking: 27 units @ 120V; 48units @ 230V

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power and Current: 20W, 0.3A @ 120V, 60Hz

  • Power and Current: 19W, 0.2A @ 230V, 50Hz

  • Bracket Mounting Hole: M12

  • Optional Controllers: IRC-6

  • Ambient Operating Temperature: 59°F to 95°F

    (15 °C to 35 °C)

  • Classified per 21 CFR 1040.10 & .11

  • Complies with US FDA CDRH laser safety standards 21

    CFR 1040.10 & 1040.11

  • Approvals: CE,FDA
