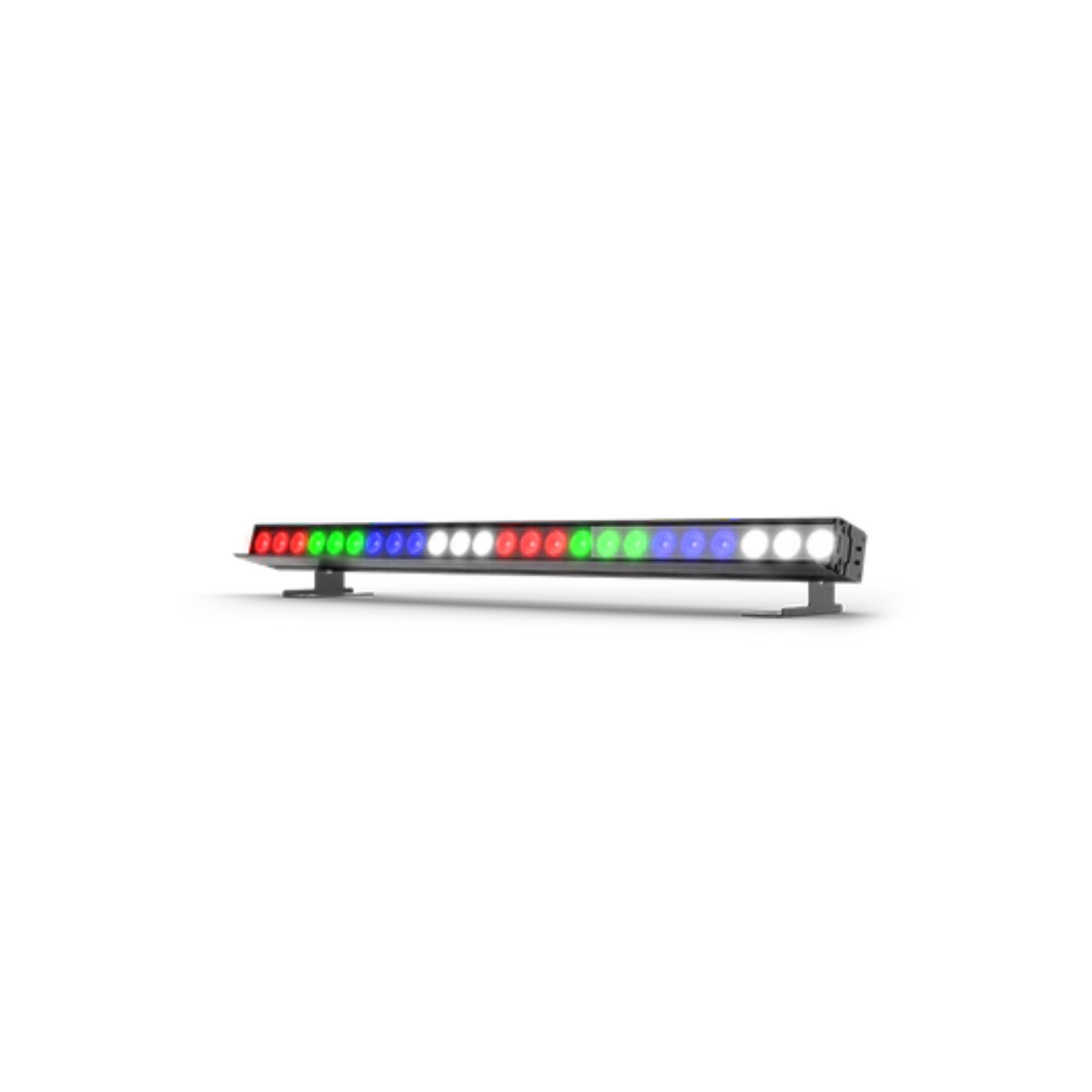

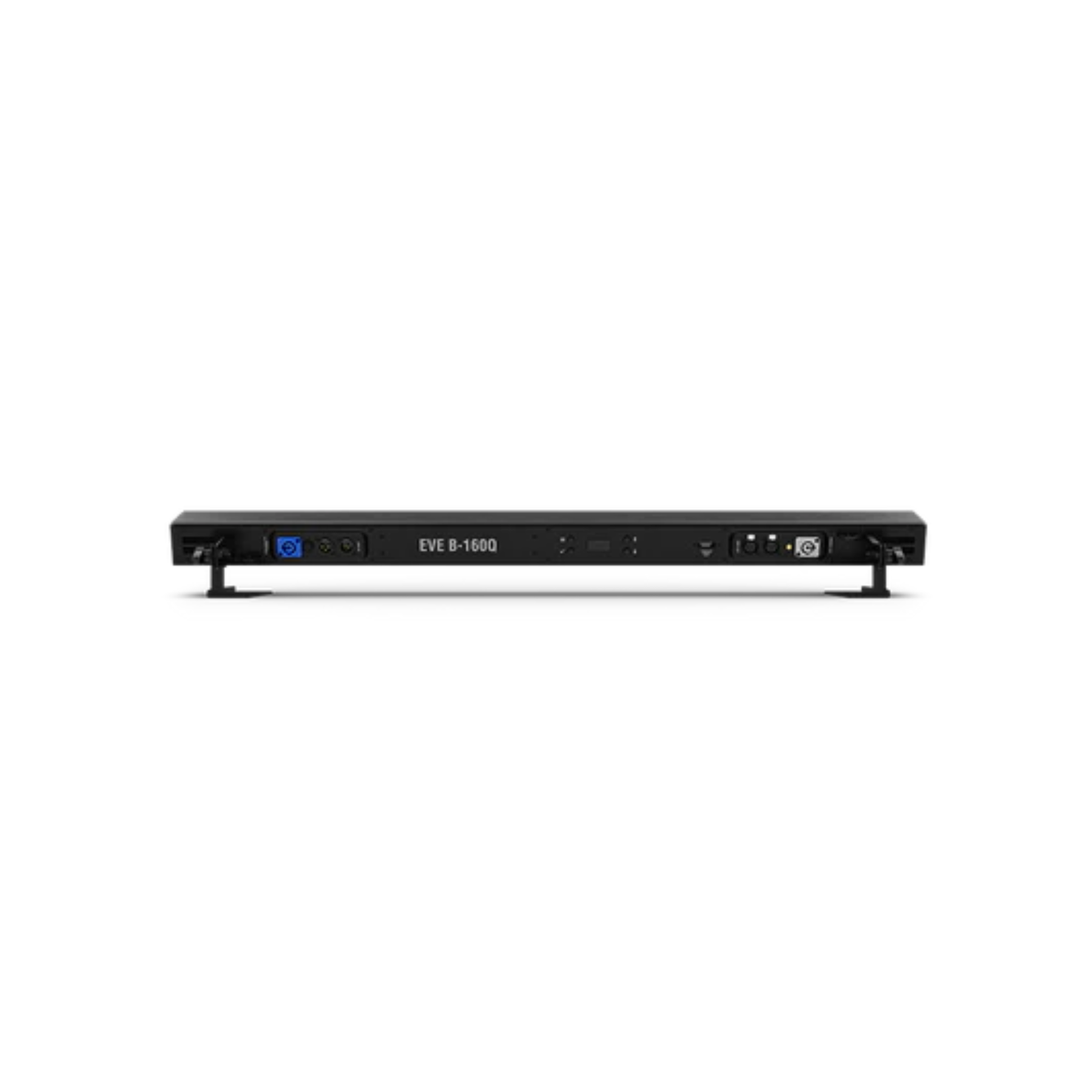

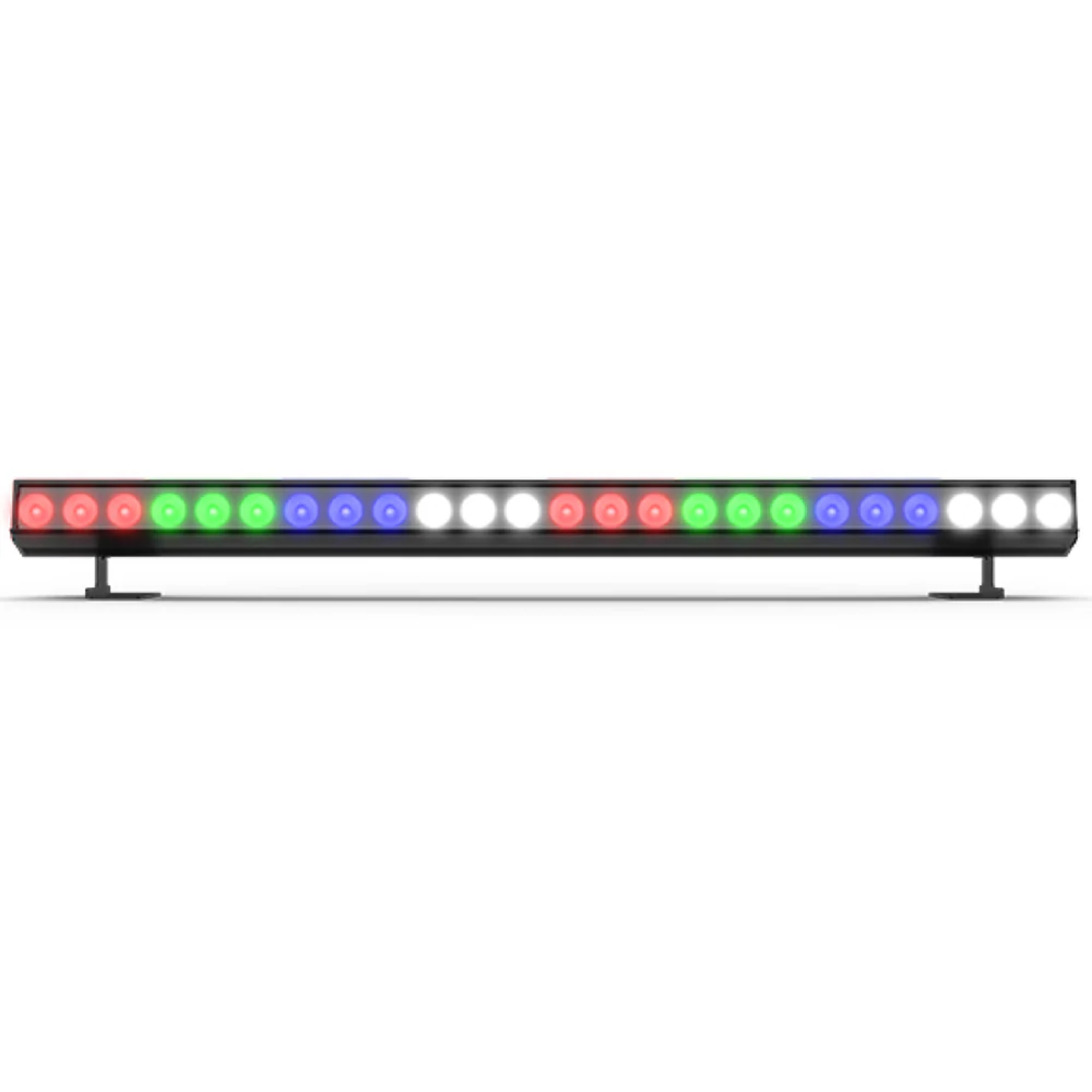

Chauvet DJ EVE B-160Q RGBW LED Linear Batten

CHAUVET DJ EVE B-160Q

Full-color RGBW LED batten with 8-zone control, designed for dynamic effects, consistent color matching across the EVE series, and both mobile and installation use.

Features

• RGBW LED System: 24 × 6.5 W LEDs for rich color mixing and strong output
• 8-Zone Control: Independent sections for dynamic chases and pixel effects
• Color Temperature Presets: Quickly select warm or cool whites without manual mixing
• Flicker-Free Output: Suitable for video and broadcast applications
• Wireless Control Ready: Compatible with D-Fi USB for wireless DMX or master/slave
• Beam Coverage: 15° beam / 30° field (24° / 52° with filter)
• Power Linking: Up to 7 units @120V or 11 units @230V
• Installation Ready: Designed for both touring and fixed installs

Technical Specifications

• DMX Channels: 3, 4, 11, or 39
• DMX Connectors: 3- and 5-pin XLR
• Light Source: 24 × RGBW LEDs, 50,000-hour lifespan
• Illuminance: 8,300 lux @ 2 m
• Lumens: 3,909
• Strobe: 0–20 Hz
• Input Voltage: 100–240 VAC, auto-ranging
• Power Consumption:
  • 105 W @ 120 V
  • 102 W @ 230 V
• Weight: 10.4 lb (4.7 kg)
• Dimensions: 39.4 × 5.9 × 7.6 in

What’s Included:

• EVE B-160Q
• Power cord
• Quick Reference Guide

A versatile LED batten offering zone-based effects, accurate white presets, and seamless integration with the EVE lighting range for stage, video, and installation use.
