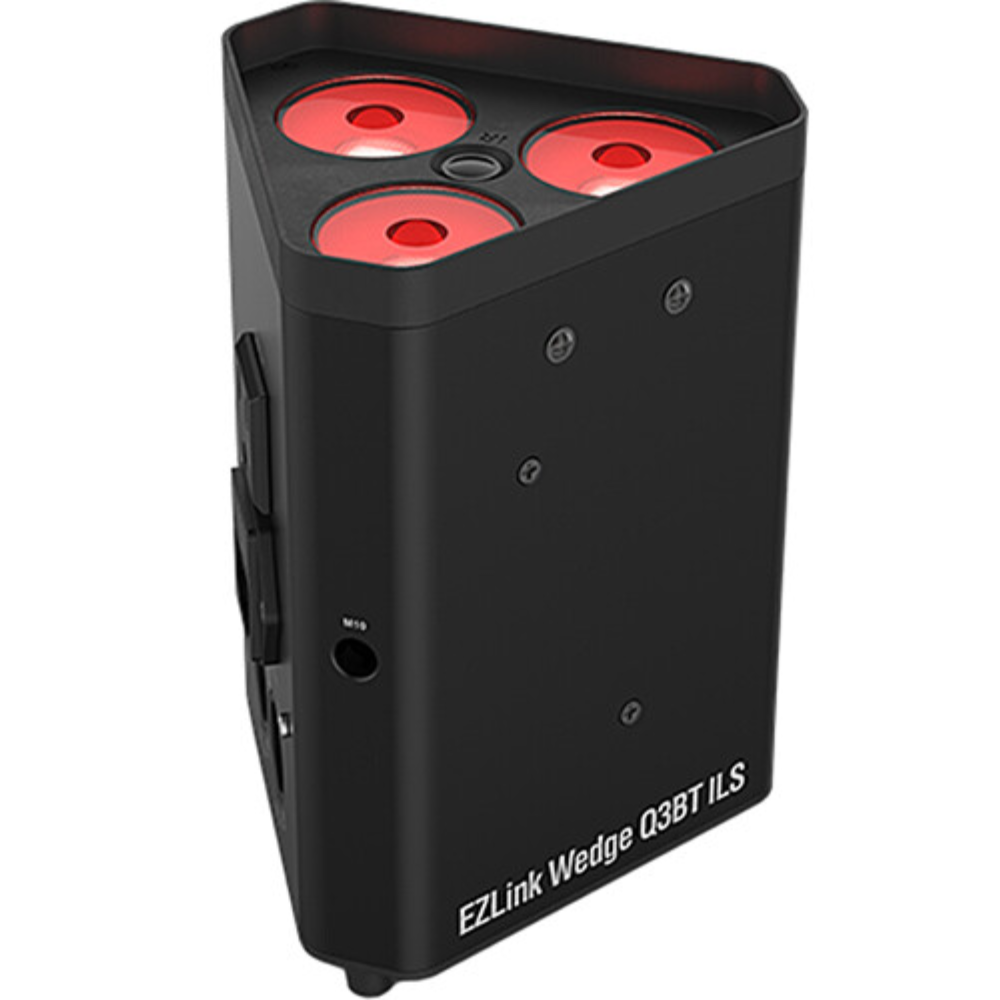

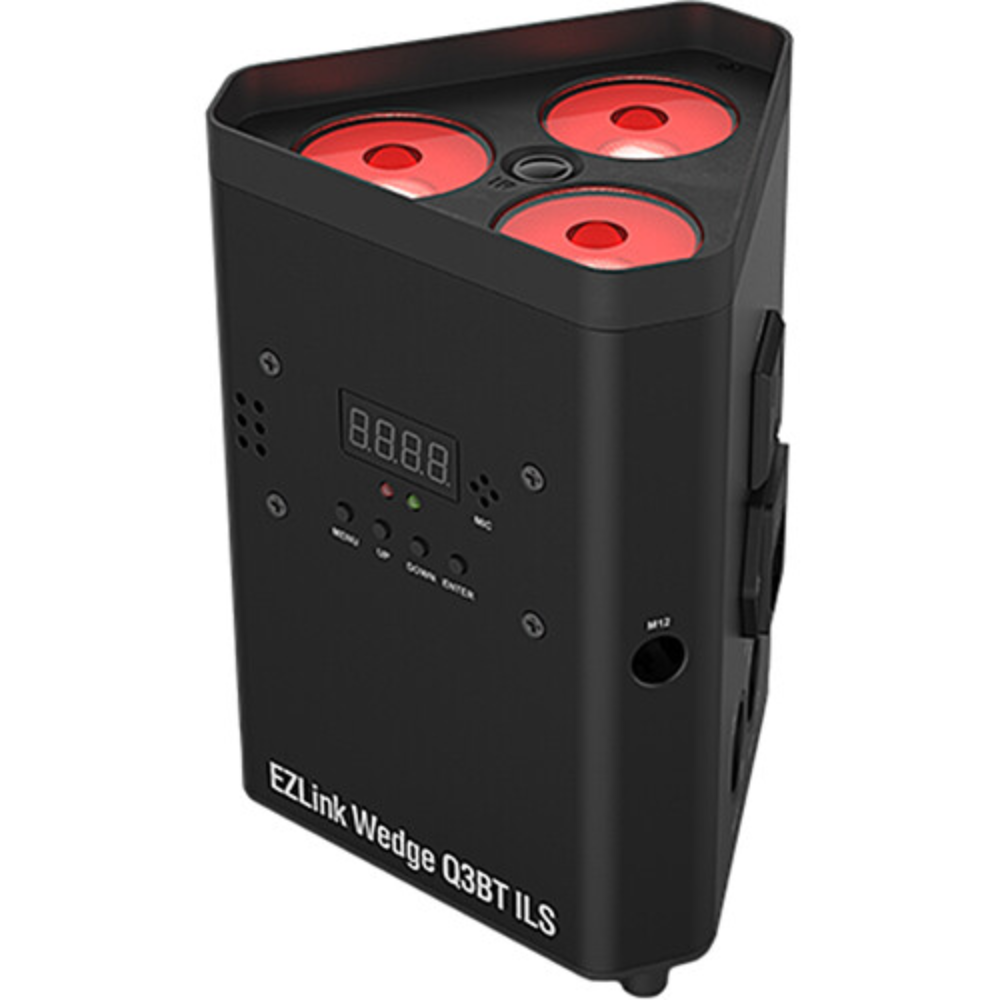

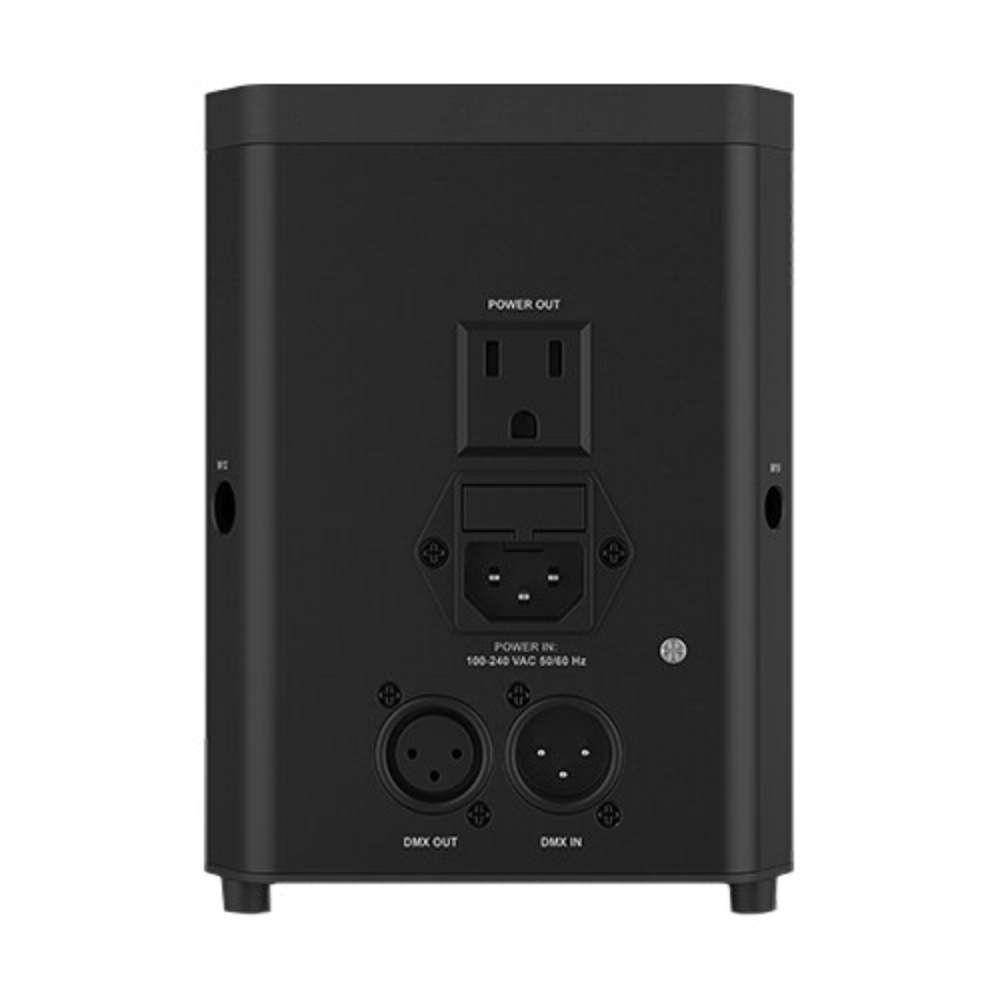

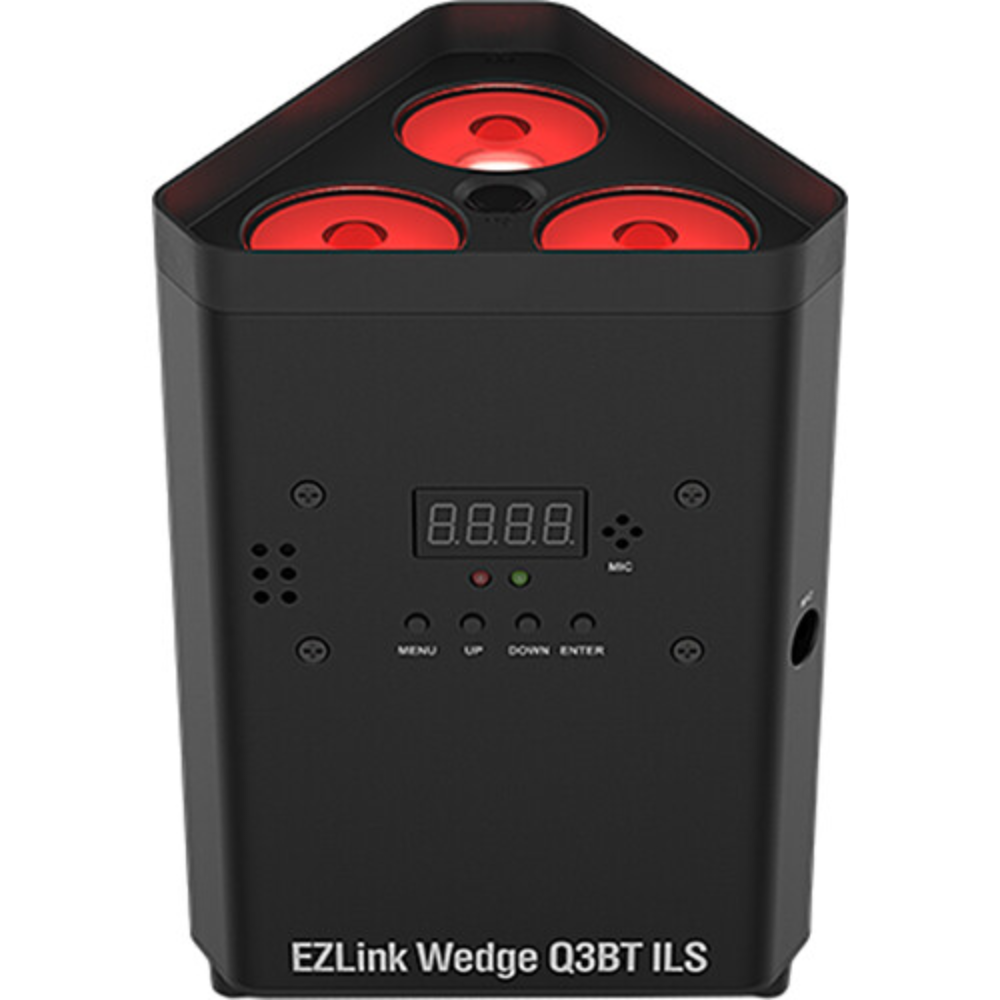

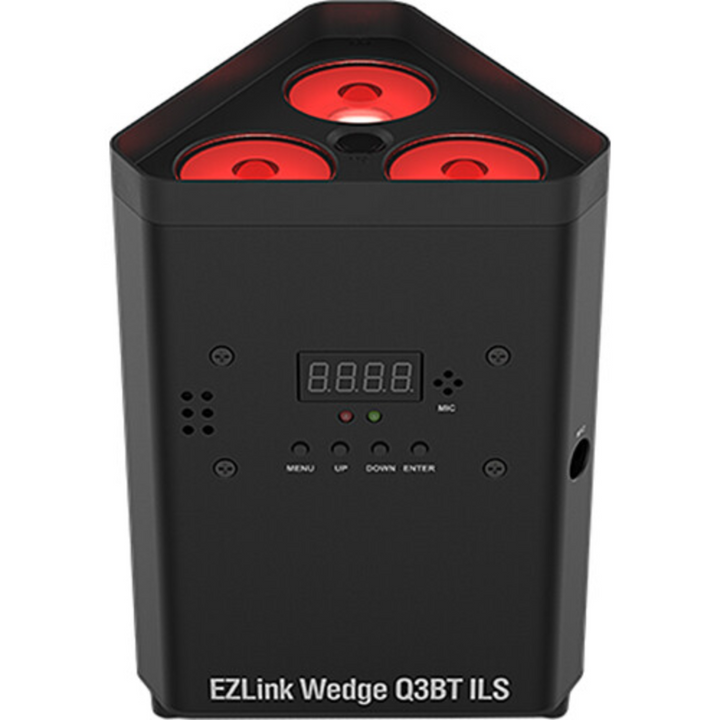

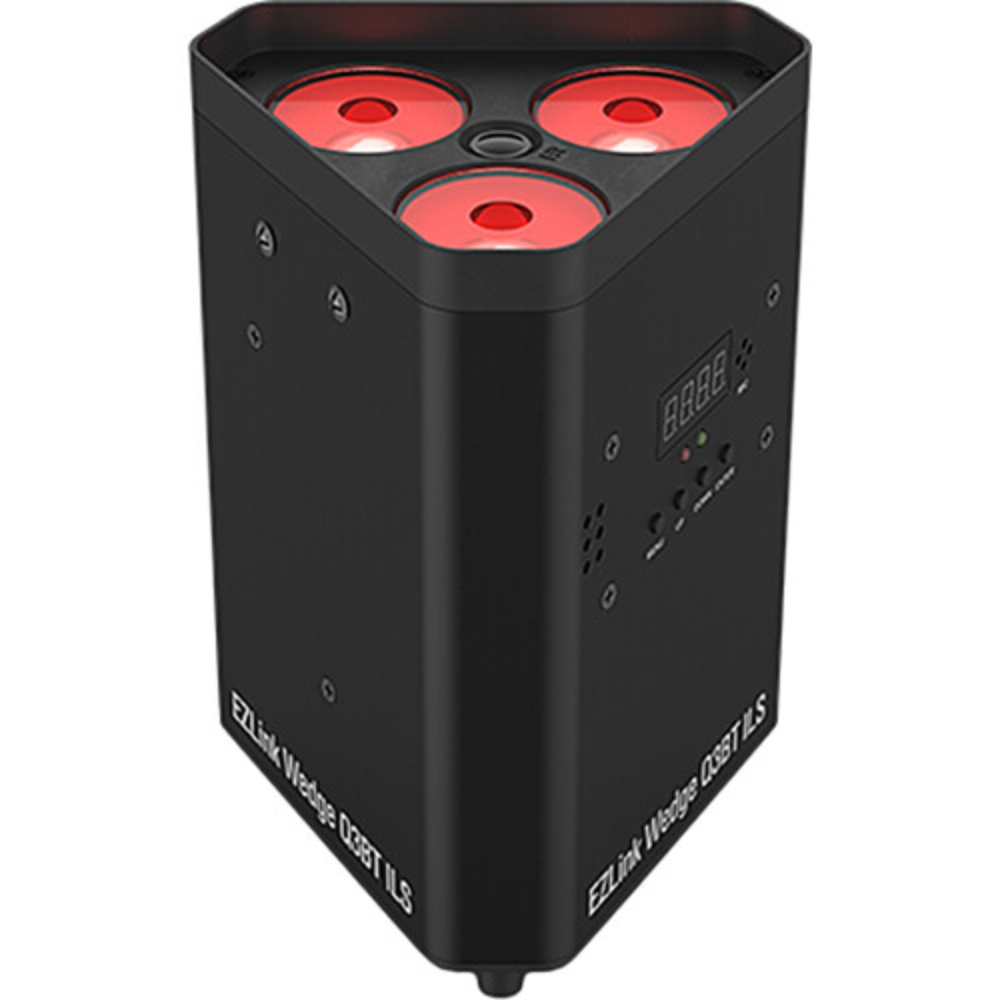

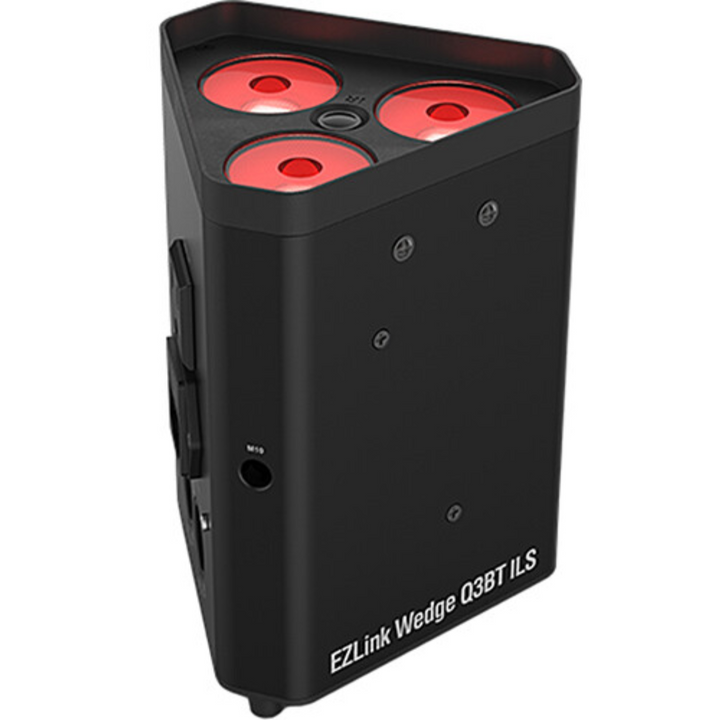

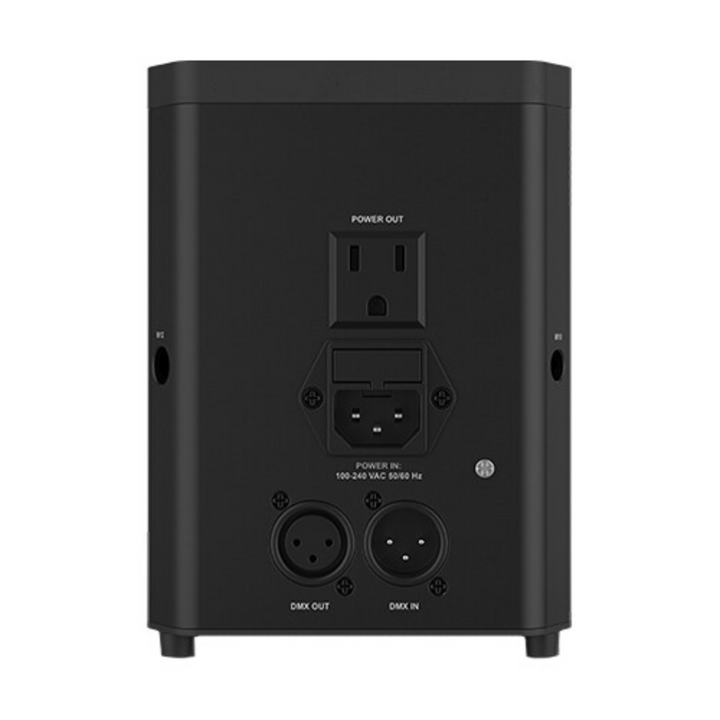

Chauvet DJ EZLINKWEDGEQ3BTILS Ezlink Wedge Quad Colored Linear Wash Light

EZLink Wedge Q3BT ILS is a 100% TRUE wireless, battery-operated, quad-color (RGBA) LED wash light solution. Its wedge-shaped design makes it the ideal fixture for venue corners, Trusst Goal Post, and Arch Kit truss systems. Enjoy a wide range of control options including the IRC-6 remote, ILS, Bluetooth, and DMX. Generate a broad spectrum of colors and achieve natural-looking color temperatures throughout your event thanks to punchy amber LEDs.

Highlights

• 100% TRUE wireless, battery-operated, quad-color (RGBA) LED wash light with built-in Bluetooth® wireless technology
• ILS compatibility for use in the ILS ecosystem
• Control directly from a smartphone or tablet without any additional hardware
• Convenient, wireless non-DMX control using the IRC-6 remote
• The wedge-shaped design makes it fit perfectly inside TRUSST® Goal Post and Arch Kit truss systems
• Generate a broad spectrum of colors and achi66.8eve natural-looking color temperatures with punchy amber LEDs
• Attaches to truss without the need for a bracket, using M10 or M12 threaded rig points
• Save time running cables and extension cords by power linking multiple units

Specs

Fixture Type
LED Panel

Light Source
3x Color LED - 5 W / 1.4 A

Colors
Amber, Blue, Green, Red

Beam Angle
13°

Control Protocols
DMX512, Internal

AC Input Power
100 to 240 VAC, 50/60 Hz

Power / Current Consumption
120 VAC, 60 Hz: 30 W / 0.5 A
230 VAC, 50 Hz: 28 W / 0.5 A

Mounting
Floor Base, M10 Threaded, M12 Threaded

Light

Fixture Type
LED Panel

Light Source
3x Color LED - 5 W / 1.4 A

Expected Lamp Life
50,000 Hours

Colors
Amber, Blue, Green, Red

Photometrics
130 fc / 1400 Lux at 6.6' / 2 m

Beam Angle
13°

Field Angle
25°

Shutter / Strobe
Electronic

Iris
No

Zoom Adjustment
No

Dimming
Electronic, 0 to 100%

Performance

Operating Modes
Automatic, DMX, Primary/Secondary, Sound-Active, Static Color

Macros / Programs
Auto-Program
Sound-Active
Fade

Effects
Strobe

Strobe Rate
0 to 20 Hz

Gobos
No

Control

Control Protocols
DMX512, Internal

DMX Channel Modes
2 Mode(s):
4 / 8-Channel

Display / Controls
LED / 4-Button

Remote Control
IR Remote (with Optional Equipment)

Mobile App Compatible
Yes: Android & iOS
App Name: BTAir
Functionality: Remote Control

Connectivity

Wireless
Bluetooth / IR

Power

AC Input Power
100 to 240 VAC, 50/60 Hz

AC Power Connector
Not Specified by Manufacturer

Power / Current Consumption
120 VAC, 60 Hz: 30 W / 0.5 A
230 VAC, 50 Hz: 28 W / 0.5 A

Power Linking
16 Units at 120 VAC
23 Units at 230 VAC

Battery Type
Lithium

Approximate Battery Life
All On: Up to 9 Hours
Single Color: Up to 20 Hours

Battery Charging Time
5 Hours

Environmental

Environmental Protection
Dust-Resistant (IP20)

Operating Temperature
104°F / 40°C

Physical

Mounting
Floor Base, M10 Threaded, M12 Threaded

Included Accessories
1x Power Cable

Duty Cycle
No

Exterior Color
Black

Certifications
CE, RoHS, UKCA, FCC

Dimensions
6.8 x 4.3 x 4.3" / 17.3 x 10.9 x 10.9 cm

Weight
2 lb / 0.9 kg
