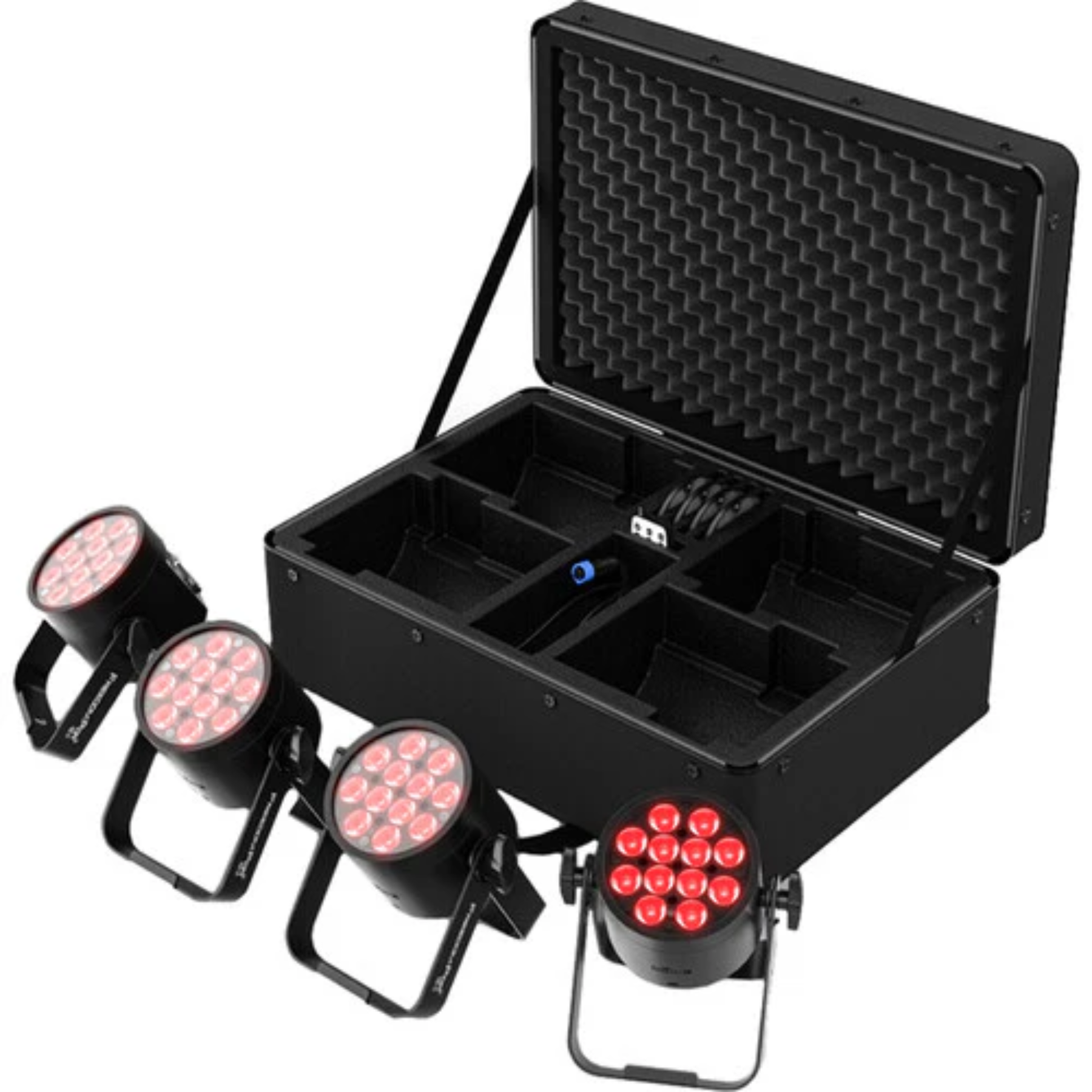

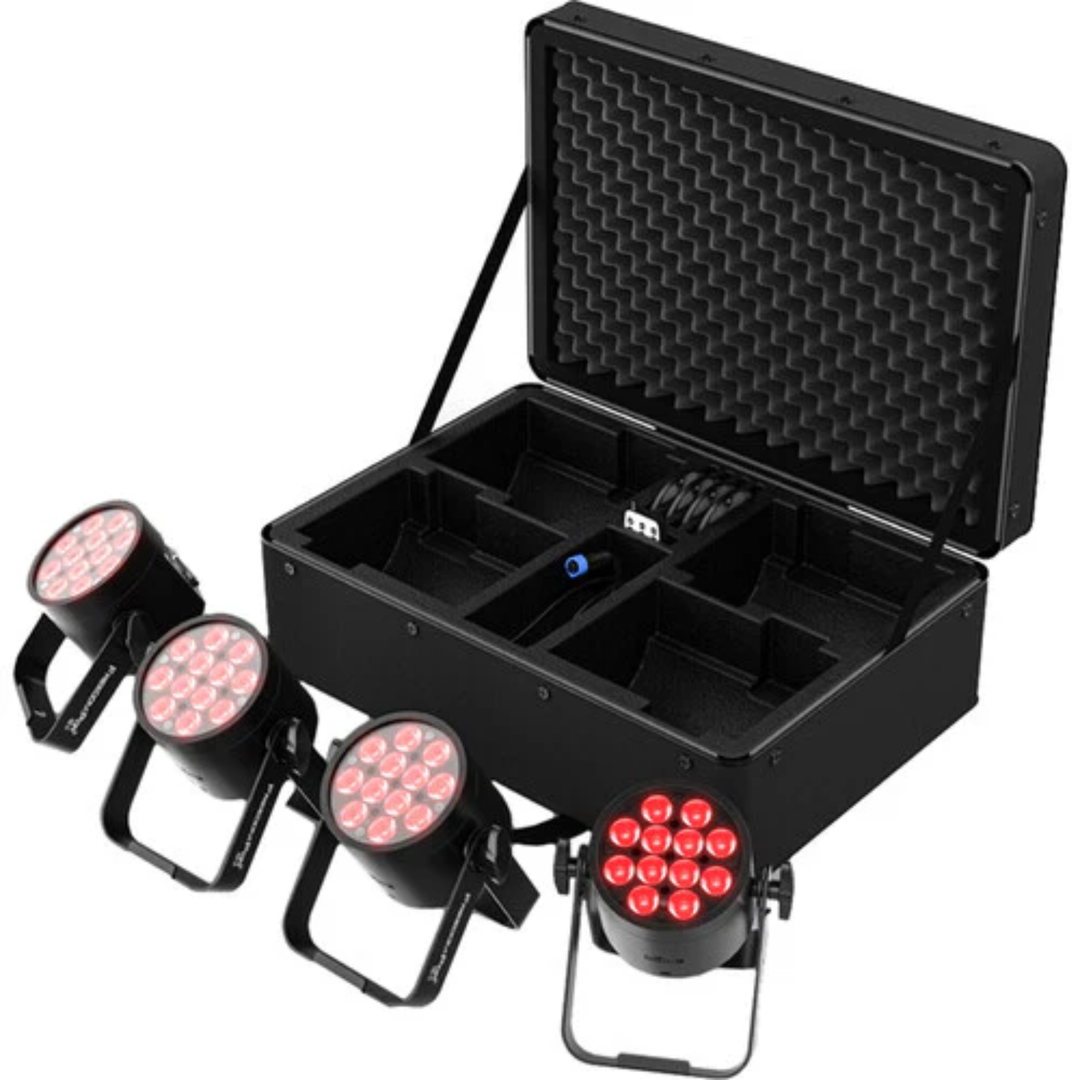

Chauvet DJ FREEDOMPARQ12X4 Battery-Powered RGBA LED Fixture (4-Light Kit)

The Freedom Par Q12 Battery-Powered RGBA LED Fixture 4-Light Kit from CHAUVET DJ is a complete lighting solution for lighting designers, event coordinators, and mobile DJs in search of four wireless, battery-operated LED fixtures with perfect color blending. This kit packs four lights, a multi-charger, a convenient RFC remote, and a carry case. With quad-color RGBA (red, green, blue, amber) and 100% wireless capability, each Freedom Par Q12 delivers bright, amber-infused color washes for venue uplighting or dance floor color washing. Each Freedom Par Q12 is equipped with 12 quad-color LEDs, which enable a 12° beam spread and 23° field angle. Another highlight is smooth LED fading with built-in dimming curves. This kit offers great portability by adding a robust carry case that holds it all.

Maximum Control

The Freedom Par Q12's settings can be easily adjusted onboard thanks to a convenient OLED screen, and they can also be controlled via 3-pin XLR DMX (4, 6, or 14 channels). A built-in RF receiver allows the use of the included RFC remote or the optional RFC XL, and a built-in D-Fi transceiver supports wireless control.

• The included RFC remote does not require line of sight
• The included multi-charger charges multiple fixtures simultaneously

Battery-Operation

Each light runs for up to seven hours (all on) or up to 9.5 hours (single color), while the battery recharges in approximately four hours. Onboard charge and discharge protection circuitry ensures an extended lifespan of the fixture.
Convenience

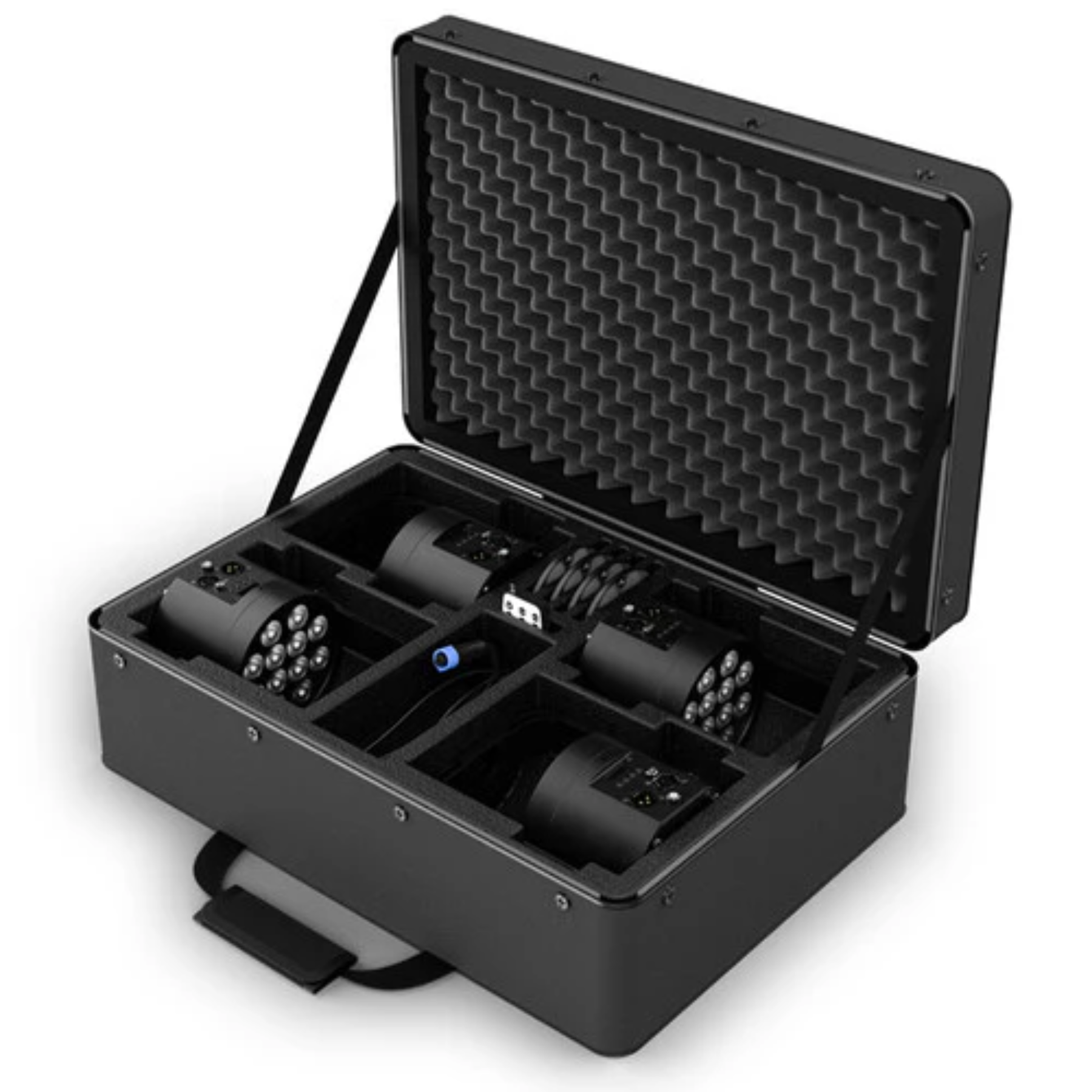

Adjust the projection angle using the spring-loaded kickstand and use the fixture on the floor or suspend overhead. Its compact and lightweight design makes it easy to mount inside trussing.

Additional Details

• 50,000-hour life expectancy
• Strobe rate: 0 to 20 Hz
• Output: 4185 lux at 6.5' (bare)
• Lumens: 1255
• Operating frequency: 2.412 to 2.484 GHz
• Maximum unobstructed distance: 600'
• Compact at 8.7 x 7.8 x 4.8" and lightweight at 5.4 lb

Features

• Four Lights, Remote, Charger & Case
• 12 Quad-Color RGBA LEDs
• Output: 4185 Lux at 6.5' per Light
• 12° Beam Angle, 23° Field Angle
• Built-in D-Fi Transceiver
• Wireless Control; 3-Pin XLR DMX
• Rechargeable Battery; 7-Hour Runtime
• Built-In Dimming Curves
• Compact & Lightweight Design

Specifications

LIGHT

Item Type: 4x PAR

Light Source:
PAR: Color LED

Expected Lamp Life: 50,000 Hours

Colors:
PAR: Amber, Blue, Green, Red

Photometrics:
PAR:

• 388 fc / 4185 Lux at 6.6' / 2 m
• 93 fc / 1005 Lux at 13.1' / 4 m

Lumen Output: 1255 Lumens

Beam Angle:
PAR: 12° Unmodified

Field Angle:
PAR: 23° Unmodified

Shutter / Strobe: Electronic

Zoom Adjustment: No

Dimming: Electronic, 0 to 100%

PERFORMANCE

Operating Modes: DMX, Standalone

Strobe Rate: 20 Hz

Gobos: No

CONTROL

Control Protocols: DMX512

DMX Channel Modes: 3 Mode(s): 4 / 6 / 14-Channel

Display / Controls: OLED

Remote Control:

• D-Fi (with Included Equipment)
• RF Remote (with Included Equipment)

Mobile App Compatible: No

CONNECTIVITY

Inputs / Outputs: No

Wireless: 2.4 GHz Radio/RF / Wireless DMX

Wireless Range: 600' / 182.9 m

POWER

AC Power Connector: No

Input Power:

• 24 VDC
• 120 to 230 VAC, 50 / 60 Hz

Fuse: No

Power / Current Consumption:

• 120 VAC, 60 Hz: 22 W / 0.3 A
• 230 VAC, 50 Hz: 22 W / 0.2 A

Power Linking: No

Approximate Battery Life:

• Up to 7 Hours
• Up to 9.5 Hours

Battery Charging Time: 4 Hours

PHYSICAL

Environmental Resistance: No

Mounting: Floor Base

Included Accessories: 1x Case (Light/s)

Duty Cycle: No

Exterior Color: Black

Certifications: CE, FCC, RoHS

Weight: 16 lb / 7.3 kg (System)

PACKAGING INFO

Package Weight: 27.565 lb

Box Dimensions (L × W × H): 24.1 × 16.9 × 9.5"
