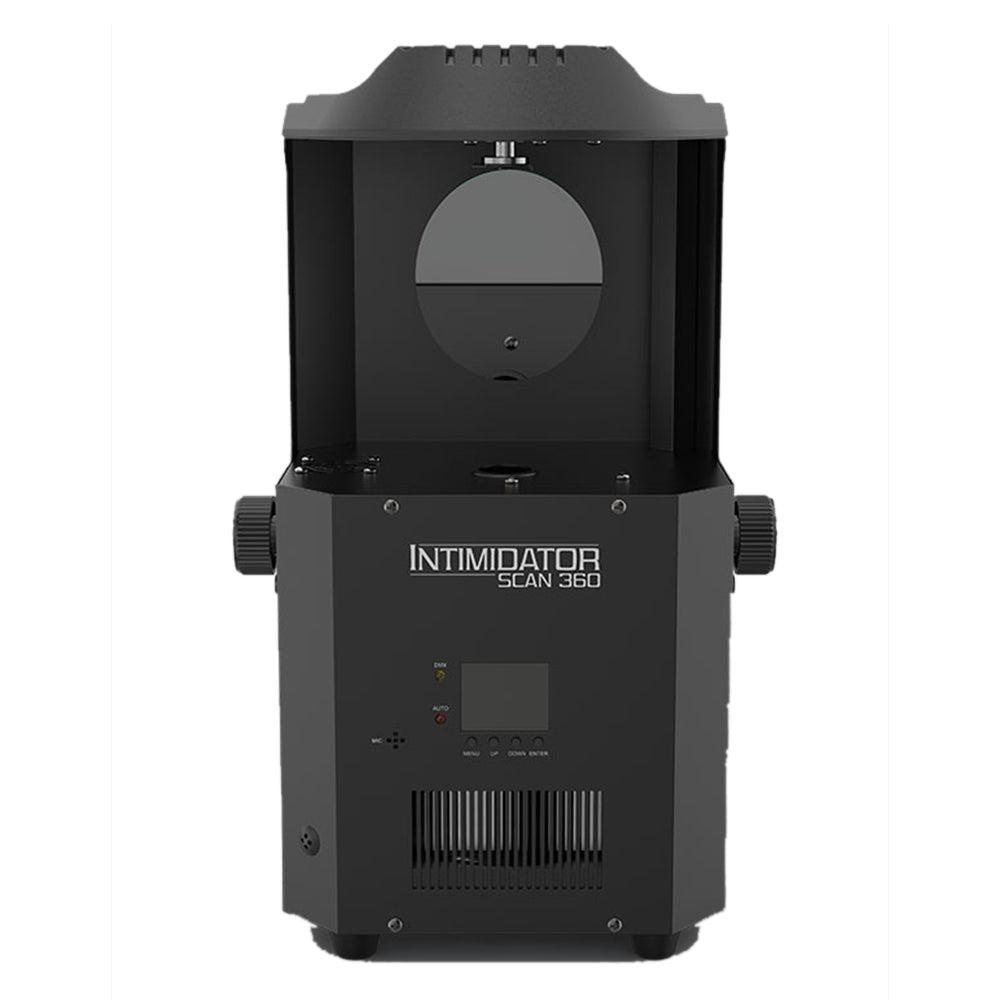

Chauvet DJ INTIMSCAN360 LED Scanner

Razor sharp and whip-fast beams to dazzle dance floors are at hand with Intimidator Scan 360, a feature-packed scanner fitted with a 100 W LED designed for mobile performances. Intimidator Scan 360 packs a crisp, 3-facet rotating prism to split the beam and cover large areas. Motorized focus lets you project crisp gobos from nearly any distance. Intimidator Scan 360 is great for camera work featuring high-frequency LED dimming for flicker-free video operation. Set, save, and recall 1 scene manually directly from the full-color LCD display. Convenient, wireless, non-DMX control is available using the optional IRC-6 remote.

Specifications

• DMX Channels: 8 or 12
• DMX Connectors: 3-pin XLR
• Pan and Tilt: 172°/39°
• Colors: 8 + white, split colors, continuous scroll at variable speeds
• Gobos: 7 + open (6 metal, 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Light Source: 1 LED (white) 100 W, (4.2 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 20 Hz
• Beam Angle: 21°
• Illuminance: 4,050 lux @ 2 m
• Power Linking: 4 units @ 120 V; 7 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 147 W, 1.9 A @ 120 V, 60 Hz
• Gobo Size: Gobo Size (metal): 19.75 mm outside, 14mm image, 1 mm max thickness
• Weight: 12.6 lb (5.7 kg)
• Size: 10 x 6.1 x 16.3 in (255 x 155 x 415 mm)
• Approvals: CE
• Prism: 3-facet round, rotation at variable speeds
• Power and Current: 143 W, 1.1 A @ 230 V, 50 Hz
• Optional Controllers: IRC

WHAT'S INCLUDED

• Power cord
• Quick Reference Guide
