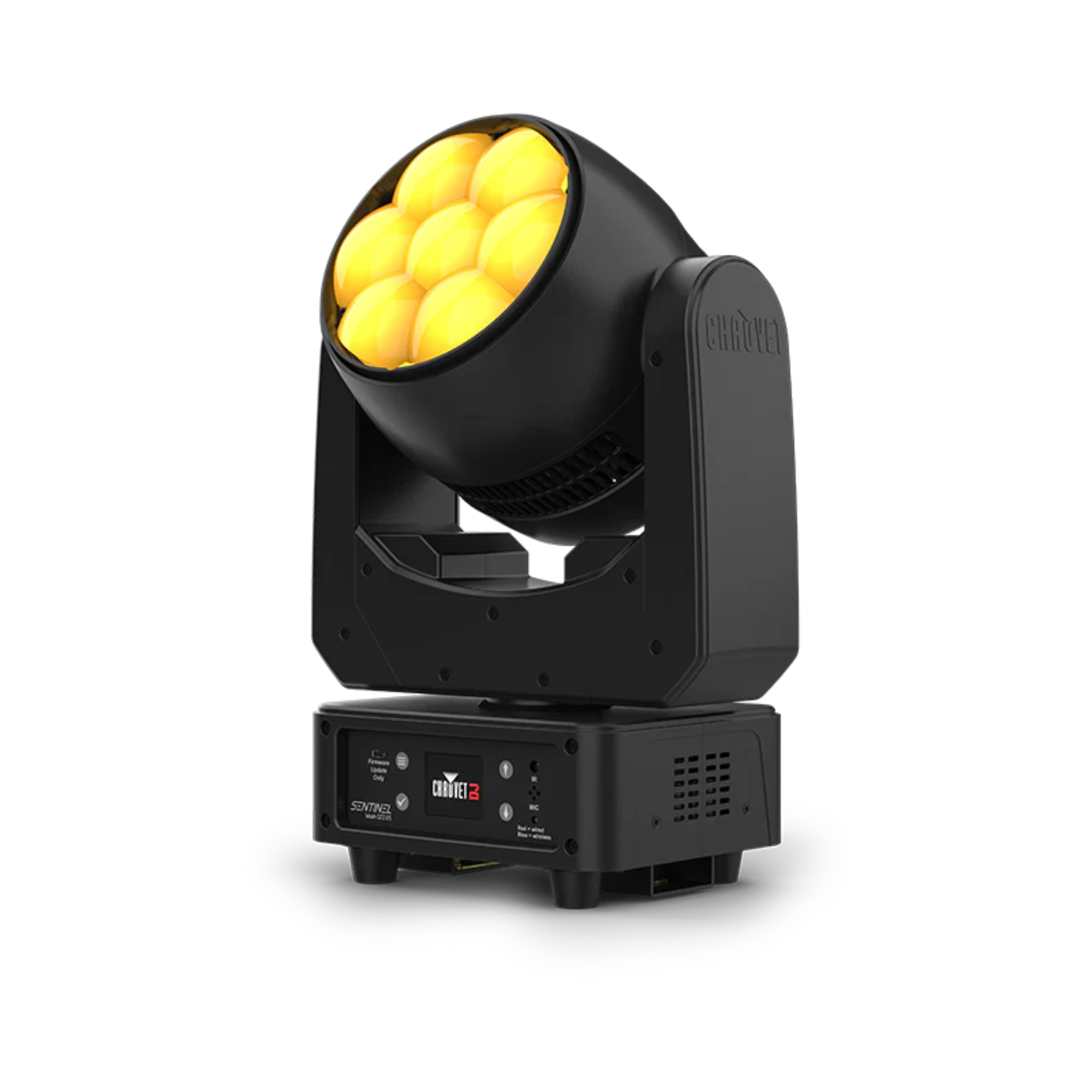

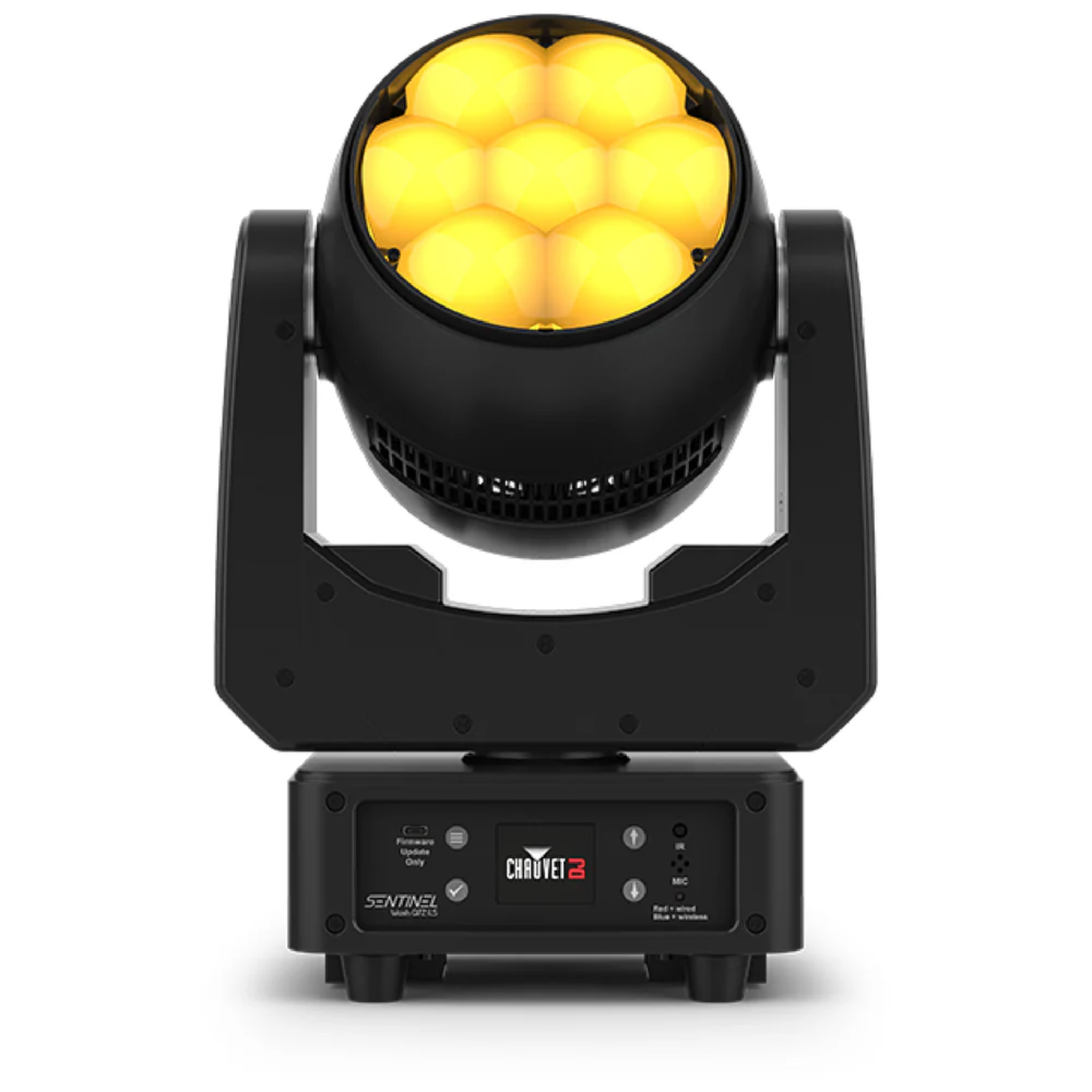

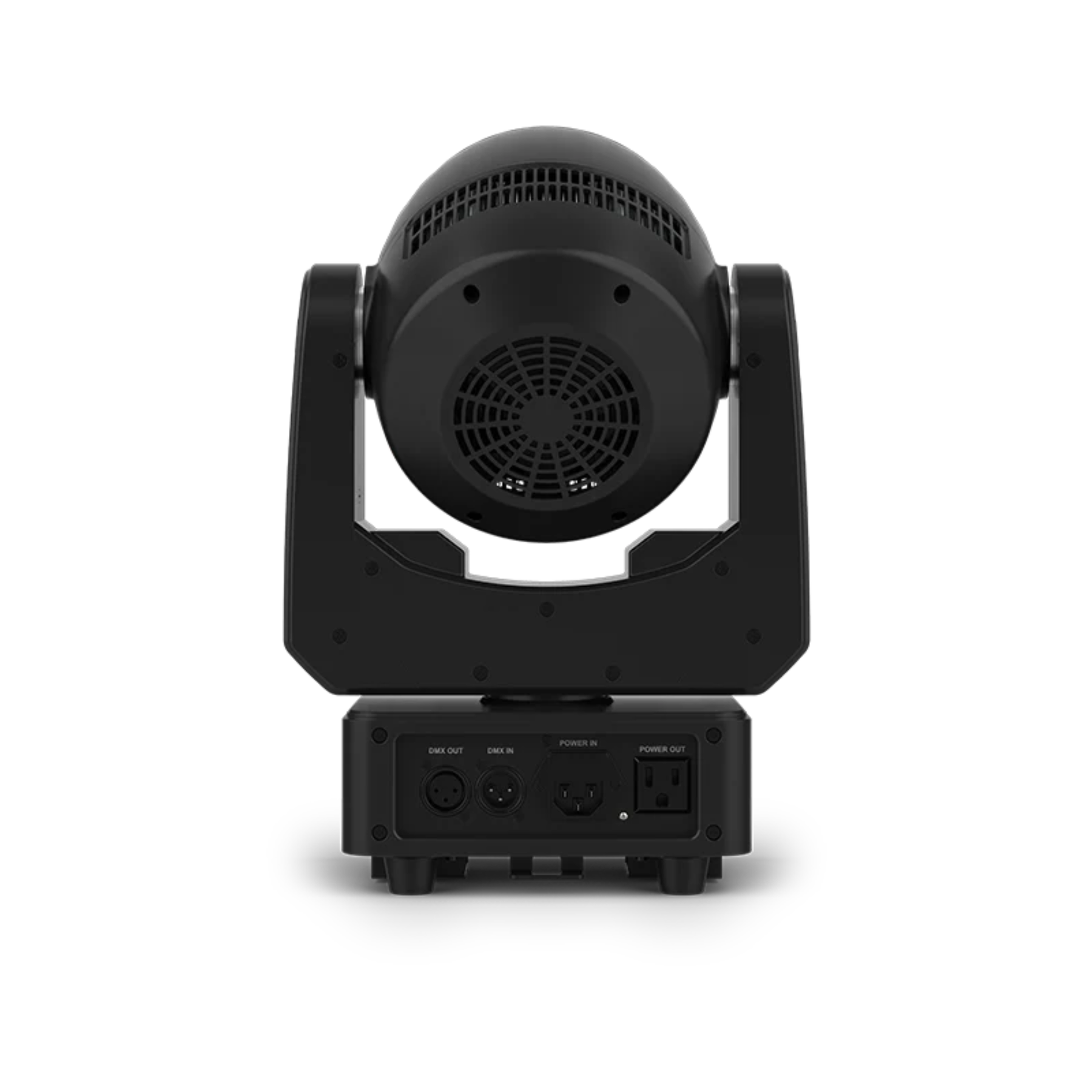

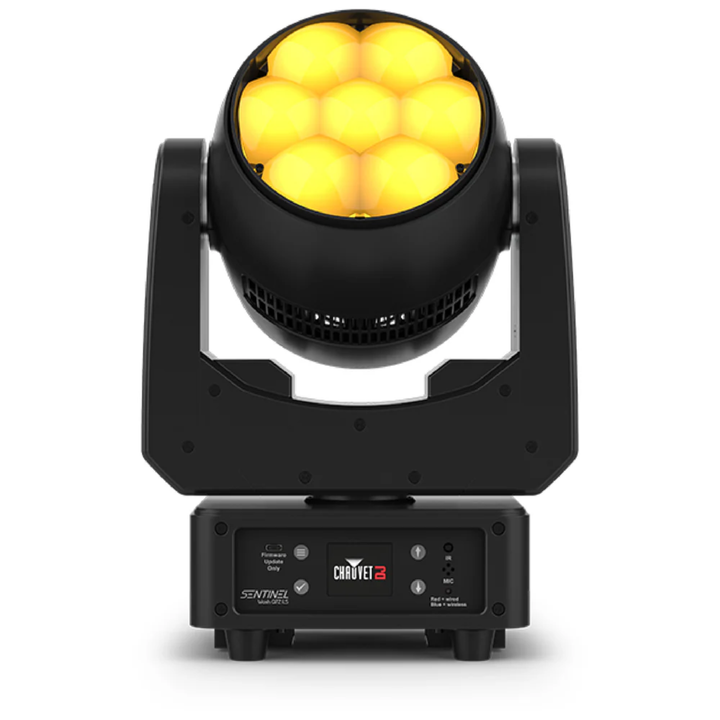

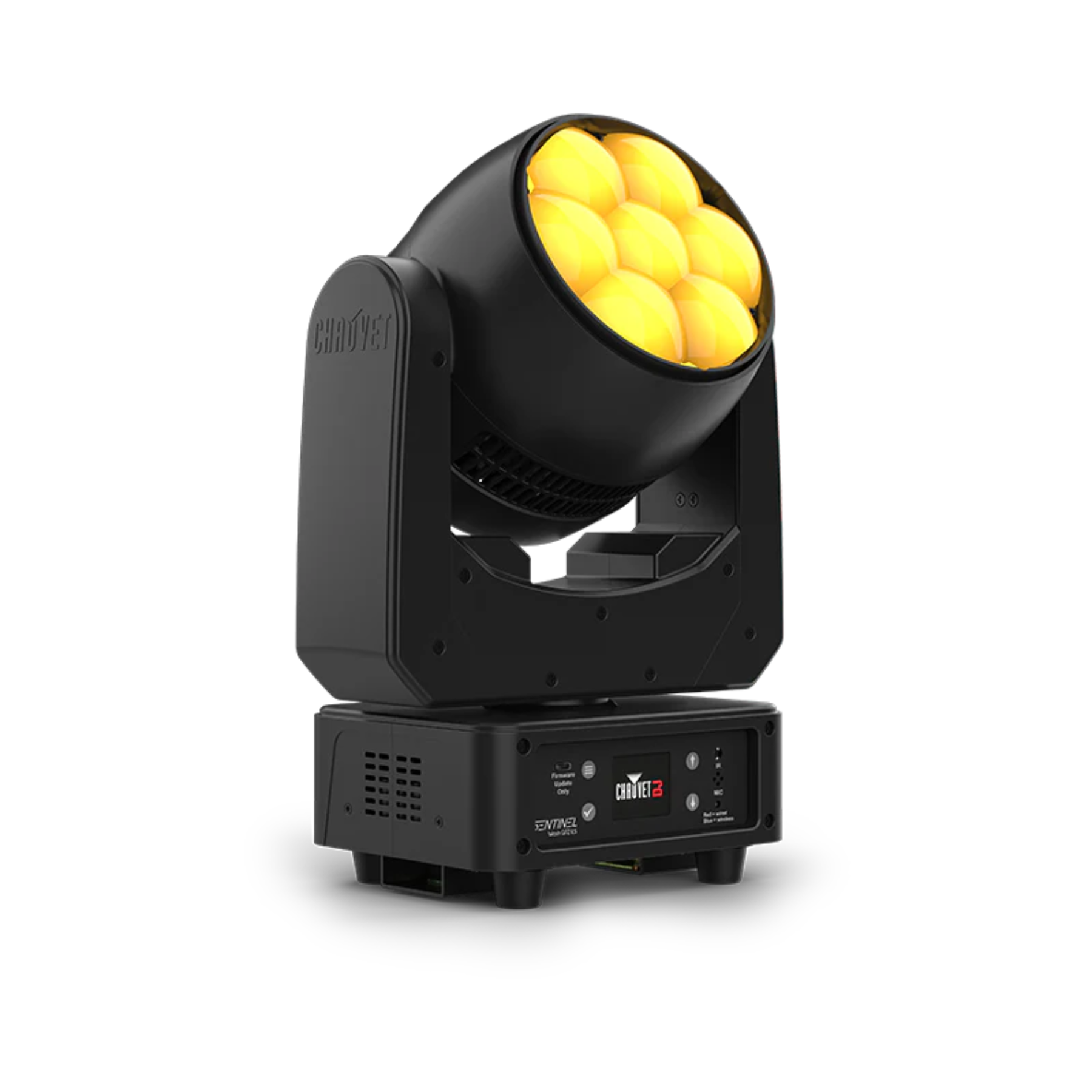

Chauvet DJ SENTINELWASHQ7ZILS Sentinel Wash Q7Z ILS Moving-head Wash Fixture

CHAUVET DJ Sentinel Wash Q7Z ILS

Compact RGBW moving head wash with motorized zoom and integrated wireless control, designed for flexible coverage from tight beams to wide stage washes.

Features

• RGBW LED Engine: 7 × 20 W quad-color LEDs delivering saturated colors and smooth mixing
• Motorized Zoom: Adjustable beam angle from 5° to 27° for short- and long-throw applications
• Wireless Control: Built-in D-Fi transceiver for wireless DMX or ILS operation
• ILS Compatibility: Seamless integration within the ILS ecosystem for synchronized light shows
• Totem Mode: Keeps beams focused on the dance floor while maintaining movement effects
• Pan/Tilt მოძრაობ: 540° pan / 225° tilt with selectable ranges for precise positioning
• User Interface: Full-color LCD display for quick setup and navigation
• Power Linking: Link up to 6 units @120V or 12 units @230V

Technical Specifications

• DMX Channels: 9 or 14
• Connectors: 3-pin XLR
• Light Source: 7 LEDs, 140 W total, 50,000-hour lifespan
• Zoom Range: 5°–27°
• Strobe: 0–20 Hz
• Illuminance:
  • 30,537 lux @ 2 m (5°)
  • 3,390 lux @ 2 m (27°)
• Power Consumption: 148 W @ 120 V / 146 W @ 230 V
• Input Voltage: 100–240 VAC, auto-ranging
• Weight: 13.8 lb (6.3 kg)
• Dimensions: 14.2 × 10 × 7.41 in

What’s Included

• Sentinel Wash Q7Z ILS
• Power cord
• Hanging bracket
• Quick Reference Guide

Ideal for mobile DJs, small-to-medium venues, and event production requiring compact moving wash fixtures with wireless control and fast deployment.
