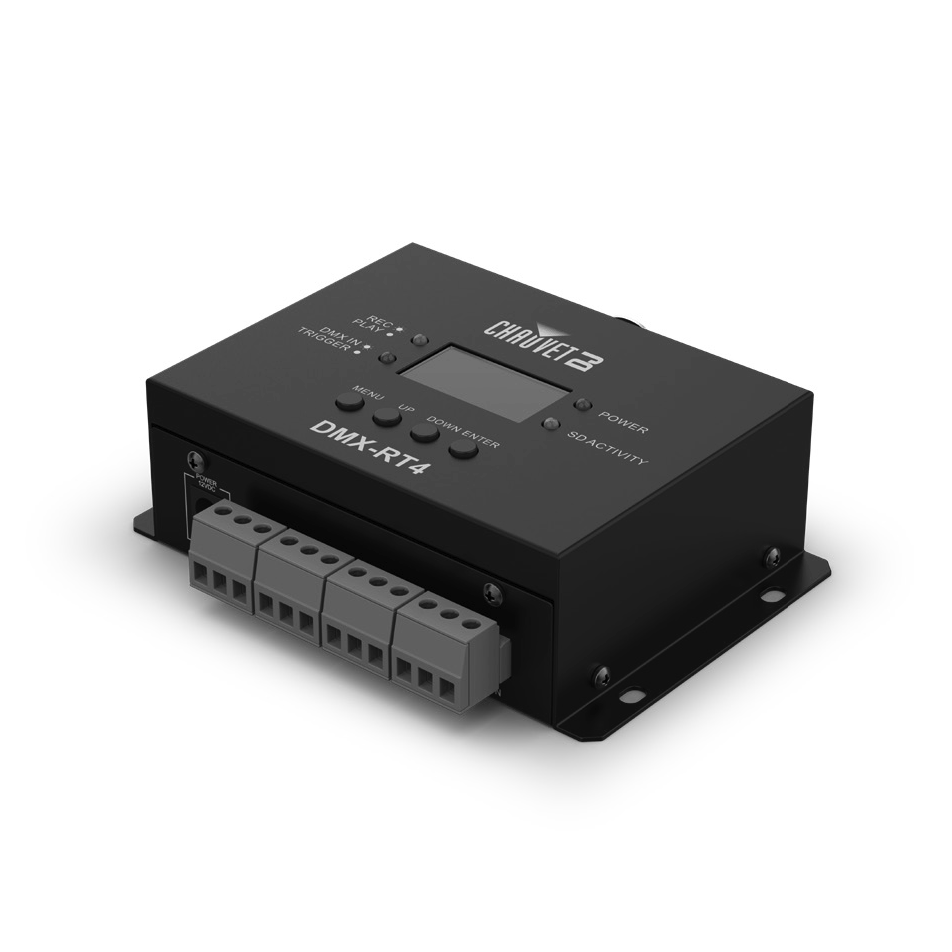

Chauvet DMX-RT4 DMX Recording / Playback Device with 4 Independent Triggers
DMX-RT4
Payment plans from Affirm, learn more
- Chauvet DJ
- Shipping Calculated at checkout, most in stock products ship same day
• DMX recording and playback device with 4 independent triggers
• Each trigger can be programmed and triggered separately
• Copy, backup and transfer show files using the USB-C connector
• Standard headphone connector (3.5mm) connects to external audio systems for amplified playback
• Password protection ensures shows will not be altered
• Normally Open (N/O) or Normally Closed (N/C) triggers allow the use of most common sensors
• Supplies DC voltage through the terminal block to power specific triggers
Specifications:
• DMX Connectors: 3-pin XLR
• Compatible audio formats: MP3, (32-320kbps), WAV (8 or 16 bit only)
• Onboard memory: 32 GB
• Filename max length (MP3/WAV): 12 characters
• Filename max length (show file): 11 characters
• Trigger Type: auto, toggle, N/O or N/C
• Terminal Block output: 12 VDC, 100 mA
• Input Voltage: 12 VDC, 1 A (external power supply: 100 to 240 VAC, 50/60 Hz)
• Power and Current: 1 W, 0.03 A @ 120 V, 60 Hz
• Power and Current: 1 W, 0.03 A @ 230 V, 50 Hz
• Weight: 0.4 lb (0.2 kg)
• Size: 4.8 x 3.2 x 1.5 in (122 x 81 x 38 mm)
• Approvals: CE, UKCA, RoHS
