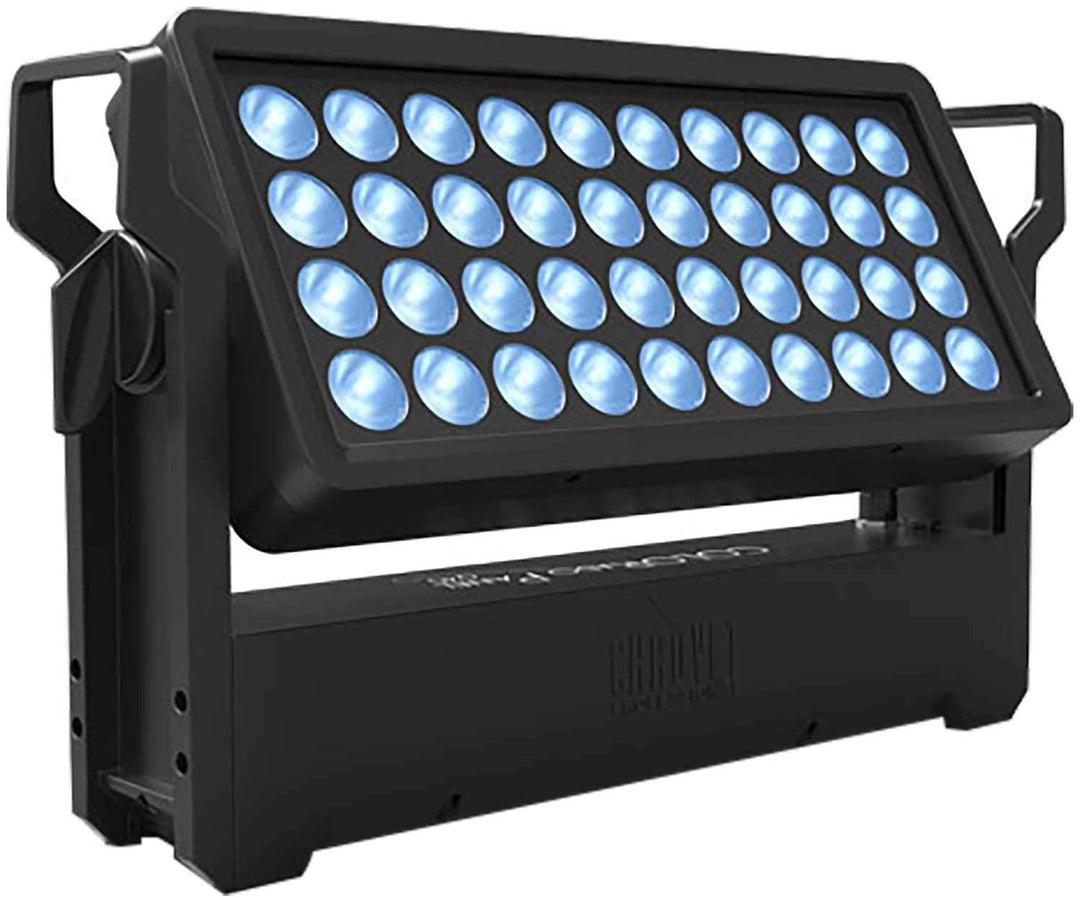

Chauvet Pro COLORADO-PANEL-Q40-FP

COLORado Panel Q40 is a powerful IP65-rated rectangular wash light that features 40 15 W RGBW LEDs capable of flawless edge-to-edge color mixing. This rugged indoor/outdoor unit can be manipulated through adjustable beam angles and includes a magnetic flood filter to produce a wider, but still even area wash. Its outdoor rated power and data connectors allows for easy connections without propriety cabling. Control it as you see fit with W-DMX and RDM. OPTICAL Light Source: 40 LEDs (quad-color RGBW) 15 W, (970 mA), 50,000 hours life expectancy Color Temperature (range): 2800 to 10000 K Installed Optics: 15° Beam Angle (w/o filter): 15° Beam Angle (w/filter): 24° Field Angle (w/o filter): 28° Field Angle (w/ filter): 48° Lumens: 16,589 Lumens (w/filter): 14,294 Illuminance (w/o filter): 9,480 lux @ 5 m Illuminance (w/ filter): 3,045 lux @ 5 m Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz DYNAMIC EFFECTS Tilt Ranges: 0° to 150° Dimmer: Electronic Shutter/Strobe: Electronic Strobe Rate: 0 to 27 Hz Standalone Color Mixing: Yes Color Temperature Presets: Yes Dim Modes: 4 Built-in Automated Programs: Yes CONSTRUCTION / PHYSICAL Dimensions: 20.27 x 7.71 x 11.96 in (515 x 196 x 304 mm) Weight: 28.2 lb (12.8 kg) Exterior Color: Black Housing Material: Aluminum alloy, Aluminum die-cast Filter Size: 16.75 x 8 in (425.45 x 203.2 mm) CONNECTIONS Power Connection: Edison (Local) plug to Seetronic Powerkon IP65 Power Input: Seetronic Powerkon IP65 Power Output: Seetronic Powerkon IP65 Data Connectors: 5-pin IP65 XLR Cable Length (power): 5 ft (1.5 m) CONTROL Control Protocol: DMX, W-DMX, RDM DMX Channels: 4, 7, 11, 16 or 22 Modes/Personalities: 5 personalities (4ch, 7ch, 11ch, 16ch, 23ch) ELECTRICAL Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging) Power Linking: 2 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V Power and Current: 570 W, 4.69 A @ 120 V, 60 Hz Power and Current: 560 W, 2.71 A @ 208 V, 60 Hz Power and Current: 560 W, 2.44 A @ 230 V, 50 Hz CERTIFICATIONS / QUALIFICATIONS CE, MET IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C) WHAT'S INCLUDED? Seetronic Powerkon IP65 power cord Color Blending Filter lens Omega bracket with mounting hardware OPTIONAL ACCESSORIES COLORado Panel Q40 Barndoor Professional Clamps: CTC-50HC, CTC-50HCN Seetronic Powerkon power linking cables 5-pin IP or Non-IP DMX Cables
