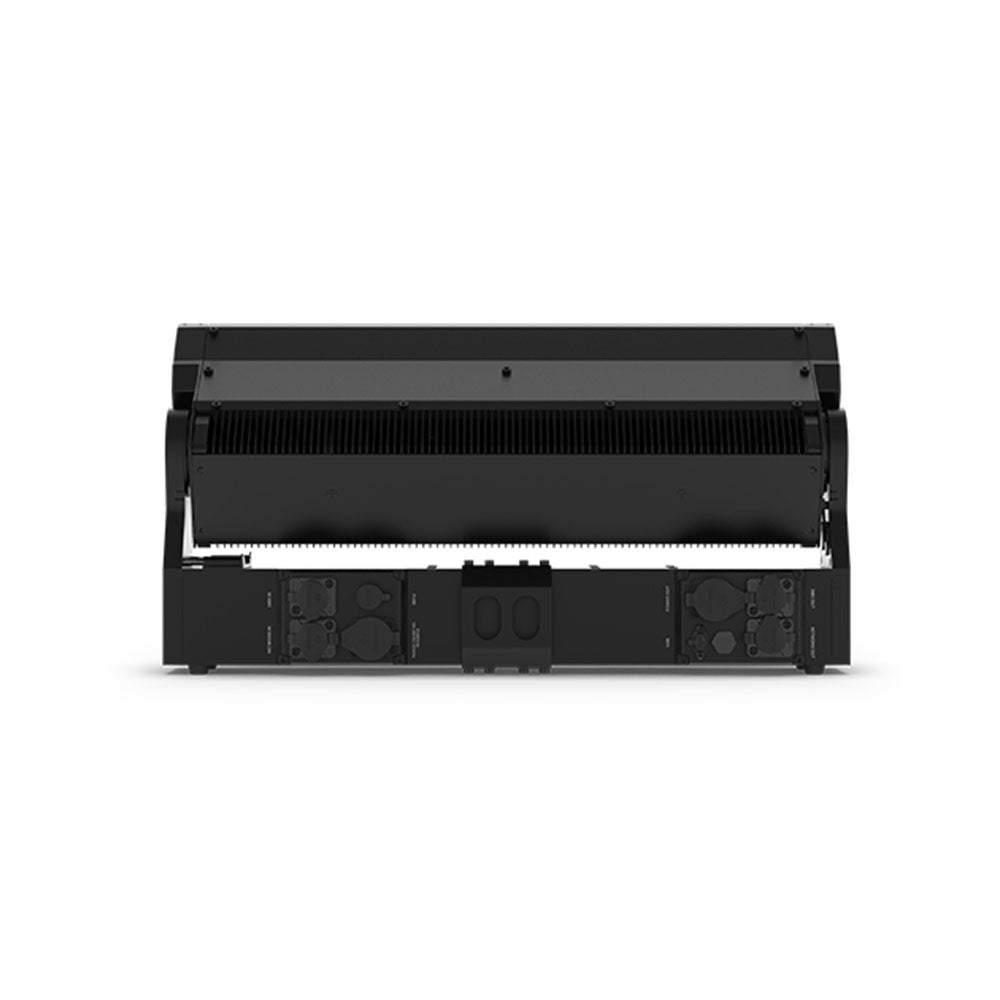

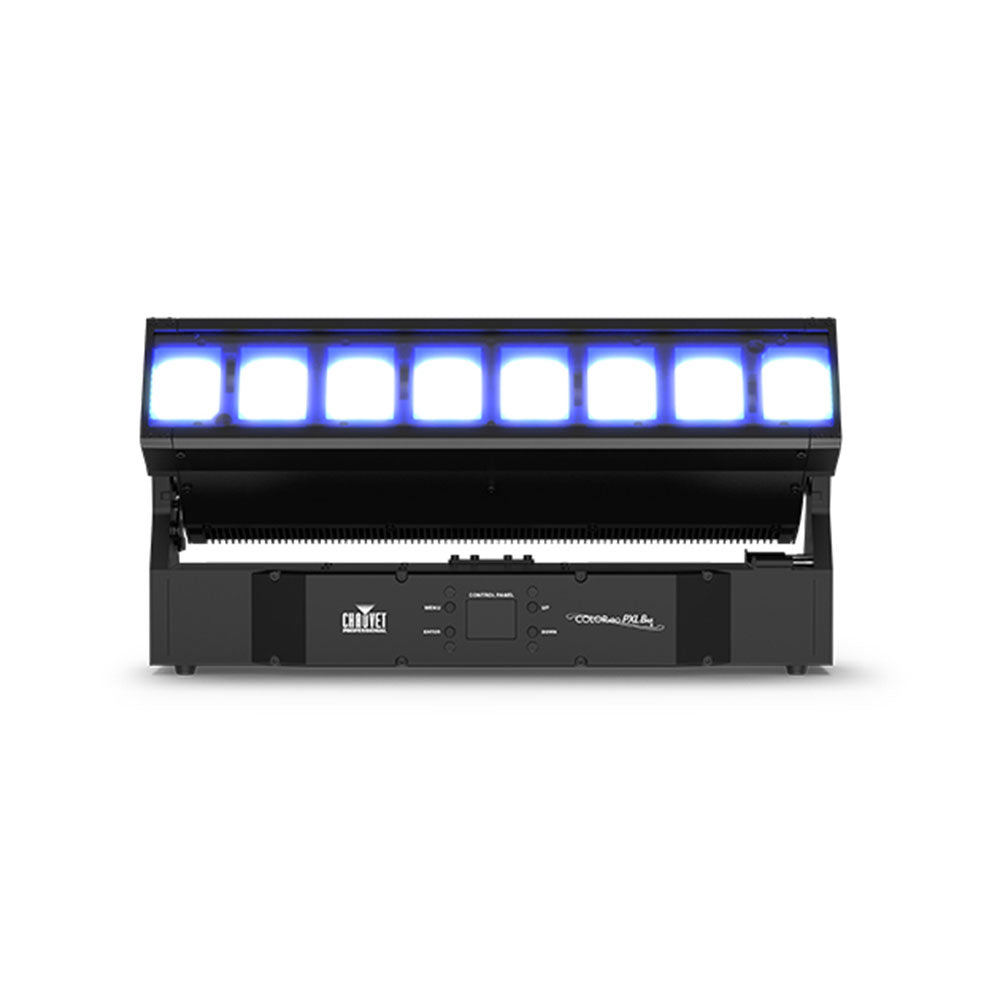

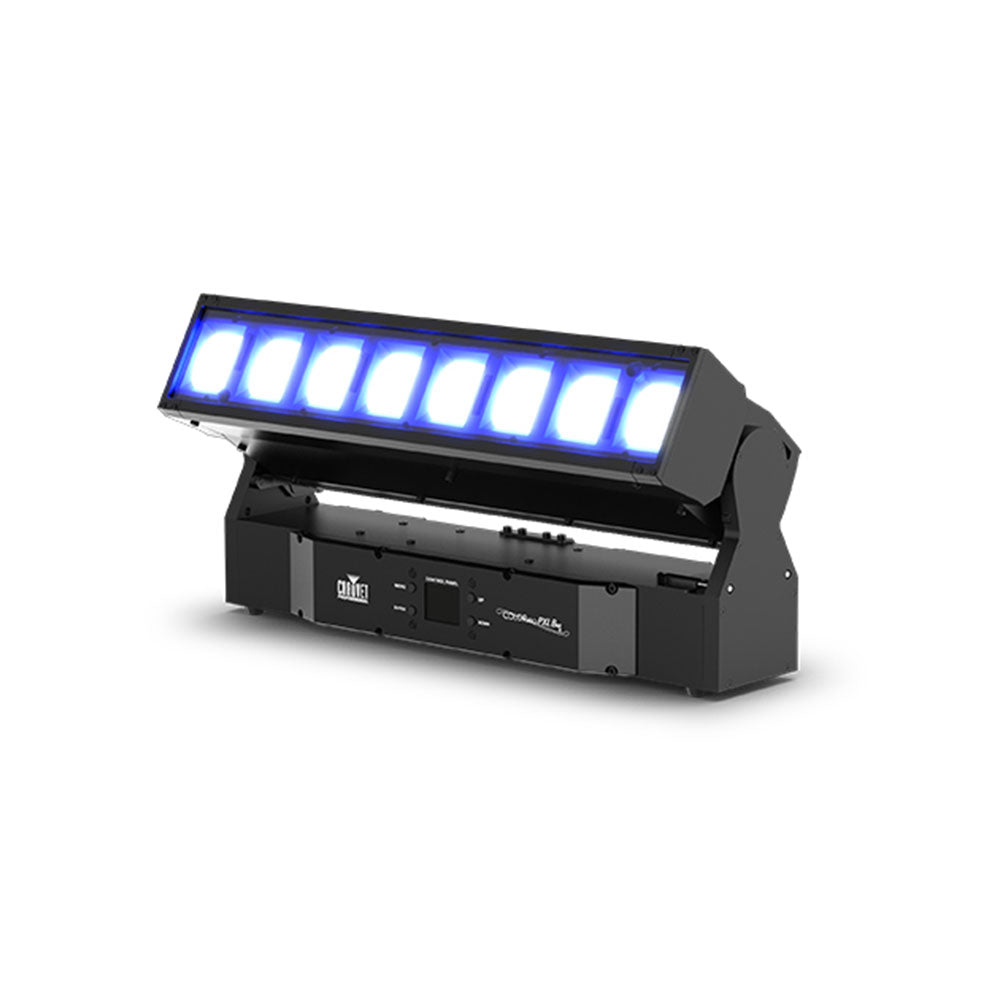

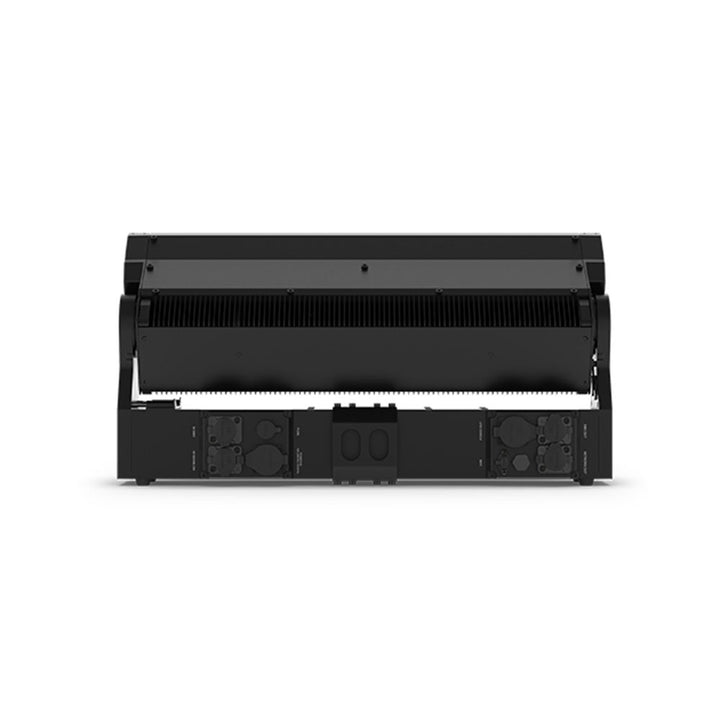

Overview of Chauvet Pro COLORADO-PXL-BAR8 - IP rated motorized, tilting LED batten Light
COLORado PXL Bar 8 is a motorized, outdoor-ready tilting batten with capabilities to zoom for tight and wide pixel-mappable looks. This bright, moving pixel bar also features seamless edge-to-edge mounting and includes virtual gobo and movement macros with separate foreground and background color control for more design options than ever before. Slotted Omega brackets make it quick and easy to hang the fixture on truss. The COLORado PXL Bar 8 can also be positioned on the ground, which allows for a variety of different light angles. The power is in your hands and the possibilities are endless!
Light Source: 8 LEDs (quad-color RGBW) 45 W, (3.0A),50,000 hours life expectancy.
Color Temperature (at full):8699 K (calibrated white)
CRI: 75.4
Beam Angle: 3.6° to 31.3°
Field Angle: 4.7° to 41.7°
Cutoff Angle: 5.4° to 45.1°
Zoom Range: 3.6° to 45.1°
Lumens (41.7°): 3395
Illuminance (3.6°): 12,858 lux @ 5 m
Illuminance (41.7°): 542 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz,6000 Hz, 15,000 HzControl Protocol: Art-Net, Kling-Net, DMX, sACN
DMX Channels: ( Single Mode) 19, 51, 89 or 105, (Dual Mode LED) 24,32,64, (Dual Mode Movement) 25,19,7)
Art-Net Channels: ( Single Mode) 19, 51, 89 or 105, (Dual Mode LED) 24,32,64, (Dual Mode Movement) 25,19,7)
Modes/Personalities: 10 personalities
Tilt Ranges: 60°, 180°, 200° tilt
Strobe Rate: 0 to 20 Hz
Dims: 19.69 x 5.47 x 10.75 in (500 x 139 x 273 mm) Weight: 25.2 lb (11.5 kg)
Music City Canada is an authorized reseller for Chauvet Pro products. Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
