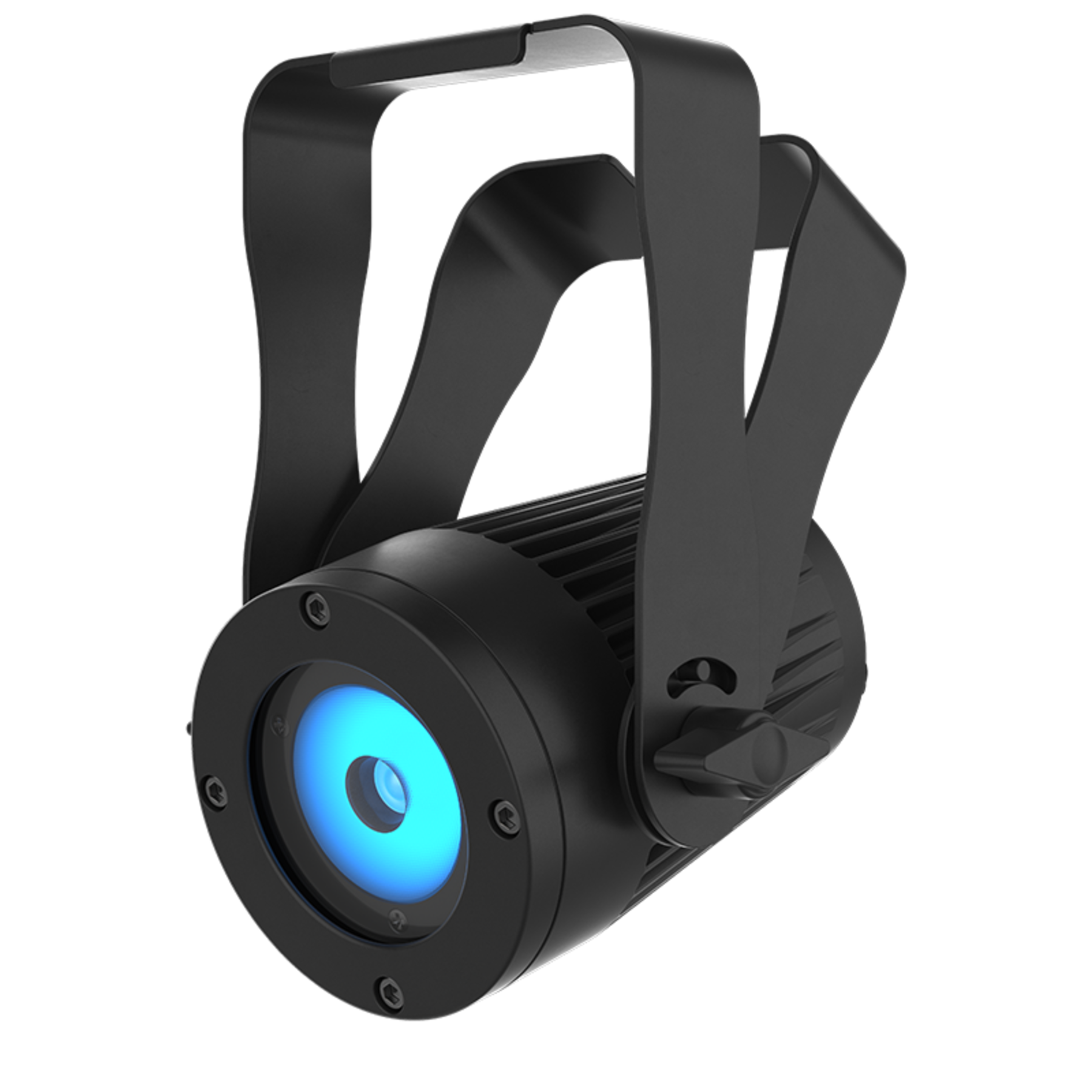

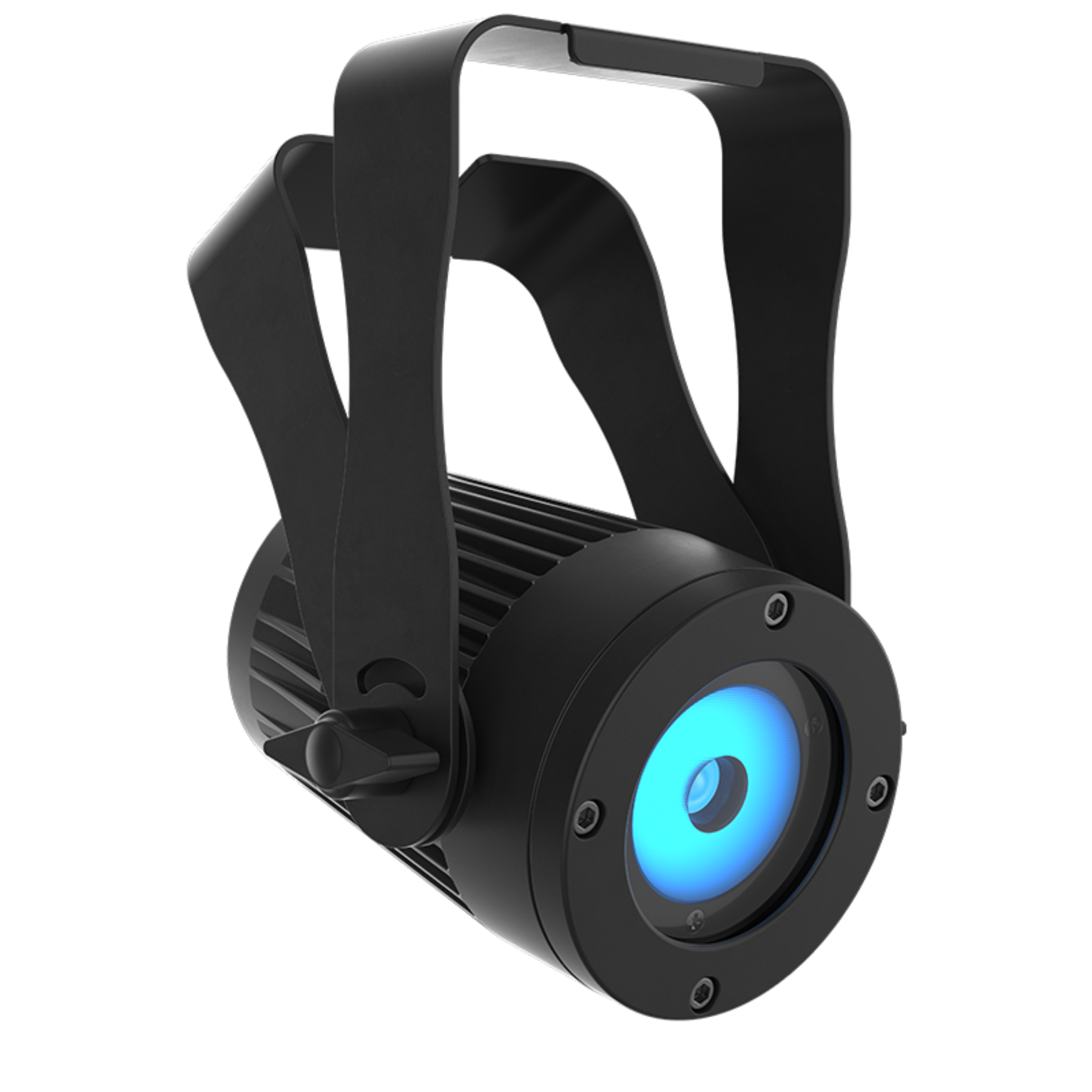

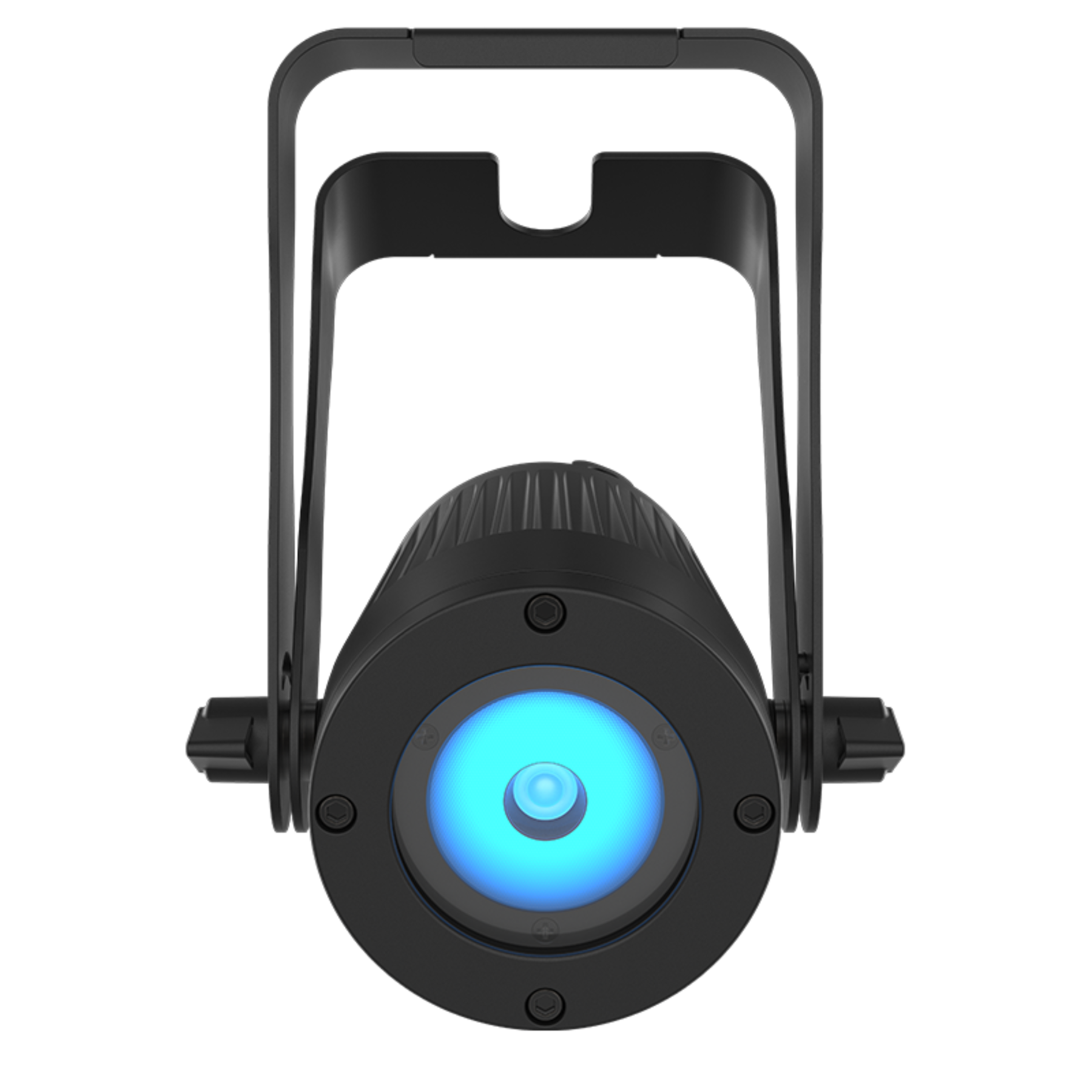

Chauvet Pro COLORDASH ACCENT 5X IP IP65 Hex Color RGBWA UV Compact LED Wash

COLORdash Accent 5X IP

COLORdash Accent 5X IP delivers a tremendous punch of evenly mixed light with a tight 11.4° beam that can be expanded to 21.5° with its included filter. Powered by a 40W Hex-color RGBAW+UV LED, this versatile IP65-rated palm-sized fixture can be used indoors and out to deliver saturated colors and brilliant pastels with a soft, even glow. Variable pulse width modulation ensures flicker-free on-camera use. Convenient addressing for DMX control and easy menu navigation in stand-alone mode are offered via onboard OLED display.

At a Glance

• Hex-color (RGBWAUV) compact LED wash

• Extremely compact with excellent output and IP65-rated versatility

• Variable electronic dimmer (0–100%)

• Simple and complex DMX channel profiles with RDM for programming versatility

• Double-bracketed yoke doubles as floor stand

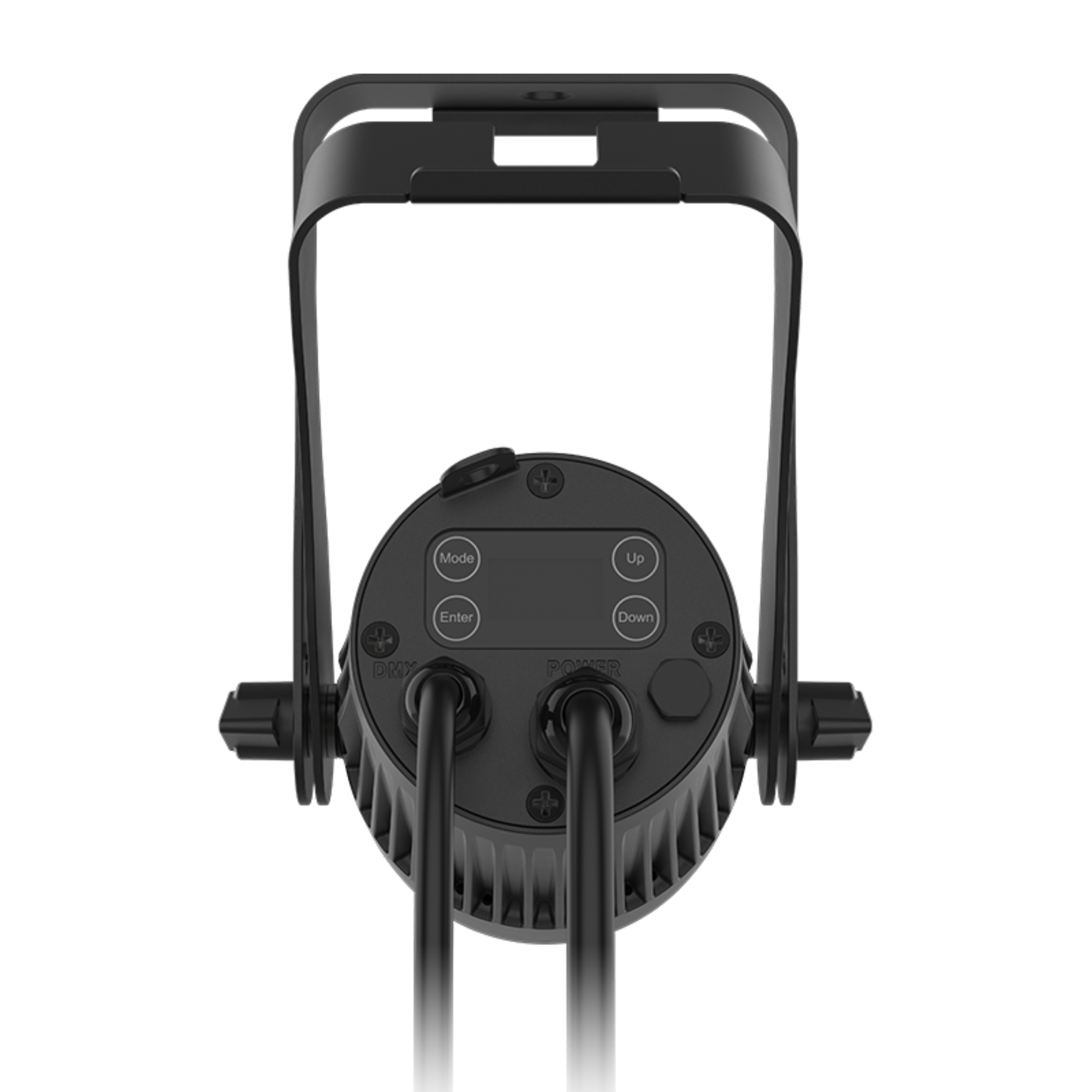

• Easy to use OLED digital display

• Replaceable filter for additional beam angles

• Built-in auto programs recalled via DMX or Master/Slave

Specifications

Optical

• Light Source: 1 LED (Hex-color RGBWA+UV) 40 W, (950 mA), 50,000 hours life expectancy.
• Beam Angle w/ filter: 21.5°
• Field Angle w/ filter: 47.1°
• Beam Angle w/o filter: 11.4°
• Field Angle w/o filter: 20.4°
• Lumens: w/o filter: 890 lm
• Lumens: w/ filter: 733 lm
• Illuminance (total) w/ filter: 126 lux 5 m
• Illuminance (total) w/o filter: 618 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

 Dynamic Effects

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: Yes
• Dim Modes: 5
• Built-in Automated Programs: Yes

 Construction / Physical

• Dimensions: 7.24 x 5.70 x 3.46 in (184 x 145 x 88 mm)
• Weight: 2.8 lb. (1.3 kg)
• Exterior Color: Black

 Connections

• Power Connection: Edison plugs to hard-wired
• Power Input: Hard-wired
• Data Connectors: 5-pin XLR DMX input and output cable whips
• Cable Length (power): 5 ft (1.5 m)

 Control

• Control Protocol: DMX, RDM
• DMX Channels: 6, 8, 9, 13 or 14
• Modes/Personalities: 5 personalities (6, 8, 9, 13 or 14)

 Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 44 W, 0.68 A @ 120 V, 60 Hz
• Power and Current: 44 W, 0.48 A @ 208 V, 60 Hz
• Power and Current: 43 W, 0.44 A @ 230 V, 50 Hz

 Certifications / Qualifications

• CE, MET, FCC, RoHS
• IP Rating: IP65, temporary outdoor/wet use with pressure equalizing M6 GORE valve
• Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)

 What's Included

• COLORdash™ Accent 5XIP
• Frosted filter

 Optional Accessories

• Professional Clamps: CTC-50HC, CTC-50HCN
• 5-pin DMX Cables
