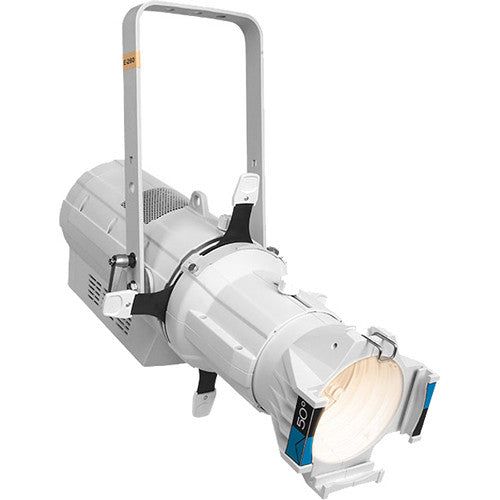

Chauvet Pro OVATION-E260WW-WHT-2 LED Ellipsoidal LED Source: 1 x 202W WW LED, (3.6 A)
OVATION-E260WW-WHT-2
Payment plans from Affirm, learn more
- Chauvet Pro
- Shipping Calculated at checkout, most in stock products ship same day
The Ovation E-260WW-2 from CHAUVET PROFESSIONAL is an ellipsoidal 3149K LED fixture with a built-in dimmer and DMX control. It is primarily designed for a theatrical lighting grid but can also be used in film and video productions. Dimming is controllable locally or via DMX with either 1, 2, 3, or 6 channels of control. Manual zoom and focus adjustments let you tune your light's coverage, which can be further refined with the integrated framing shutters. A built-in info screen aids you in navigating the menu system.
The fixture does not include a lens tube, but it does work with industry standard lens tubes, allowing you to customize the fixture as you need. Featuring Pulse Width Modulation (PWM) dimming, the fixture is suitable for theatrical and video use. It is compatible with both 8- and 16-bit dimming controllers, and although fan cooled, it is very quiet in use.
Data Connectors
CHAUVET PROFESSIONAL upgraded the Ovation E-260WW-2 to include a more convenient Seetronic PowerKon IP65 (TRUE1-style) power cable that facilitates your extension/connection requirements.
Features
- Ellipsoidal LED with TRUE1-Style Cable
- Local and DMX Dimming

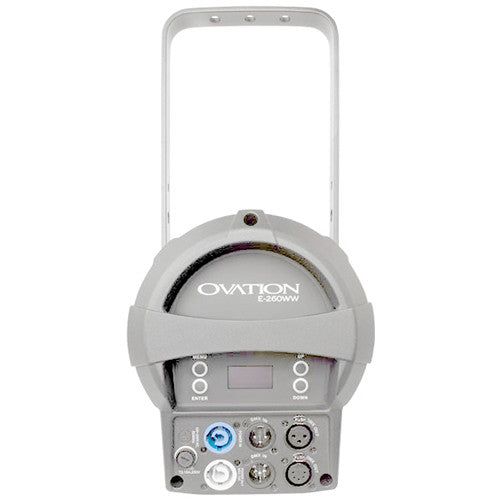

- Info Screen on Back
- Flat Field of Light
- Integrated Internal Framing Shutters
- Up to 6-Channel DMX512 Control
- Works with Industry-Standard Lens Tubes
- Pulse Width Modulation Dimming
- 8- and 16-Bit Dimming
- Quiet Operation
Specifications
| Fixture Type | Ellipsoidal |
| Light Source | White LED - 230 W / 3.6 A |
| Expected Lamp Life | 50,000 Hours |
| Colors | Warm White |
| Color Temperature | 3149K |
| Shutter / Strobe | Electronic |
| Iris | No |
| Focus | Manual |
| Zoom Adjustment | Manual |
| Dimming | Electronic, 0 to 100% with 4 Dimmer Modes |
| Operating Modes | Automatic, DMX, Primary/Secondary |
| Macros / Programs | Auto-Program |
| Effects | Strobe Framing |
| Strobe Rate | 0 to 30 Hz |
| Gobos | 1x Gobo |
| Gobo Size | Outer Diameter: 3.9' / 100 mm Max Image Size: 3' / 75 mm Max Thickness: 0.1' / 2.5 mm |
| Color Accuracy Index | CRI: 96 |
| Control Protocols | DMX512, RDM |
| DMX Channel Modes | 4 Mode(s): 1 / 2 / 3 / 6-Channel |
| Remote Control | No |
| Mobile App Compatible | No |
| Inputs/Outputs | 1 x XLR 3-Pin DMX Input 1 x XLR 3-Pin DMX Output 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output |
| Wireless | No |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: 1x Seetronic IP-Rated Output: 1x Seetronic IP-Rated |
| Fuse | T 3.15 A 250 V |
| Power / Current Consumption | 120 VAC, 60 Hz: 236 W / 1.9 A 208 VAC, 60 Hz: 244 W / 1.2 A 230 VAC, 50 Hz: 243 W / 1.1 A |
| Power Linking | 6 Units at 120 VAC 10 Units at 208 VAC 12 Units at 230 VAC |
| Environmental Resistance | Dust-Resistant (IP20) |
| Mounting | Single Yoke Only |
| Included Accessories | 1x Power Cable |
| Duty Cycle | No |
| Exterior Color | White |
| Cooling | Fan |
| Certifications | CE, MET, FCC, UKCA |
| Dimensions | 19.49 x 19.17 x 11.22' / 49.5 x 48.69 x 28.5 cm |
| Weight | 15.4 lb / 7 kg |
