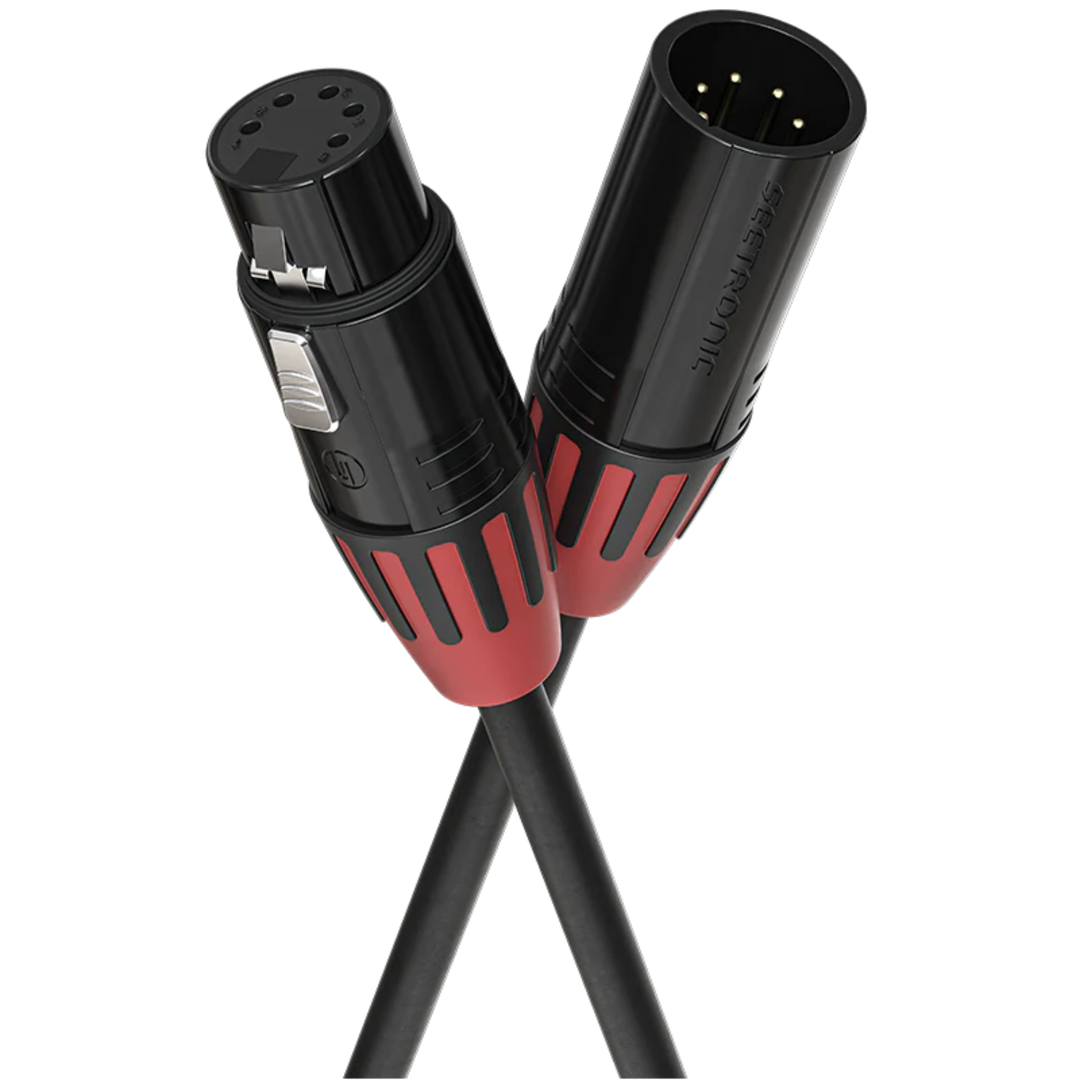

Chauvet Pro RIGLINK-DMX5P18IN RigLink 5-Pin DMX Cable - 18"
RIGLINK-DMX5P18IN
Regular price$22.99
Available to Order
Available from supplier Chauvet Pro — usually arrives to us within
an estimated number of
business days. Get in Touch for details.
Payment plans from Affirm, learn more
- Chauvet Pro
- Shipping Calculated at checkout, most in stock products ship same day
Durable double-shielded Riglink production-grade DMX lighting cable designed for stable signal transmission.
Features
- Features a braided and aluminium foil double shielding design, ensuring optimal protection against interference.
- Designed for 110Ω DMX-512 applications.
- Utilises low-dielectric constant LDPE insulation, offering low capacitance to meet precise impedance requirements for stable signal transmission.
- High-torsion tinned oxygen-free copper (OFC) with a twist rate achieving over 89% shielding effectiveness, enhancing resistance to external interference.
- Outer jacket made of highly elastic PVC, providing a soft, durable, and flexible cable body.
- Ideal for both installations and touring
- Color-coded connectors eliminate cable length guesswork
- Certified components meet worldwide safety standards
- Built rugged for live performance and life on the road
- Reliable transmission and robust connection systems
- Seetronic® professional production grade connectors
- Cable lengths available in both meters and feet
Specifications
- Conductor Specification: 2 x 0.22mm2 (24AWG)
- Conductor Structure: OFC 20/0. 12BC
- Insulation Material: LDPE
- Insulation OD: 1.8mm
- Shield Structure: OFC 16/8/0.1TC + AL
- Outer Jacket Material: PVC (Black)
- Outer Diameter: 6.0 ± 0.2mm
- Temperature Rating: -20ºC – 70ºC
- IP20
Connections
- Seetronic SCM55-BG
- Seetronic SCMF5-BG
Electrical
- Withstand Voltage: 0.5kV
- Conductor Resistance: 88.2 Ω/km
- Capacitance between Conductors: 50 pF/m
- Conductor and Shield Capacitance: 122 pF/m
- Impedance: 110 Ω
Cable
- Metric: 1m, 3m, 5m, 10m, 20m
- Imperial: 1.5ft, 5ft, 10ft, 25ft, 50ft
