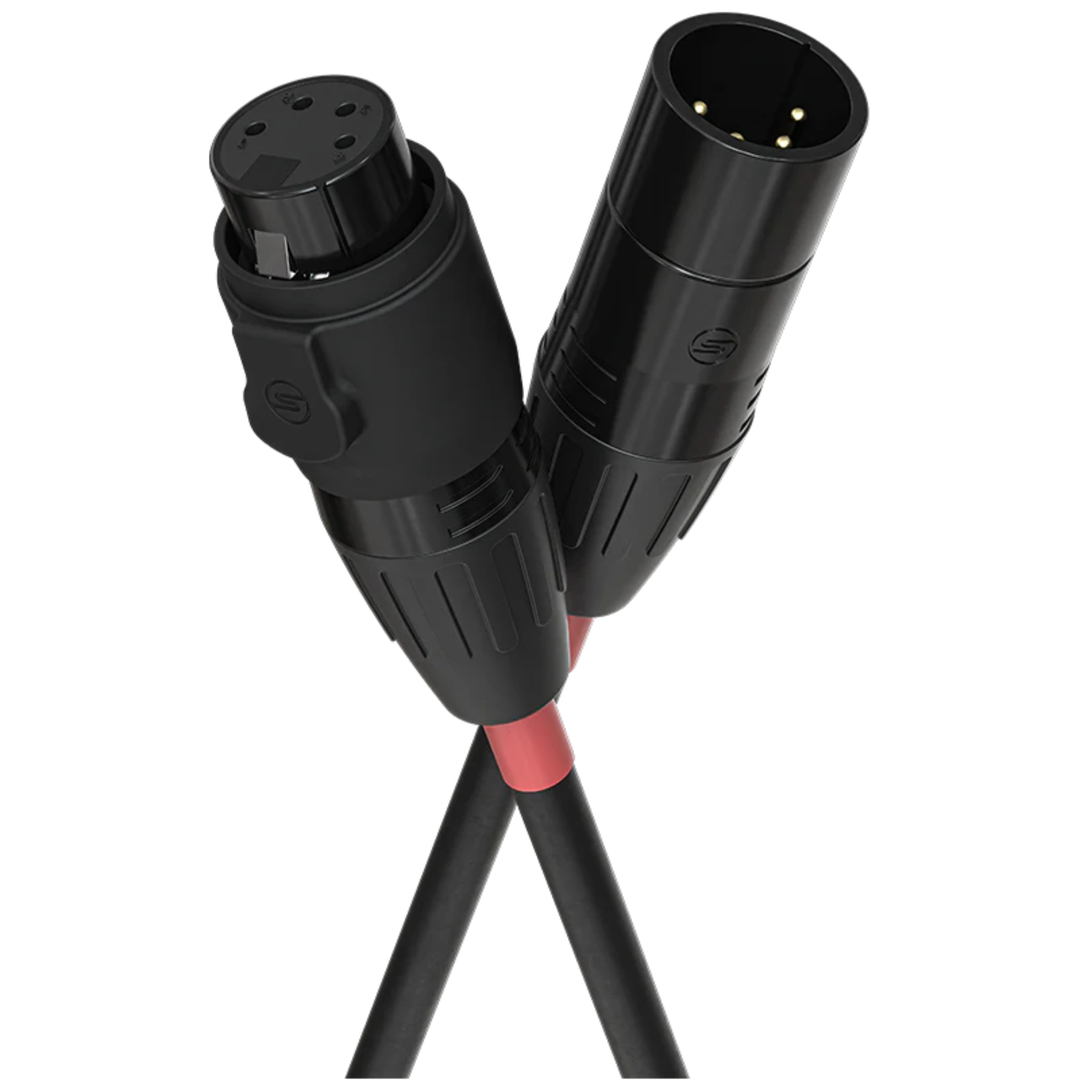

Chauvet Pro RIGLINK-XLR4-18IN RigLink 4-Pin XLR Cable, IP65-Rated - 18"
RIGLINK-XLR4-18IN
Regular price$31.99
Available to Order
Available from supplier Chauvet Pro — usually arrives to us within
an estimated number of
business days. Get in Touch for details.
Payment plans from Affirm, learn more
- Chauvet Pro
- Shipping Calculated at checkout, most in stock products ship same day
IP65-rated Riglink combined data and power cable designed for reliable DMX lighting signal transmission and safe connections with Seetronic® production-grade connectors.
Features
- Outer jacket made of highly elastic PVC, providing a soft, durable, and flexible cable body.
- Ideal for both installations and touring.
- IP65 rated for outdoor use.
- Designed for use with EPIX, Strike Array 1, and other 4 pin powered products.
- Color-coded connectors eliminate cable length guesswork
- Certified components meet worldwide safety standards
- Built rugged for live performance and life on the road
- Reliable transmission and robust connection systems
- Seetronic® professional production grade connectors
- Cable lengths available in both meters and feet
Specifications
- Conductor Specification: 2 x 0.75mm2 (18AWG) & 2 x 2.5mm2 (13AWG)
- Conductor Structure: OFC 24/0. 2BC & OFC 50/0.25BC
- Insulation Material: PVC
- Insulation OD: 2.4mm & 3.5mm
- Outer Jacket Material: PVC (Black)
- Outer Diameter: 9.5 ± 0.2mm
- Temperature Rating: -20ºC – 70ºC
- IP65
Connections
- Seetronic SCWM4-BG
- Seetronic SCWF4-B
Electrical
- Withstand Voltage: 1.5kV
- Conductor Resistance: 25.98 Ω/km & 7.98 Ω/km
