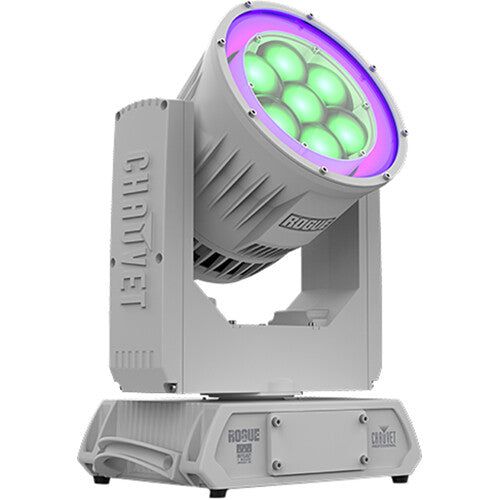

Chauvet Pro ROGUE-OUTCAST1-BEAMWASH-M IP66 rated with C5M marine-grade finish, LED Beam & Wash
ROGUE-OUTCAST1-BEAMWASH-M
Payment plans from Affirm, learn more
- Chauvet Pro
- Shipping Calculated at checkout, most in stock products ship same day
Designed for outdoor lighting, the Rogue Outcast 1 BeamWash M RGB LED Uplight Fixture with LED Ring from CHAUVET Professional combines a wash fixture and RGB LED ring light for extended outdoor usage in and near marine environments. The main light is constructed with seven 45W RGBW LEDs and its ring light is made with 97 0.2W RGB LEDs to produce a spectrum of colored light.
With an adjustable 9.1° to 32.3° beam angle and user-selectable 7500K calibrated white light at full power, the fixture offers fine-tuning options to craft precise outputs. Designed for permanent outdoor installations and IP66-rated, the fixture can withstand extreme weather conditions and exposure to marine and saline environments while producing a powerful 15,308 lux at 16.4' with its 3.9° beam angle. A versatile fixture, users can adjust the 4-curve, 6-mode, 16-bit dimming, standalone color mixing, and built-in automated programs with simple RDM and 6-mode DMX controls. Easily mount the fixture with its two Omega brackets, mounting hardware, and yoke. The light includes a display cover for additional protection.
Delivering a range of brightness and color outputs, the Rogue Outcast 1 is ideal for illuminating extreme outdoor spaces, including marine environments. With a zoom range of 3.9° to 55.3° and an adjustable LED ring, the fixture offers extensive lighting options within a compact and IP66-rated weather-resistant housing. Constructed fully from aluminum with stainless-steel gland nuts, the fixture is finished with a C5M paint application process for additional weather protection. With 4-curve, 6-mode, and 16-bit dimming capabilities with a 12-zone pixel-mappable RGB LED outer ring, the Rogue Outcast 1 offers ample lighting, shutter, and strobe possibilities. Designed with standalone color mixing, color temperature presets, and motorized zoom, this light features multiple ways to produce stunning lighting visuals with a unique lens design for excellent color blending and tight beam effects.
The Rogue Outcast 1 features a built-in ring constructed from 97 0.2W RGB LEDs with a 50,000-hour life expectancy for greater lighting control. The 12-zone pixel-mapping outer ring provides ample creative lighting possibilities and effects with its prebuilt programs to easily control dimming, rate, foreground, and background colors.
Equipped with simple and complex DMX profile channels, the Rogue Outcast 1 offers programming versatility. Remotely address and troubleshoot the light with the light's RDM capabilities. Utilizing 5-pin DMX input and output connections, lighting designers can choose from six 15, 24, 30, 64, 111, and 135 DMX channel modes to operate and adjust the light wirelessly.
Features
- Color Wash for Extended Outdoor Use
- 7 x 45W RGBW LEDs & 97 0.2W RGB LEDs
- 4-Curve, 6-Mode,and 16-Bit Dimming
- 9.1° to 32.3° Beam Angle
- DMX and RDM Control; 6 Modes
- Standalone Color Mixing with Strobe FX
- Built-In Programs for Fixture & LED Ring
- IP66-Rated for Marine Environments
- Yoke Mounting
- Includes Brackets and Display Cover
Specifications
| Fixture Type | Moving Head |
| Light Source | 7x Color LED - 45 W / 3 A 97x Color LED - 0.2 W / 20 mA |
| Expected Lamp Life | 50,000 Hours |
| Colors | Blue, Green, Red, White |
| Pixel Configuration | 12x Zone |
| Photometrics | 4°: 1422 fc / 15,308 Lux at 16.4' / 5 m 55°: 43 fc / 473 Lux at 16.4' / 5 m |
| Color Temperature | 2800 to 10,000K |
| Lumen Output | 4073 Lumens |
| Beam Angle | 4 to 32° |
| Field Angle | 6 to 50° |
| Shutter / Strobe | Electronic |
| Focus | Motorized |
| Zoom Adjustment | Motorized, 4 to 55° |
| Dimming | Electronic, 0 to 100% |
| Operating Modes | DMX |
| Strobe Rate | 0 to 20 Hz |
| Gobos | No |
| Tilt Ranges | 260° / 180° / 90° |
| Pan Ranges | 540° / 360° / 180° |
| Control Protocols | W-DMX, RDM |
| DMX Channel Modes | 6 Mode(s): 15 / 24 / 30 / 64 / 111 / 135-Channel |
| Display / Controls | LCD / 4-Button |
| Remote Control | No |
| Mobile App Compatible | No |
| Inputs/Outputs | 1 x Bare Wire DMX Input (on Integrated Cable) 1 x Bare Wire DMX Output (on Integrated Cable) |
| Wireless | No |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: 1x Hard-Wired Output: None Plug Type: Unterminated/Bare Wire Cord Length: 5' / 1.5 m |
| Fuse | 8 A 250 V |
| Power / Current Consumption | 120 VAC, 60 Hz: 385 W / 3.25 A 230 VAC, 50 Hz: 372 W |
| Power Linking | No |
| Environmental Resistance | Dust/Water-Resistant (IP66) |
| Operating Conditions | -4 to 113°F / -20 to 45°C |
| Mounting | Floor Base, Omega Bracket |
| Included Accessories | No |
| Duty Cycle | No |
| Exterior Color | White |
| Cooling | Forced Convection |
| Certifications | CE, FCC, MET, UKCA |
| Dimensions | 15.75 x 11.92 x 7.58' / 40.01 x 30.28 x 19.25 cm |
| Weight | 20.2 lb / 9.2 kg |
