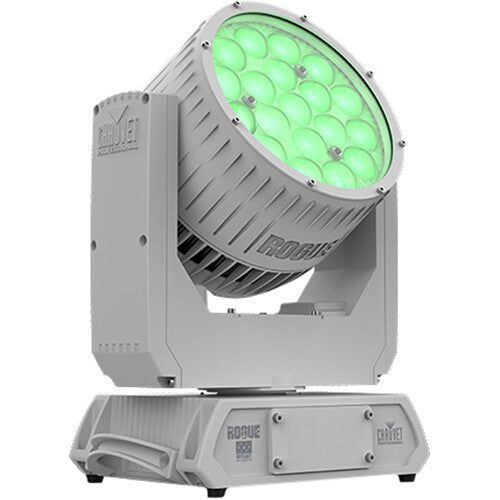

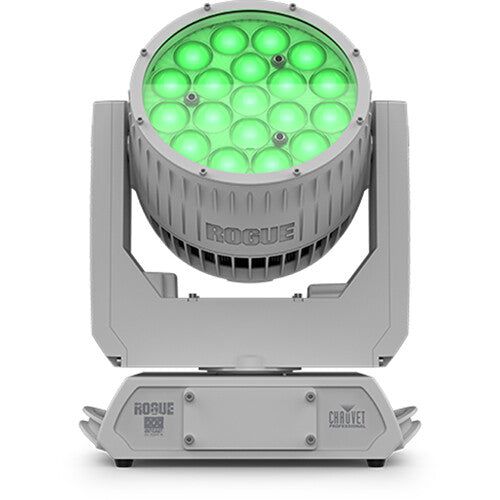

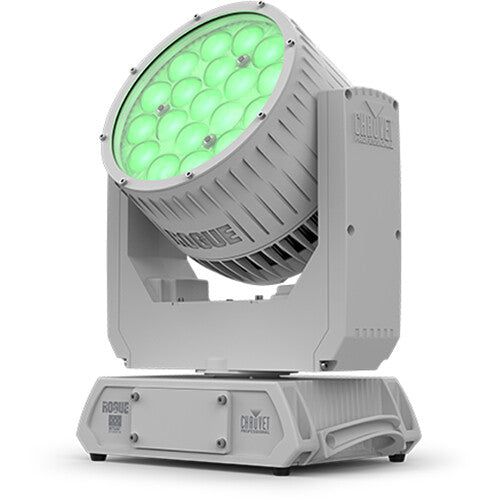

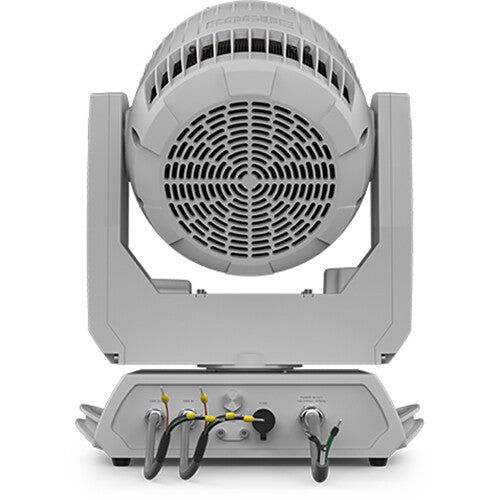

Chauvet Pro ROGUE-OUTCAST2X-WASH-M Fully featured IP66 RGBW LED yoke wash fixture with LED zone control and marine grade C5M paint
ROGUE-OUTCAST2X-WASH-M
Payment plans from Affirm, learn more
- Chauvet Pro
- Shipping Calculated at checkout, most in stock products ship same day
Designed for outdoor lighting the Rogue Outcast 2X Wash M RGB LED Uplight Fixture from CHAUVET Professional is a color wash fixture with shutter and strobe capabilities for extended outdoor usage in and near marine environments. Constructed with 19 25W RGBW LEDs, the light offers a variety of color spectrum options within an IP66-rated housing. With an adjustable 7.9° to 35.3° beam angle, 2800 to 10,000K CCT, and user selectable 7500K calibrated white light at full output, the fixture offers fine-tuning options to craft precise outputs. This fixture is designed to withstand extreme weather conditions and exposure to marine and saline environments. A versatile fixture, users can adjust the 8-mode, 16-bit dimming, standalone color mixing, and built-in automated programs with simple RDM and 6-mode DMX controls. Easily mount the fixture with its two Omega brackets, mounting hardware, and yoke. The light includes a display cover for additional protection.
Delivering a range of brightness and color outputs, the Rogue Outcast 2X is ideal for illuminating extreme outdoor spaces, including marine environments. With a zoom range of 7.9° to 63.7°, the fixture offers extensive lighting options within a compact and IP66-rated weather-resistant housing. Constructed fully from aluminum, the fixture is finished with a C5M paint application process and stainless-steel gland nuts for additional weather protection. With 6-mode, 16-bit dimming, and 5-zone LED pixel-mapping control, the Rogue Outcast 2X offers ample lighting, shutter, and strobe possibilities. Designed with standalone color mixing, color temperature presets, motorized zoom, this light features multiple ways to produce stunning lighting visuals with fast and smooth panning and tilting movements.
Equipped with simple and complex DMX profile channels, the Rogue Outcast 2X offers programming versatility. Remotely address and troubleshoot the light with the light's RDM capabilities. Utilizing 5-pin DMX input and output connections, lighting designers can choose from eight 15, 17, 22, 23, 33, 54, 55, and 56 DMX channel modes to operate and adjust the lightwirelessly.
Features
- Color Wash for Extended Outdoor Use
- 19 x 25W RGBW LEDs; 2800 to 10,000K CCT
- 6-Mode, 16-Bit Dimming
- 7.9° to 35.3° Beam Angle
- DMX and RDM Control; 8 Modes
- Standalone Color Mixing with Strobe FX
- Built-In Automated Programs and Effects
- IP66-Rated for Marine Environments
- Yoke Mounting
- Includes Brackets and Display Cover
Specifications
| Fixture Type | Moving Head |
| Light Source | 19x Color LED - 25 W / 1.5 A |
| Expected Lamp Life | 50,000 Hours |
| Colors | Blue, Green, Red, White |
| Pixel Configuration | 5x Zone |
| Photometrics | 8°: 709 fc / 7632 Lux at 16.4' / 5 m 63°: 59 fc / 639 Lux at 16.4' / 5 m |
| Color Temperature | 2800 to 10,000K |
| Lumen Output | 5371 Lumens |
| Beam Angle | 8 to 35° |
| Field Angle | 12 to 51° |
| Shutter / Strobe | Electronic |
| Focus | Motorized |
| Zoom Adjustment | Motorized, 8 to 64° |
| Dimming | Electronic, 0 to 100% |
| Operating Modes | DMX |
| Strobe Rate | 0 to 20 Hz |
| Gobos | No |
| Tilt Ranges | 260° / 180° / 90° |
| Pan Ranges | 540° / 360° / 180° |
| Control Protocols | W-DMX, RDM |
| DMX Channel Modes | 8 Mode(s): 15 / 17 / 22 / 23 / 33 / 54 / 55 / 56-Channel |
| Display / Controls | OLED / 4-Button |
| Remote Control | No |
| Mobile App Compatible | No |
| Inputs/Outputs | 1 x Bare Wire DMX Input (on Integrated Cable) 1 x Bare Wire DMX Output (on Integrated Cable) |
| Wireless | No |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: 1x Hard-Wired Output: None Plug Type: Unterminated/Bare Wire Cord Length: 5' / 1.5 m |
| Power / Current Consumption | 120 VAC, 60 Hz: 291 W / 2.47 A 230 VAC, 50 Hz: 282 W / 1.28 A |
| Power Linking | 9 Units at 120 VAC 10 Units at 230 VAC |
| Environmental Resistance | Dust/Water-Resistant (IP66) |
| Operating Conditions | -4 to 113°F / -20 to 45°C |
| Mounting | Floor Base, Omega Bracket |
| Included Accessories | No |
| Duty Cycle | No |
| Exterior Color | White |
| Certifications | CE, FCC, MET, UKCA |
| Dimensions | 14.1 x 11.92 x 8.58' / 35.8 x 30.28 x 21.79 cm |
| Weight | 21.2 lb / 9.6 kg |
