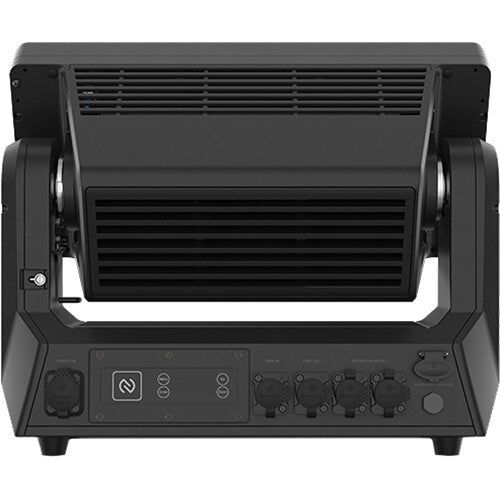

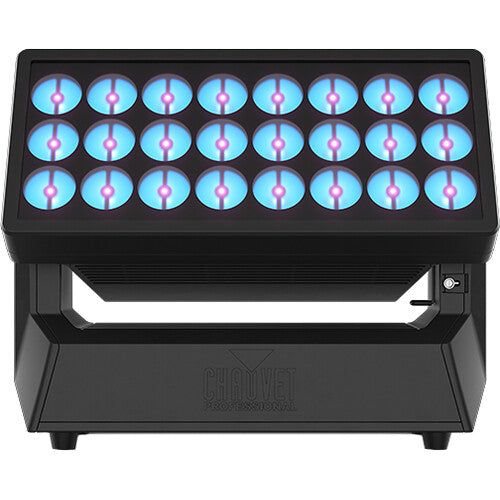

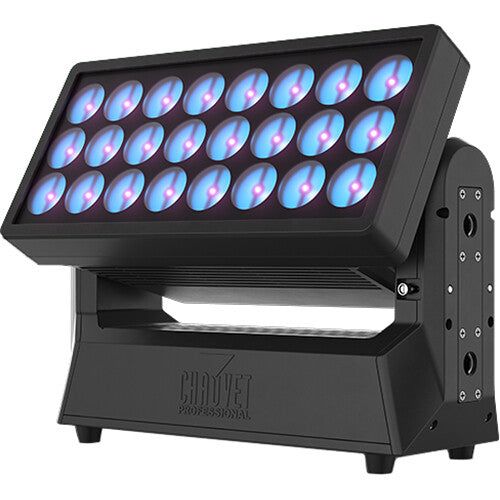

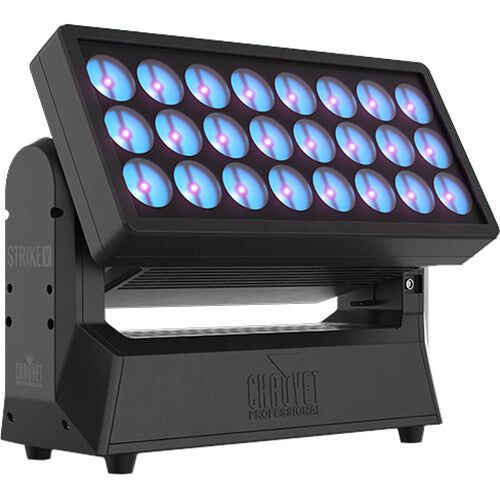

Chauvet Pro STRIKE-V Fully featured, high-power, 180° tilting hybrid strobe/wash with IP65 rating
STRIKE-V
Payment plans from Affirm, learn more
- Chauvet Pro
- Shipping Calculated at checkout, most in stock products ship same day
Great for indoor and outdoor event and broadcast production, the Chauvet Professional STRIKE V is a high-power hybrid strobe/wash with an IP65 rating for all-weather use. The STRIKE V features dual LED diodes under a variable electronic frost plate that can change beam angles instantly at the press of a button, and together offer fresh new multicolor creative possibilities. Advanced eye-candy effects, vibrant color washes, and stunning strobe capabilities from a motorized 180° tilting strobe/wash hybrid designed for powerful performance in the most demanding applications and conditions. The STRIVE V ships with an Omega bracket, a Seetronic Powerkon IP65 power cord, and a stealth filter.
Features
- For Event and Broadcast Production
- Red, Green, Blue, and White LEDs
- 0 to 100% Dimming with 4 Modes
- 9.9 to 105.7° Beam Angle
- Art-Net, DMX, RDM, sACN
- IP65 Rated
- Adjustable PWM for Added Flexibility
- Includes Omega Bracket
- Rechargeable Lithium-Ion Battery
- Includes Seetronic IP65 Power Cord
Specifications
Optical
- Light Source: 24 LEDs top plate (quad-color RGBW), 6W, 50,000 hours life expectancy
- Light Source: 24 LEDs bottom plate (quad-color RGBW), 50W, 50,000 hours life expectancy
- Beam Angle (Combine): 9.9°
- Beam Angle (Dot): 105.7°
- Beam Angle (Cell): 9.9°
- Beam Angle (w/E-Frost Combine): 50.3°
- Beam Angle (w/E-Frost Dot): 103.1°
- Beam Angle (w/E-Frost Cell): 46.8°
- Field Angle (Combine): 17.6°
- Field Angle (Top Plate): 153.1°
- Field Angle (Cell): 17.5°
- Field Angle (w/E-Frost Combine): 125°
- Field Angle (w/E-Frost Dot): 155.6°
- Field Angle (w/E-Frost Cell): 117.2°
- Lumens (Combine): 19,589
- Lumens (Dot): 1,912
- Lumens (Cell): 17,127
- Lumens (w/E-Frost Combine): 13,406
- Lumens (w/E-Frost Dot): 1,633
- Lumens (w/E-Frost Cell): 15,769
- Illuminance (Combine): 16,779 lux @ 5 m
- Illuminance (Dot): 29 lux @ 5 m
- Illuminance (Cell): 16,789 lux @ 5 m
- Illuminance (w/E-Frost Combine): 539 lux @ 5 m
- Illuminance (w/E-Frost Dot): 26 lux @ 5 m
- Illuminance (w/E-Frost Cell): 536 lux @ 5 m
- Selectable PWM: 1000Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25000 Hz, 64,000 Hz
Dynamic Effects
- Tilt: 180°
- Tilt Ranges: 0° to 180°
- Dimmer: Electronic
- Shutter/Strobe: Electronic
- Strobe Rate: 0 to 30 Hz
- Standalone Color Mixing: Yes
- Dim Modes: 4
- Built-in Automated Programs: Yes
Construction / Physical
- Dimensions: 16 x 7.3 x 12.2 in (407 x 187.4 x 310 mm)
- Weight: 36 lb (16.3 kg)
- Exterior Color: Black
- Housing Material: AZ91D Magnesium diecast
Connections
- Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
- Power Input: Seetronic Powerkon IP65
- Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
- Cable Length (power): 5 ft (1.5 m)
Control
- Control Protocol: Art-Net, DMX, RDM, sACN
- DMX, ArtNet, and sACN Channels single mode 29,222,314
- DMX, ArtNet, and sACN Channels Dual mode Movement: 30
- DMX, ArtNet, and sACN Channels Dual Mode Pixels: 144,192,240,288
- ArtNet and sACN Channels Multi-Layer Control Movement: 30
- ArtNet and sACN Channels Multi-Layer Control Dot Pixels: 72,96,120,144
- ArtNet and sACN Channels Multi-Layer Control Cell Pixels: 72,96,120,144
Electrical
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current: 747 W, 7.54 A @ 100 V, 60 Hz
- Power and Current: 747 W, 6.20 A @ 120 V, 60
- Power and Current: 719 W, 3.63 A @ 208 V, 60 Hz
- Power and Current: 717 W, 3.28 A @ 230 V, 50 Hz
- Power and Current: 717 W, 3.17 A @ 240 V, 50 Hz
Battery
- Battery type: Lithium Ion
- Rechargeable: Yes
Certifications / Qualifications
- CE, MET, ROHS, FCC
- IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
- Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)
- Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)
What's Included
- STRIKE V
- Seetronic Powerkon IP65 power cord
- Omega bracket
- Stealth filter
