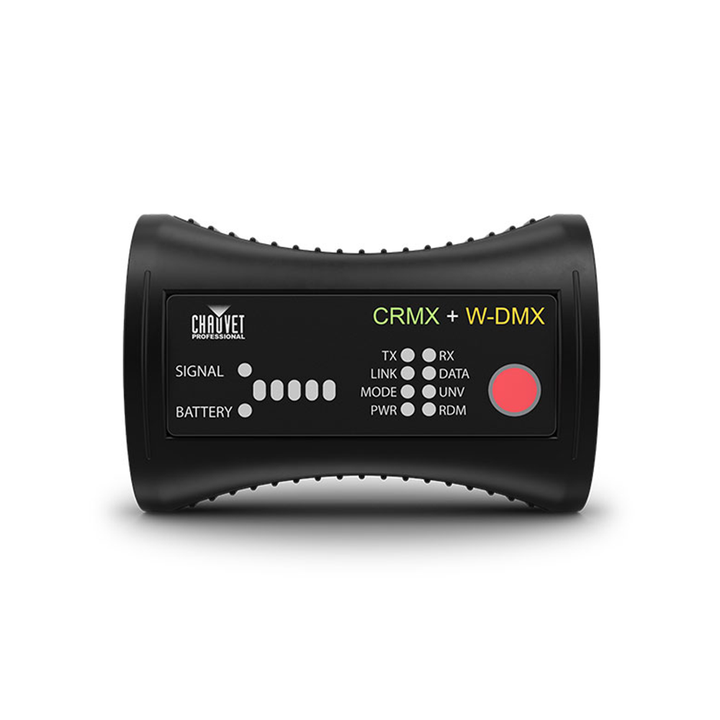

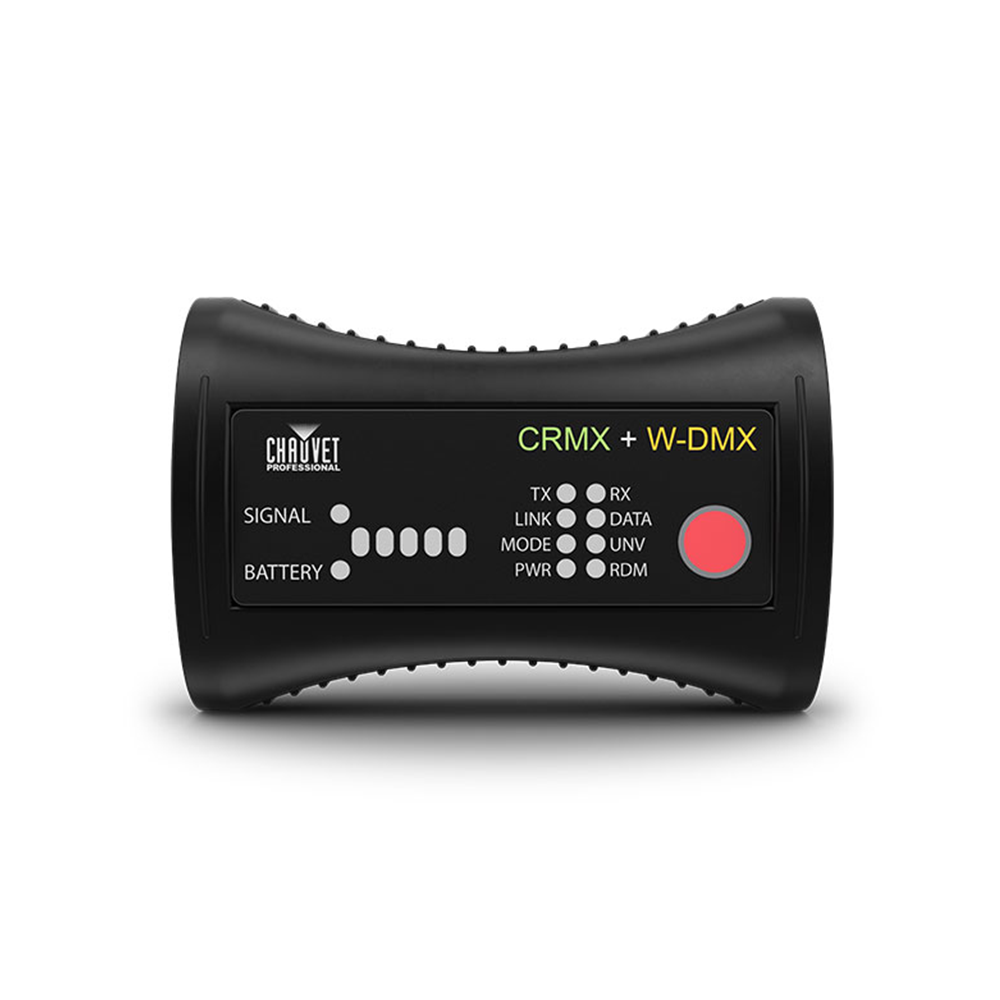

Chauvet Pro W-DMX Micro T-1 TRX G6 Transceiver

Wireless Solutions Micro T-1 Transceiver works with W-DMX and CRMX enabled fixtures to generate a wireless control signal for DMX and RDM protocols. These compact devices can also be set up to transmit or receive W-DMX or CRMX signals to make any fixture or rig wireless. Backward compatible with G3, G4, G4S, and G5 series, and able to operate both W-DMX and CRMX enabled products in G4S Mode. Configurable via Bluetooth with the W-DMX Configurator app. It also features a 5V USB power supply or can be used with (4) AAA batteries for up to 4 hours in transceiver mode and 8 hours in receiver mode. Indicator LEDs easily show signal strength, battery life, and transceiver or receiver mode.

FEATURES:

• Transmit and receive 1 universe of W-DMX, CRMX and RDM protocols
• Supports the W-DMX Configurator app over Bluetooth (downloadable from app store)
• Backward compatibility with G3, G4, G4S, and G5 series
• Can operate both W-DMX and CRMX enabled products in G4S Mode
• Supports active frequency hopping
• Power with included 5V USB power supply or (4) AAA batteries (not included)
• Batteries last for up to 8 hours in receiver mode and 4 hours in transceiver mode
• Built in indicator lights for signal and battery strength, as well as operation modes
• Can be used directly with any Maverick or WELL fixtures
• Can be used to make any lighting system wireless for data

Construction / Physical:
Dimensions: 3.94 x 1.57 x 2.65 in (100 x 40 x 65 mm)
Weight: 1.67 lb (800 g)
Exterior Color: dark gray
Housing Material: High-impact flame-retardant polymer

Connections:
Power Connection: 5V micro USB connector (micro B) to wall wart
adapter

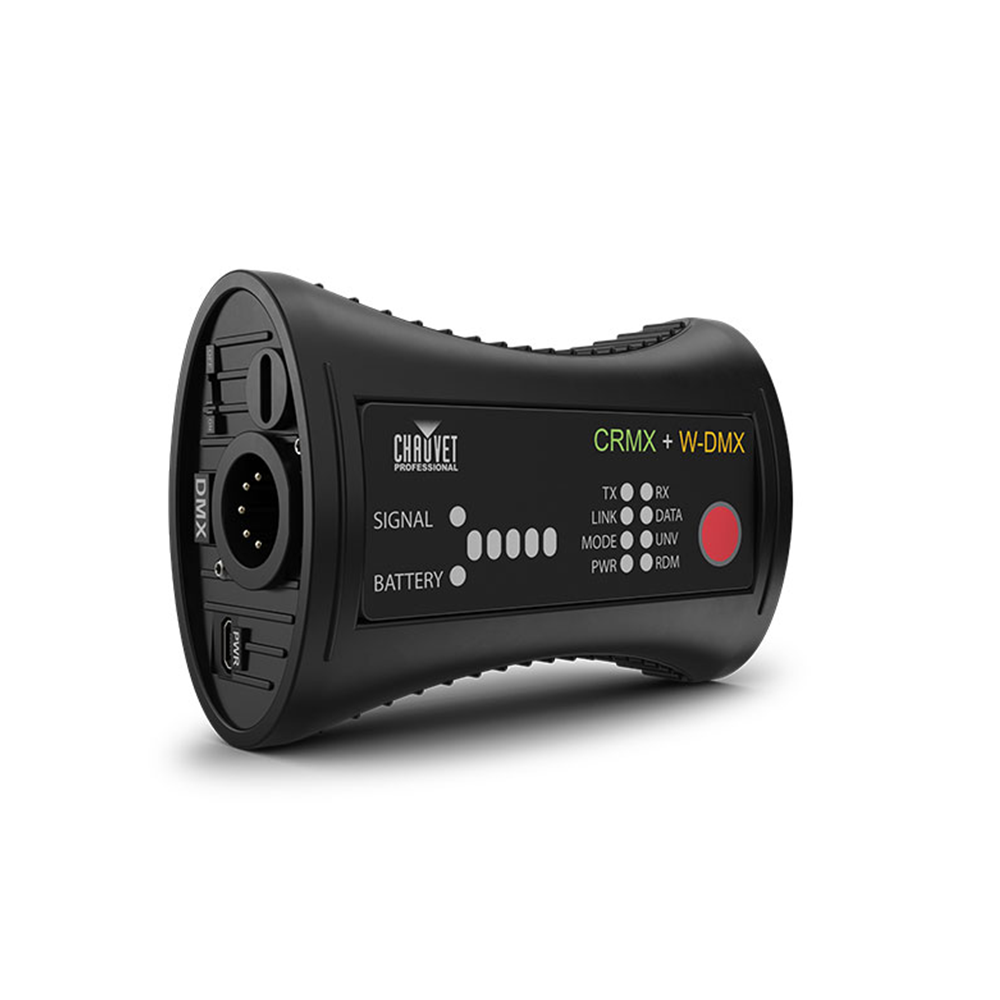

Data Connectors: 5-pin XLR

Control:
Control Protocol: W-DMX, CRMX, RDM
Frequency (operating): # 2.4 GHz
Universes per device: 1
Number of DMX channels: 512
DMX Latency: <5 ms
Max universe in coexistence: 16
Error correction: yes
DMX Fidelity: yes
Adaptive Frequency Hopping: Yes
W-DMX G3, G4, G4S, and G5 compatibility: Yes
Standard range: up to 650 ft (200 m)
Internal antenna: Yes
Sensitivity (0.1% PER): -97 dBm
Modulation method: GFSK

Electrical:
Input Voltage: 9 VDC 1000 mA, (external power supply: 100-230 V
50/60 Hz)

Certifications / Qualifications:
CE, FCC
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What's Included:
W-DMX Micro T-1 TRX G6
Micro USB to wall wart adapter
User Manual
Velcro attachment strap
