Chauvet Pro WELL-CONNECT Wireless Control Hub
WELL-CONNECT
Regular price$1,600.99
Available to Order
Available from supplier Chauvet Pro — usually arrives to us within
an estimated number of
business days. Get in Touch for details.
Payment plans from Affirm, learn more
- Chauvet Pro
- Shipping Calculated at checkout, most in stock products ship same day
Designed to work seamlessly with the ConnectFX app, the compact battery-powered WELL CONNECT wireless transceiver enables app-driven flexibility and robust data transmission. Whether paired with WELL fixtures or making an entire lighting system wireless, WELL CONNECT offers unmatched portability, versatility, and ease of use for event professionals and system integrators. Reliable W-DMX/CRMX transmission and direct playback in a rugged, professional-grade package.
Features
- Wireless Control Hub: Compact, battery-powered Bluetooth and W-DMX/CRMX transceiver designed to control WELL fixtures or any DMX lighting system.
- App-Driven Operation: Pairs seamlessly with the ConnectFX app on iOS and Android for intuitive wireless control of scenes and effects.
- Flexible Output Options: Supports both wireless & wired DMX protocols, offering reliable signal distribution for any setup.
- 12-Hour Battery Life: Integrated lithium-ion battery delivers all-day wireless operation; USB-C port provides continuous power when needed.
- Onboard Playback: Trigger pre-programmed scenes directly from the unit’s display—no console required.
- Rugged & Road-Ready: Durable aluminum housing and M12 threaded bolt ensure quick, secure mounting in demanding environments.
- Smart Firmware Management: Web-based UI allows for easy firmware updates and configuration.
Specifications
Construction / Physical
- Dimensions: 6.89 x 7.01 x 2.56 in (175 x 178 x 65 mm)
- Weight: 1.8 lb (0.9 kg)
- Exterior Color: Black
- Housing Material: Aluminum alloy
Connections
- Power Input: USB-C

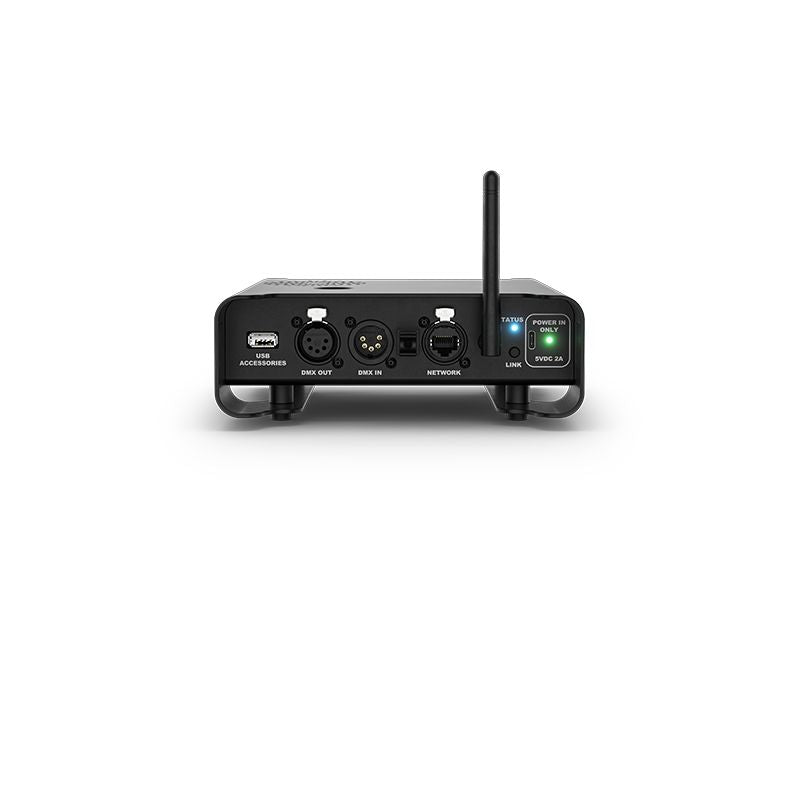

- Data Connectors: 5-pin XLR IN/OUT, USB-A Female, RJ45
Control
- Control Protocol: Chauvet CONNECT app, Art-Net, DMX, W-DMX, sACN
Electrical
- Input Voltage: 5 VDC, 2A via USB-C
Battery
- Battery type: Lithium Ion
- Rechargeable: Yes
- Battery Charge Time: 8 hours
- Battery Life: 12 hours
- Battery Power: 12 V, 24 Ah
Certifications / Qualifications
- CE, FCC, UKCA
- IP Rating: IP20, dry location
- Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What's Included
- WELL CONNECT
- EPSU USB-A
- USB-A to USB-C cable
Required Accessories
- Required Software: Chauvet CONNECT app
