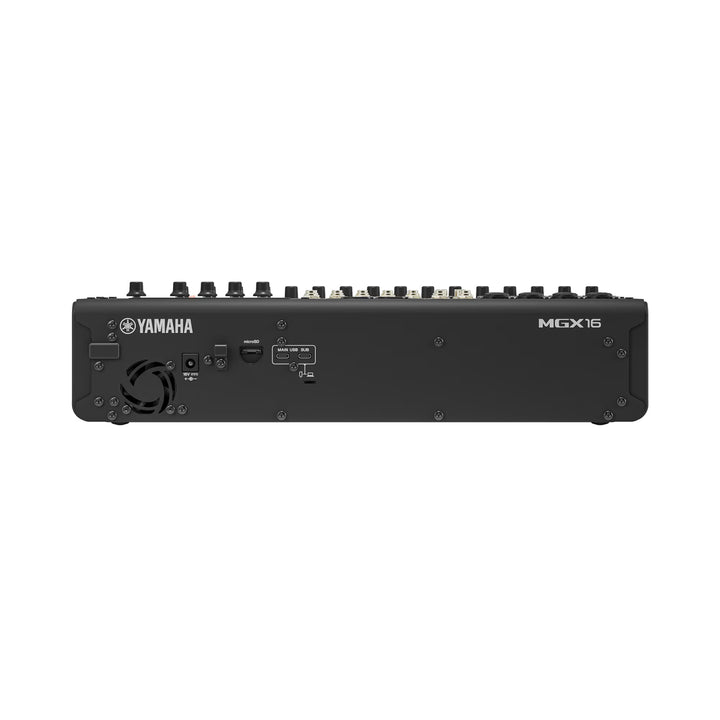

Yamaha MGX16 B 22-Channel Digital Mixing Console

The Digital Evolution of an Analog Classic

Building on the legacy of Yamaha's MG Series—already established as a global standard in mixing consoles—MGX digital mixing consoles deliver a perfect blend of flexibility, performance, and premium sound quality, excelling in a versatile range of live and installed sound, podcast/live streaming, music production, and recording applications.

The powerful and extremely versatile features of the MGX16 are designed to be operated quickly and intuitively through its touch-panel GUI and various physical controllers. In addition, a comprehensive selection of I/O options allows you to freely configure the system to suit any application. From live sound and installed sound systems—whether in halls, cafés, clubs, or houses of worship—to podcast streaming and professional recording, the MGX16 adapts seamlessly to a wide range of environments. And in every case, operators, artists, and audiences alike will be captivated by the quality of its sound and performance.

Versatility and Professional Sound You Can Count On

An audio mixer is expected to offer considerable versatility to accommodate a wide range of applications—such as live sound, podcast and live streaming, and recording—while delivering audio quality that satisfies the audience, the musicians and performers on stage, and you, the one who supports and shapes the entire experience.

The MGX features carefully selected physical I/O and extensive mixing capacity that enables flexible sound creation. Onboard DSP effects further enhance audio processing power, delivering a refined, professional sound for any application.

All the Essentials

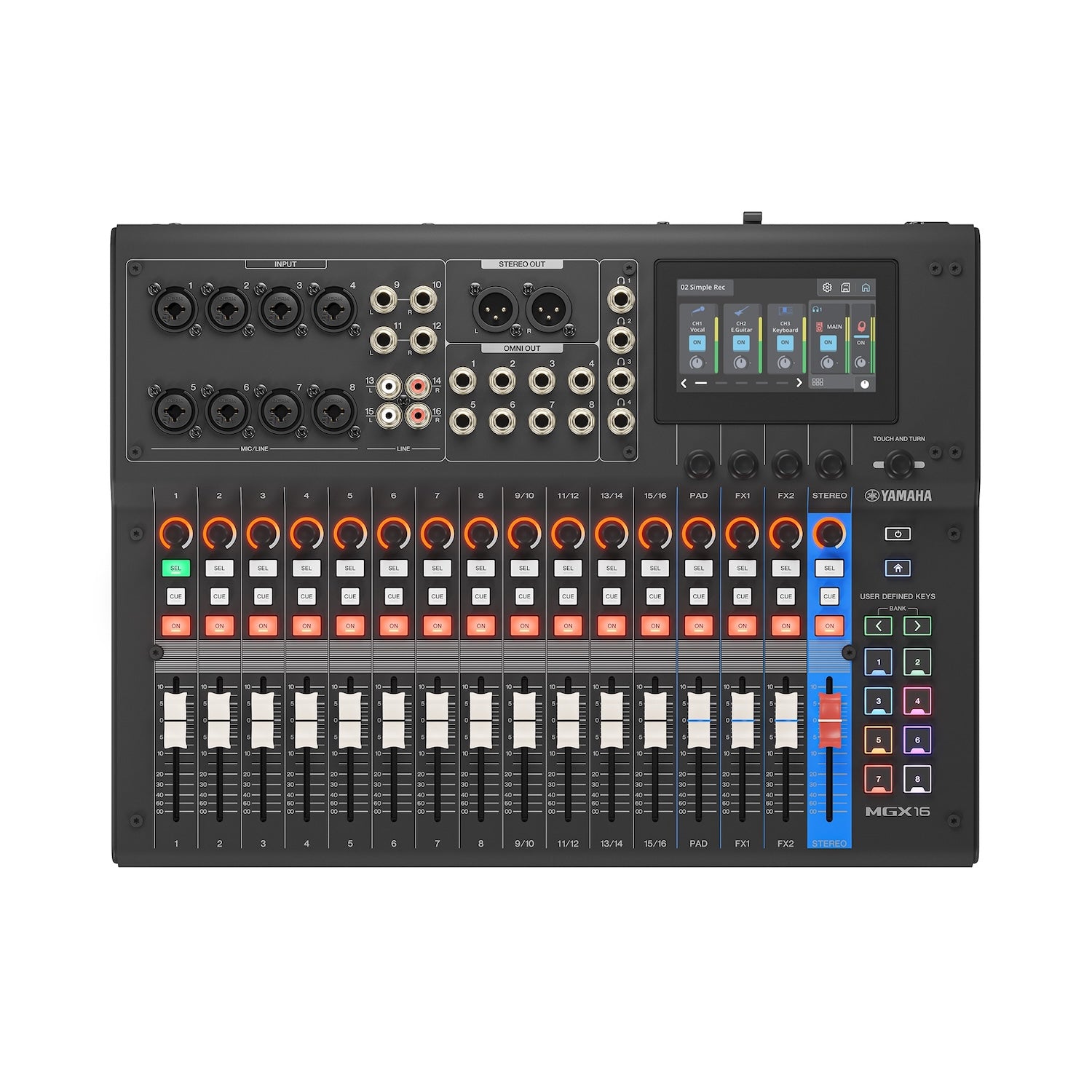

The MGX16 is equipped with 8 premium-quality MGX mic preamps on Mic/Line combo inputs, along with 8 Line inputs, 2 XLR outs, 8 TRS OMNI outs, and 4 headphone ports, enabling smooth collaboration and versatile monitoring.

Power. Capability. Versatility.

It also delivers extensive mixing capacity with 8 mono channels, 4 stereo channels, a dedicated Sound Pad, and 2 FX channels, supported by a bus architecture comprising 8 MIX buses and 1 STEREO bus.

Hone Your Vision

MGX also offers creative tools like Gate, Compressor, EQ, Reverb, Amp Simulator, and Voice Changer, letting you shape your sound exactly as you imagine. And with clear, comfortable monitoring—on stage, in the studio, or streaming—every moment you capture will resonate with beauty.

Flexible Power, Unrivaled Performance

In today's world, traditional applications such as live or installed sound, podcasting and live streaming, and recording production continue to diversify and evolve. Hybrid live events that combine live performances with simultaneous streaming are becoming more common. To meet this broad range of demands with greater flexibility, the MGX is designed not only as a versatile mixer but also as a multifunctional hub, equipped with a powerful USB interface, Bluetooth audio connectivity, sound pads, and microSD card recording/playback—all packed into a compact, portable body.

Features:

• 15 + 1 fader configuration (non-motorized fader)
• A 4.3-inch touchscreen with five control knobs
• Input mixing channels: 8 mono + 4 stereo + 1 Sound Pad + 2 FX return
• Busses: 1 STEREO + 8 MIX
• Local Inputs: 8 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line)
• Local Outputs: 2 XLR, 8 TRS Phone, 4 Headphones
• USB MAIN: 22 inputs / 22 outputs (32-bit / 96 kHz)
• USB SUB: 2 inputs / 2 outputs (16-bit / 48 kHz)
• microSD Card: 16-track recording / 2-track playback (24-bit / Up to 96 kHz)
• Bluetooth Audio Input: 2 inputs (Bluetooth 5.0, A2DP)
• Built-in DSP processor for professional sound and latency-free monitoring
• Assistive features: Auto Gain, Clip Safe, Simple / Standard mode, Scene Recall
• Included accessories: Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, AC Power Adapter (PA-300C)
