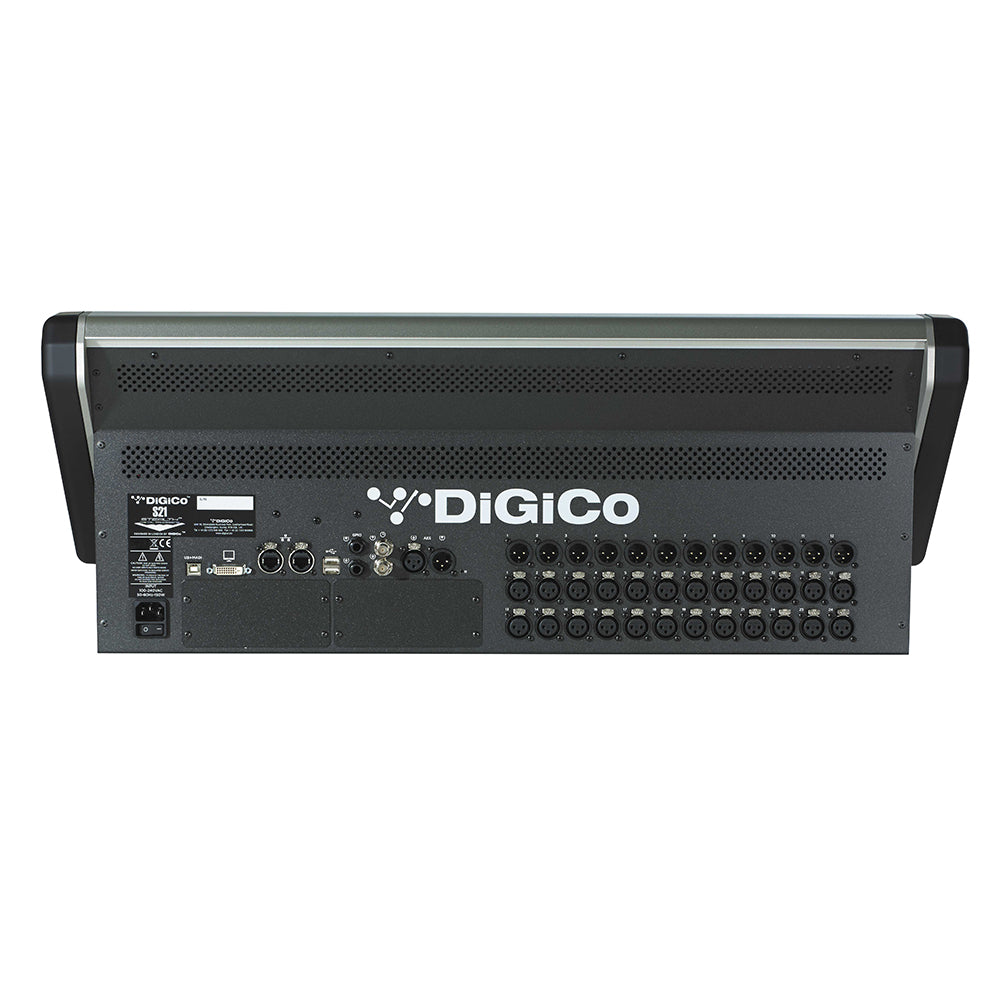

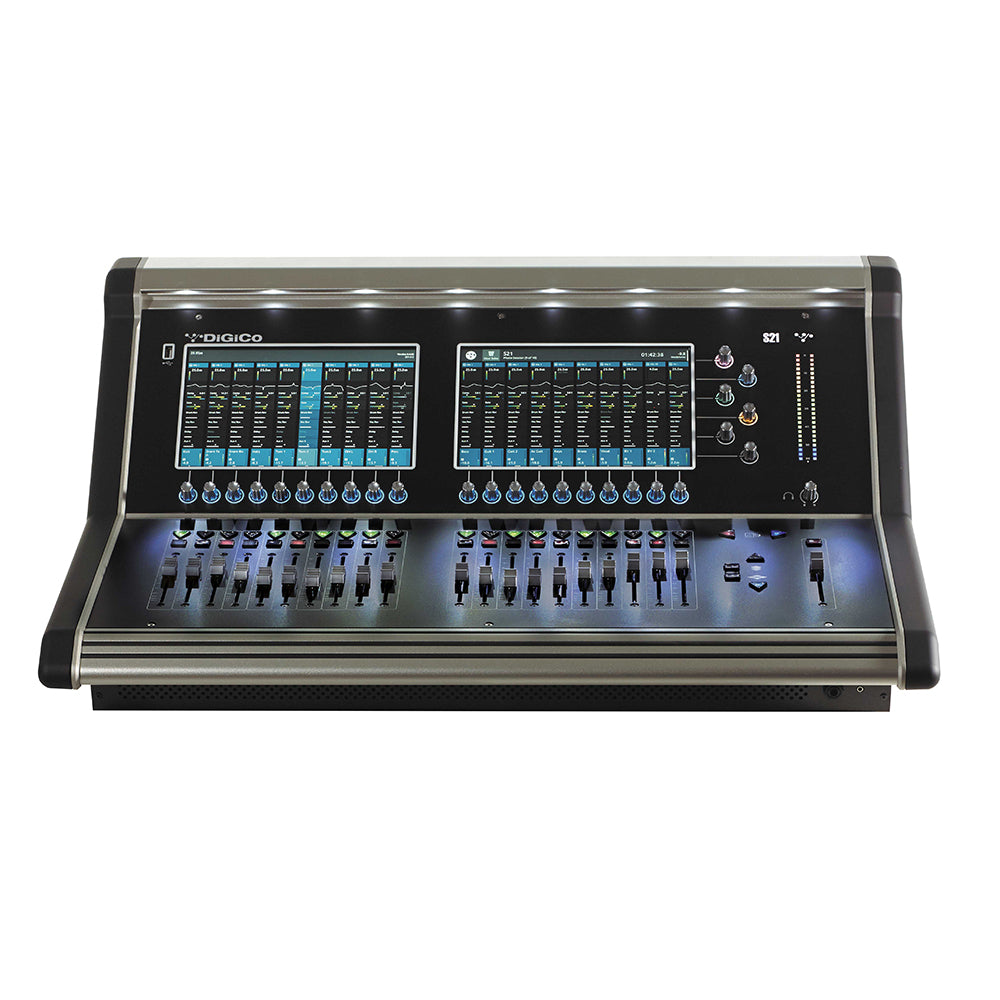

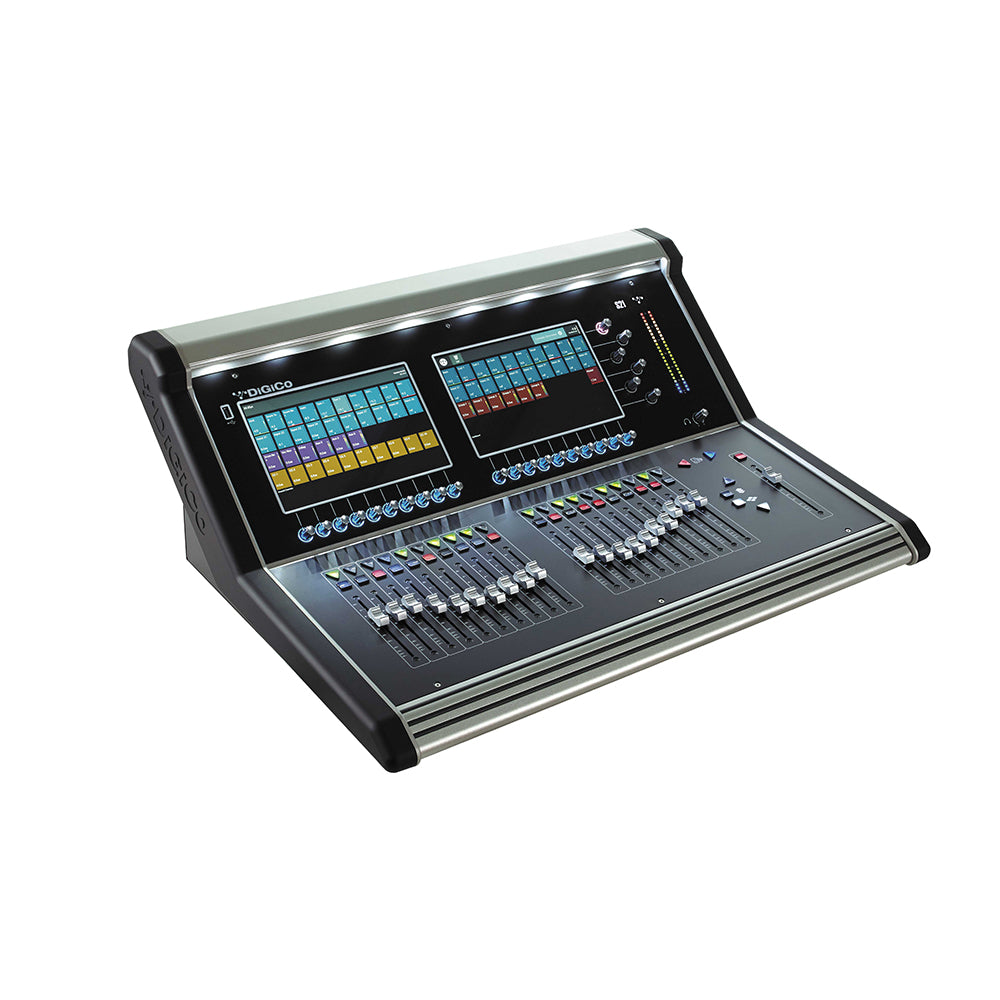

DiGiCo [X-S21-WS] S21 Work Surface 20+1 Fader Digital Console

S21 MAIN FEATURES

• 96kHz as standard
• 24 mic line inputs
• 12 analogue outs
• 2 AES I/O (mono)
• Word Clock I/O
• 1 GPI and 1 GPO
• DVI out (for an external monitor)
• 2 DMI Card slots (up to 64 I/O per slot)
• 2 Ethernet connections for Networking
• 2 x 24 segment master/solo meters
• Touch sensitive rotaries with integrated switch & HTL
• 2 x multi-touch screens
• 21 x touch sensitive moving faders
• 4 x layers of banks of 10 faders
• Customisable bank and channel layout
• Snapshots
• Integrated USB2 Audio I/O interface for recording and playback of up to 48 channels
• 40 x Input flex-channels Mono/Stereo (equivalent of 80 DSP channels)
• 46 busses: 16 x flexi-busses Mono/Stereo (equivalent of 32 DSP busses), Stereo Master (2), Solo busses (2 stereo, 4 total), and 10 x 8 Matrix (8)
• 10 x Control Groups1 x Compressor per channel and buss
• 1 x Gate per channel and buss (switchable to ducker, or compressor with side chain access)
• 16 x assignable 32 band Graphic EQs
• 8 x FX engines (reverbs, delays, w/modulation and enhancer)
• 4 x assignable DiGiTuBes
• 4 x assignable Multiband CompsUser definable MacrosAn extremely high power headphone amplifier with 1/4 inch and mini jack socket

Includes:

• S21 WorkSurface
• Dust Cover
