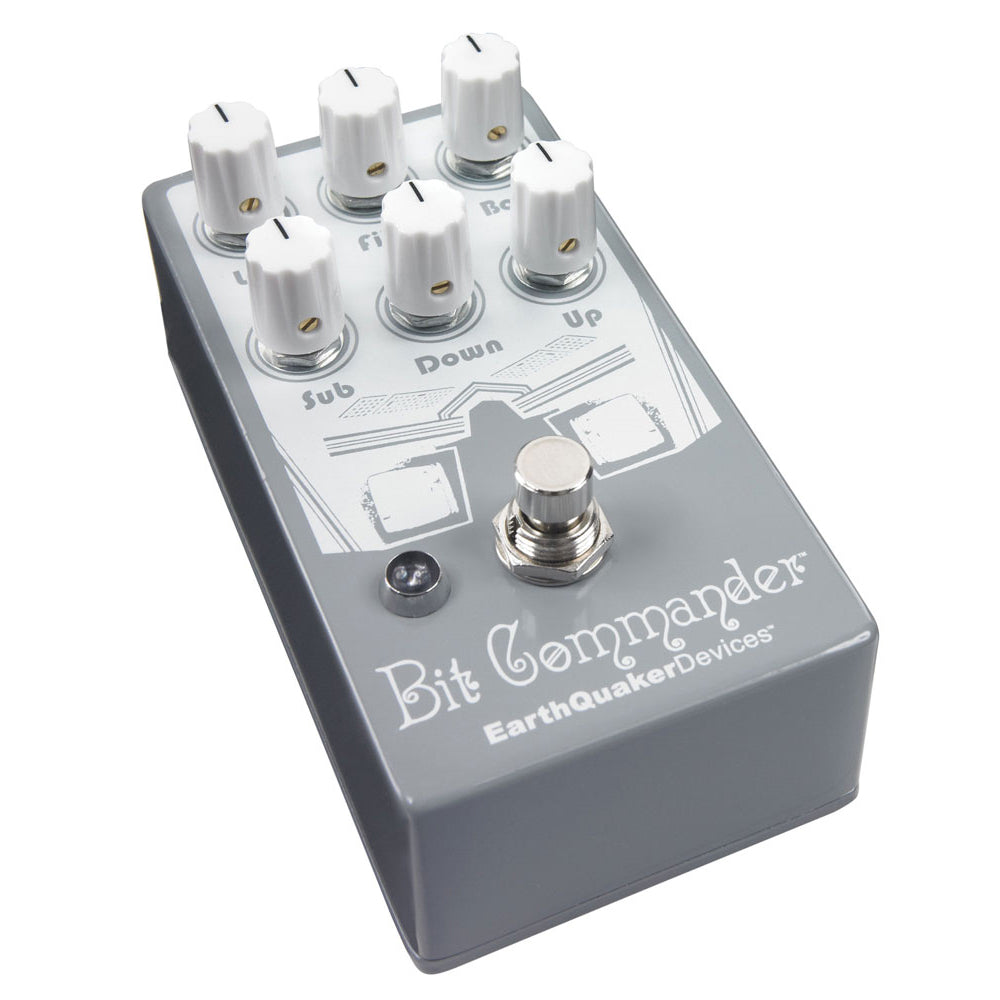

Earthquaker Devices Bit Commander Analog Octave Synth Pedal

Overview of Earthquaker Devices Bit Commander Analog Octave Synth Pedal

The Bit Commander is a monophonic analog guitar synthesizer with four octaves of vintage square wave synth tones. Its no-nonsense interface makes it easy to add or subtract octaves to create a wide variety of sounds without having to dial in envelopes or oscillators. Ripping sub-octave thump, pulsing octave down, a lightly squared base tone and a swelling transformer based octave up all join together to make a single guitar sound like an army of olde tyme synths.

This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!

Features:

• This device is true bypass and uses electronic relay-based switching. Audio will not pass without power
• Dimensions: 4.75 x 2.50 x 2.25 in. (121 x 64 x 57 mm) with knobs
• Current Draw: 25 mA
• Input Impedance: 50 kΩ
• Output Impedance: <500 Ω

Did you know that we offer a lifetime warranty on all of our pedals? We hope so, but we know that you’re busy bees, so we thought we’d take a moment to remind you of some of our most popular policies and how they work.

• If you ever get a brand new pedal that you believe isn’t functioning properly, please email your friendly sales rep, or orders@earthquakerdevices.com, and tell us the pedal name, serial # and the issue in as much detail as you can.
