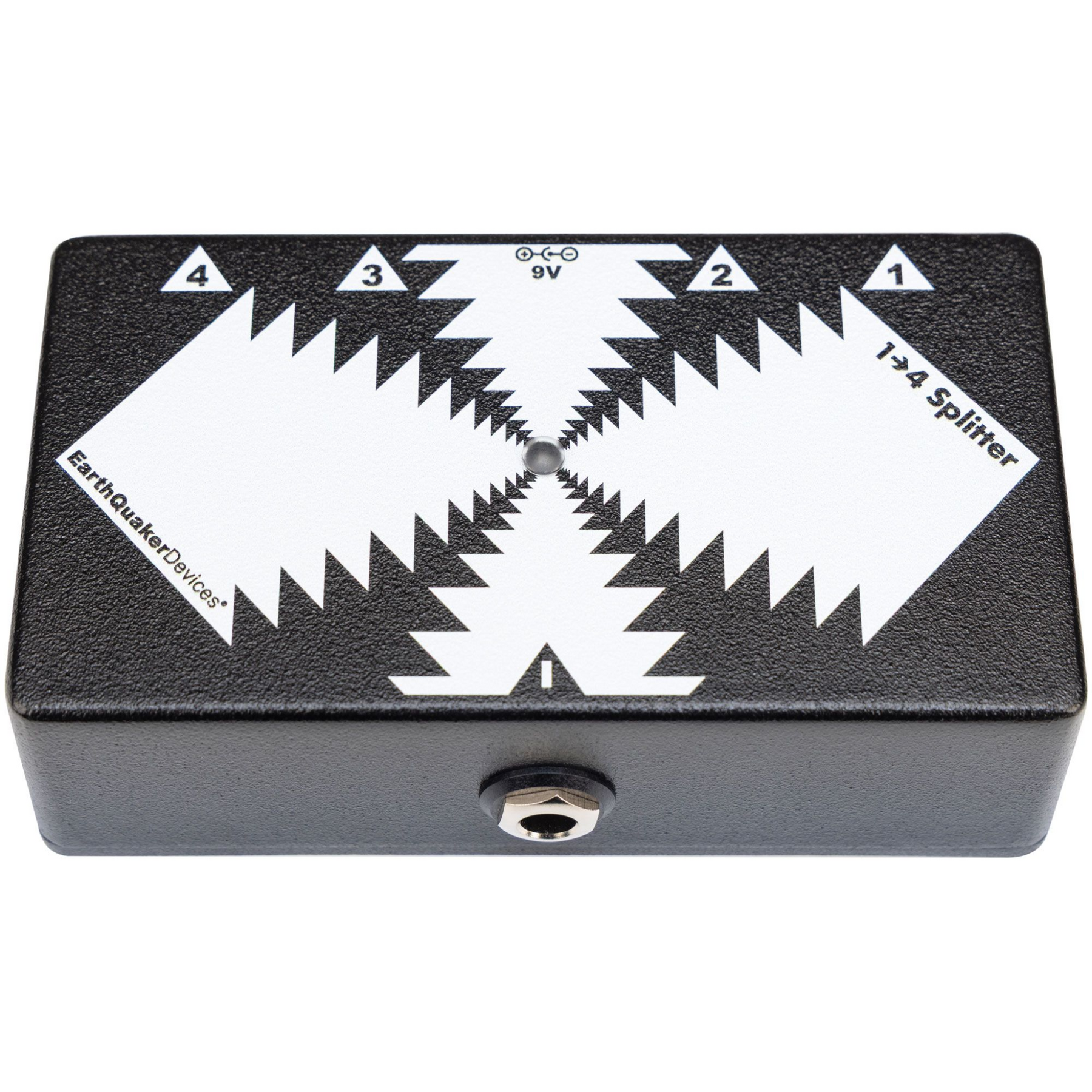

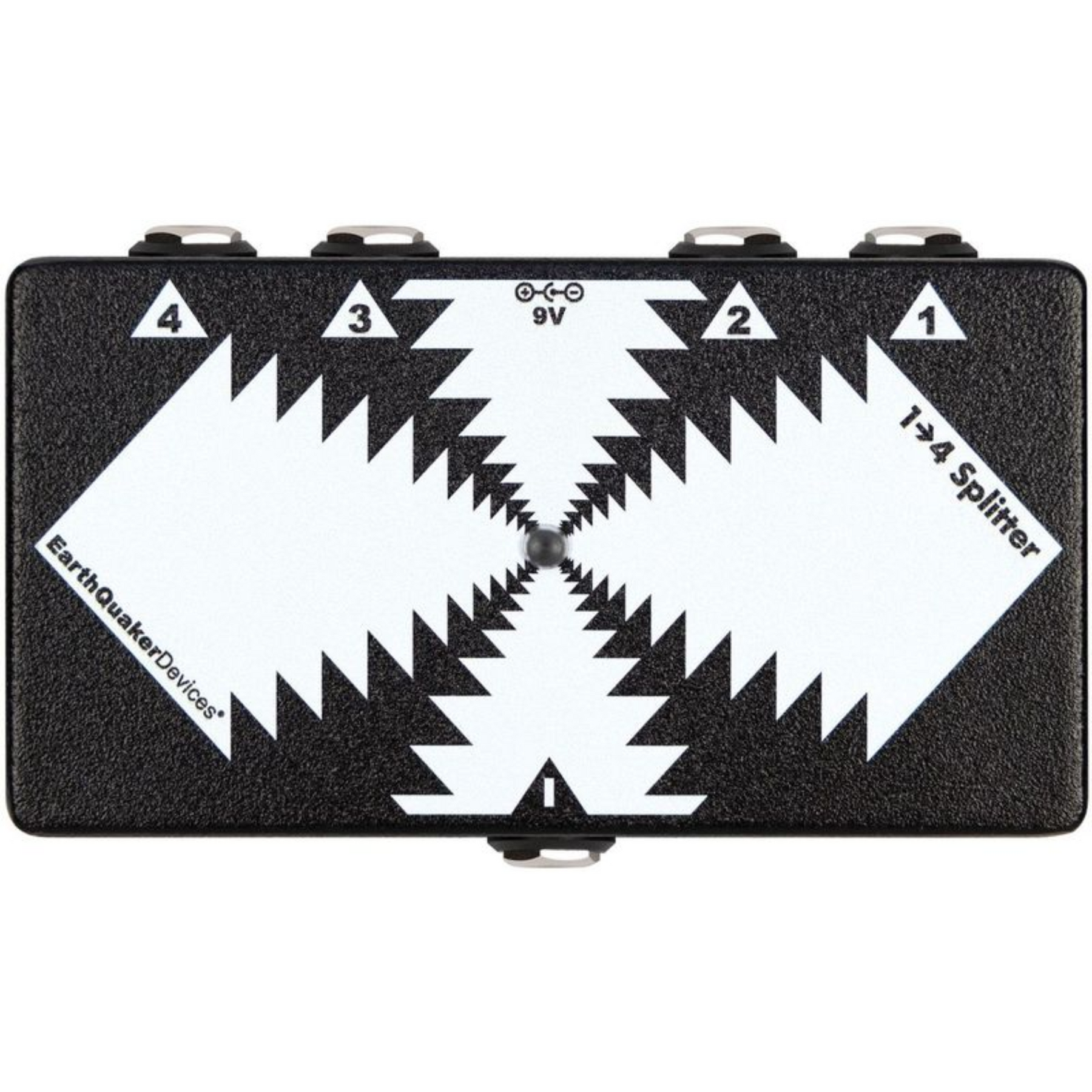

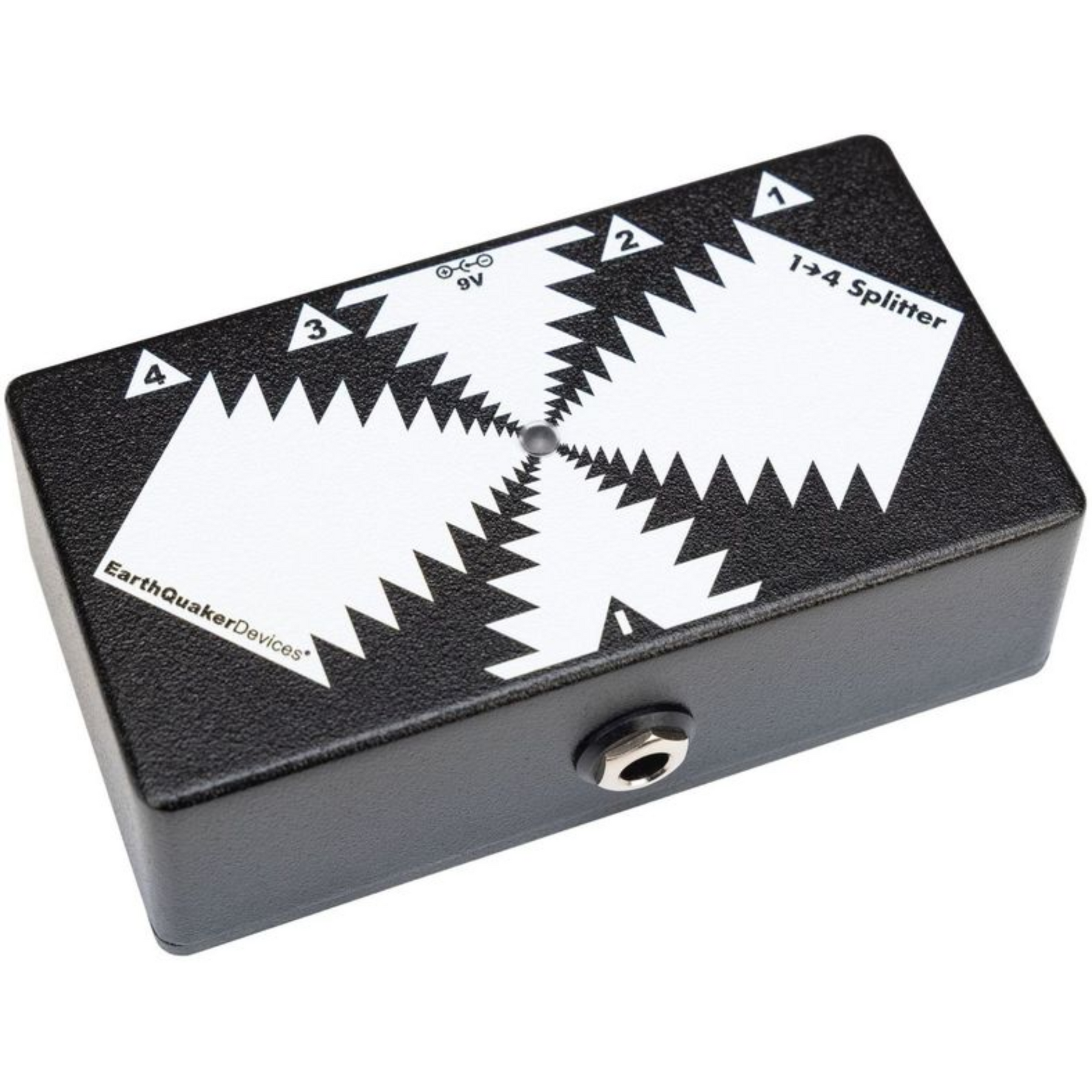

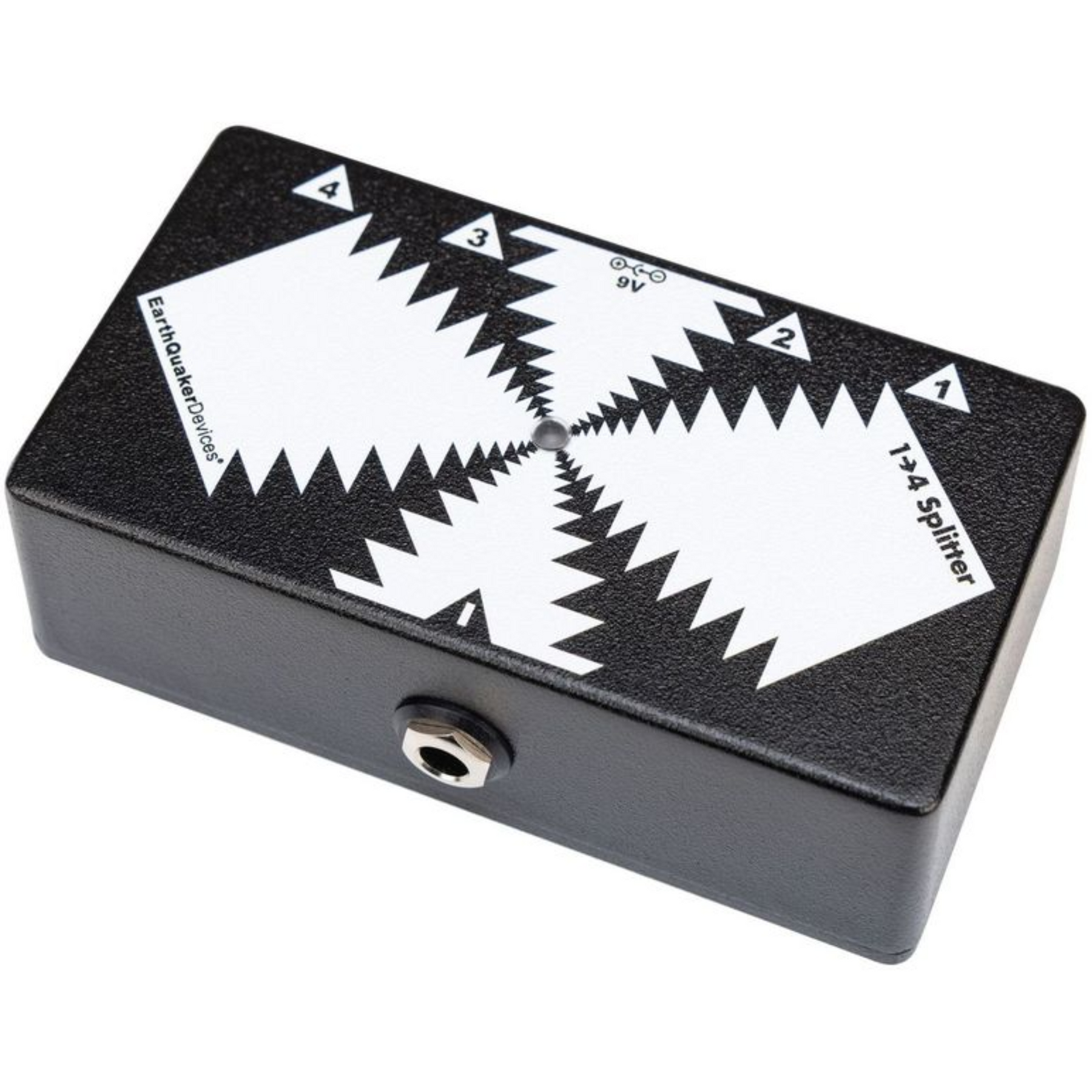

Earthquaker Devices EQD1TO4V1 One to Four Splitter

One to Four Splitter

We have crafted the One to Four Splitter to route your next musical adventure and help you create sounds you never thought possible. This One to Four Splitter allows the user to take one input and send it through four buffered outputs for unlimited creative potential. Use it to run out to four amps to play in quadraphonic sound and blow people’s minds. Send a clean signal to your DAW and another through your normal signal chain to have a clean backup while recording. Run 2 parallel stereo signal paths! Use our One to Four splitter together with our Four to One Mixer and create wild parallel signal chains! Use our Buffer/Splitter and run 2 x One to Four Splitters to have 8 parallel paths!

This device features a unity gain buffer on each output for maximum punch and clarity. These buffered outputs have a flat frequency response with a high 1 Mohm input impedance and a low 100 ohm output impedance. This means that your signal won’t lose any quality and will sound just like you intended. Even long cable runs will be no match for the One to Four Splitter. Like our other products, our One to Four Splitter is made at our factory in Akron, Ohio, and is backed up with our limited lifetime warranty. With the One To Four Splitter, the possibilities are nearly endless.

• Input impedance: 1 MΩ
• Output impedance: 100 Ω
• Power: 9V DC Only
• Current Draw: 15 mA
