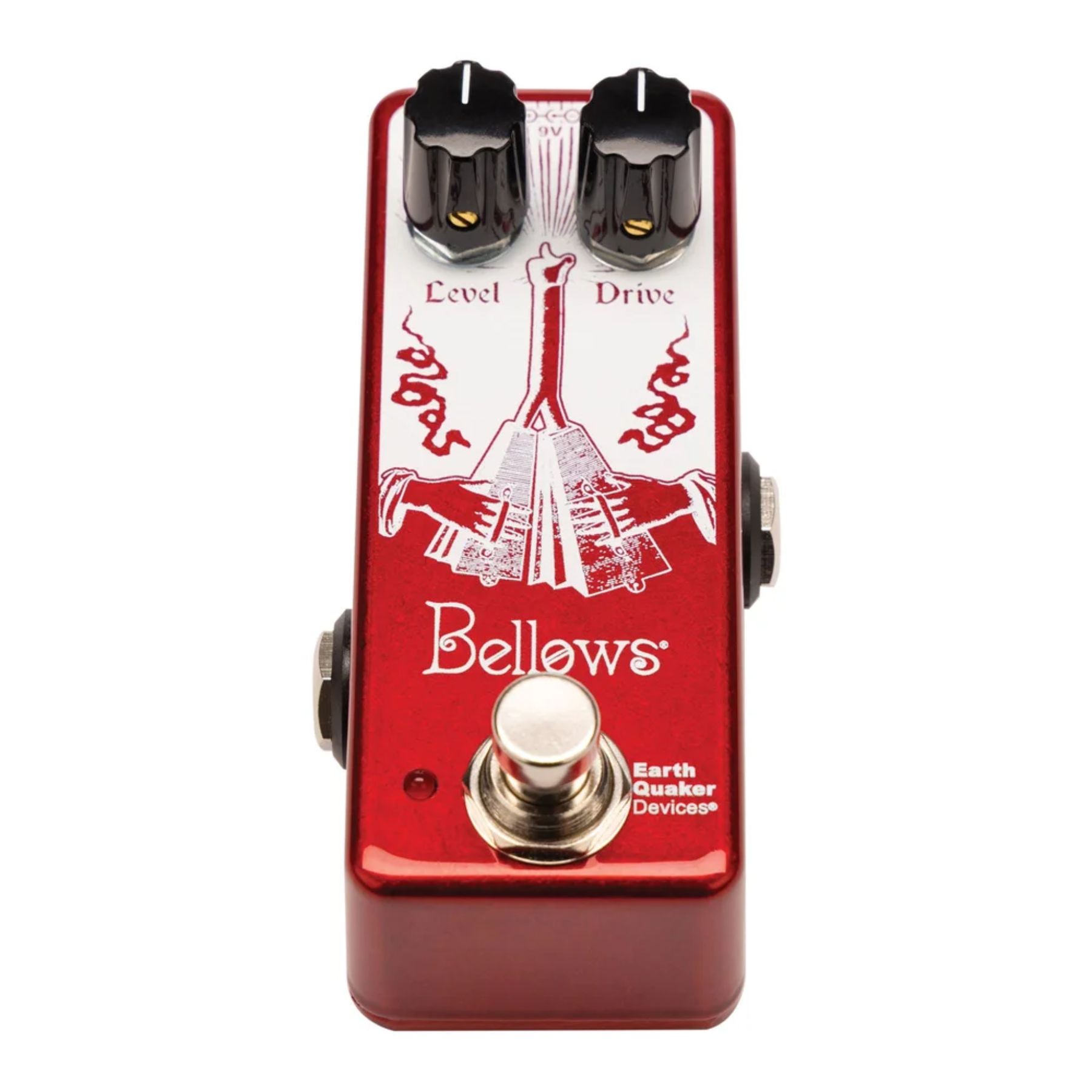

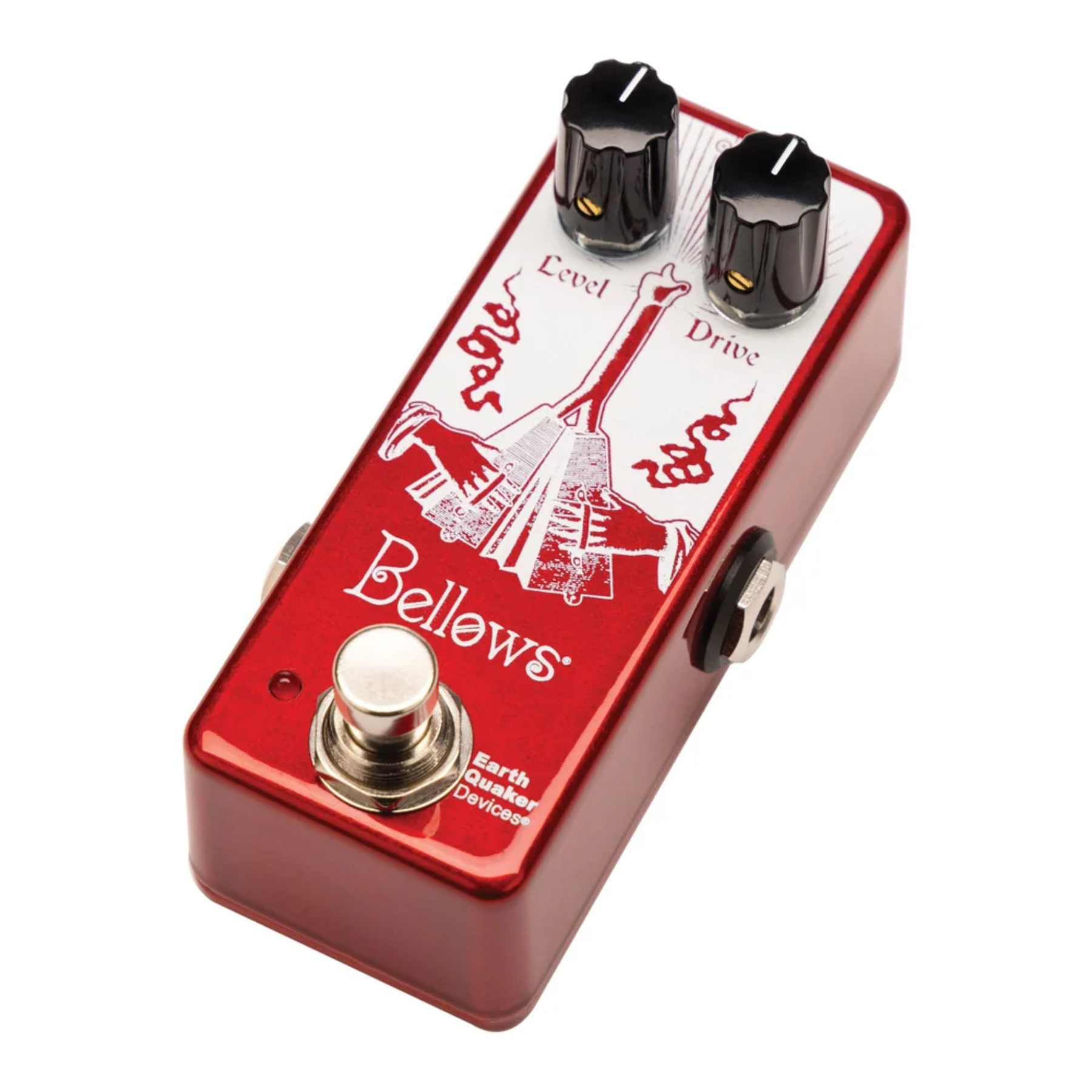

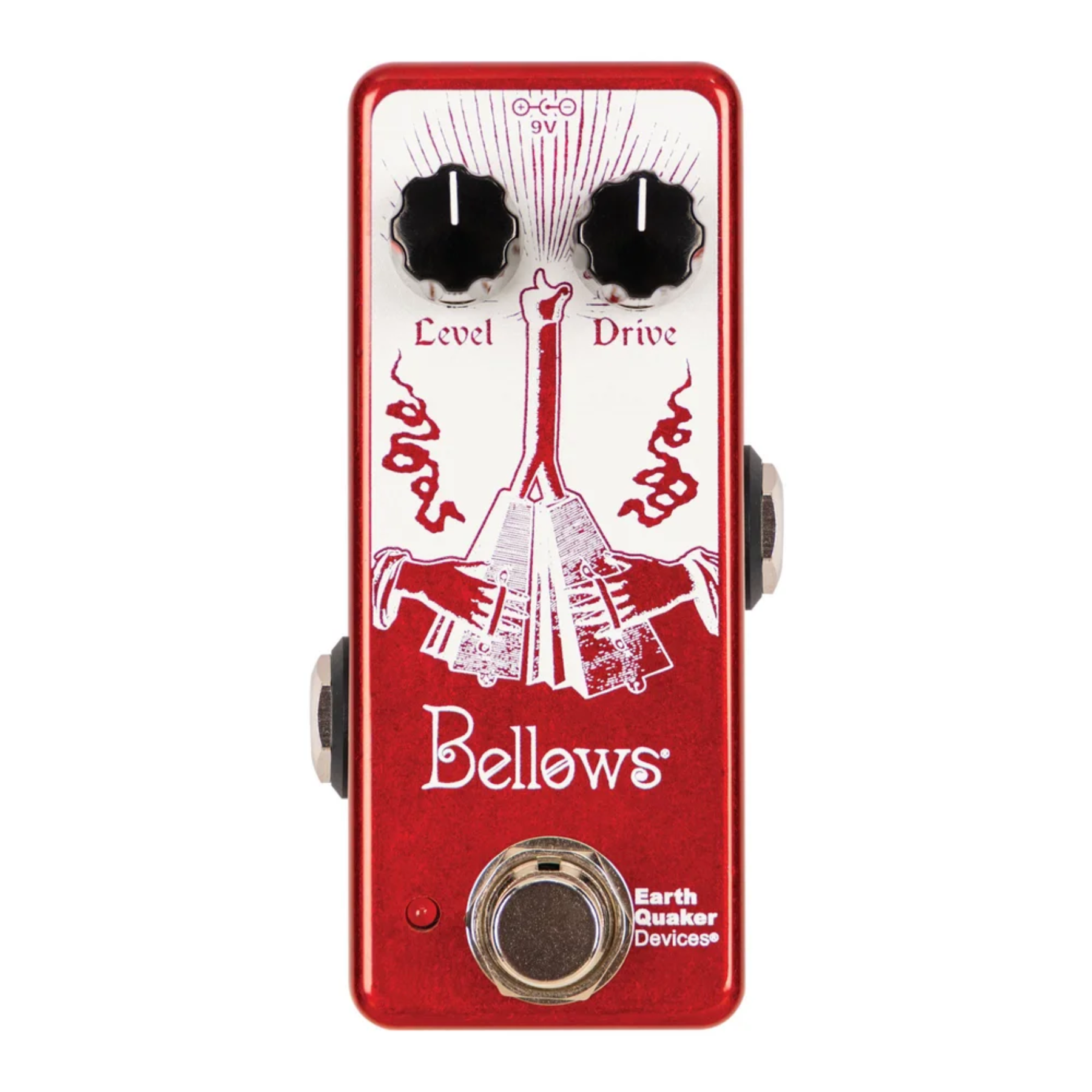

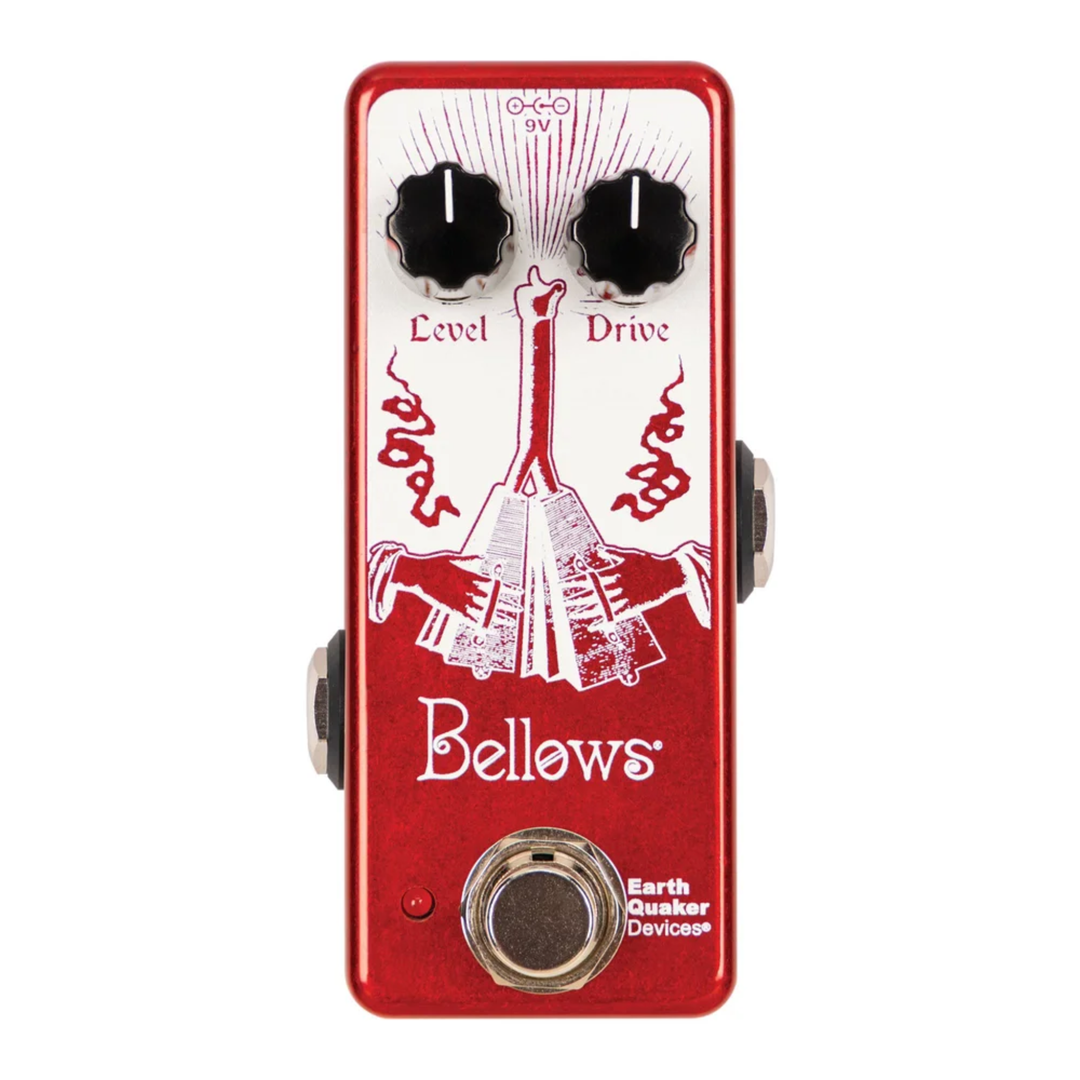

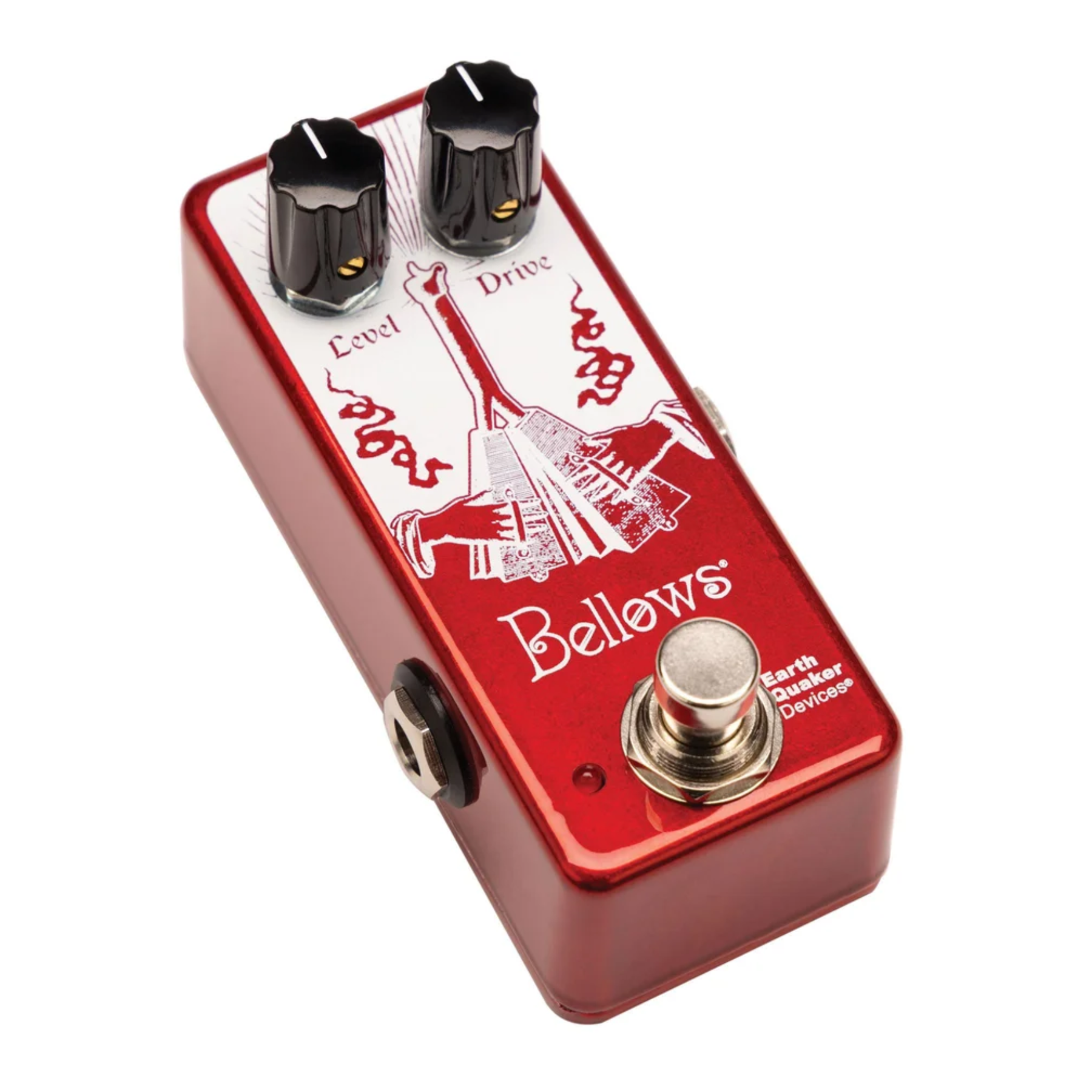

EarthQuaker Devices Limited Edition Bellows Legacy Reissue Fuzz Driver

What up, fuzz fanatic! Welcome to your new fun-sized EarthQuaker Devices Bellows® Fuzz Driver! It's the same back-to-basics, transistor-based dirt device that was offered in a larger enclosure during the EarthQuaker of yore, now in a junior-sized enclosure with fresh artwork. Bellows is a two-knob wonder imbued with a whole lot of character for such a wee, simple, and unassuming pedal. It straddles the line between amp-like grit and fuzzy saturation to create a remarkably vintage, tweed-type tone.

Similar to the volume control of a "non master" amp, the Drive determines how hard the signal hits the input. At lower drive levels it's a little wider and grittier. If you can resist the usual urge to dime the Drive, you'll be rewarded with forcefully mellow, amp-like break up. Slowly bring up the Drive and you'll eventually end up in blown out fuzz land, having passed a bunch of useful distorted places on your way. It's pretty much every era of rock n' roll in a box.

While designed for guitar, Bellows also handles bass extremely well at growling low and scorching high levels. Heck, it's even pretty great if you want to add some grit and grime to an organ or electric piano.

Made in the City of Invention a.k.a. Akron, Ohio, USA.

Controls

Level: Adjusts the output level by setting the bias voltage of the transistor. A small amount of noise while dialing this in is perfectly normal.
Drive: Controls the input gain of the device for different levels of dirt. Youll find that it is thinner and more clean counter clockwise and thicker with more growl clockwise.
Switching: Bellows uses mechanical true bypass switching

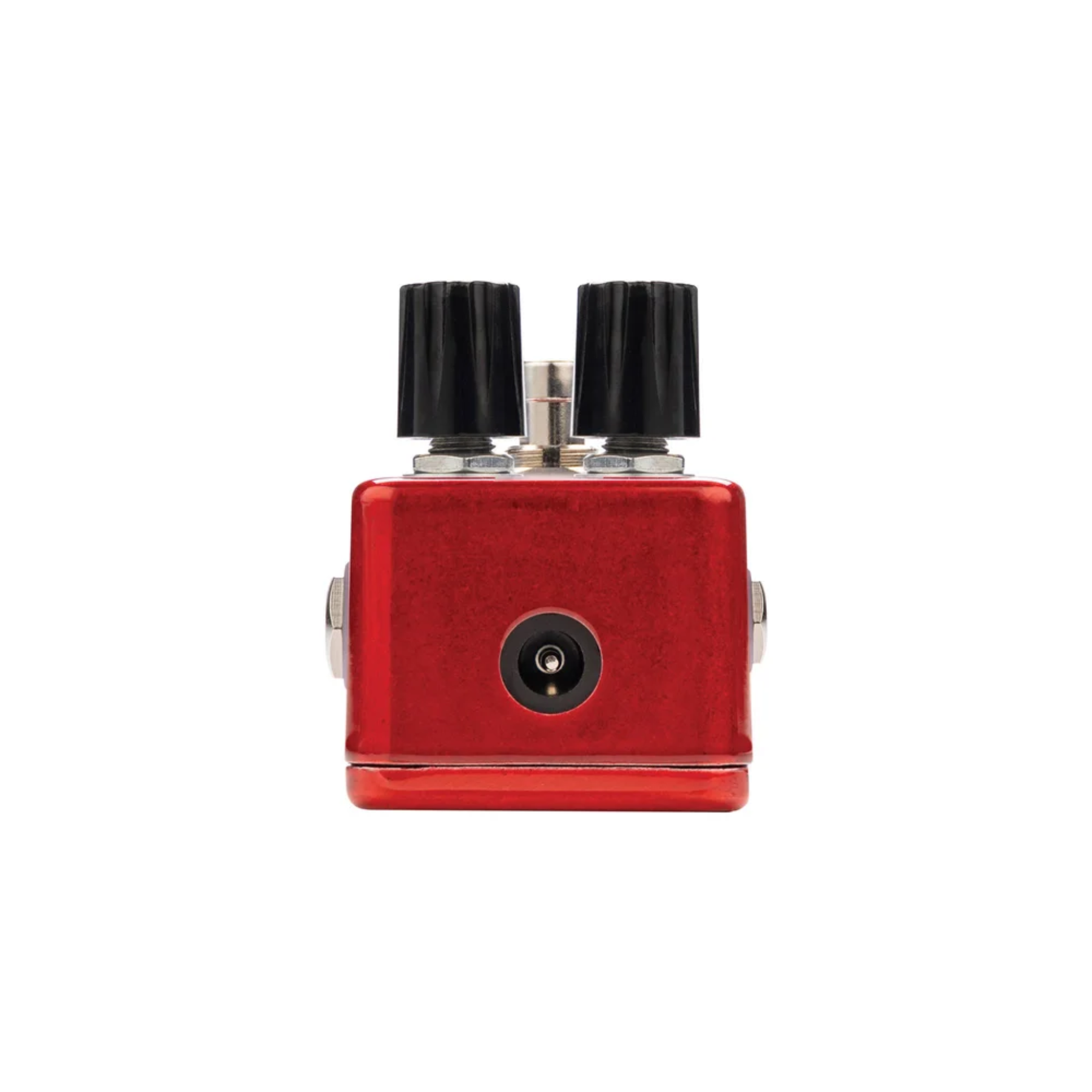

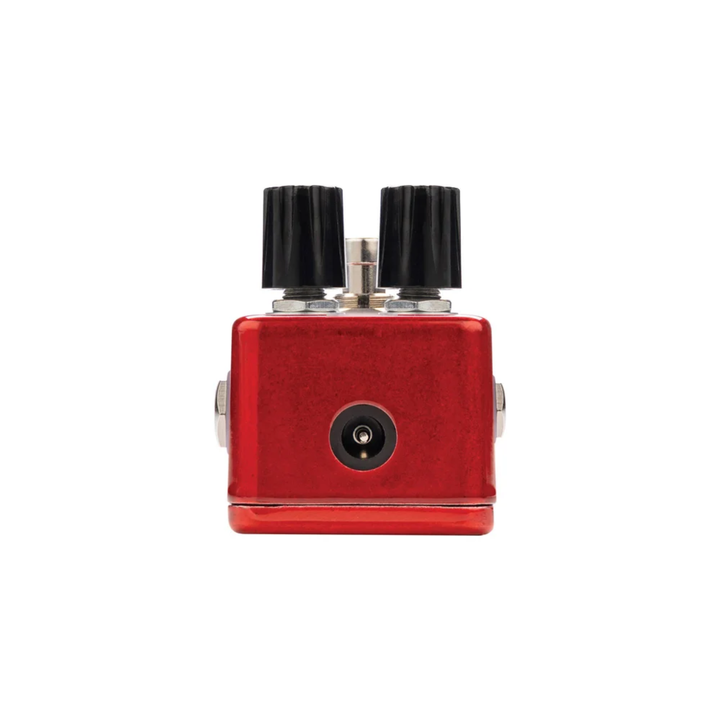

Power: This device requires a standard 9-volt DC power supply with a 2.1mm negative center barrel. Do not run at higher voltages!

Specifications

Input Impedance: 250 kΩ
Output Impedance: < 1 kΩ
Current Draw: 13 mA
