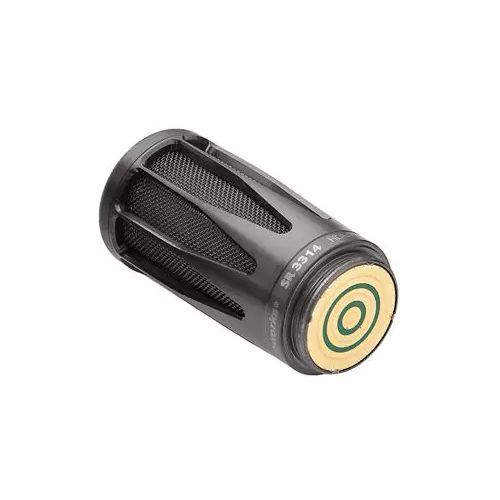

Earthworks SR3314-B Cardioid Wireless Microphone Capsule- Black - 20Hz-30kHz - compatible with handheld transmitters (3-ring contacts and 1.25"/28 thread pitch, including Shure, Lectrosonics, A-T, Line-6)
SR3314-B
Regular price$1,027.53
Out of Stock
Get in Touch →
Available to Order
Arrival times vary. Get in Touch for timing.
Payment plans from Affirm, learn more
- Earthworks
- Shipping Calculated at checkout, most in stock products ship same day
Bring the most responsive wireless capsule to your favourite wireless platform. Formatted for use with any 3-ring wireless microphone base, the Earthworks SR3314 captures natural, open, rich-sounding vocals with minimal proximity effect.
Available in stainless steel, polished black with stainless mesh, and polished black.
Specifications
Frequency Response: 20Hz-30kHz
Polar Pattern: Cardioid
Max Acoustic Input: 133 dBSPL @ 6V
Sensitivity: 6.5 mV/Pa (-43.7 dBV/Pa)
Power Requirements: 3V to 6V; 2.1 mA @ 5V
Distortion: Less than 3% THD
Output: Center & outer ring on 3-ring concentric connector
Output Impedance: 0.1 ohms
Noise: 22dBA @ capsule output (A weighted)
Threads: 1.25"/28 (31.7mm/0.9) thread pitch to match compatible wireless handheld transmitters
Dimensions:
3.3" (84mm) long
1.6" (40.6mm) max dia.
1.46" (37mm) min dia
Weight: 0.4 lbs (0.18kg)
Available in stainless steel, polished black with stainless mesh, and polished black.
Specifications
Frequency Response: 20Hz-30kHz
Polar Pattern: Cardioid
Max Acoustic Input: 133 dBSPL @ 6V
Sensitivity: 6.5 mV/Pa (-43.7 dBV/Pa)
Power Requirements: 3V to 6V; 2.1 mA @ 5V
Distortion: Less than 3% THD
Output: Center & outer ring on 3-ring concentric connector
Output Impedance: 0.1 ohms
Noise: 22dBA @ capsule output (A weighted)
Threads: 1.25"/28 (31.7mm/0.9) thread pitch to match compatible wireless handheld transmitters
Dimensions:
3.3" (84mm) long
1.6" (40.6mm) max dia.
1.46" (37mm) min dia
Weight: 0.4 lbs (0.18kg)
