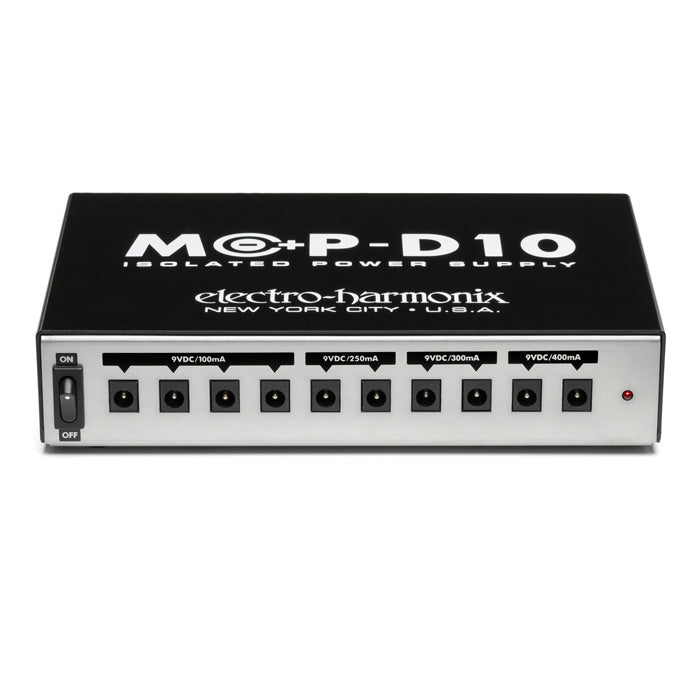

Electro-Harmonix MOP-D10 Isolated Power Supply

Overview of Electro-Harmonix MOP-D10 Isolated Power Supply

The Electro-Harmonix MOP-D10 is a multi-output power source developed by EHX to provide players with noise-free pedal operation. It features ten isolated 9VDC outputs that handle the most popular power requirements. From its premium analog power path featuring low-noise linear regulators to its custom-wound toroidal transformer, the MOP-D10 is designed to let a pedal user achieve a sonically pure signal path. Unlike many other multi-output power supplies which rely on switching power conversion, the MOP-D10’s transformer-based power conversion is significantly less susceptible to spurious noises leaking into the audio path.

Features:

• Professional pedalboard power solution with ten isolated 9VDC outputs: 4x100mA, 2x250mA, 2x300mA and 2x400mA
• Provides a premium analog power path with low-noise linear regulators
• Custom-wound toroidal transformer delivers exceptional isolation and clean power
• Relies on transformer-based power conversion which is superior to switching power conversion

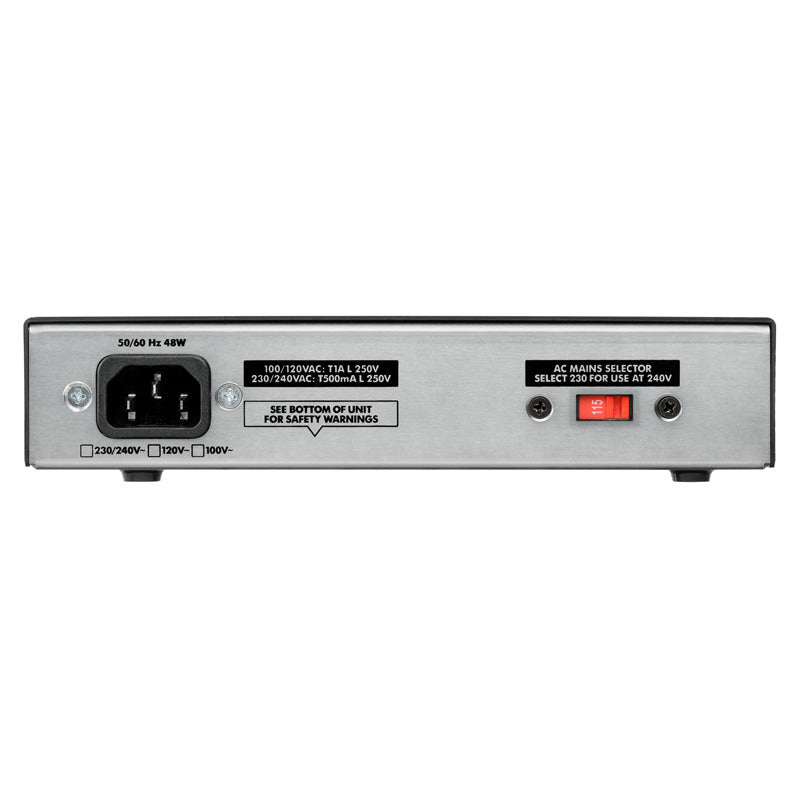

• AC Voltage Selector Switch allows the MOP-D10 to be used with a range of voltages commonly found around the world
• All output power jacks are isolated from each other for noise-free operation

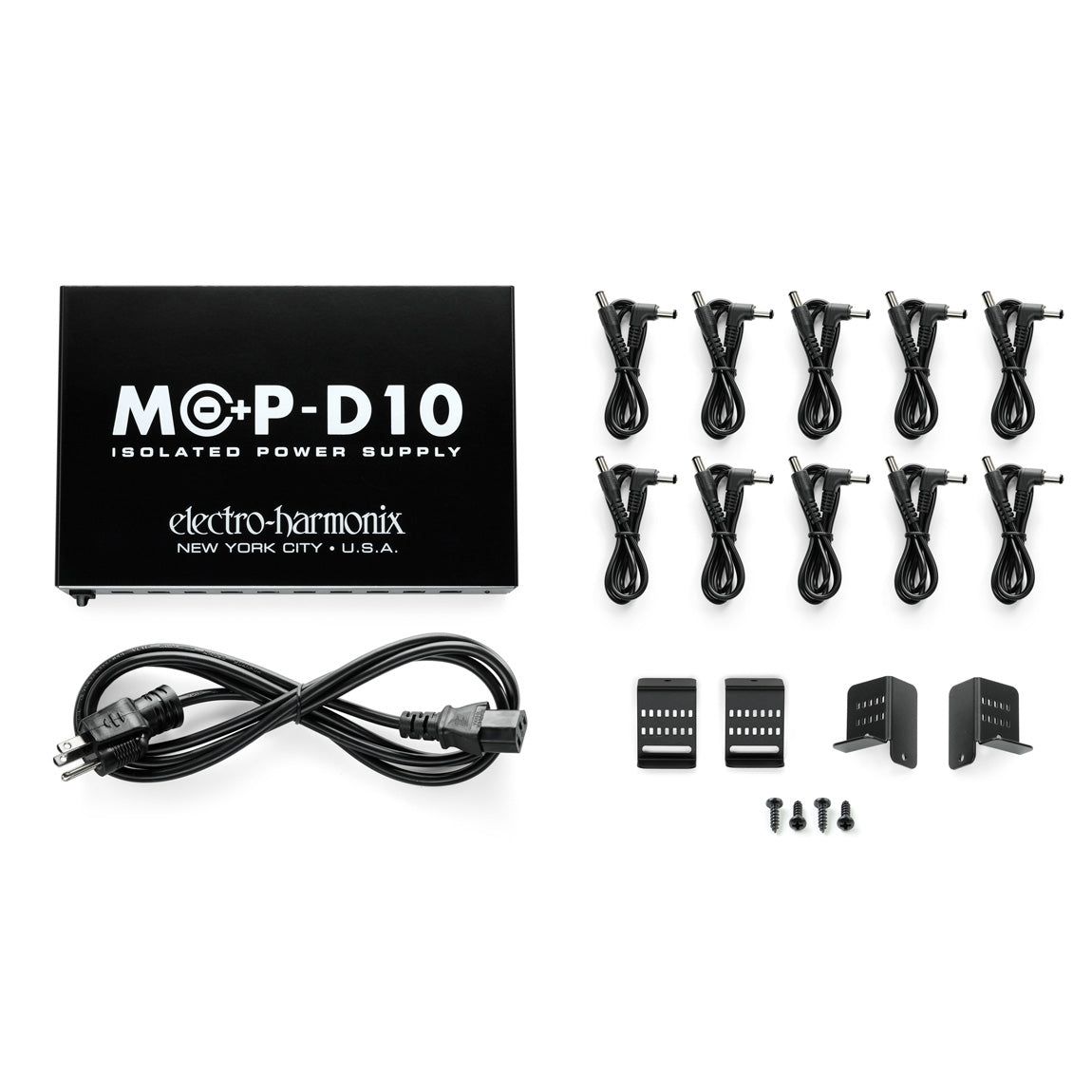

• Comes with ten 24" long DC power cables equipped with one straight and one right-angle end

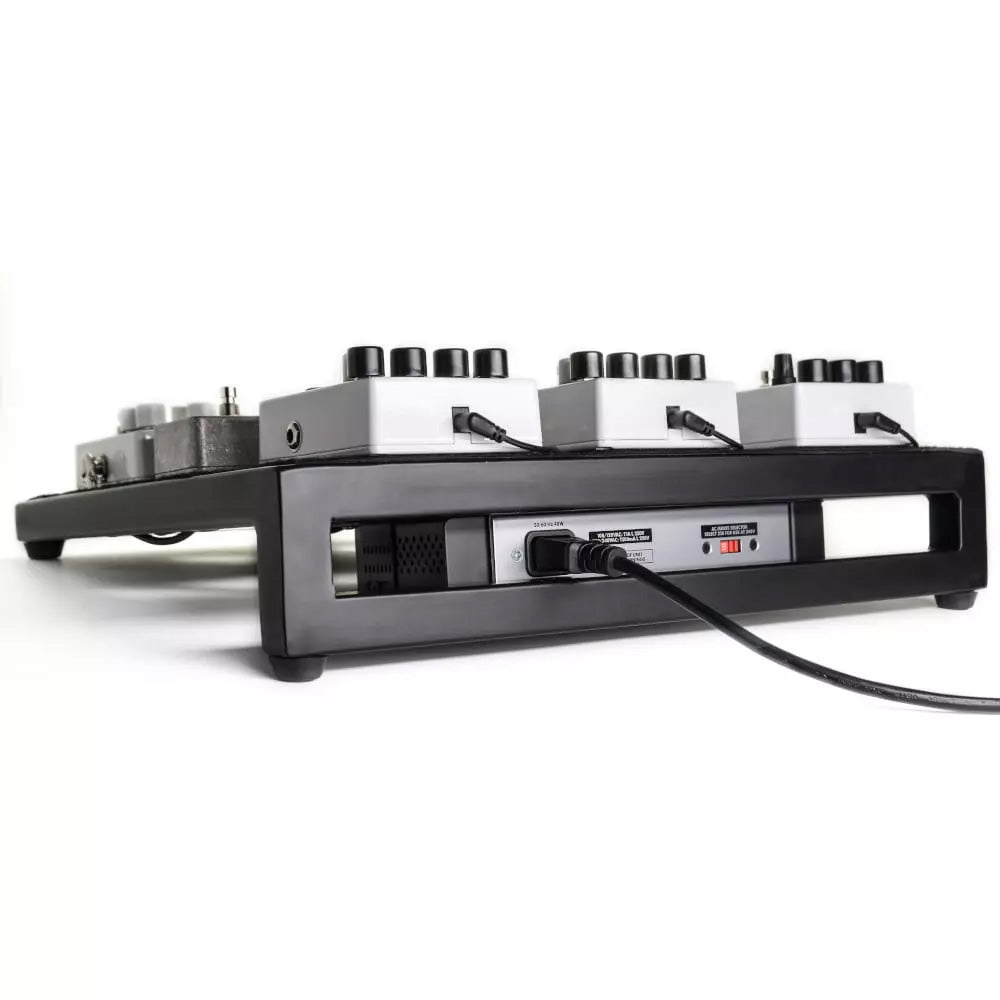

• Includes hardware for pedalboard mounting
