Overview of Electro-Harmonix Slap-Back Echo Analog Delay Reissue
The late 1970s rarity Electro-Harmonix Slap-Back Echo pedal is reissued with modern updates and a Pico footprint!
The 50s era gave birth to an iconic sound in which a single, short delay was utilized to add depth and rhythmic effect on countless recordings. The newly reissued all-analog design of the EHX Slap-Back Echo delivers this beloved classic sound and more in a Pico-sized pedalboard-friendly package. With three delay time settings and up to +20dB of boost, the Slap-Back Echo can achieve subtle doubling effects to intense bathroom reflections all with the distinct flavour of bucket-brigade (BBD) circuitry.

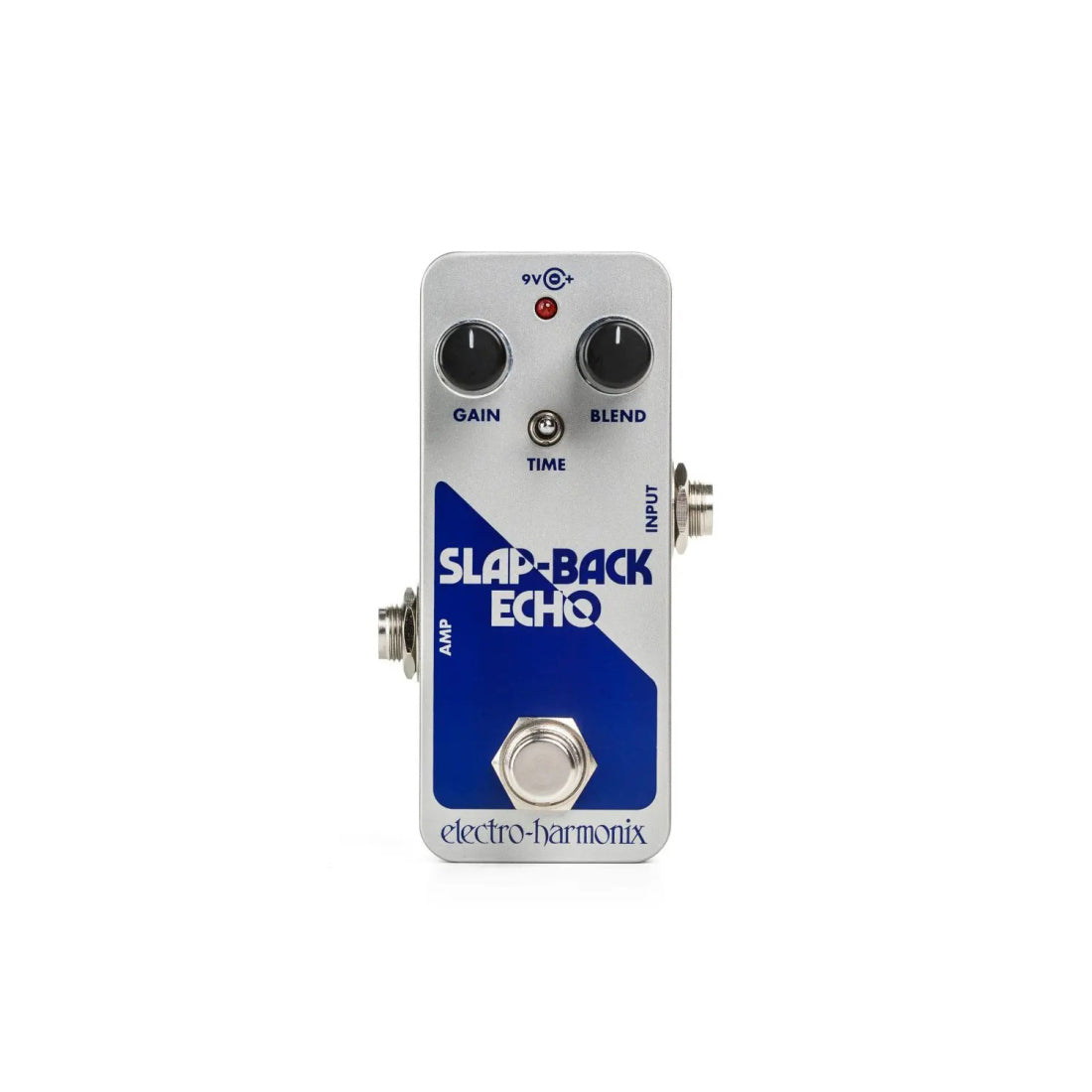

Housed in EHX's Pico-sized chassis, the Slap-Back Echo features Gain and Blend knobs as well as a Time switch. The Gain knob controls the input signal before the echo circuit and also adjusts the overall volume at the output with a boost of up to +20dB. The Blend knob mixes the dry signal and the echo signal from 100% dry to 100% echo. The Time switch selects between three different delay times: 45ms, 65ms, and 100ms.
Features
• Independent gain and blend knobs
• Time switch with 45ms, 65ms, and 100ms delay times
• Up to 20dB of boost
• True-Bypass
• Small, pico-sized chassis
• 9V power supply included
Specs
Circuit: Analog
Bypass: True Bypass
Audio: Mono
Power Supply: 9.6VDC-200mA power adapter included
Dimensions: 3.65 x 2.0 x 2.0 inches
Current Draw: 15mA
