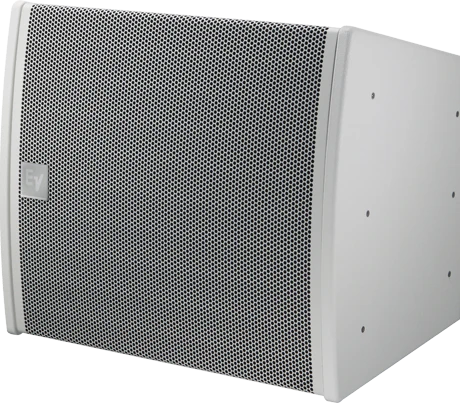

Electro-Voice EVA-2082S/920-WHT Dual‑Element 90x20-Degree Full‑Range Line‑Array Module EVCoat (White)

The Electro-Voice® EVA-2082S 350-watt (Passive) is a two-way multi-element loudspeaker system featuring dual Electro-Voice EVS2008 8" woofers, accompanied by four DH2005 high-frequency compression drivers mounted on two Hydra™ waveguides (available in four distinct coverage patterns: 90° x 6°, 90° x 20°, 120° x 6°, 120° x 20°). Passive operation only. Available in black or white, with a choice of three finishes: EVCoat™ (interior use), PI (indirect weather exposure), and FG (fiberglass, for direct weather exposure)

Features

• High performance, cost-effective
• Ideal for fixed-installation line arrays
• Two array elements in each module
• Two 8-inch low-distortion woofers
• Four 1.25-inch titanium diaphragm HF drivers
• Advanced Hydra(R) plane wave generators
• High sensitivity (104 dB) for high output
• Super efficient: drive up to 8 boxes from a single amp channel
• Sixth-order passive crossover with HF protection
• Integrated hidden suspension hardware
• Choice of three finishes: indoor, PI and fiberglass
• EVADA (EVA Design Assistant) software tool

Specifications

Frequency Range (-10 dB): 45 - 20,000 Hz
Frequency Response (-3 dB): 60 - 19,000 Hz
Speaker Type: Full-Range, Line Array
HF Transducer: (4) DH2005, 1.25" (32 mm) Diaphragm Compression Driver
LF Transducer: (2) EVS2008, 8" (203 mm) Driver
Crossover Frequency: 1,740 Hz

Sensitivity (1 W/1 m): 104 dB (3 Module Array)
Max SPL/1 m (Calculated): 135 dB
Coverage (Nominal -6 dB) H: 90°
Coverage (Nominal -6 dB) V: 20°

System Power Handling (Continuous/Program/Peak): 350 W / 700 W / 1,400 W
Passive Power Handling: 1,400 W Peak
Minimum Impedance: 12Ω
Nominal Impedance (Passive): 16Ω
Recommended High-Pass Frequency: 50 Hz

Enclosure Material: Birch Plywood
Grille: 16 GA Galvanneal, Powder-Coated (PI Version - Stainless Steel with Hydrophobic Cloth)
Suspension: EVA Grid (Sold Separately)

Input Connections: Phoenix/Euroblock Style Screw Terminals

Dimensions (H x W x D):
Height: 20.17" (512.2 mm)
Width: 23.5" (596.9 mm)
Depth: 14.53" (369.1 mm)

Weight:
Net Weight: 81.13 lbs (36.8 kg)
