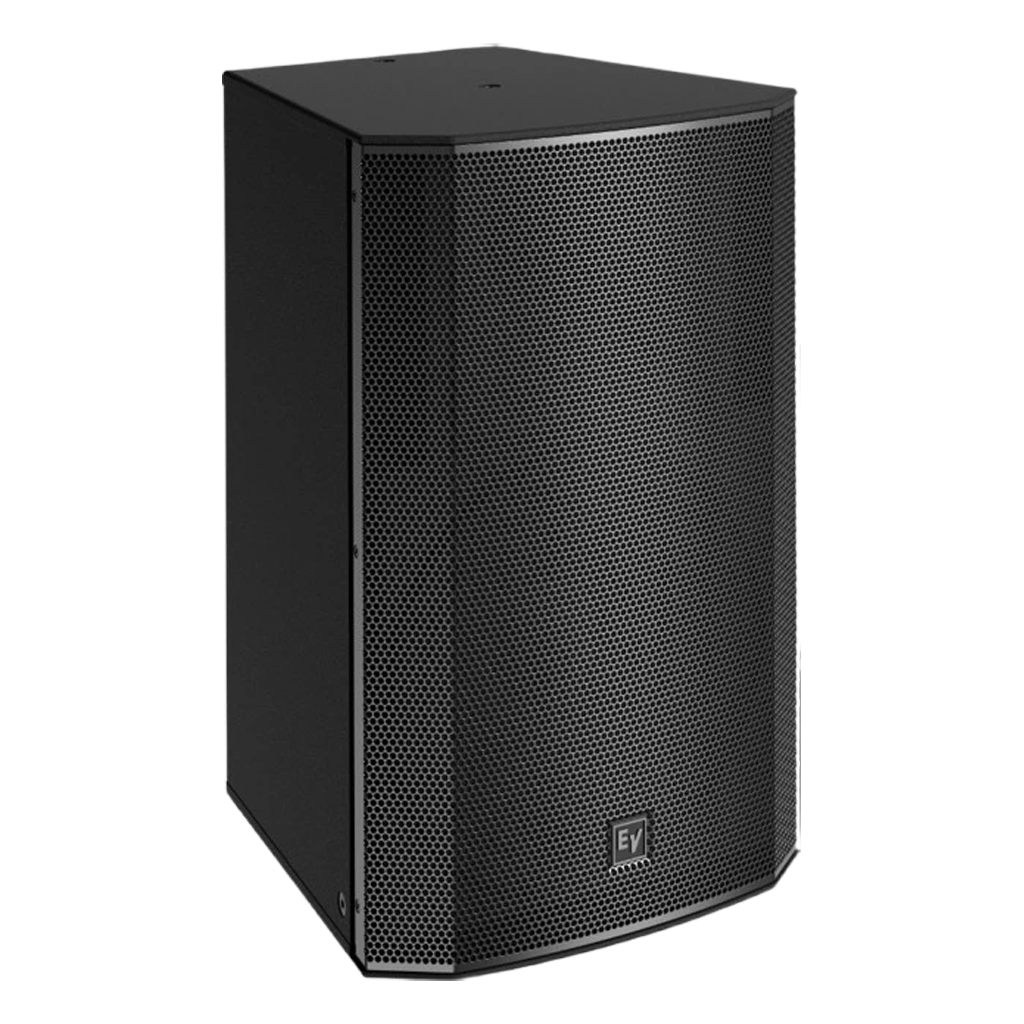

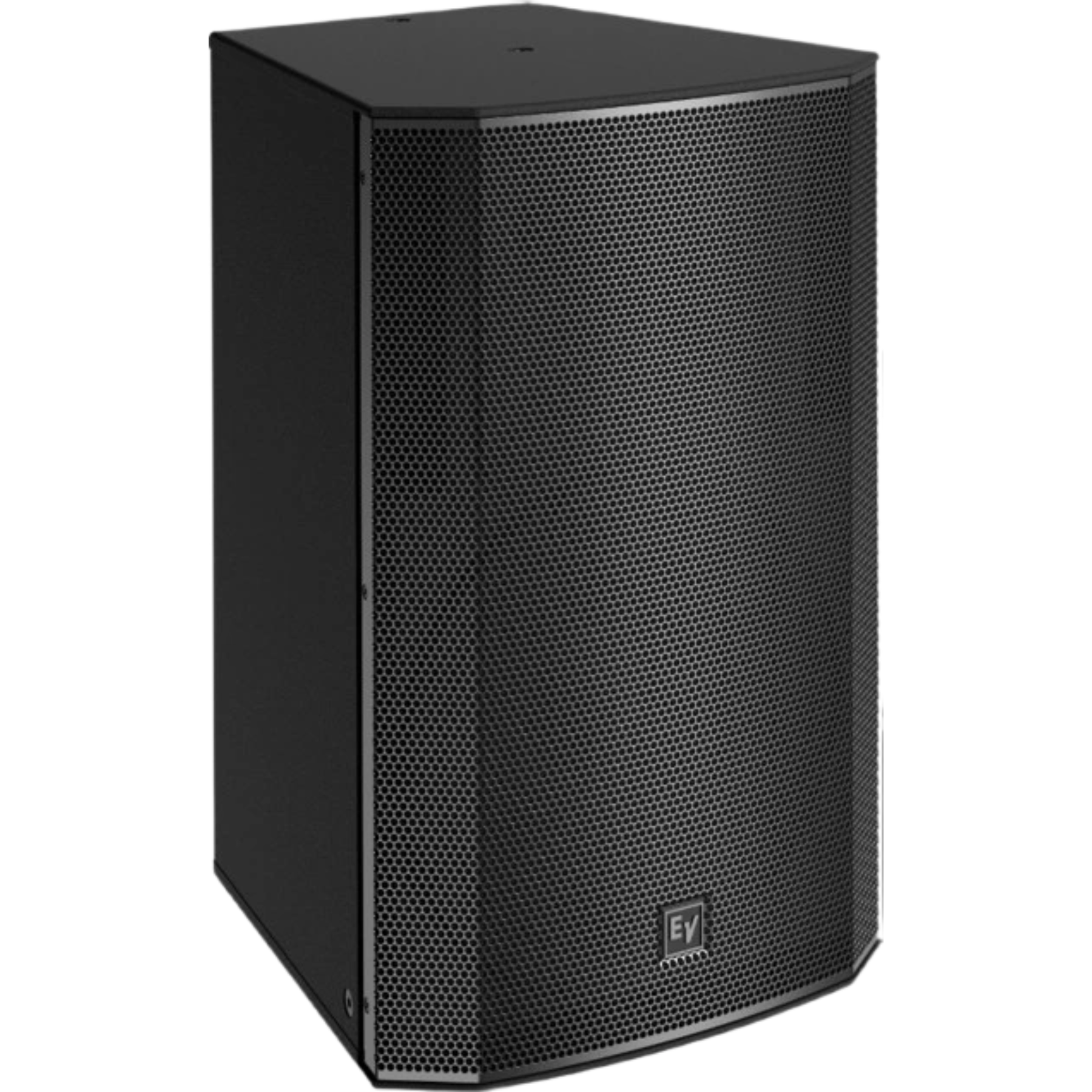

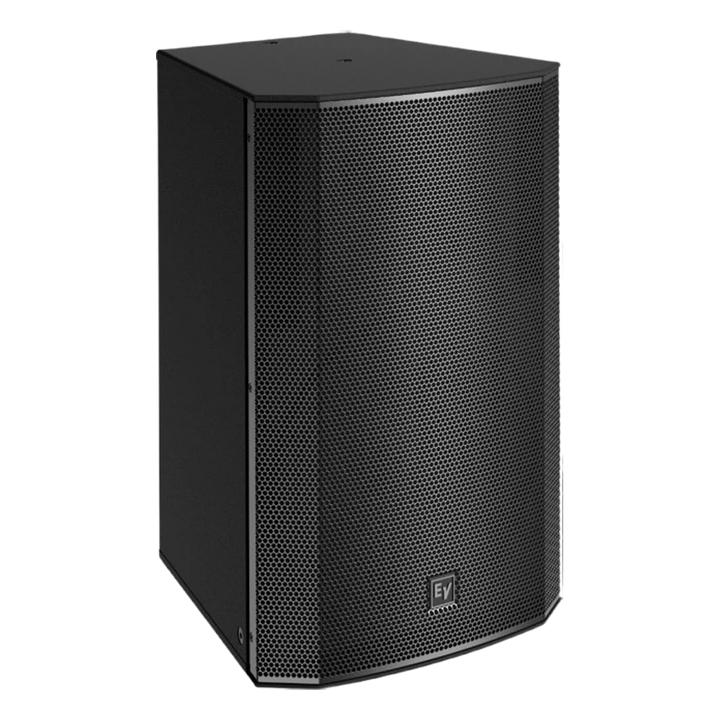

Electro-Voice EVC-1152-95PIB Two Way Loudspeaker (Black) - 90° × 55°

EVC loudspeakers from Electro-Voice are two-way systems that can be used in a broad range of applications where wide bandwidth, vertical and horizontal directivity control, and high efficiency are required in a compact, cost-effective package. EVC loudspeakers are voiced to complement other EV-Innovation models (EVF, EVH, EVA, and EVU).

The high-frequency section of EVC loudspeakers comprises a single 1¼-inch pure titanium dome compression driver directly coupled to a rotatable constant directivity waveguide that delivers uniform pattern control and smooth, linear response. The low frequency section employs a high-output woofer that was developed using state-of-the-art, computer-aided optimization to provide low distortion, high efficiency, and maximum intelligibility at high sound pressure levels. The passive crossover implements a modified fourth-order design with slopes of 24 dB per octave for smooth off axis response and improved definition through the critical vocal range.

The EVC series is an extremely cost-effective solution for many fixed-install applications. The enclosures are constructed of 15-mm plywood and finished with EVCoat for enhanced durability. The loudspeakers have been designed with multiple M10 suspension points as well as attachment points for an optional U-bracket or multi-mount style pan/tilt wall mount. All EVC series loudspeakers accept wire gauges up to 10 AWG (6 mm). The input panel also accepts optional covers with NL4-type connectors or weatherized gland-nuts.

For 70V/100V operation, the input panel has an internal landing pad for mounting EV's high-quality TK-150 audio transformer. Adding a TK-150 to the EVC input panel engages EV's patented Automatic Saturation Compensation (ASC), which preserves low-frequency performance while presenting a stable load to the amplifier regardless of how many loudspeakers are connected in parallel. An EVC loudspeaker with a transformer installed sounds virtually identical to the same model without a transformer.

Features

• 15-inch, two-way loudspeaker, with 90˚ x 55˚ constant directivity, rotatable waveguide
• Power rating: 350 W Continuous, (1400 W Peak)
• Passive system: 98 dB, 129 dB maximum
• Gland nut cover and stainless steel grille on PI versions
• Optional high-quality transformer and patented Automatic Saturation Control (ASC) preserve low end over 70V/100V lines

Specifications

Frequency Range (-10 dB): 50 Hz - 25 kHz
Frequency Response (-3 dB): 70 Hz - 21 kHz
Max SPL (Calculated): 129 dB
Speaker Type: Full-Range Loudspeaker

HF Transducer: DH-3
LF Transducer: EVS-15M
Passive Crossover Frequency: 1.6 kHz

Axial Sensitivity (SPL, 1 W @ 1 m): 98 dB
Power Handling (Continuous/Peak): 350 W / 700 W / 1,400 W
Minimum Impedance: 6.7Ω
Nominal Impedance: 8Ω
Recommended High-Pass Frequency (4th Order): 40 Hz for 8Ω (50 Hz with TK-150 Transformer)

Coverage (Rotatable): 90° x 55°

Suspension: Eight M10 Suspension Points, Optional U-Bracket or Pan/Tilt Wall Mount

Enclosure: 15 mm Weather-Resistant Plywood with EV Coat
Grille: 18 GA Cold-Rolled Steel with Rotatable Logo (18 GA Stainless Steel with Hydrophobic Cloth on PI Models)
Environmental Specifications: IEC 60529, IP44 (IP55 for PI Versions)
Color: Black or White

Connectors: Dual Four-Pin 10 AWG (6 mm) Phoenix/Euroblock Screw Terminals

Dimensions (H x W x D):
Height: 684 mm
Width: 433 mm
Depth: 451 mm

Weight:
Net Weight: 25 lbs
Shipping Weight: 27.7 lbs
