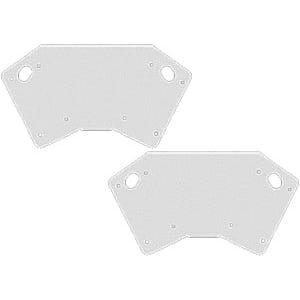

Overview of Electro-Voice MB300W - Array Kit (2-Plates)Horizontal array kit for side-by-side arraying of two Sb121 Sb121a Sb122PI Sx100+ or Sx300 (use a second Mb300 to array three systems; the Mb300 requires one Mb200 U-bracket kit per speaker system) black. The Mb300 horizontal array kit contains two brackets and eight of each of the following: 5/16-18 x 1 hex-head bolts, 5/16 lock washers, 5/16-18 nuts. The Mb300 is used in conjunction with the Mb200 installation bracket to create a speaker array. The array can be constructed in either of two angular configurations: Speakers side by side (50 angle) for a tight array Speakers spread slightly (60 angle) for wider coverage (Note that a full 360 array can only be accomplished with the 60 angle pattern.) Suspension of the speaker array is made easy with the four 12.7-mm (0.5-in.) holes located on the Mb300. A cable, chain quick link, or other suitable hardware which is rated for overhead lifting (not supplied with this kit) can be used to connect to the array for flying.
Music City Canada is an authorized reseller for Electro-Voice products. Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
