Electro-Voice RE3-ACC-AASP - 2-in x 8-out antenna splitter 470-960MHz

Overview of Electro-Voice RE3-ACC-AASP - 2-in x 8-out antenna splitter 470-960MHz

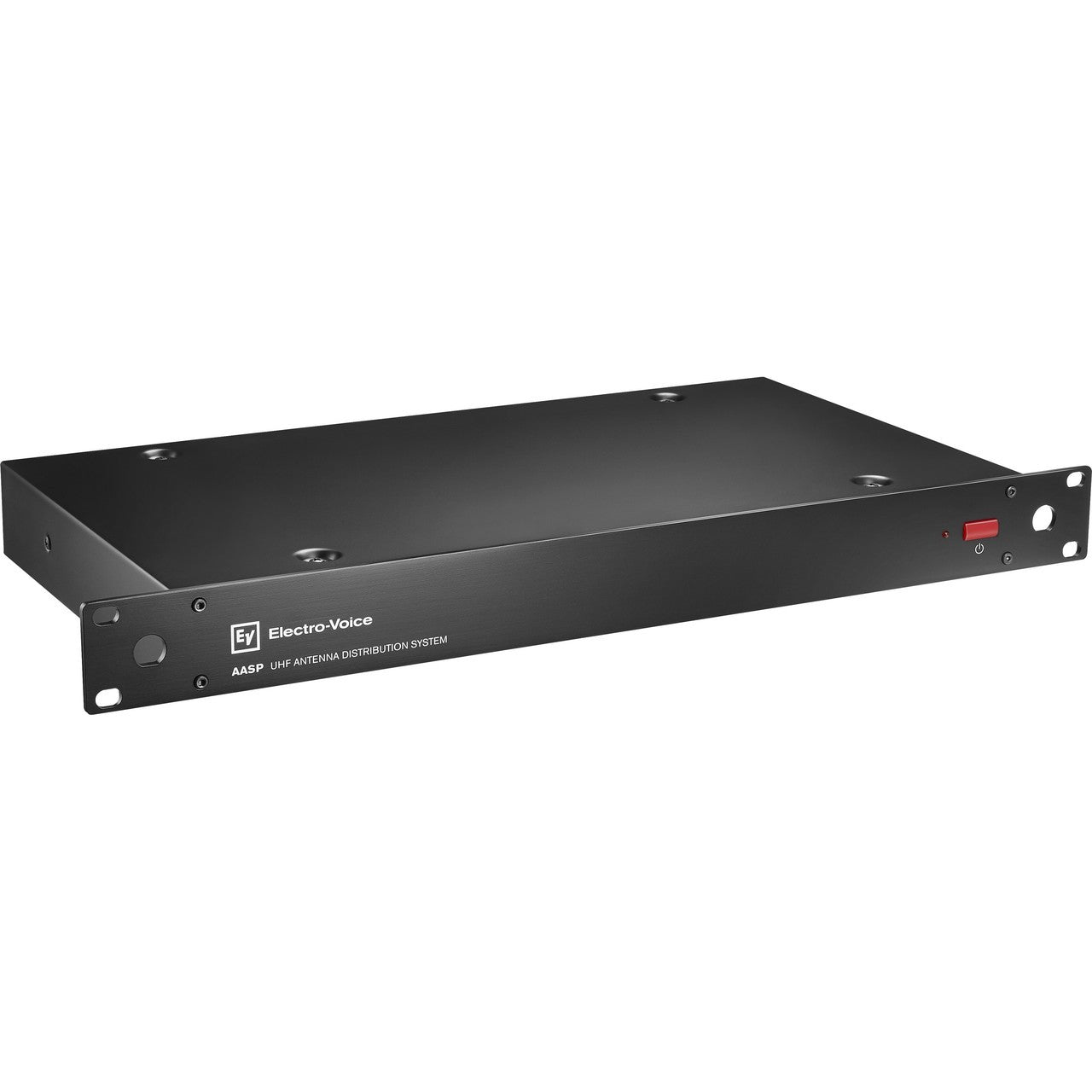

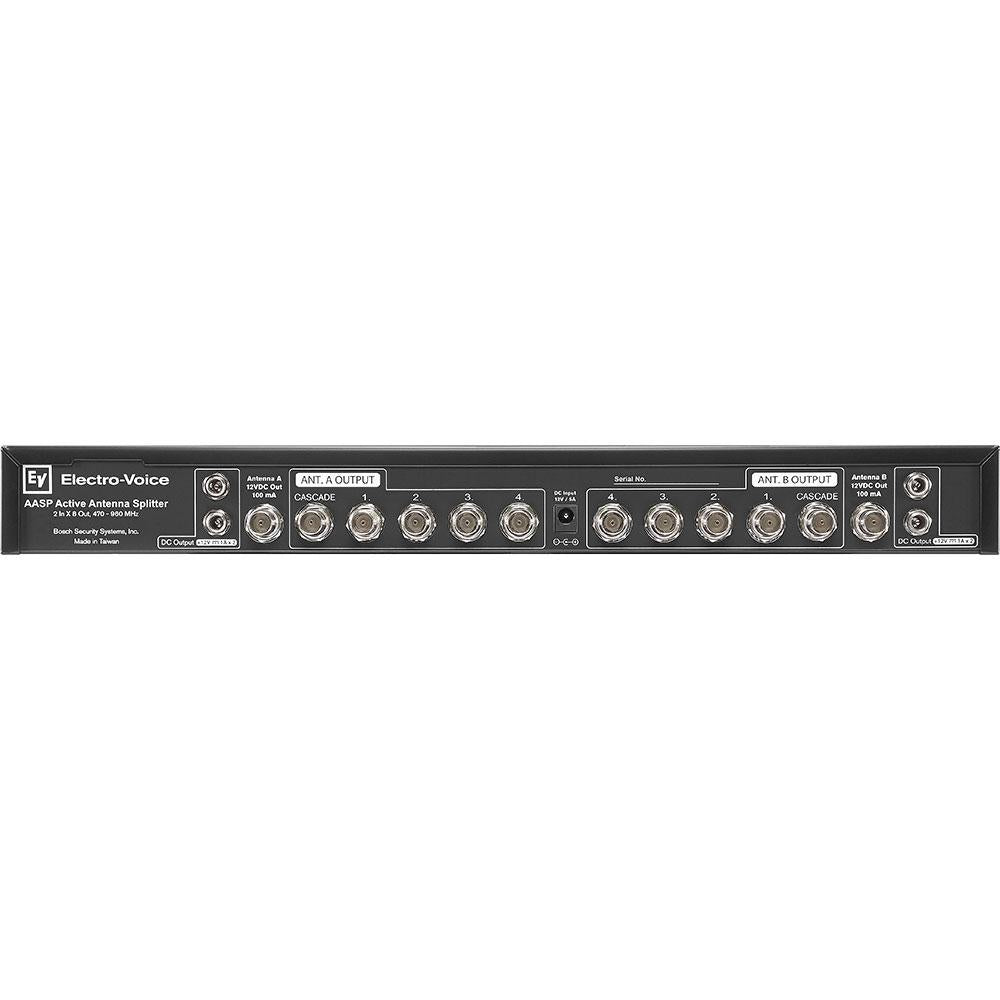

The RE3-ACC-AASP 2-In x 8-Out Antenna Splitterfrom Electro-Voice is a professional wide bandwidth active antenna splitter designed to function as the distribution hub of RF and DC power in a multichannel wireless microphone system. It can be used to actively split each incoming antenna signal (A and B) into four connected diversity receivers in a system without signal loss as well as distributing DC to power each of the four connected wireless receivers. In addition to the four RF outputs per antenna, the RE3-ACC-AASP also includes a convenient cascade output per antenna allowing incoming signals to be sent directly to another RE3-ACC-AASP unit with zero loss and without sacrificing any of the four RF outputs per side. A total of five RE3-ACC-AASP splitters can be cascaded from one pair of antennas. Furthermore, the antenna splitter's selectable booster feed powers active antennas and/or booster amps with 12 VDC. The factory default setting is on, and should a need arise for the booster feed to be off, an on/off switch can be accessed on the main circuit board inside of the chassis.
