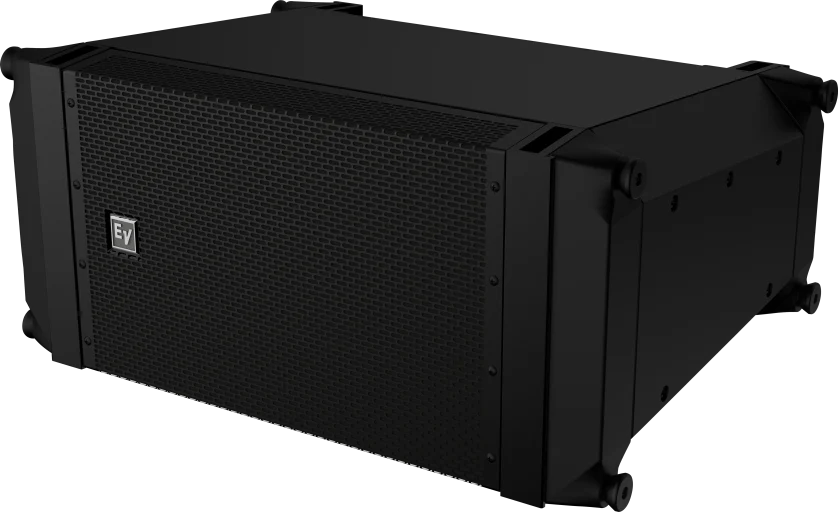

Electro-Voice X1-212/90 Compact Vertical Line Array Loudspeaker System - 12 Inch

The X1 system combines innovative new technologies and time-saving features to advance the state of high-end sound reinforcement. The compact design of the X1 enables its use in a wide variety of applications.

Features

• Mid-Band Hydra (MBH) Superior Box Coupling
• Wavefront-Shaping Circular Hydra (WCH) Extended Linear HF Performance
• Integrated Rigging System (IRS) Quick Setup

Specifications

Frequency Response (-3 dB)57 Hz - 16 kHz¹Horizontial Coverage90°Vertical CoverageArray dependentRec. High-Pass Frequency50 HzMax Calculated SPL143 db Peak²ConfigurationPassive, Bi-ampPassvie Crossover Freq.1600 HzPassive Axial Sensitivity98 dB (1 W/1 m)⁴Passive Power Handling500 W continuous, 2000 peakPassive Impedance8 Ω (nominal, 6.4 Ω (min)LF TransducerSMX2121, 12-in (305 mm) driverLF Axial Sensitivity98 dB (1 W/1 m)4LF Power Handling400 W continuous, 1600 W peakLF Impedance8 Ω (nominal), 6.1 Ω (min)HF Transducer2 x ND2R, 2-in (51 mm) diaphragm compression driverHF Axial Sensitivity110 dB (1 W/1 m)⁴HF Power Handling120 W continuous, 480 W peak³HF Impedance8 Ω (nominal, 6.0 Ω (min)ConnectorsDual NL8 type connectorEnclosure13-ply weather resistant plywood with EVCoatGrille16 GA powder coated galvannealSuspensionIRS - Integrated Rigging SystemDimensions (H x W x D)13.5 in x 28.77 in x 12.04 in (342.9 mm x 730.8 mm x 534.4 mm)Net Weight92 lb (41.7 kg)Shipping Weight106 lb (48 kg)
