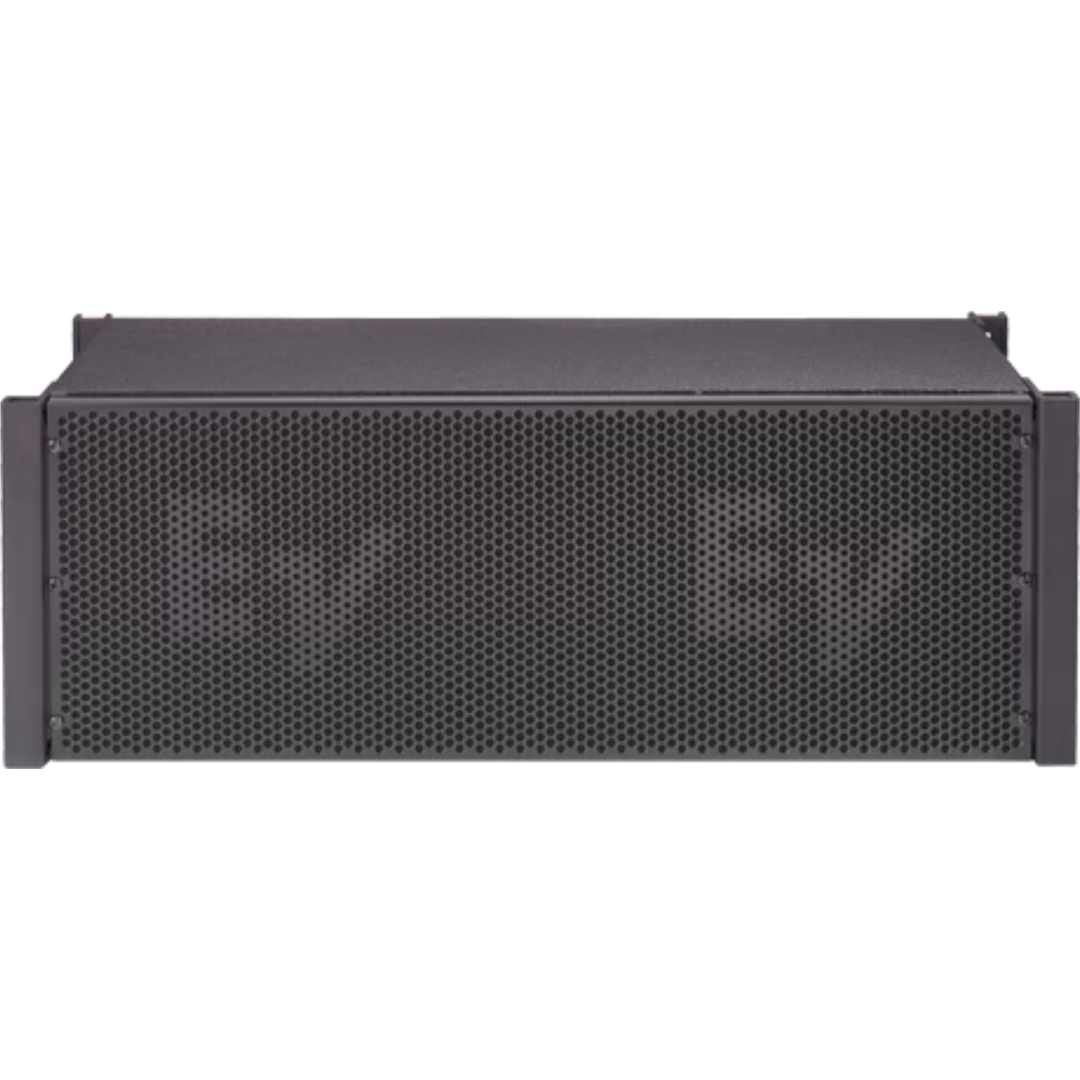

Electro-Voice XLD281 3 Way Compact Line Array Loudspeaker (Black)
XLD281
Payment plans from Affirm, learn more
- Electro-Voice
- Shipping Calculated at checkout, most in stock products ship same day
Electro-Voice XLD281 3 Way Compact Line Array Loudspeaker (Black)
Features
- Full-bandwidth, three-way element (60 Hz - 20 kHz)
- CCT (Coverage Control Technology)
- Versatile subwoofer integration
- Bi-amp or tri-amp Operation
- Neodymium transducers
- Simple, quick, integrated rigging
- Supported by LAPS II aiming and flying software
Specifications:
Frequency Response (-3 dB): 75 Hz-18 kHz¹
Frequency Range (-10 dB): 60 Hz-20 kHz¹
Max Calculated SPL: 137 dB Continuous, 143 dB Peak²
Horizontal Coverage: 120°
Vertical Coverage: Array Dependent, Software Definable
Rigging: Fully Captive Aluminum, 1° Increments, 16 Elements with 8:1 Safety Factor
LF1 Power Handling: 200W Continuous, 800W Peak
LF2 Power Handling: 200W Continuous, 800W Peak
HF Power Handling: 80W Continuous, 320W Peak
Biamp LF1/HF Power Handling: LF1/HF – 200W Continuous, 800W Peak; LF2 – 200W Continuous, 800W Peak
Bandpass Frequency: 50-250 Hz³
LF1 to HF Crossover Frequency: 1760 Hz³
LF1 Passband: 1 x 8" DVN2080, 16 Ohms
LF2 Passband: 1 x 8" DVN2080, 16 Ohms
HF Passband: 2 x ND2S-8, 16 Ohms
Biamp LF1/HF Passband: 16 Ohms
Connectors: 2 x NL8
Enclosure: 13-Ply Birch Plywood with EVCoat
Grille: Galvannealed Steel with Powder Coat Paint
Environmental Specifications: IEC 529 IP24, MIL-STD-810
Dimensions (H x W x D): 9.9" x 28.58" x 14.52" (251 x 726 x 369 mm)
Net Weight: 48 lb (21.8 kg)
Shipping Weight: 51 lb (23.1 kg)
