Eliminator Lighting Elektron Bar FX 1m Vintage-Style Strobe and Blinder

The Eliminator Lighting Elektron Bar FX is a versatile and powerful lighting effect, designed to bring vibrant colors and excitement illumination to any entertainment events, performances, or venues. Equipped with seven 40-Watt Amber (1800K) LEDs and 528x 0.5-Watt RGB (5050 SMD) LEDs, this fixture creates stunning visual effects, blending warm amber tones with dynamic RGB color chases and for endless creative possibilities.

With 60 built-in programs, a full dimming range (0–100%), and an adjustable strobe rate of 0–20 flashes per second, the Elecktron Bar FX gives you complete control over your lighting ambiance. Whether you're using DMX512, primary/secondary, or sound-activated modes, you can seamlessly adapt the effect to your needs with its 7, 12, or 20-channel DMX modes.

Engineered for reliability and convenience, the Elecktron Bar FX features advanced physical features such as locking In/Out power connectors, 3-pin DMX IN/OUT, and a 4-segment LCD display for intuitive operation. Its durable design is complemented by adjustable hanging brackets for floor or truss mounting. Plus, a 3-fan cooling system ensuring peak performance during extended use.

Compact and lightweight at just 10.5 lbs. (4.8Kg), with professional-grade components, this IP20-rated lighting effect is perfect for DJs, stage productions, or venues and event productions. Transform your space and create stunning visuals with the Elecktron Bar FX .

Features

• 7 x Amber LED Zones
• 66 x RGB LED Zones
• 60 Built-In Programs with Speed control
• 2 x mounting brackets

Specifications

Light Source

• 7 x 40W 1800K (Amber) LEDs + 528 x RGB (0.5W, 5050 SMD) LEDs
• 50,000 Hour Average LED Life

Control

• Control Protocols: DMX512, Primary/Secondary Sound Active
• Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre Stage 2)
• Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law and S Curve)
• 0-100% Smooth Dimming
• Shutter: 0-20 "Strobe" Flashes per second
• Refresh Rate: 900Hz - 25kHz
• With Wired Digital Communication Network
• Display: Digital (with 4 buttons)

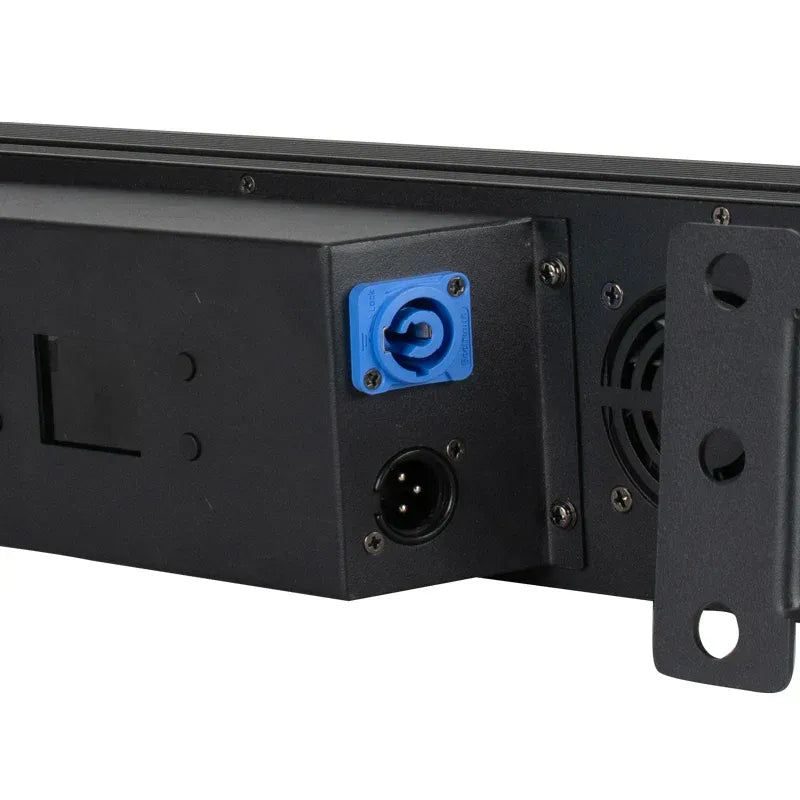

Connections

• Data: IP20-rated locking 3-pin DMX In/Out
• Power: IP20 Locking Power In/Out

Electrical

• 100-240V 50Hz/60Hz (Auto Sensing)
• Max Power Consumption: 300W @120V
• Max Power Link: 7pcs @120V, 14pcs @230V
• Fuse Protected: T5A/250V Glass Fuse (5*20MM)

Dimensions / Weight

• Length: 39.5" (1000mm)
• Width: 4” (100mm)
• Height: 4.75” (118mm)
• Weight: 10.75 lbs. (4.8 kg)

What’s Included

• 1 x IP20 Locking Power Cable

Approvals and Ratings

• CE (Pending)
• cETLus (Pending)
• IP20
