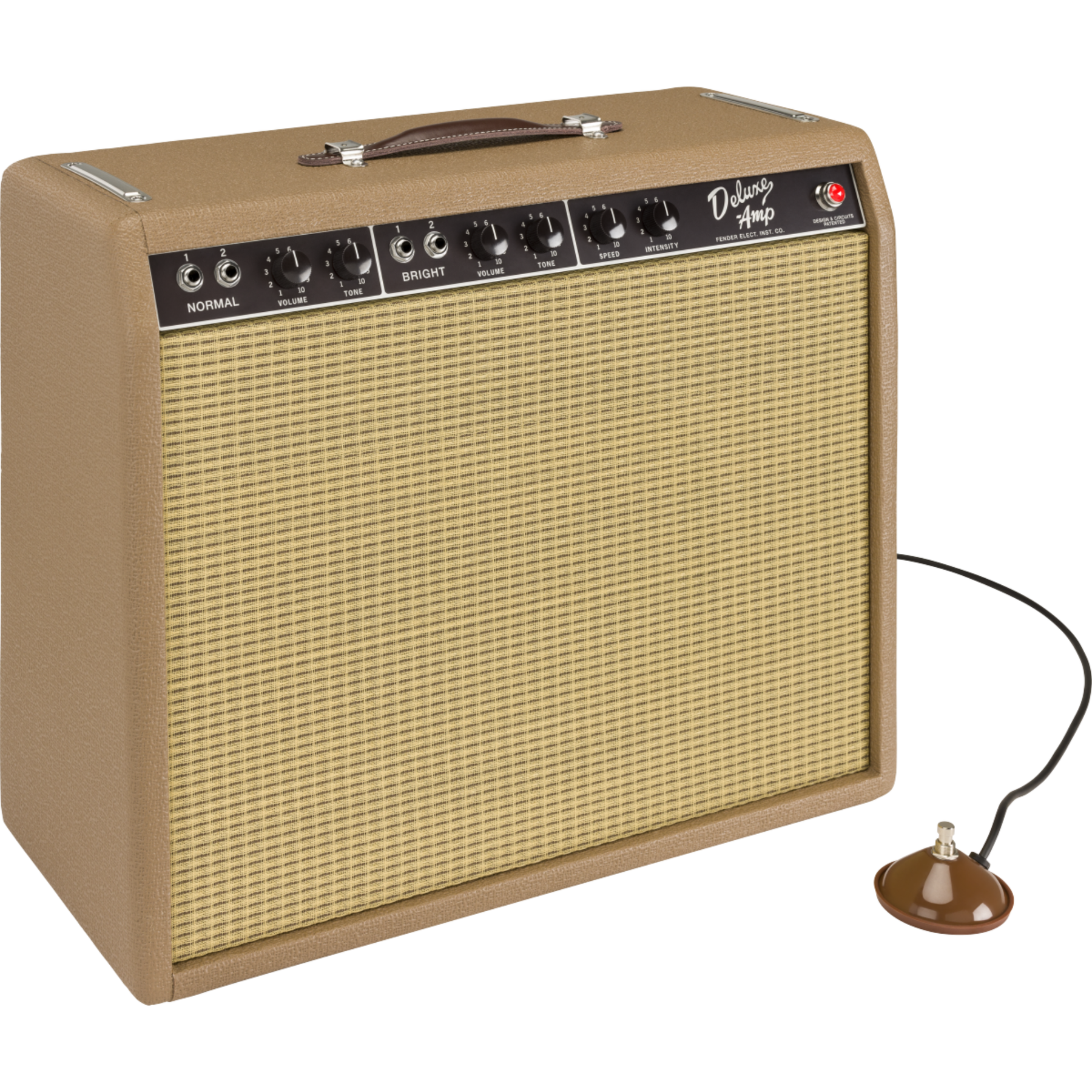

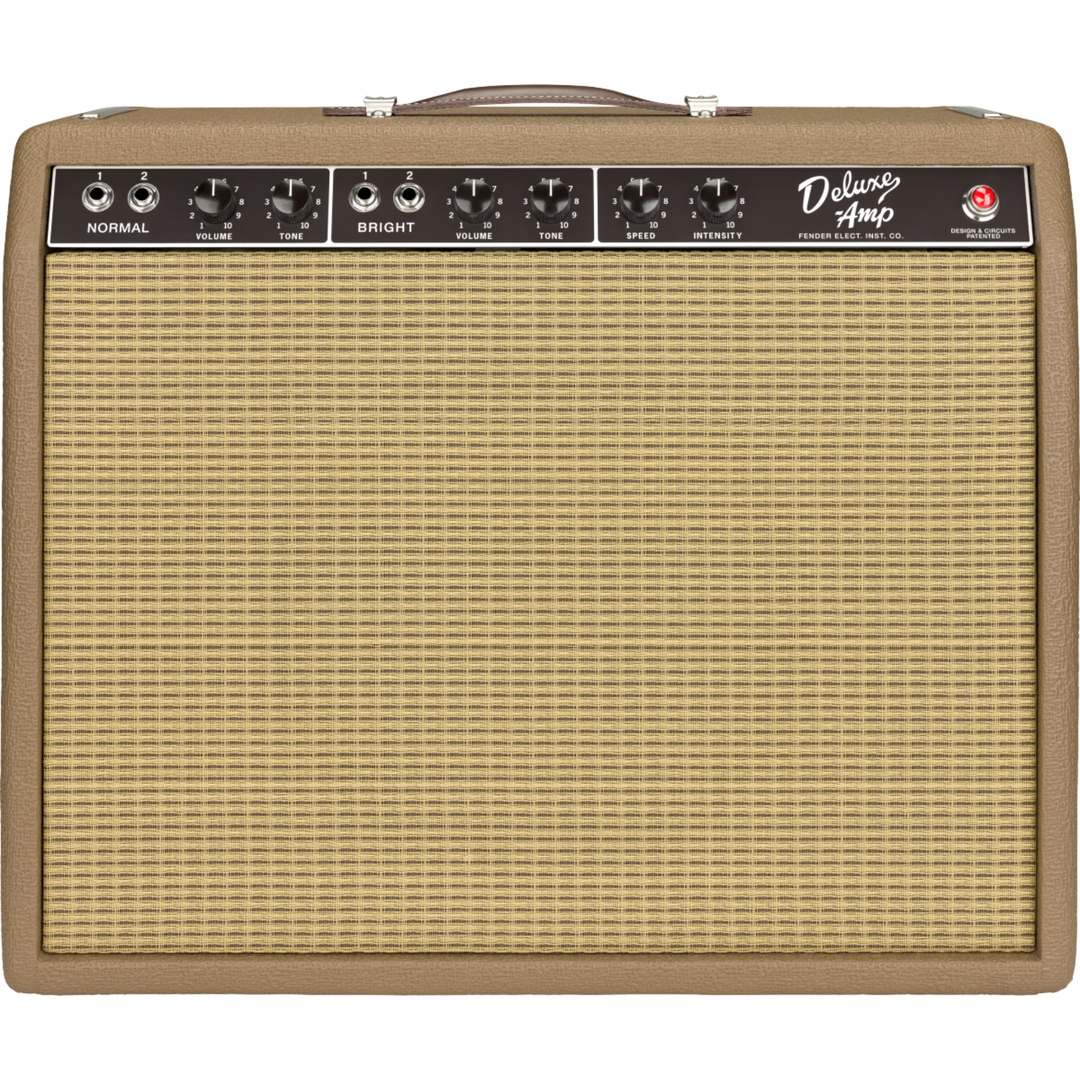

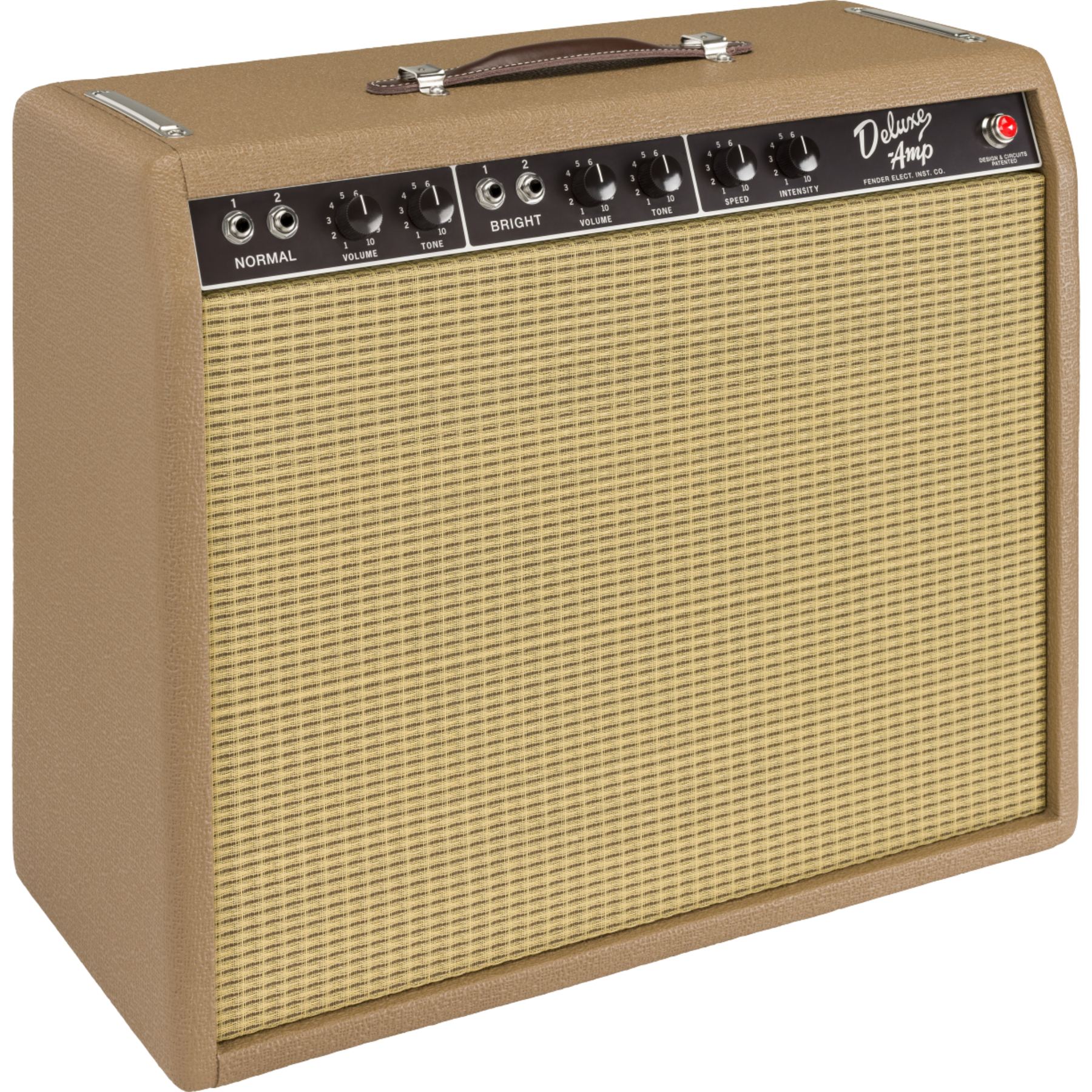

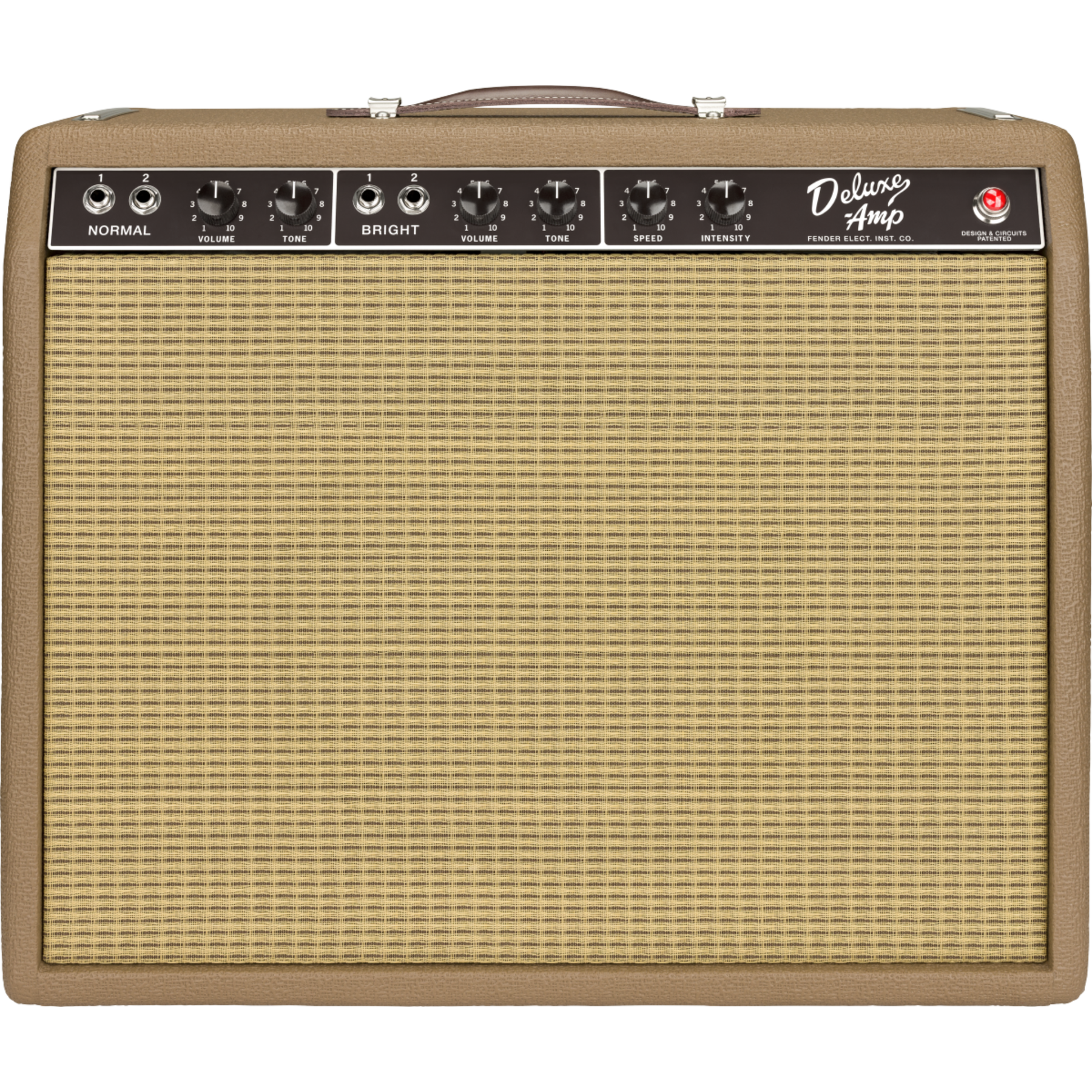

Fender '62 Deluxe Amp 120V

Known among players as hidden treasures from the early ’60s, Fender “brown panel” amplifiers are prized for bridging the gap between the raw sound of its ’50s-era tweed-covered amps and the sparkling clean tones of its mid-’60s “black panel” amps, with a distinctive sound all their own.

The ’62 Deluxe Amp replicates the sound of those originals with its incredibly warm, woody clean tones and mean overdrive when cranked. Combining that with tube-bias tremolo makes it a true desert-island amplifier. Using two 6V6 output tubes to push 20 watts through a custom-designed Celestion® 12” speaker, the ‘62 Deluxe is the perfect amp for home recording and smaller gigs and an ideal amp for Fender aficionados and collectors everywhere.

Features

• 1962 Deluxe 6G3 circuit with all-tube design
• Two 6V6 output tubes, three 12AX7 preamp tubes, one GZ34 rectifier tube
• Single 12” Celestion® Custom Design speaker
• Lush tube-bias tremolo
• Fender ’60s brown Nubtex cabinet covering with wheat grille cloth and brown leather handle
• Vintage-style brown single-button footswitch
• Fitted brown amp cover

General
Series: American Vintage
Color: Brown and Wheat
Amplifier Type: Tube

Electronics

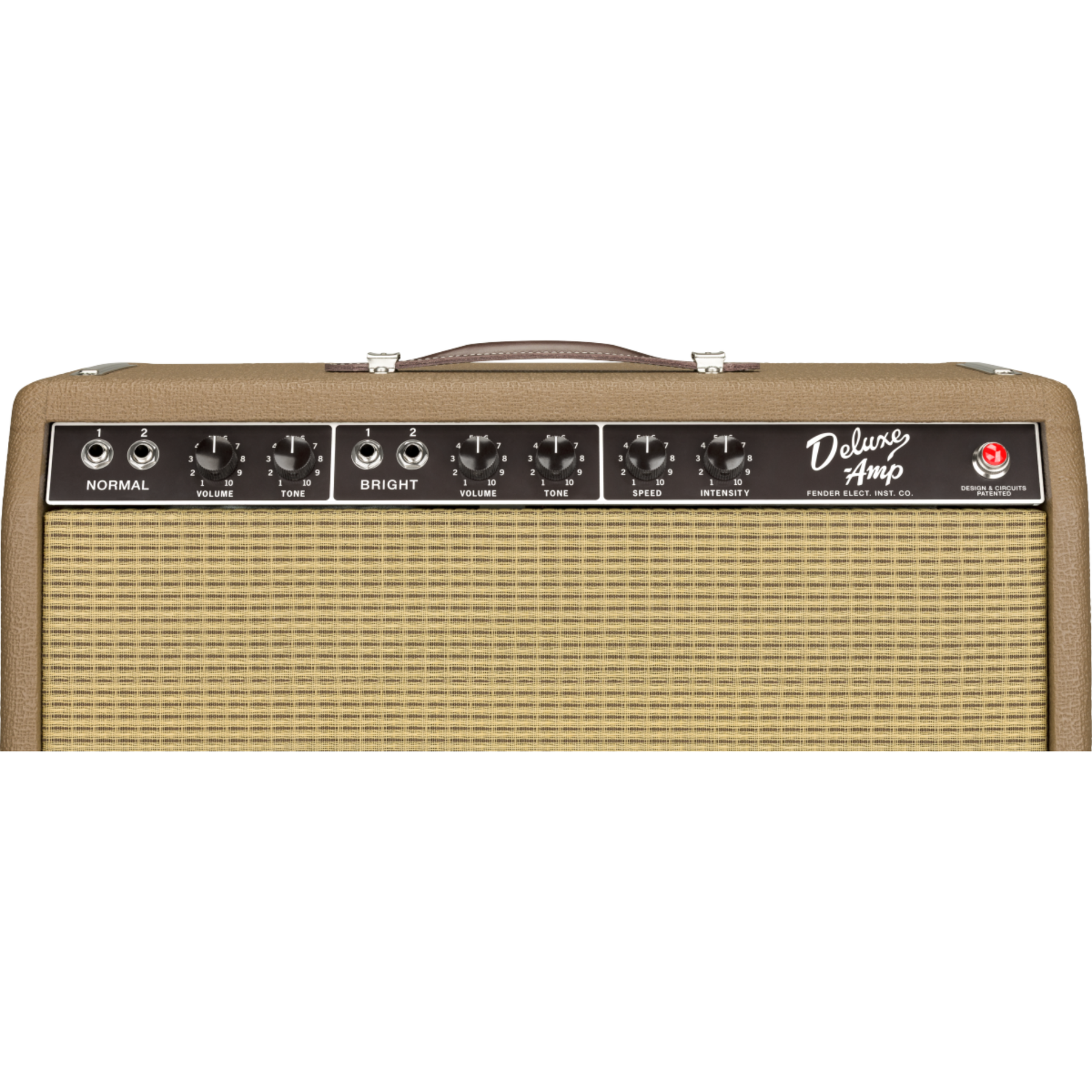

Control Panel: Normal Channel: Volume, Tone; Bright Channel: Volume, Tone; Vibrato: Speed, Intensity
Inputs: Four (1/4", Two Bright and Two Normal)
Channels: Two (Normal and Bright)
Effects: Tube-Bias Tremolo
Connection Type: 1/4"
Voltage: 120V
Wattage: 20 Watts

Hardware
Control Knobs: Brown "Cupcake" Knobs
Amplifier Covering: Fender '60s Nubtex
Cabinet Material: Solid Pine
Grille Cloth: Wheat
Handle: Brown Leather Handle
Amplifier Jewel: Red LED Jewel
Speaker Jack: Two 1/4" Parallel (Internal and External)
Front Panel: Brown

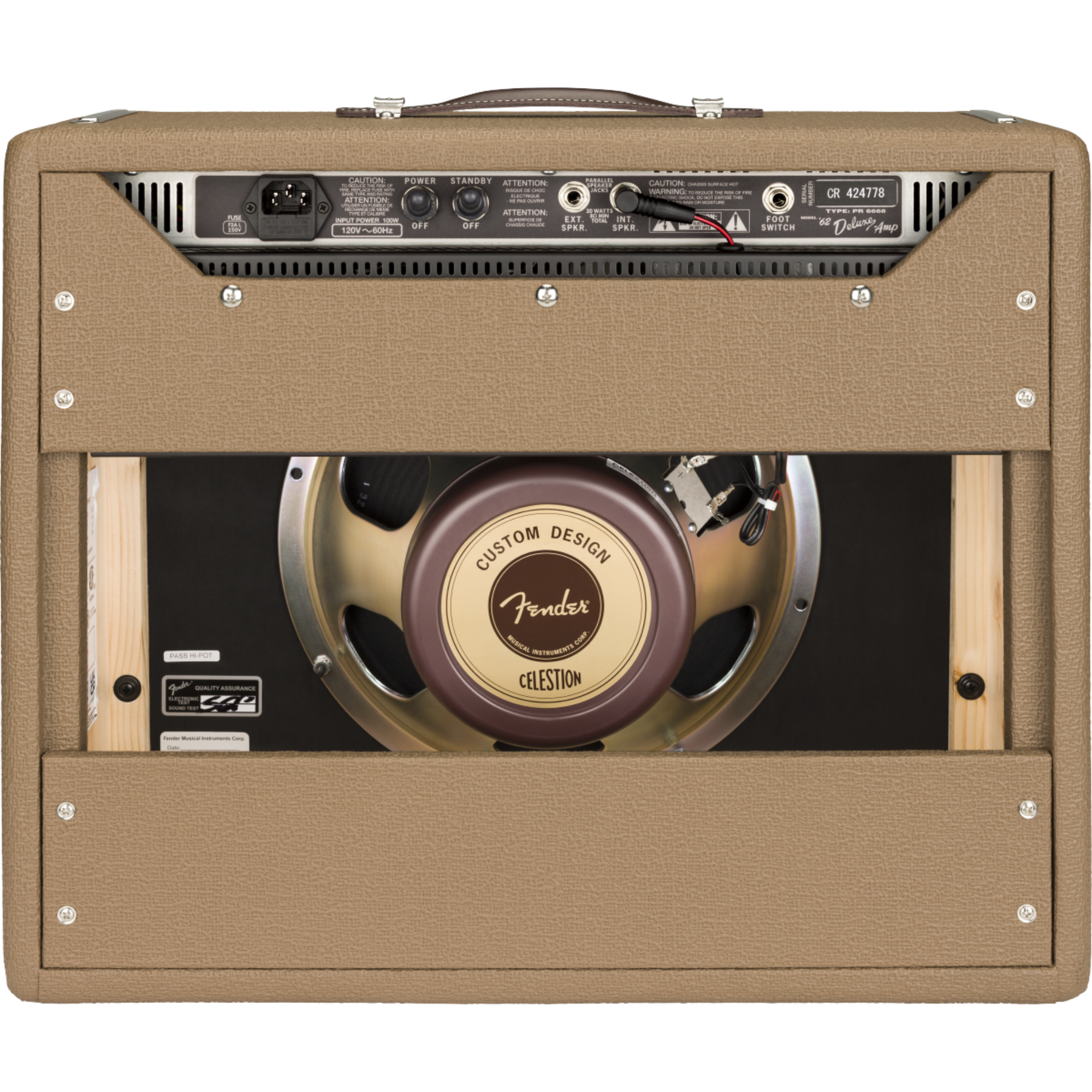

Rear Control Panel: Power, Standby

Speakers
Speakers: One 12" Celestion® Custom Design
Total Impedance: 8 Ohms

Tubes
Power Tubes: 2 x 6V6
Preamp Tubes: 3 x 12AX7
Rectifier: Tube (1 x 5AR4)

Measurements
Shipping Dimensions: 15.50 x 24.50 x 29.50 in
Shipping Weight: 61.60 lb
Shipping Length: 29.50 in
Shipping Height: 15.50 in
Shipping Width: 24.50 in
Product Depth: 9.5" (24.13 cm)

Accessories
Included Accessories: Vintage-Style Brown Single-Button Footswitch, Fitted Brown Amp Cover
Footswitch: 1-Button Footswitch Included

Miscellaneous
Commodity Code: 8518.40.2000
Unique Features: 1962 Deluxe 6G3 Circuit with All-Tube Design
Power Cable: IEC
