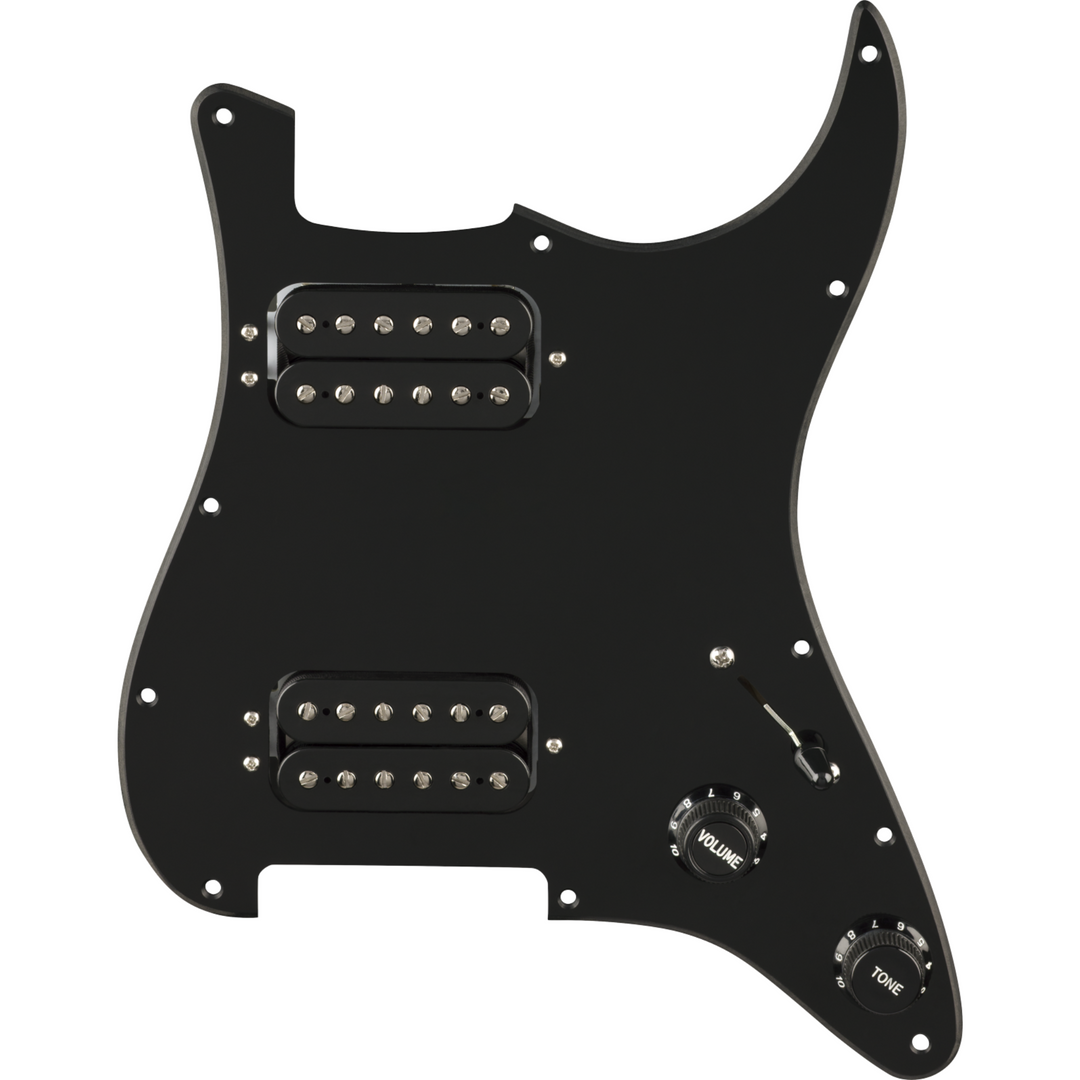

Fender Pre-Wired Strat Pickguard - Quadra Tap HH - Black 11 Hole PG
0992353506
Payment plans from Affirm, learn more
- Fender
- Shipping Calculated at checkout, most in stock products ship same day
Transform the voice of your Stratocaster with a genuine Fender Pre-Wired Pickguard Assembly. Crafted with premium components in the same factory as our iconic guitars, this complete drop-in solution delivers authentic Fender tone with hassle-free installation. No complicated wiring required - just remove your existing pickguard, connect two wires, mount the new assembly, and unlock a whole new voice for your guitar in minutes. It's the fastest way to upgrade your Strat with our time-tested electronics and craftsmanship.
Equipped with the Quadra Tap 1 and 2 Humbuckers, this loaded pickguard puts ten distinct voices at your fingertips - both hot and vintage voicings in either humbucking or split-coil modes. The volume knob's S-1 switch selects between each voicing while the 5-way selector allows each pickup to be split between humbucker and single coil modes. In addition, a treble bleed circuit maintains your highs at any volume.
Powered by an alnico 2 bar magnet, the passive Quadra Tap Humbucker is a tone-shaping powerhouse. Experience four distinct voices that span from vintage-inspired warmth to scorching hot output in both single coil and humbucker settings.
Features
- Quadra Tap 2 Humbucker in the bridge position
- Quadra Tap 1 Humbucker in the neck position
- S-1 switch on volume knob selects between the vintage and modern voicings of both pickups
- 5-way selector allows each pickup to be split between humbucker and single coil mode
- All passive design that is noise free
- The fastest way to upgrade your Strat with our time-tested electronics and craftsmanship
Specifications
General
- Series: Quadra Tap
- Orientation: Right-Hand
- Color: Black
- Country Of Origin: US
Hardware
- Pickguard: 1-Ply Black
- Pickguard Ply: 1-Ply
- Pickup Covers: Black
- Control Knobs: Black Soft-Touch Knobs
- Switch Tip: Black
- Hardware Finish: Chrome
- Mounting Type: 11-Hole Modern
Electronics
- Bridge Pickup: Quadra Tap 2 Humbucker
- Neck Pickup: Quadra Tap 1 Humbucker
- Pickup Configuration: HH
- Lead Wire: Vinyl-covered
- Magnet Type: Alnico 2
- Magnet Wire: Enamel-coated
- Shielded: Yes
- Bobbin Material: Plastic
- Controls: Master Volume with S-1 Switch, Master Tone
- Switching: 5-Position Blade: 1. Bridge Full Humbucker, Position 2. Bridge Inner Coil, Position 3. Bridge Inner and Neck Outer Coils in Parallel, Position 4. Neck Outer Coil, Position 5. Neck Full Humbucker
- Power Requirements: Passive
- Potentiometers: Master Volume: S-1 500K, Master Tone: 500K
Measurements
- Dimensions: 2.25x10.75x13.50 IN
- Shipping Weight: 1.50 LB
- Shipping Length: 13.50 IN
- Shipping Height: 2.25 IN
- Shipping Width: 10.75 IN
