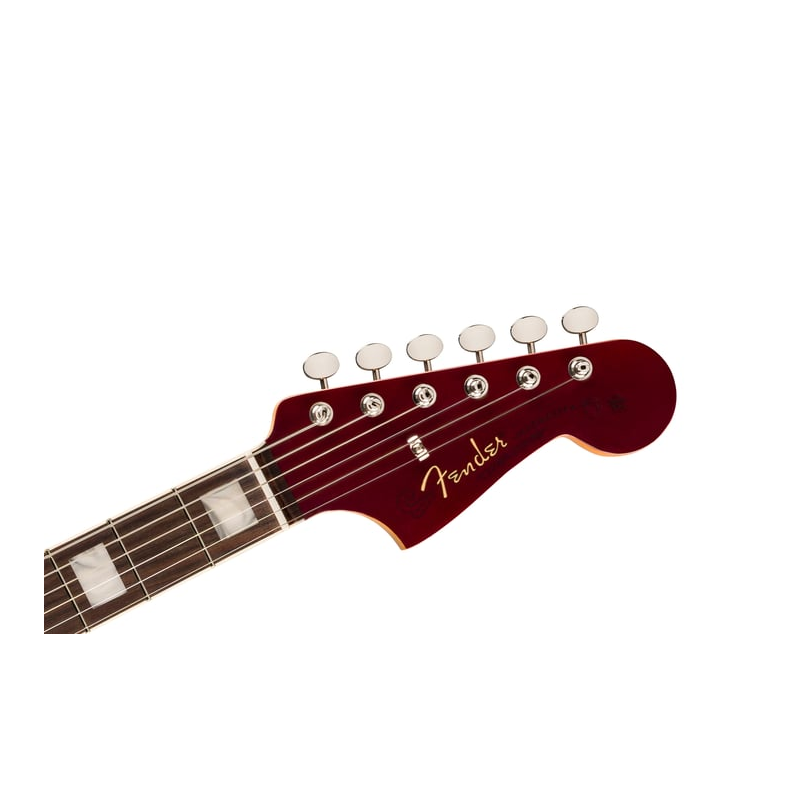

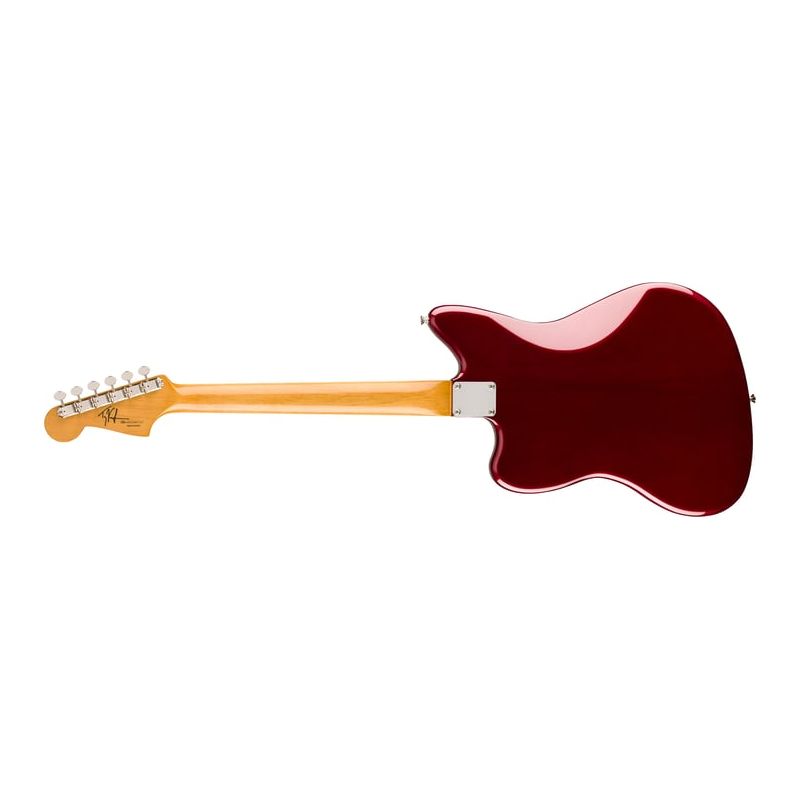

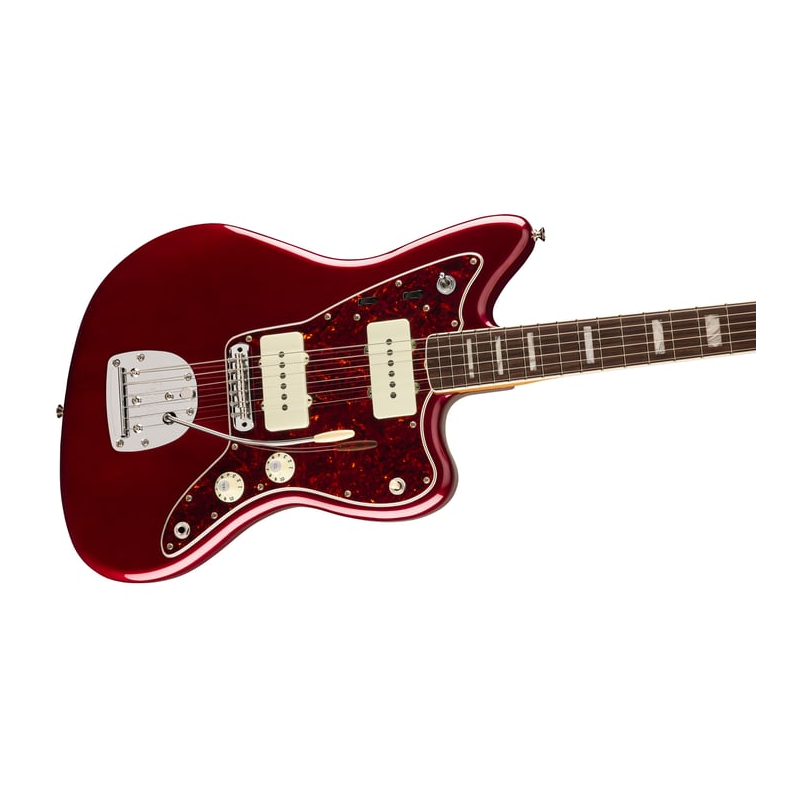

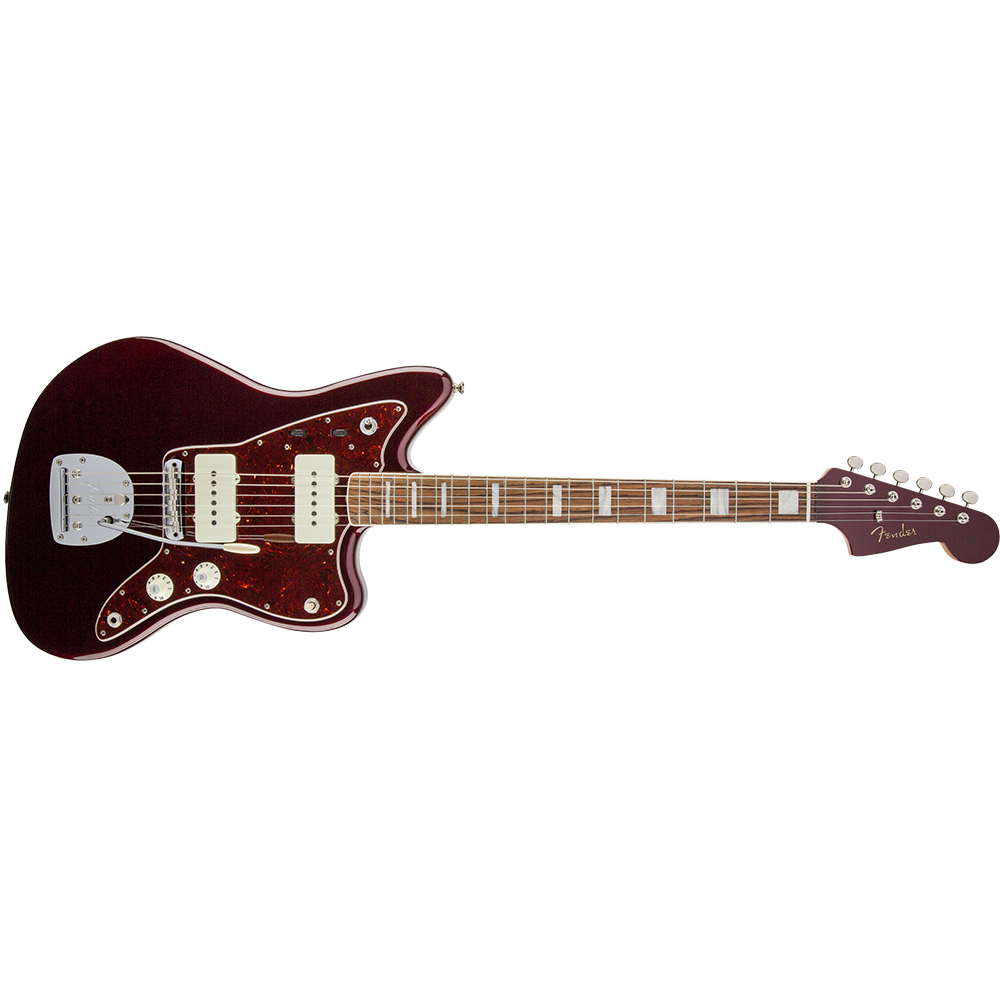

Overview of Fender Troy Van Leeuwen Jazzmaster (Oxblood)
Troy Van Leeuwen has contributed deftly textural guitar work and atmospherics to some of alt-rock's most acclaimed and forward-thinking bands. From Failure to A Perfect Circle, Queens of the Stone Age, Eagles of Death Metal, Puscifer and others, Van Leeuwen's multi-instrumental expertise has given color and power to some of the most creative and popular rock music of the last three decades.
With personalized features including custom color finishes, special switching and an upgraded bridge - the Troy Van Leeuwen Jazzmaster is as distinctive as the sounds he wrings from it.
Features
- Maple neck with "C" profile and vintage-style heel truss rod adjustment
- 7.25" radius rosewood or maple fingerboard with 21 vintage-style frets
- Pure Vintage '65 Jazzmaster Pickups
- Three-way pickup selector switch and two-way toggle to activate the rhythm circuit
- Brass-saddle Mustang® bridge and Jazzmaster tailpiece
Specifications
Body
- Body Material: Alder
- Body Finish: Gloss Polyester
- Body Shape: Jazzmaster®
Neck
- Neck Material: Maple
- Neck Finish: Gloss Polyester
- Neck Shape: "C" Shape
- Scale Length: 25.5" (64.77 cm)
- Fingerboard Material: Maple
- Fingerboard Radius: 7.25" (184.1 mm)
- Number of Frets: 21
- Fret Size: Vintage-Style
- Nut Material: Synthetic Bone
- Nut Width: 1.650" (42 mm)
- Position Inlays: Black Block
- Side Dots: White
Electronics

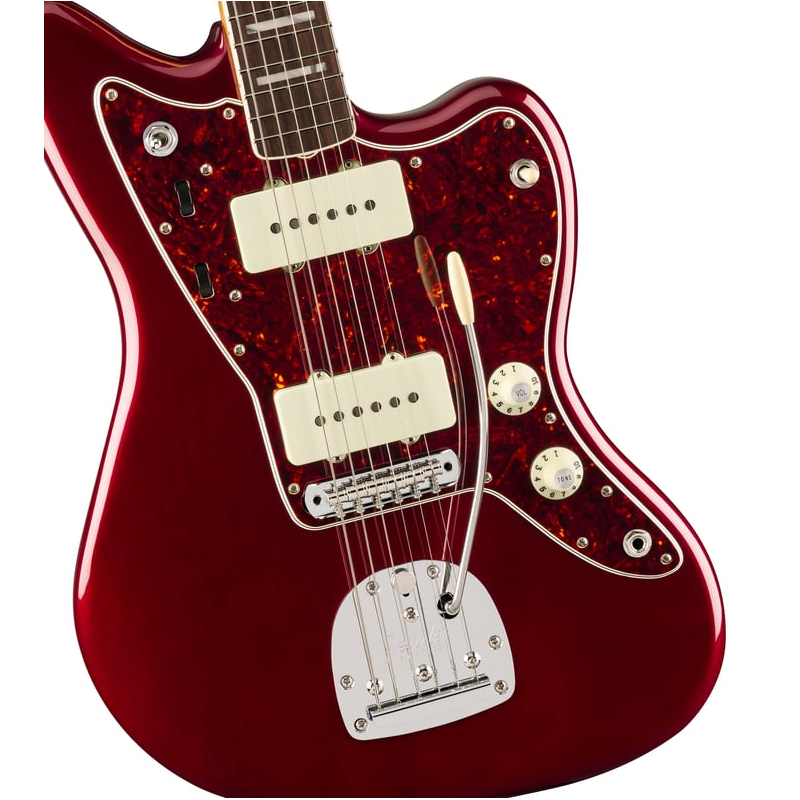

- Bridge Pickup: Pure Vintage '65 Single-Coil Jazzmaster®
- Neck Pickup: Pure Vintage '65 Single-Coil Jazzmaster®
- Controls: Master Volume, Master Tone
- Switching: 3-Position Toggle: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup; 2-Position Slide: Up: Rhythm Tone Circuit, Down: Lead Tone Circuit
- Configuration: SS
Hardware
- Bridge: Jazzmaster® Bridge with Nickel-Plated Brass Mustang® Saddles and Vintage Style "Floating" Tremolo Tailpiece
- Hardware Finish: Nickel/Chrome

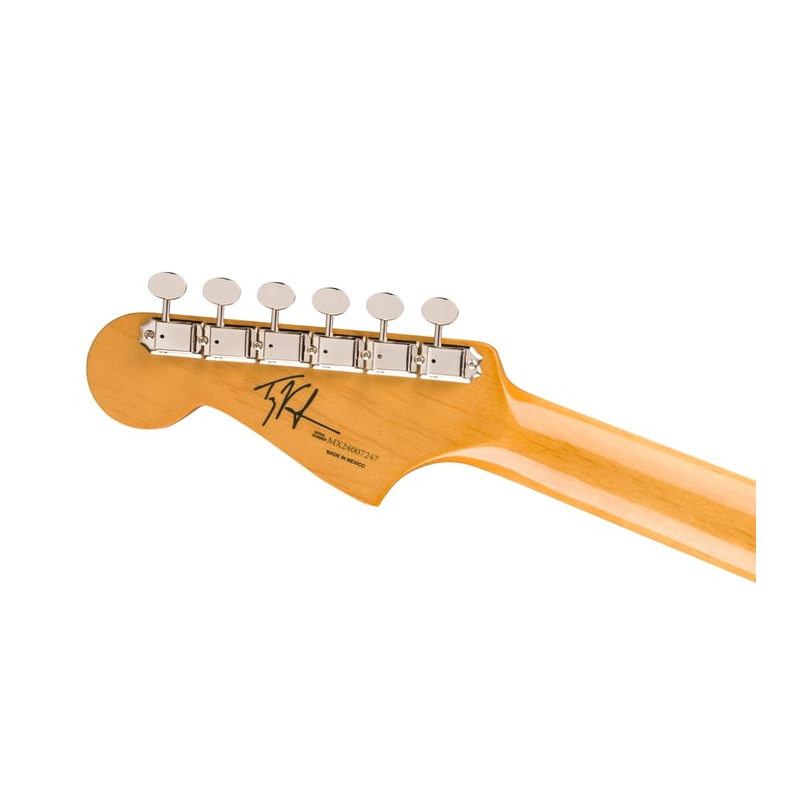

- Tuning Machines: Vintage-Style
- Pickguard: 4-Ply Tortoiseshell
- Control Knobs: Vintage White "Witch Hat"
Miscellaneous
- Strings: Fender® USA 250L Nickel Plated Steel (.009-.042 Gauges), PN 0730250403
Accessories
- Case/Gig Bag: Deluxe Hardshell
Music City Canada is an authorized reseller for Fender products. Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
