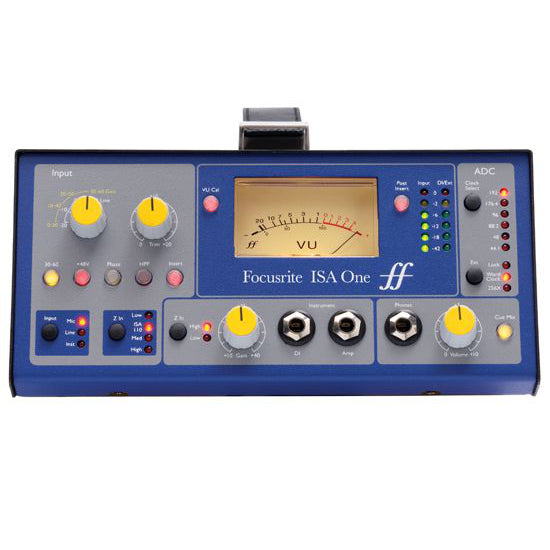

Focusrite ISA One Analog Single Channel Preamp

Overview of Focusrite ISA One Analog Single Channel Preamp

The Focusrite Heritage Sound - in a versatile, transportable package Back in the mid-1980s, Sir George Martin commissioned console design legend Rupert Neve to build a series of new, ‘no compromise’ console modules for AIR studios. They were an enormous hit and formed the basis of the Focusrite Studio Console, widely regarded as the best-sounding analogue recording console of all time. Today, the descendants of those modules are used in leading studios around the world, and their sought-after Focusrite Heritage Sound lies behind thousands of hit records. Today’s ISA Range from Focusrite puts the classic sound of Focusrite into your own studio or live performance. Featuring a rugged, portable all-metal enclosure, the ISA One combines the classic Focusrite microphone preamp with a flexible, independent DI channel and optional 192kHz precision A/D conversion.

• SA series transformer-based preamplifier: Encased in a rugged and portable chassis, ISA One offers the classic Focusrite microphone preamplifier at its lowest cost to date.
• Flexible independent DI channel: ISA One is ideal for both engineers and demanding performers alike, featuring independent gain control, an output for routing to an amp, an independent XLR output on the rear and routing to the optional A-D converter.
• Switchable impedance: Choose one of four carefully selected input impedances, including the original ISA110 setting, to suit any microphone.
• Headphone output with volume control: ISA One can feed either a sum of the two input to the headphones output, or an external stereo cue mix (such as a stereo feed from an interface) via two TRS jack inputs on the rear of the unit.
• Dedicated insert point: Allows you to place extra processing between the preamplifier or DI and the optional converter, such as an EQ or compressor.
• Optional stereo 192kHz A-D converter: You can chose to upgrade your unit with an optional digital card that delivers the best A-D performance in its class (dynamic range of 118dB). Alternatively, the ISA One Digital comes with the A-D converter as standard.
• Lundahl LL1538 Input Transformer: The original mic transformer used in the original Red modules helps to provide the unique sound and performance of this groundbreaking design.
• Backlit VU meter with variable calibration: ISA One has a moving coil VU meter with variable calibration to suit analogue and digital recording media, alongside two six-LED peak meters; inputs can be metered either pre- or post-insert.
