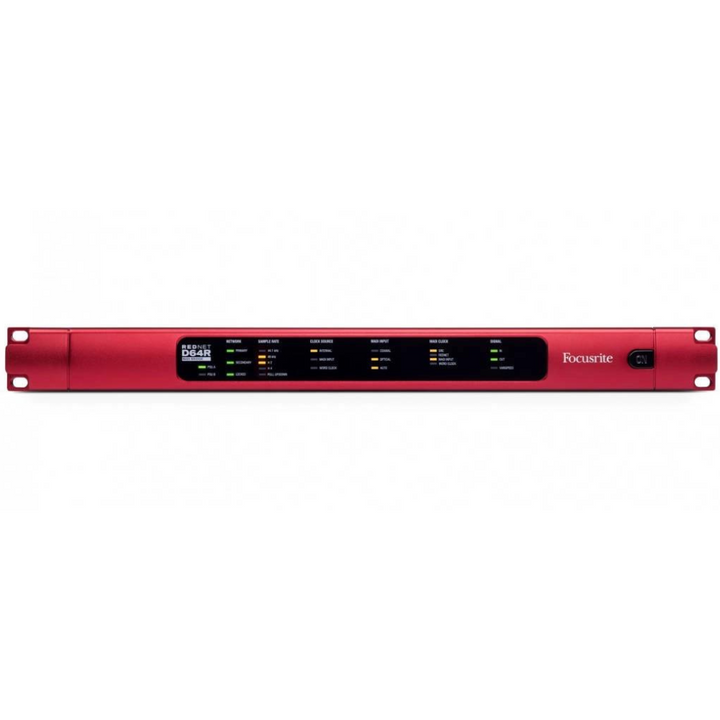

Focusrite RedNet D64R 64-Channel MADI-Dante Bridge

Overview of Focusrite RedNet D64R 64-Channel MADI-Dante Bridge

RedNet D64R provides the link between a Dante Ethernet-based audio system and any MADI / AES10 setup. D64R supports up to 64 channels of both coaxial and optical MADI interfaces and is completely bi-directional, allowing the use of any Dante components including RedNet's high quality interface products with a MsADI system or MADI components with a Dante system. D64R features a sample rate converter (SRC) on each input and output allowing interfacing between MADI and Dante irrespective of the sample rate at which either system is operating. Connect a Dante network to MADI-based digital consoles, computer cards, converters and much more. In addition to both coax and optical MADI interfaces, RedNet D64R provides Word Clock in and out. The D64R features a rugged, roadworthy exterior and high internal build quality, with Ethernet and power supply redundancy. In addition, it offers a compact 1U rack-mount form factor for a full 64 channels of I/O.

Key Features:

• Connects a MADI system and a Dante network seamlessly together. Connect Dante to digital mixing consoles, interfaces and cards that use MADI; or extend a MADI system with RedNet's versatile, superb-quality audio interfaces and connectivity or any other Dante compatible devices.
• Built-in redundancy with dual locking power and etherCON network connectors.
• Supports both coax and optical interfaces connect simply to any MADI equipment.
• Slave either the Dante system or MADI streams to an external clock
• Supports up to 64 channels of digital audio I/O at standard sample rates (44.1/48kHz) from a MADI system, 32 channels at 96kHz and 16 at 192kHz.
• Sample rate conversion (SRC) on each input and output, allowing MADI and Dante systems to operate simultaneously at different sample rates.
• Simple 1U rack-mount module with the classic red aluminium faceplate.
• RedNet Control and Dante software allow remote routing and control from the audio computer system via a software control panel no hardware patching required.

Specifications:

SAMPLE RATE CONVERTERS

Sample Rate Range: 41 to 216kHz (MADI)
Gain Error: -0.01dB
Dynamic Range: > 139dB (-60 dBFS method)
THD + N: < -130dB (0.00003%); 0 dBFS input
Latency: 43 to 196 samples (Network and MADI sample rate dependent).
MADI Clock Sources:RedNet, MADI Input and Word Clock.

DIGITAL PERFORMANCE

Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
Clock Sources: Internal, MADI or from Dante Network Master.
External Word Clock Range: Nominal sample rate +-7.5%

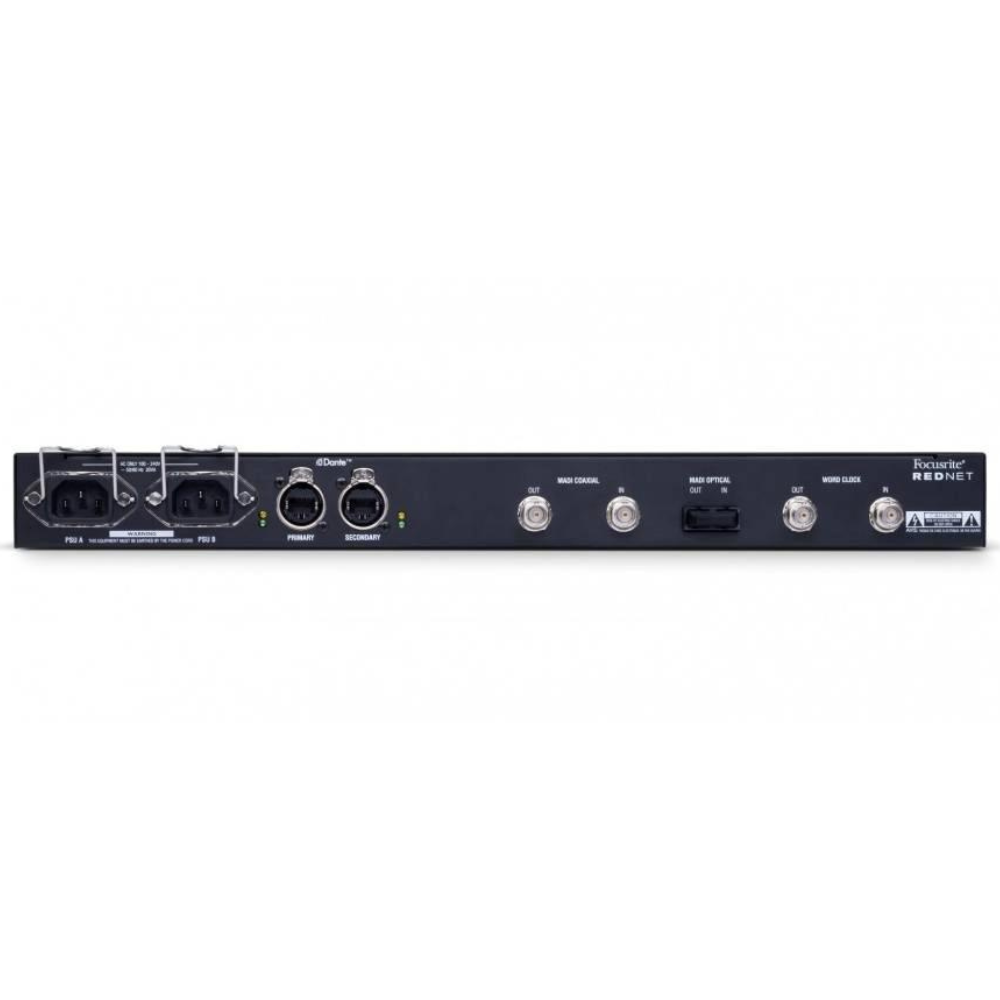

REAR PANEL CONNECTIVITY

MADI Coaxial
Electrical Standard: as per AES10:2008
Recommended Cable: 75Ω Characteristic Impedance
Connector: BNC 75Ω port

MADI Optical
Optical Standard: as per AES10:2008 (ISO/IEC 9314-3, FDDI, ANSI X3.166)
Recommended Cable: Multi-Mode, Graded-Index, 62.5m core, 125m cladding
Connector: Duplex-SC

Word Clock
Word Clock Input: 1 x BNC 75Ω port (switchable termination)
Word Clock Output: 1 x BNC 75Ω port

PSU & Network Connections
PSU: 2 x IEC Inputs with retaining clips.
Network: 2 x etherCON connectors, also compatible with standard RJ45 connectors.

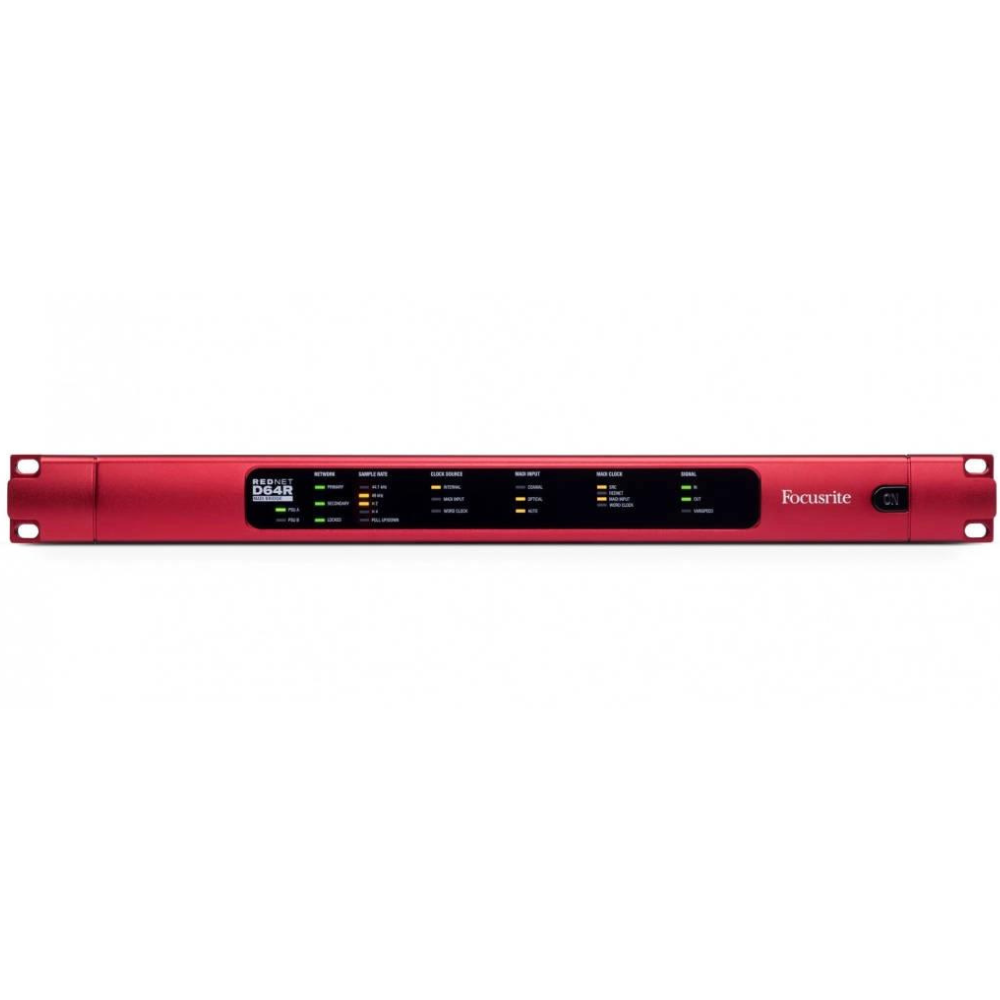

FRONT PANEL INDICATORS

• Primary PSU (A): Green LED. Illuminates when an AC input is applied and all DC outputs are present.
• Secondary PSU (B): Green LED. Illuminates when an AC input is applied and all DC outputs are present.
• Primary Network: Green LED. Indicates that a network connection is present on primary port when in redundant mode. When in Switched mode, a valid network connection at either Primary or Secondary network port will cause this LED to illuminate.
• Secondary Network: Green LED. Indicates that a network connection is present on secondary port when in redundant mode. Not used in switched mode.
• Network Locked: Green LED. When unit is network slave, shows valid network lock. When unit is network master, shows lock to indicated clock source. Flashing indicates external clock is selected but not connected.
• Sample Rate: Orange LED for each: 44.1 kHz, 48 kHz, x2, x4.
• Pull Up/Down: Orange LED. Indicates unit is set to operate on a Dante pull up/down domain.
• Clock Source: Orange LED for each: Internal, MADI Input and Word Clock.
• MADI Input: Orange LED for each: Coaxial, Optical and Auto.
• MADI Clock: Orange LED for each: SRC, RedNet, MADI Input and Word Clock.
• Signal Indicators: 2 Green LEDs, 1 input/1 output indicator. Illuminate @ -126dBFS.
• Status: Orange LED for each: SRC & O/P Varispeed.

NETWORK MODES

Redundant: Allows unit to connect two independent networks.
Switched: Connects both ports to integrated network switch allowing daisy-chaining of device.

DIMENSIONS

Height: 44.5mm/ 1.75"
Width: 482.6mm/ 19"
Depth: 308mm/ 12.13"

Weight: 4.32kg

POWER

PSU: 2 x Internal, 100-240V, 50/60Hz, consumption 30VA.
