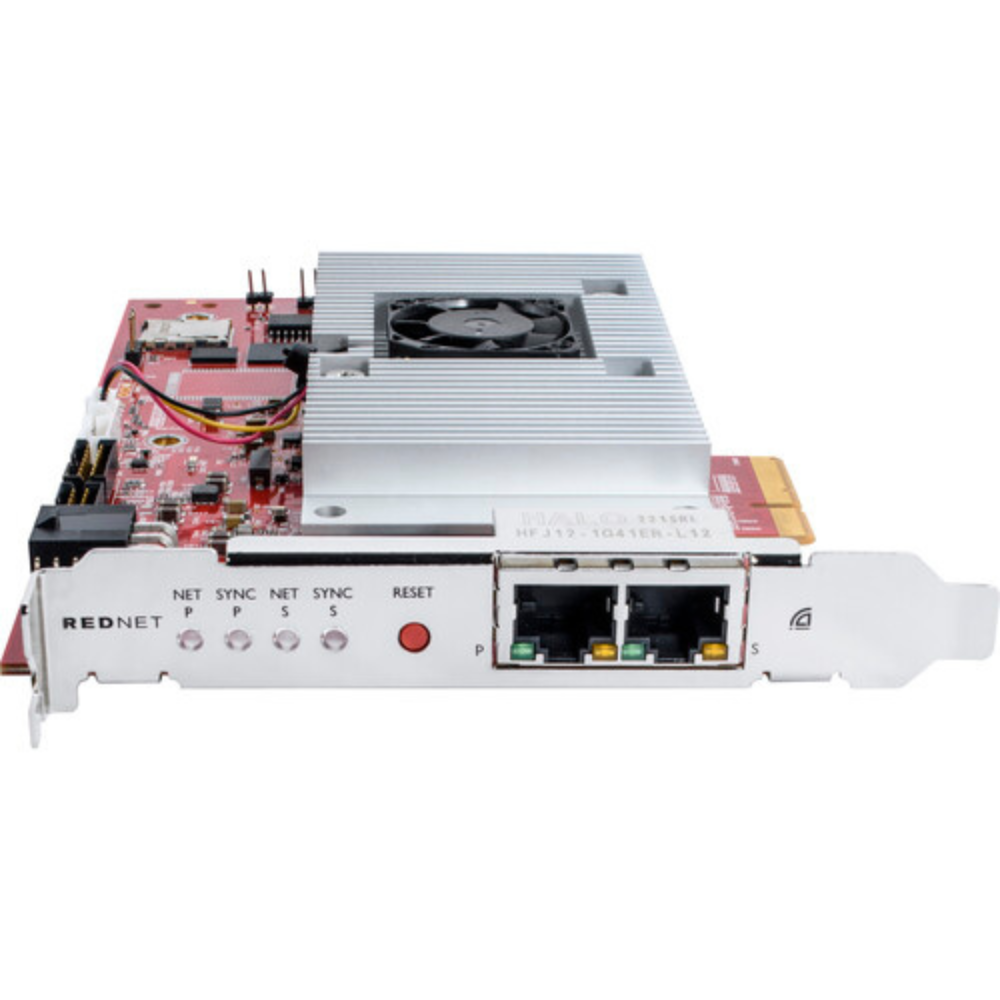

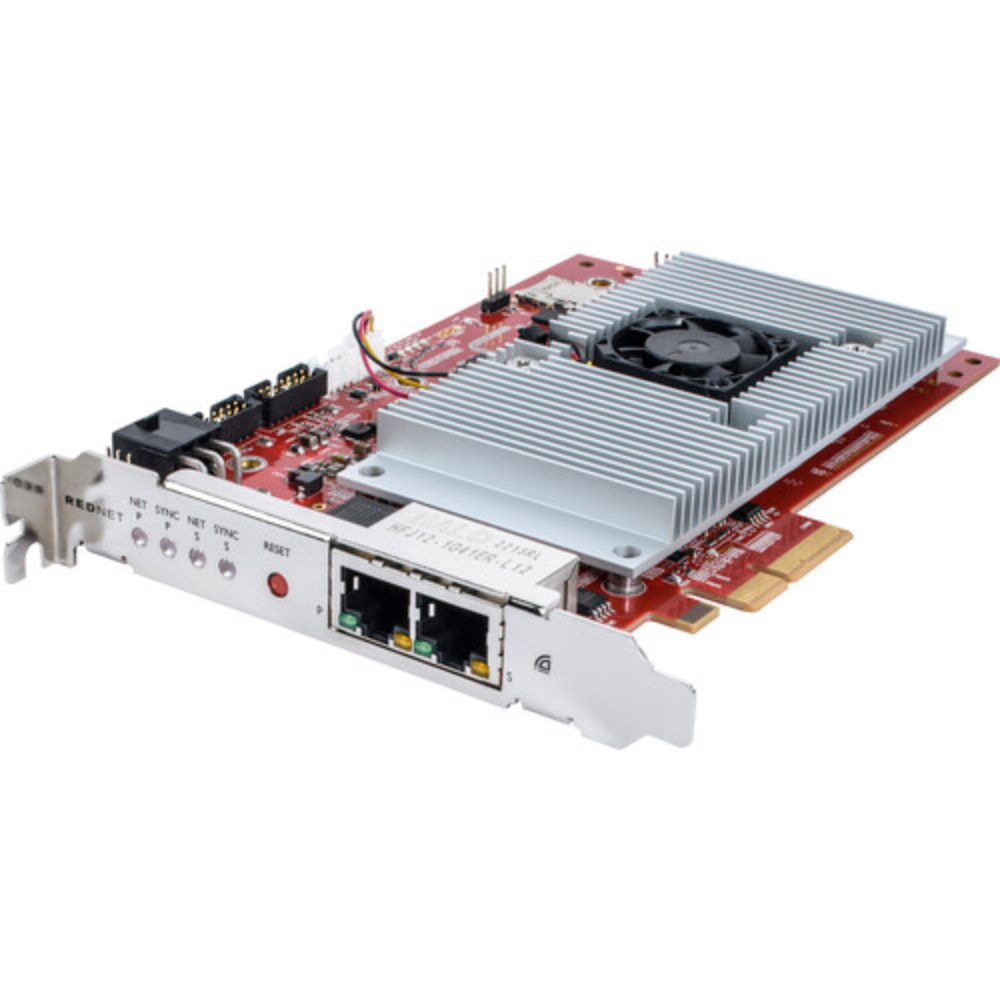

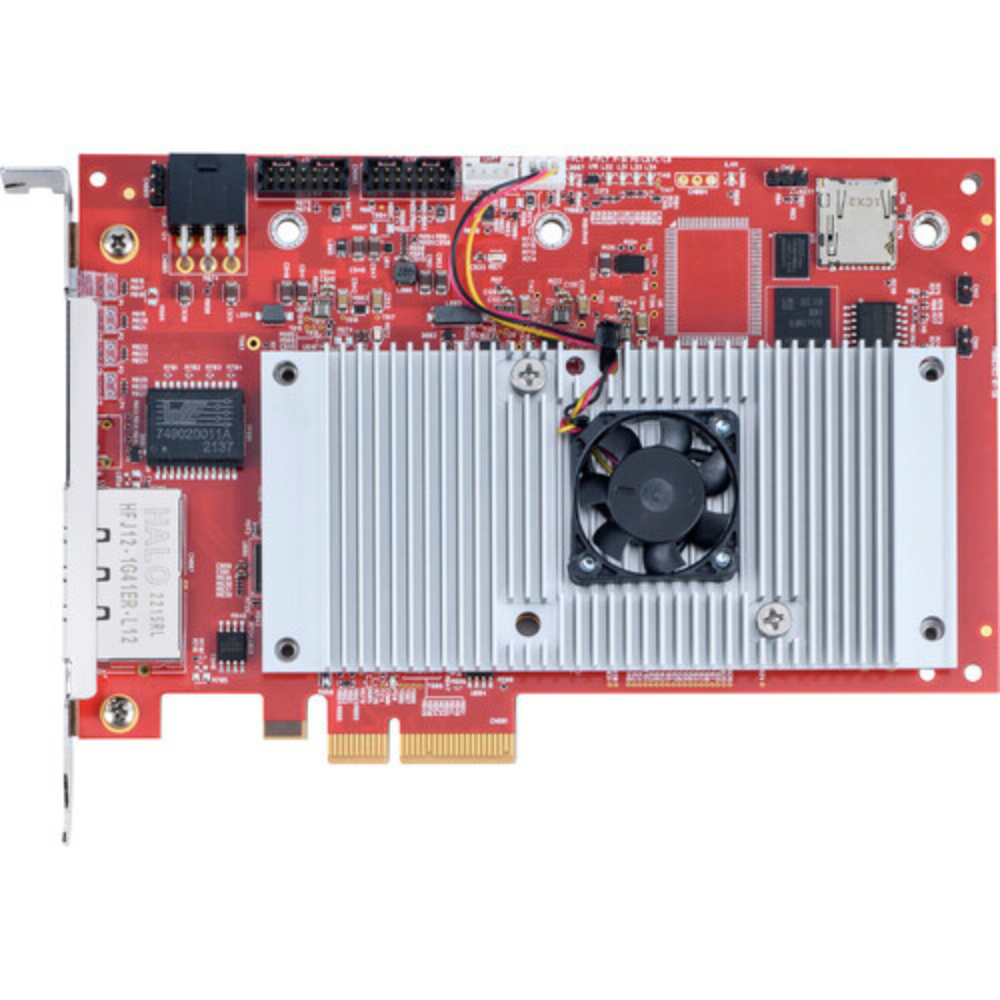

Focusrite RedNet PCIeNX Dante PCIe Dante Interface Card

Features

• Large Recording Session/Dolby Atmos Post
• For High-Channel-Count Dante Application
• 128x128 Channels (24-Bit / 192 kHz)
• Ultralow Round-Trip Latency
• Dual Ethernet RJ-45 Connections
• Supports AES67 and SMPTE ST 2110
• For Mac/Windows (Intel/Apple Silicon)
• Fits PCIe slot or Thunderbolt Chassis

Designed for high-channel-count Dante applications including large recording sessions and postproduction work using Dolby Atmos and other immersive formats, the Focusrite RedNet PCIeNX is a PCIe interface card that delivers 128x128 audio channels simultaneously (at up to 192 kHz) with ultralow round-trip latency. Compatible with Windows and Mac (Intel and Apple Silicon supported), RedNet PCIeNX can be installed in a PCIe slot or Thunderbolt chassis to seamlessly integrate with your existing hardware and accelerate any Dante workflow.

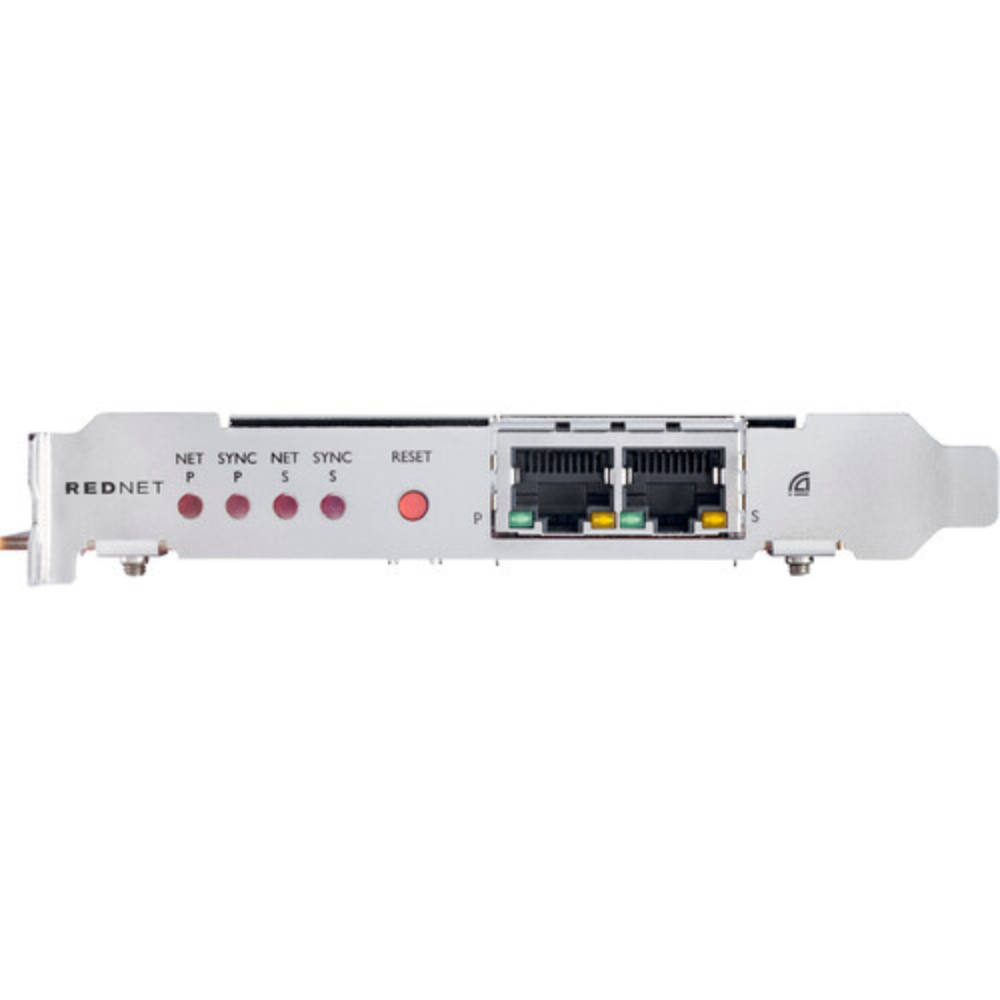

Two Ethernet RJ45 connections offer both switched and redundant modes, providing flexibility for connectivity as well as the option to have a secondary network for mission-critical situations. Futureproof and designed for reliability, RedNet PCIeNX is backed by a 3-year warranty and Focusrite's award-winning 24/7/365 technical support.

Broadcast-Ready with Support for the Latest AoIP Standards

• RedNet PCIeNX supports AES67, Dante Domain Manager, and is SMPTE ST 2110 compliant, which makes it perfect for broadcast deployment.

Simple, Integrated Network Control

• The integrated network interface simplifies installation and connectivity, allowing for a single-cable connection for audio and network control.

RedNet Control Ready

• RedNet PCIeNX works with RedNet Control, which provides a single application for control and monitoring of all RedNet devices on the network.

Flexible Installation

• Easily installed in a PCIe slot or Thunderbolt chassis
