Focusrite RedNet R1 Desktop Remote Controller for Red Interfaces

Overview of Focusrite RedNet R1 Desktop Remote Controller for Red Interfaces

The desktop remote controller that supercharges every Red interface

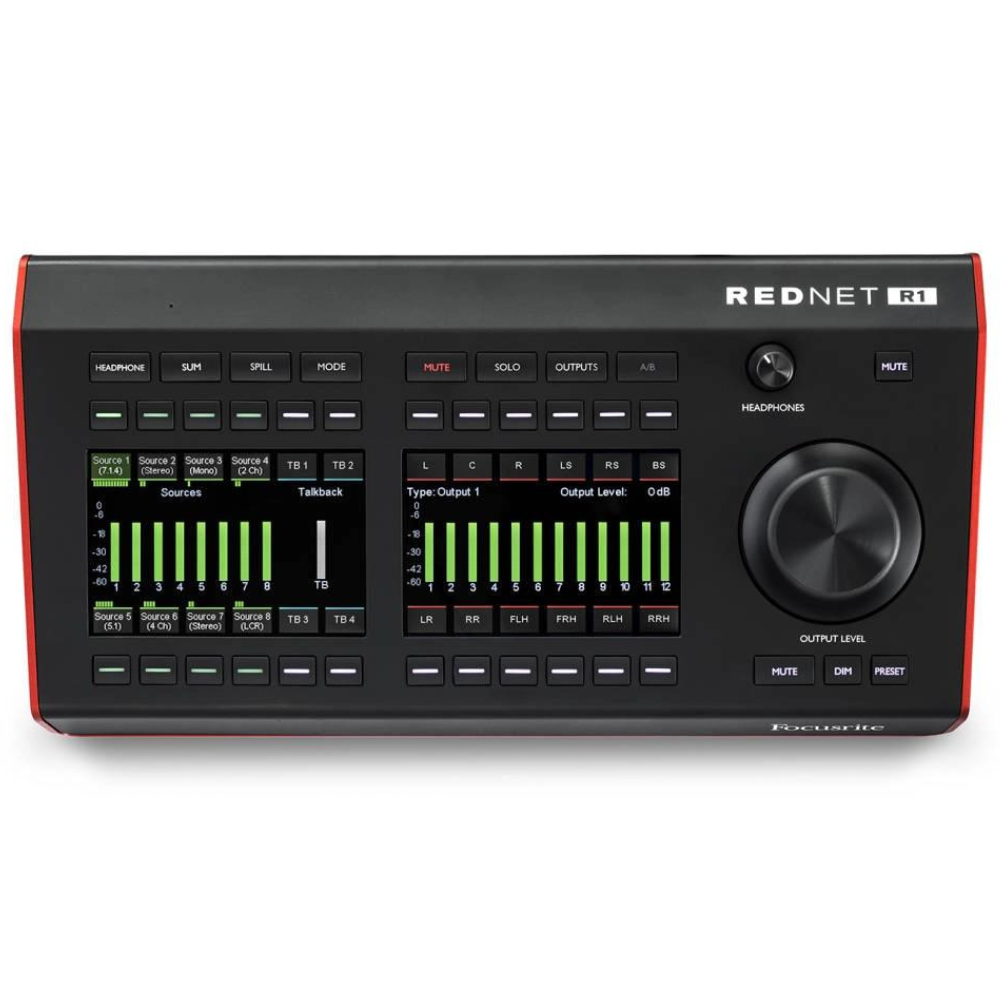

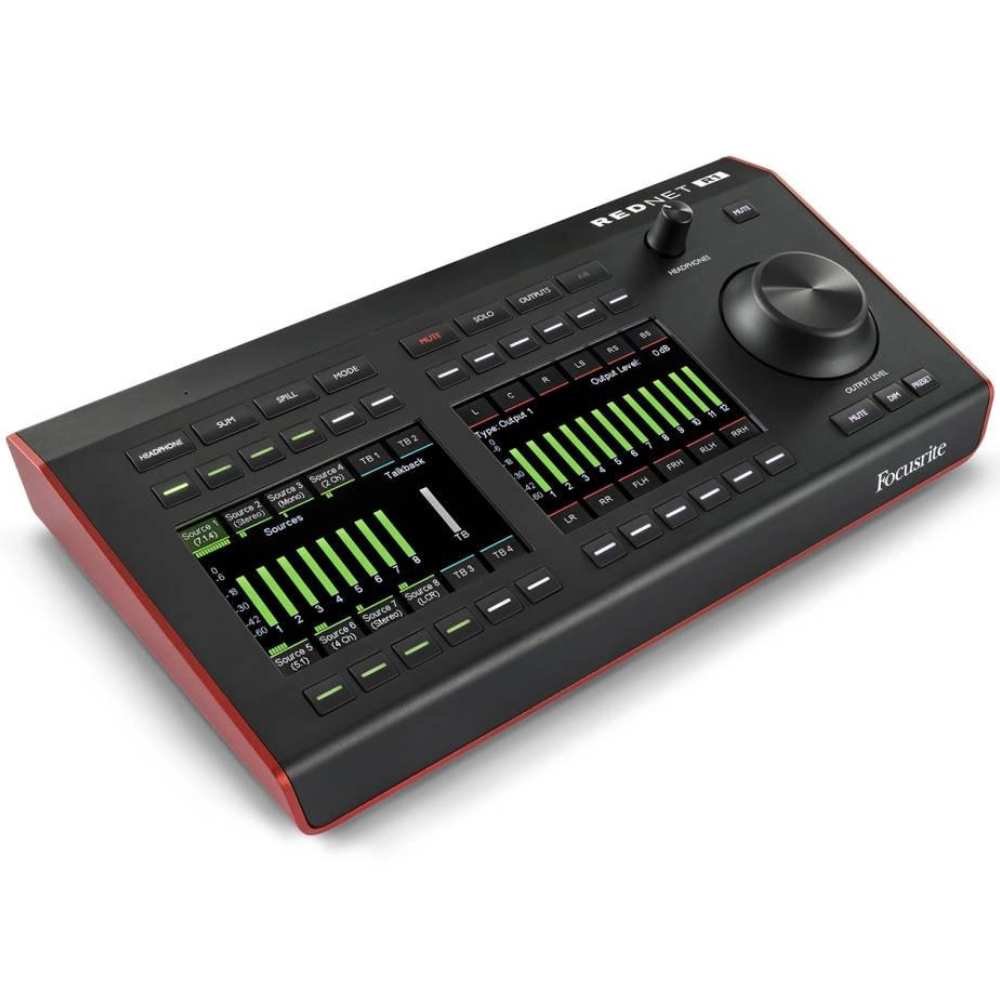

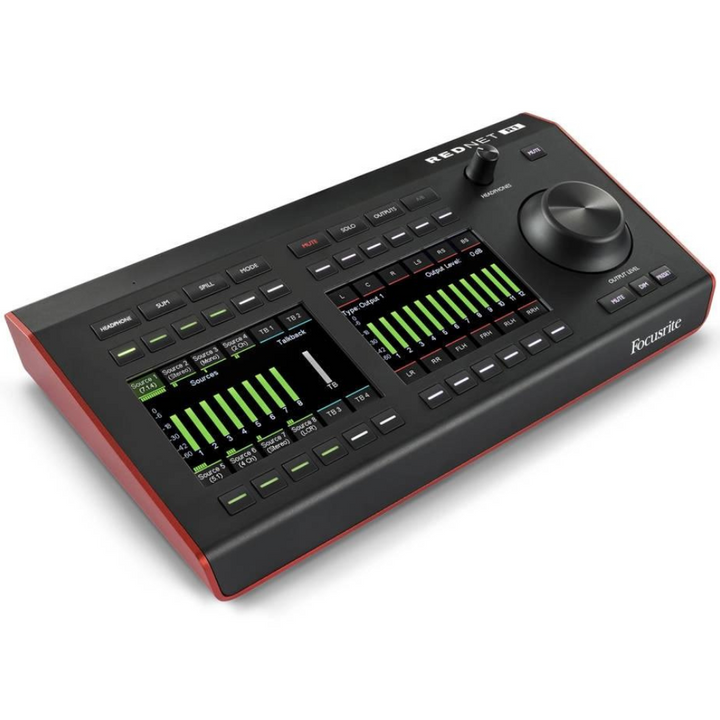

RedNet R1 is a desktop remote controller that unleashes the power of Focusrite Red interfaces. It's designed for professionals who need to adapt their audio configurations quickly to suit the ever-increasing demands of the studio environment. Combine, select and switch audio from any conceivable source to a multitude of common (or user-defined) monitoring environments, and control large groups of speakers from a single set of controls. RedNet R1 is also a Dante-enabled talkback unit, with a powerful headphones output and built-in talkback mic, making it the ideal studio partner.

Features
• RedNet R1 combined with Focusrite Red interfaces are the first Dante, Pro Tools | HD and Thunderbolt interface system with a source selector and monitor controller
• Supports a maximum of eight source groups, each of up to 12 channels per source, to a maximum of 32 total channels.
• Supports up to 12 monitor output channels formatted from mono through to 7.1.4 surround
• Flexible monitor controls include level, preset level selection and lock, plus dim, mute and a variety of solo modes
• A/B switch for switching between monitoring setups
• Up to four fold-down presets allow fast switching for checking downmixes
• Talkback functionality provides four destination groups when used with a Red interface, or a single talkback group when used with other Dante devices
• Built-in internal microphone, or users can connect their own via the rear-panel XLR
• Two LCDs display highly accurate level metering of the outputs, sources and headphone outputs, and give visual cues for navigating menus
• High-fidelity headphone output can take its source from a multitude of analogue or digital locations
• RedNet Control software with hardware focused workflow is designed for quickly setting up simple or complex configurations
• Quarter-inch jack footswitch input socket for talkback management, LFE muting and more
• Powered via Ethernet (using the PoE standard), or using the supplied DC power supply

In the Box:
- RedNet R1
- 1 x 12V 1.2A DC - 1.8m power supply cable (2.5mm locking plug)
- 1 x Cat 6 RJ45 Ethernet Cable
- Important Information Guide
- Registration code giving access to online resources

Specifications

Internal Talkback
All measurements taken at maximum gain unless otherwise stated, Rs = 150Ω
• Gain Range: 0dB to 55dB
• Type: Electronically Balanced, Zin = 3kΩ
• Max. Input Level: +10dBu +/- 0.5dB

External Talkback
All measurements taken at maximum gain unless otherwise stated, Rs = 150Ω
• Gain Range: 0dB to 55dB
• Type; Electronically Balanced, Zin = 3kΩ
• Max. Input Level: +10dBu +/- 0.5dB
• Frequency Response: 20Hz - 20kHz +/- 2dB
• THD + N: < -98dB (0.0012%) @ -1dBFS
• EIN: < -128dBu 'A'-Weighted (typical)
• Signal-to-Noise Ratio: -111dB 'A'-Weighted (typical), min gain
• Common-Mode Rejection Ratio: 50/60Hz CMRR: < -77dB

Headphone Output
All measurements taken at +19dBm reference level, maximum gain, RL = 600Ω
• 0 dBFS Reference Levels: +11dBm
• Frequency Response: 20Hz to 20kHz +/-0.5dB
• THD + N: -100dB (0.001%) @ -1dBFS, Rs = 150R
• Dynamic Range: 108dB 'A'-weighted (typical), 20Hz - 20kHz
• Noise in Presence of Signal (NiPoS): > -97 dBu 'A-Weighted'
• Output Impedance: 5Ω
• Headphone Impedance: 32Ω - 600Ω

Crosstalk
Microphone/ Line Crosstalk
• Mic Input to Headphone Output: < -122dB; 20Hz - 20kHz (all other channels at 0dBFS)
• Headphone Output to Mic Input: < -84dB; 20Hz - 20kHz (all other channels at 0dBFS)

Headphone Crosstalk
• Left to Right: < -85dB; 20Hz - 20kHz (all other channels at 0dBFS)
• Right to Left: < -85dB; 20Hz - 20kHz (all other channels at 0dBFS)

Digital Performance
• Supported Sample Rates: 44.1 / 48 / 88.2 / 96 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24 bit
• Clock Sources: Internal or from Dante Network Master.

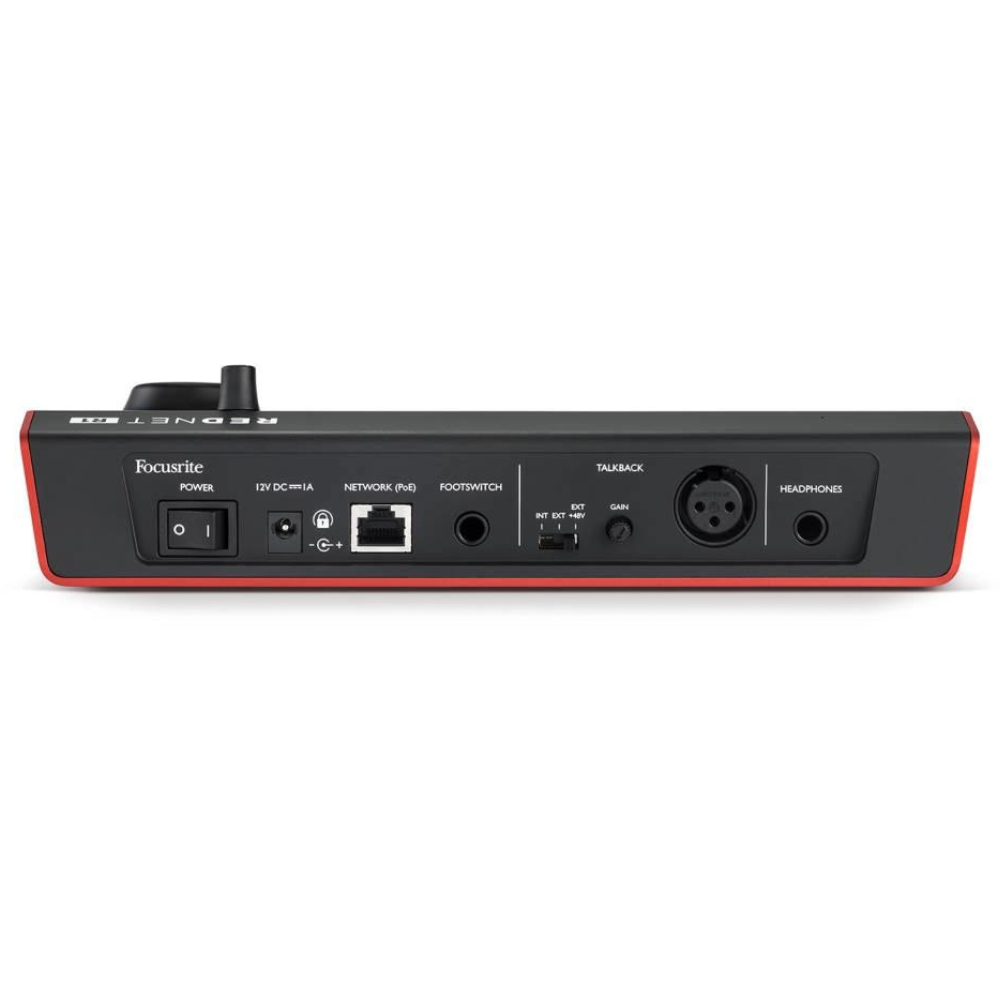

Rear Panel Connectivity, Pots & Switches
Inputs
• External Talkback Mic Input: 1 x XLR (F)
• Foot Switch: 1 x 1/4" stereo jack

Outputs
• Headphone Outputs: 1 x 1/4" stereo jack

Pots & Switches
• Power Switch: 1 x Switch
• Talkback Gain Pot: 1 x Pot
• Talkback Switch: 1 x Tri-State Switch (External Talkback + 48V, External Talkback and Internal Talkback).

PSU & Network Connections
• PSU (PoE and DC): 1 x PoE Input and 1 x DC 12V Locking Barrel Input Connector.
• Network: 1 x Standard RJ45 connector.

Top Panel Indicators
• LCD Screens: 2 x Screens (Control, Status, Metering & Menus)
• Control Functions: 2 x Continuous Pot (Level & Dim). 1 x Pot (Headphone Output). 24 x Multi-Function Switches (Sources, Talkback, Monitor Outputs & Menu Items). 12 x Single-Function Switches (Headphones, Sum, Spill, Mode, Mute, Solo, Outputs, A/B, Cut x 2, Dim & Output Lock).

Power
• Power over Ethernet (PoE): Complies with IEEE 802.3af class 0 Power-over-Ethernet standard (PoE A or PoE B compatible)
• DC Power Supply: 1 x 12V 1.2A DC Power Supply.
• Power Consumption: PoE: 10.3W - DC: 9W (When using supplied DC PSU)

Heat Performance
• Operating Temperature: Operates at up to an ambient temperature of 40 degrees CelsiusQ
