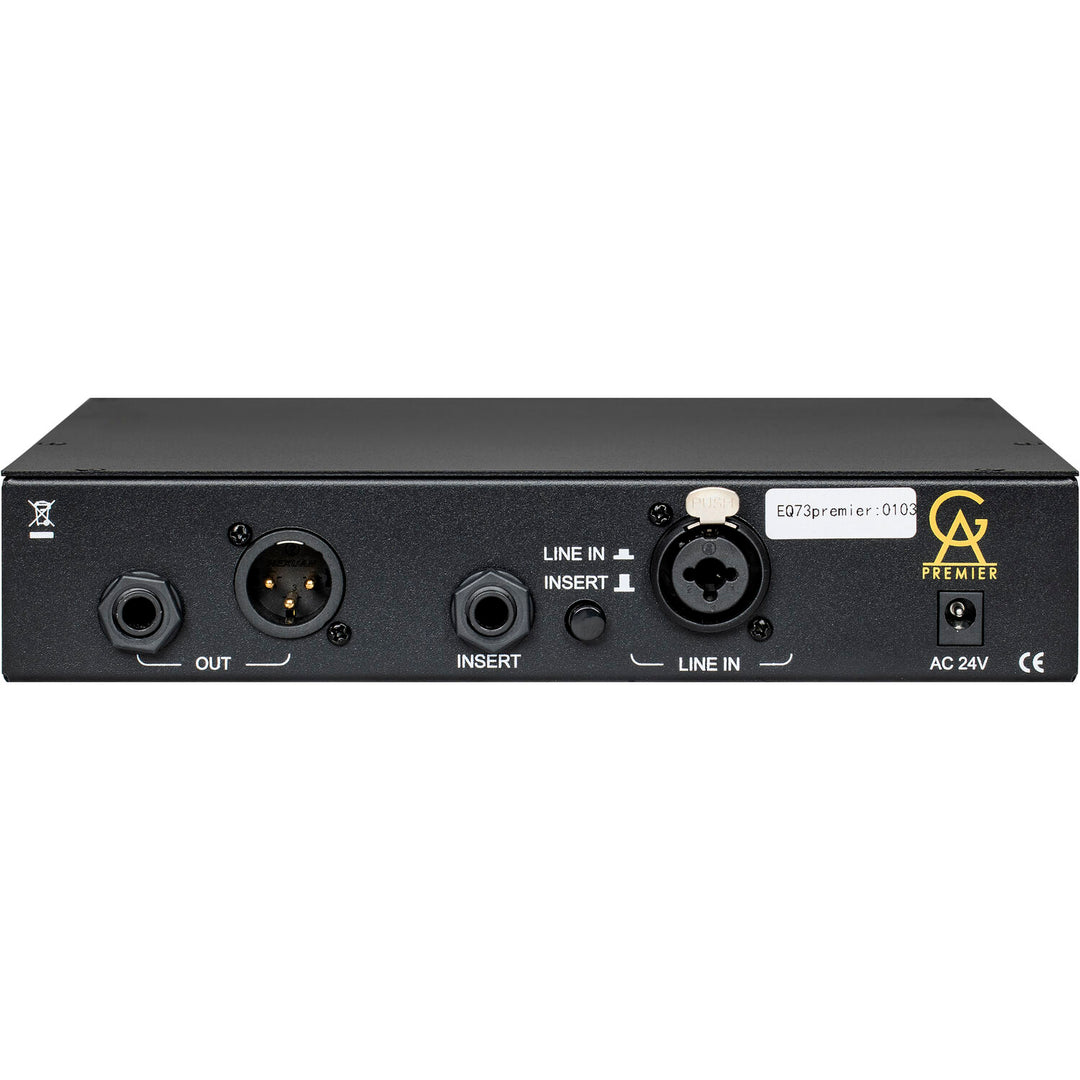

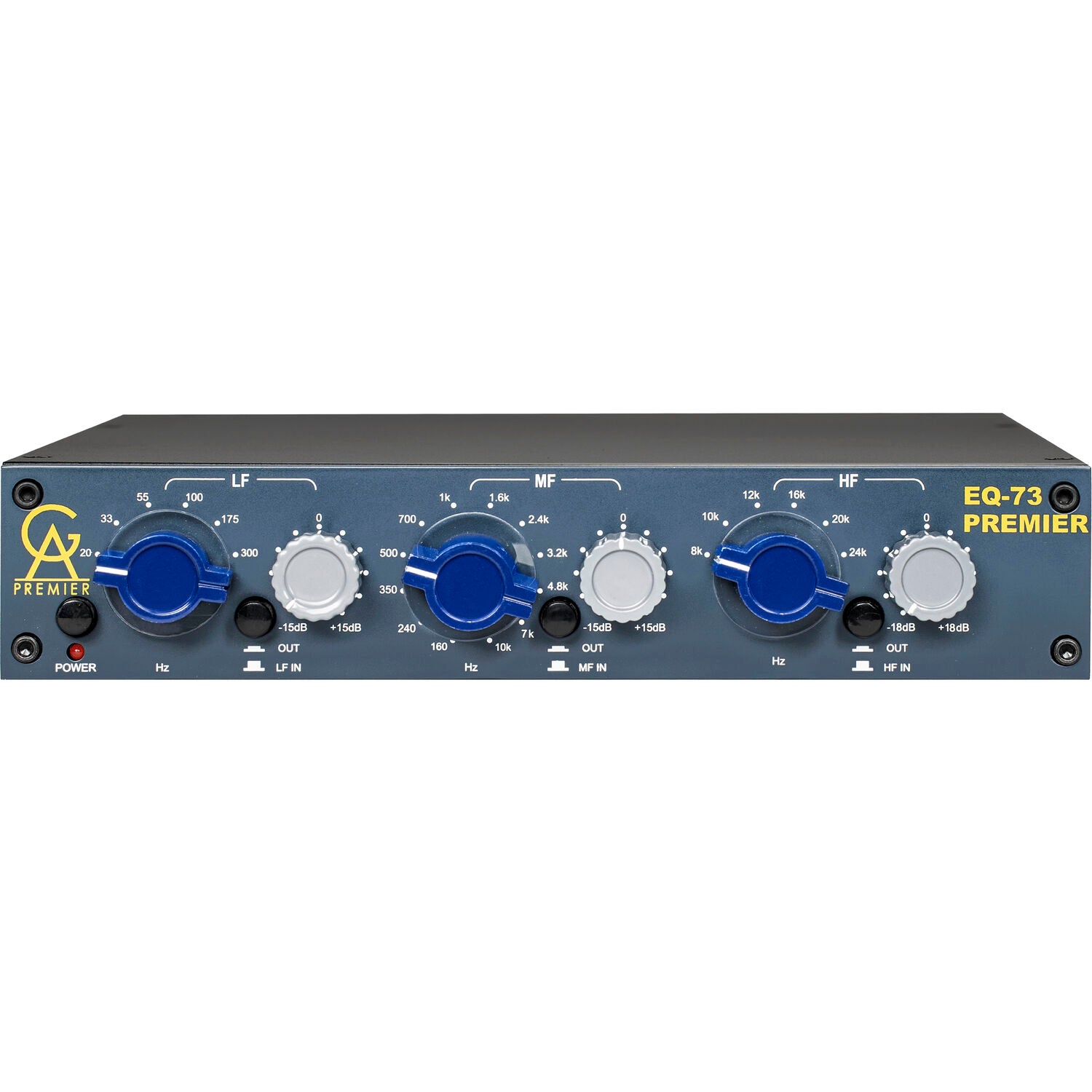

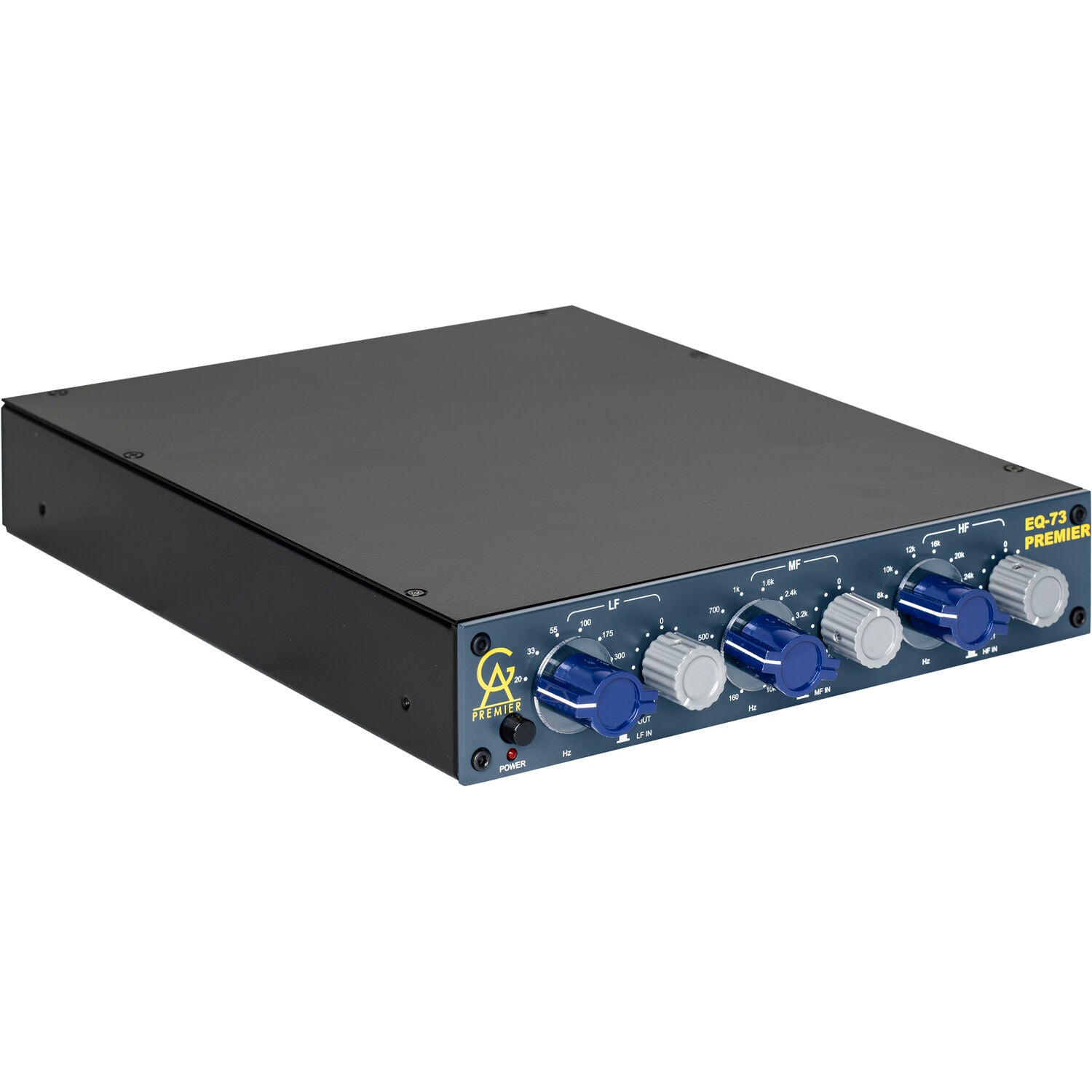

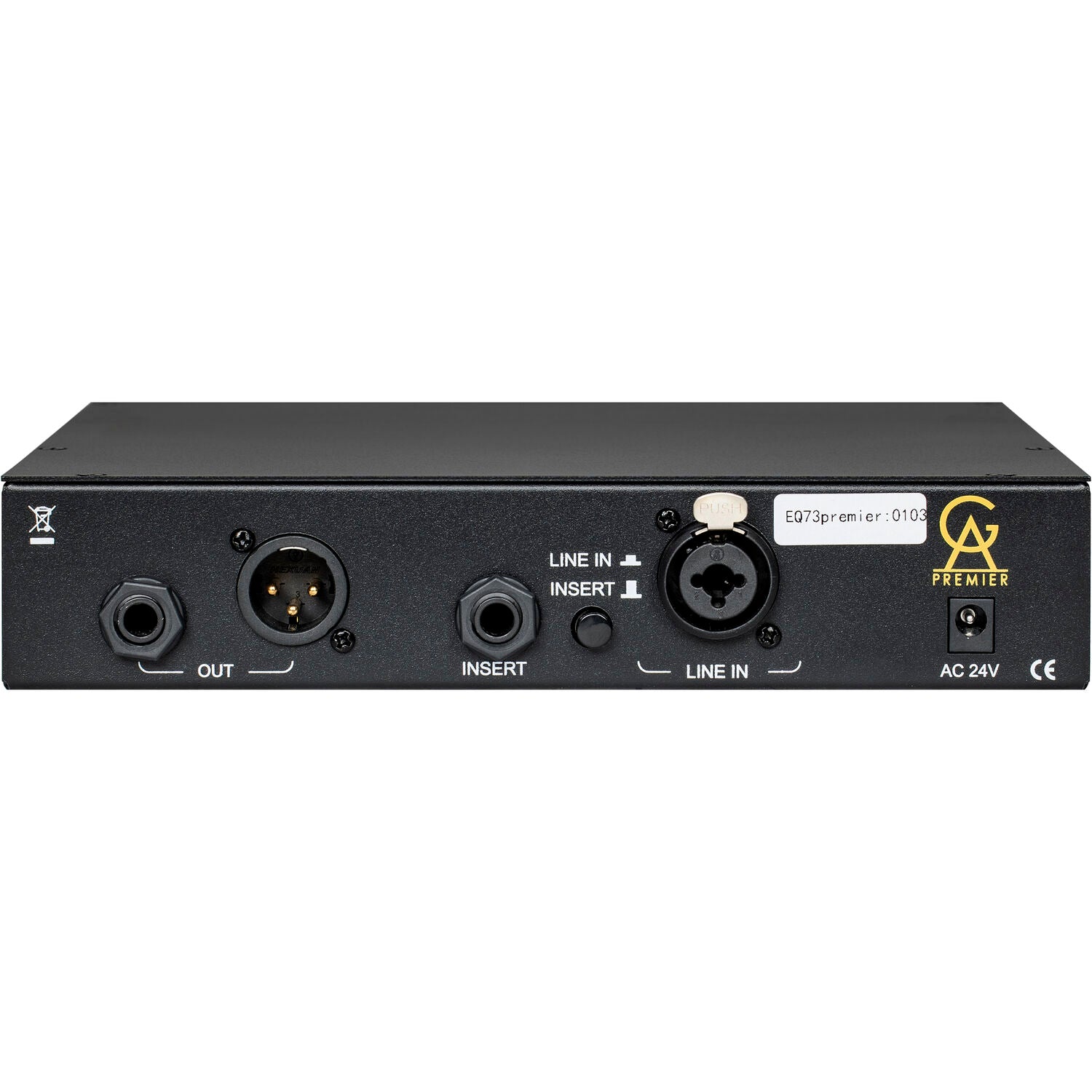

Golden Age Project EQ-73 Premier Vintage-Style 3-Band Equalizer
EQ73PREMIER
Enter your details and we'll notify you when this item is available again.
Payment plans from Affirm, learn more
- Golden Age Project
- Shipping Calculated at checkout, most in stock products ship same day
- Vintage style electronics. No integrated circuits in the main signal path
- 3-band EQ with a dual inductor based mid frequency band and stepped frequency selection
- A wide selection of frequencies from 20 Hz to 24 kHz and a control range of up to +/- 18 dB
- Separate bypass switches for each band
- Two UK made Carnhill inductors in the midrange section
- Tantalum capacitors in the main signal path, polystyrene capacitors in the gain stages
- Burr Brown OPA 2602 IC used for the balanced output stage
- Soldered internal connections
- Can be used together with one of our preamp´s with an insert jack or as a standalone unit
- TRS jack for the INSERT mode in- and output connection, the nominal working level is around -18 dBu
- IC-based in- and output stage for the LINE IN mode with balanced TRS and XLR connectors
- Selectable ground lift jumper
- External power supply to avoid interaction with the audio circuits
