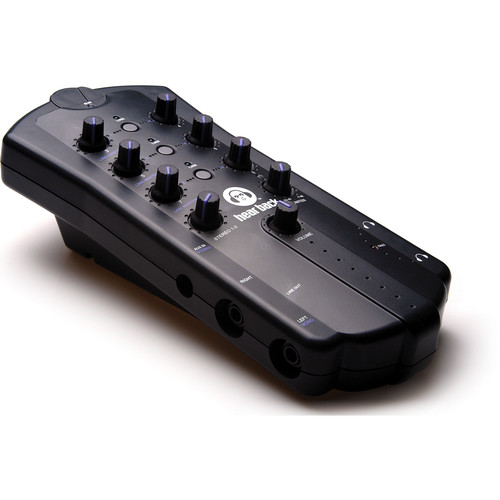

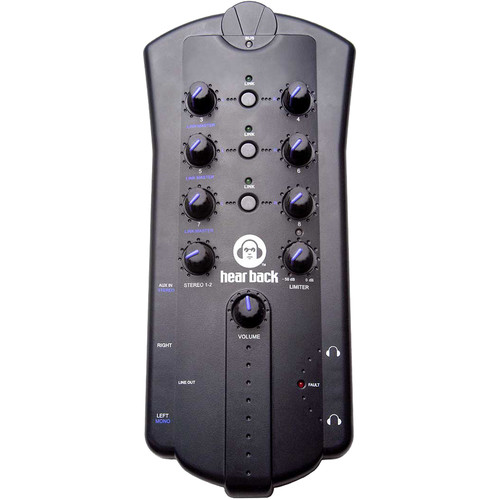

Overview of Hear Technologies HBM Hear Back Mixer Personal Monitor Mixer for Hear Back Hub
The Hear Technologies Hear Back Mixer is a personal monitor mixer designed to provide simple multi-source mixing and low system latency for musicians, vocalists, and various performers in recording studios, rehearsal spaces, and live stage applications. It receives power and signal via a Cat5e connection to a Hear Back Hub (available separately). Once connected, its LEDs indicate the bus status, headphone amp fault, channel link mode, and more. It features an integrated 5/8”-27 threaded socket for easy mounting to a mic stand.
The 10-channel mixer accepts eight channels via Cat5e and two channels via the 3.5mm stereo aux input jack. Adjacent mono channels can be linked for true stereo operation. Volume controls are provided for each channel and the master output. 24-bit D/A conversion and an adjustable built-in DSP limiter deliver high-quality signal free of distortion to the two 1/4" stereo headphone jacks and the two 1/4" balanced line outs.
- Mix up to eight channels via Cat5e input and two channels via stereo aux input
- 3.5mm stereo aux input for click track or mix from other modules
- Two-stage DSP limiter with adjustable threshold
- System latency less than 1.5 ms
- LED indicators for limiter activity, bus status, link mode, and headphone amplifier fault
- Mono inputs 3-4, 5-6, and 7-8 can be linked for stereo operation
- Two 1/4" balanced line outputs for connection external monitors or other personal mixers
- Connects to Hear Back Hub (available separately) via Cat5e
Music City Canada is an authorized reseller for Hear Technologies products. Purchases are backed with full manufacturer warranty in Canada. All orders ship from our Canadian warehouse.
