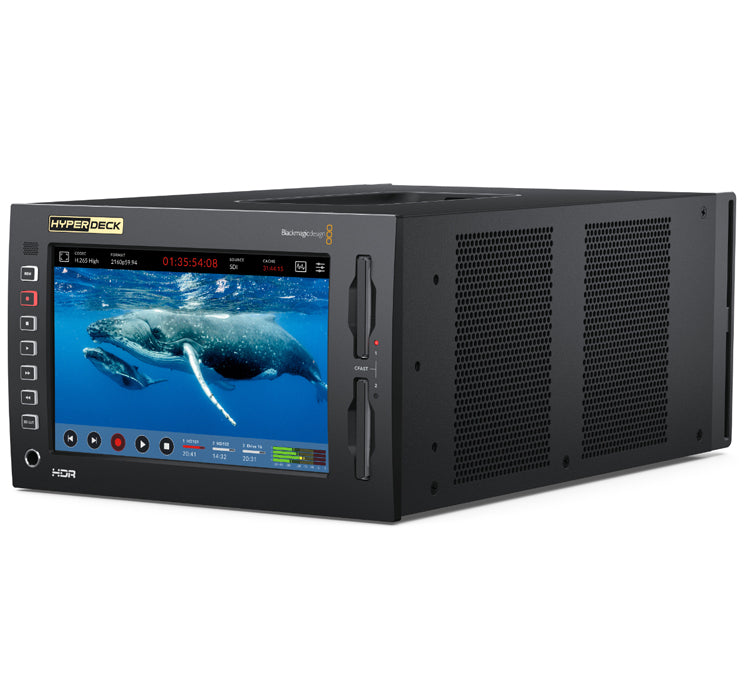

Blackmagic Design HyperDeck Extreme 4K HDR w/Touchscreen Deck Control

HyperDeck Extreme 4K HDR features the trusted reliability of HyperDeck combined with new innovations such as space saving H.265 files, optional internal cache, 3D LUTs and HDR support! With the ability to record up to native 4K in H.265, you get reduced storage costs and amazing image quality. The large touch screen ensures a perfect view of your recording as well as control over all deck settings.

Connections:

SDI Video Inputs: 1

SDI Video Outputs: 3  (12G-SDI A and B plus 3G-SDI Monitor Out)

SDI Rates: 270Mb, 1.5G, 3G, 6G, 12G.

HDMI 2.0 Video Inputs: 1

HDMI 2.0 Video Outputs: 1

Analog Video Inputs

• 1 x Component YUV on 3 BNCs,
• 1 x Composite NTSC/PAL on 1 BNC.

Analog Video Outputs: None

Analog Audio Inputs: 4 Channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors.

Built in Speaker: Mono

Screen: 7 inch 1920 x 1200. 2000 nit DCI-P3 100% HDR LCD

Timecode Connections: 1 x XLR in and 1 x XLR out.

Reference Input: Tri-Sync or Black Burst.

SDI Audio Inputs: 64 channels embedded audio.

SDI Audio Outputs: 64 channels embedded audio.

HDMI Audio Inputs: 8 channels embedded audio.

HDMI Audio Outputs: 8 channels embedded audio.

Remote Control: 1 x RS-422 In, 1 x RS-422 Out.

Recorder Configuration: Via user interface or Blackmagic HyperDeck Ethernet Protocol.

Ethernet: 10Gb/s

External Recording: 1 x USB-C 3.1 Gen 2 (up to 10Gb/s) for external disk recording.

Computer Interface: 1 x USB-C for software updates.

Specifications:

Audio Sampling: Television standard 24-bit, 48kHz sample rate

Video Sampling: Television standard 24-bit, 48kHz sample rate

Video Sampling: 4:2:2 YUV

Color Precision: 10-bit

Scopes: Waveform, RGB Parade, Vector and Histogram scopes in broadcast quality 10-bit.

Viewing Modes: Picture in picture, picture overlay with opacity control. Waveform and RGB parade with standard and HDR graticules and Vector with zoom.

Built in Control Panel: Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus.

External Control: RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol.

Displays: Built in LCD for video, audio and timecode monitoring and menu settings

Power Supply:

• 1 x Internal 100 - 240V AC.
• 1 x 4 pin XLR 12V DC IN for external power or battery use.

Power Usage: 190W max

Dimensions (L x W x H): 334 x 210 x 131 mm

Operating Temperature: 0° to 40° C (32°to 104° F)

Storage Temperature: -20° to 60° C (-4° to 140° F)

Relative Humidity: 0% to 90% non-condensing
