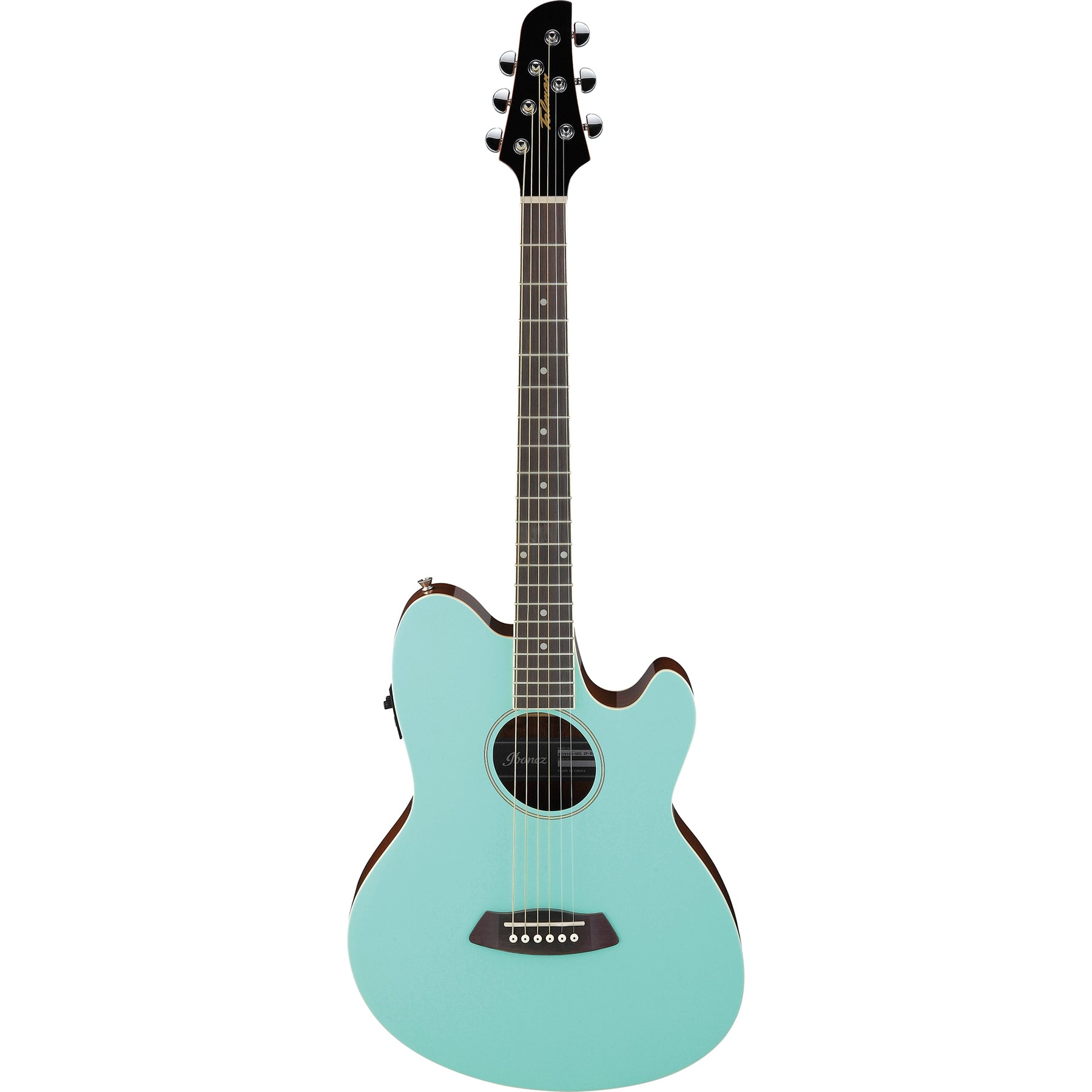

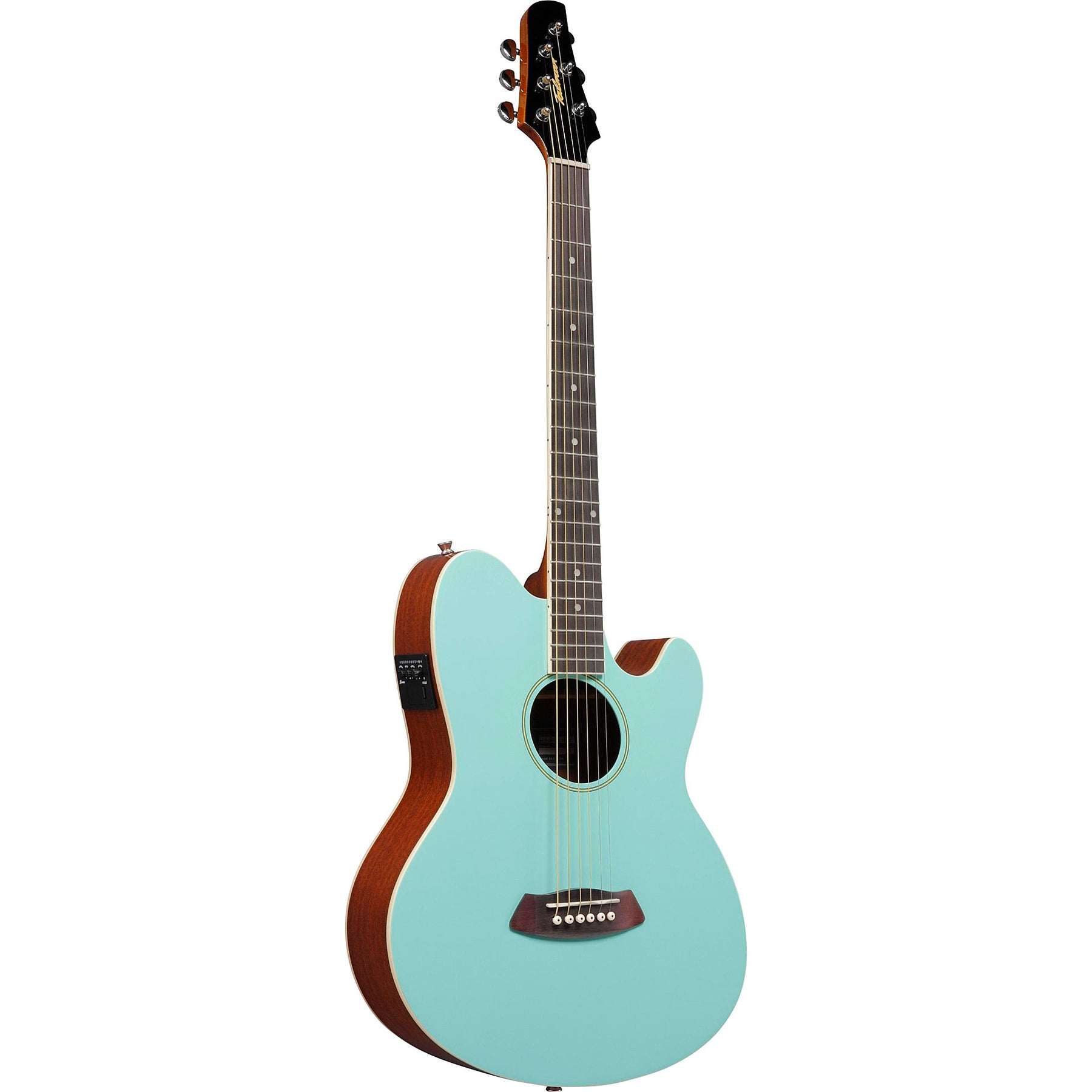

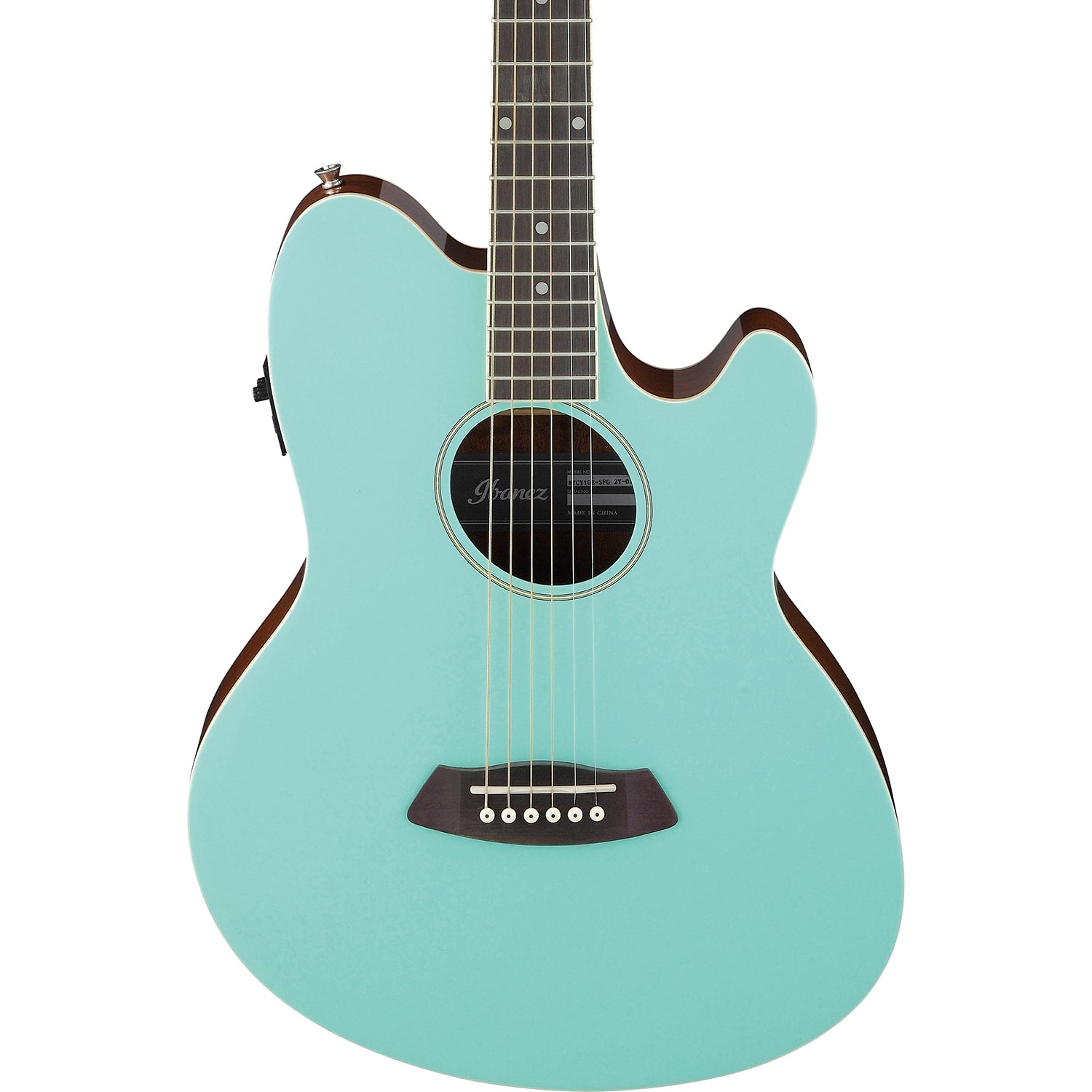

Ibanez Acoustic-Electric (Sea Foam Green) TCY10E

SPECS

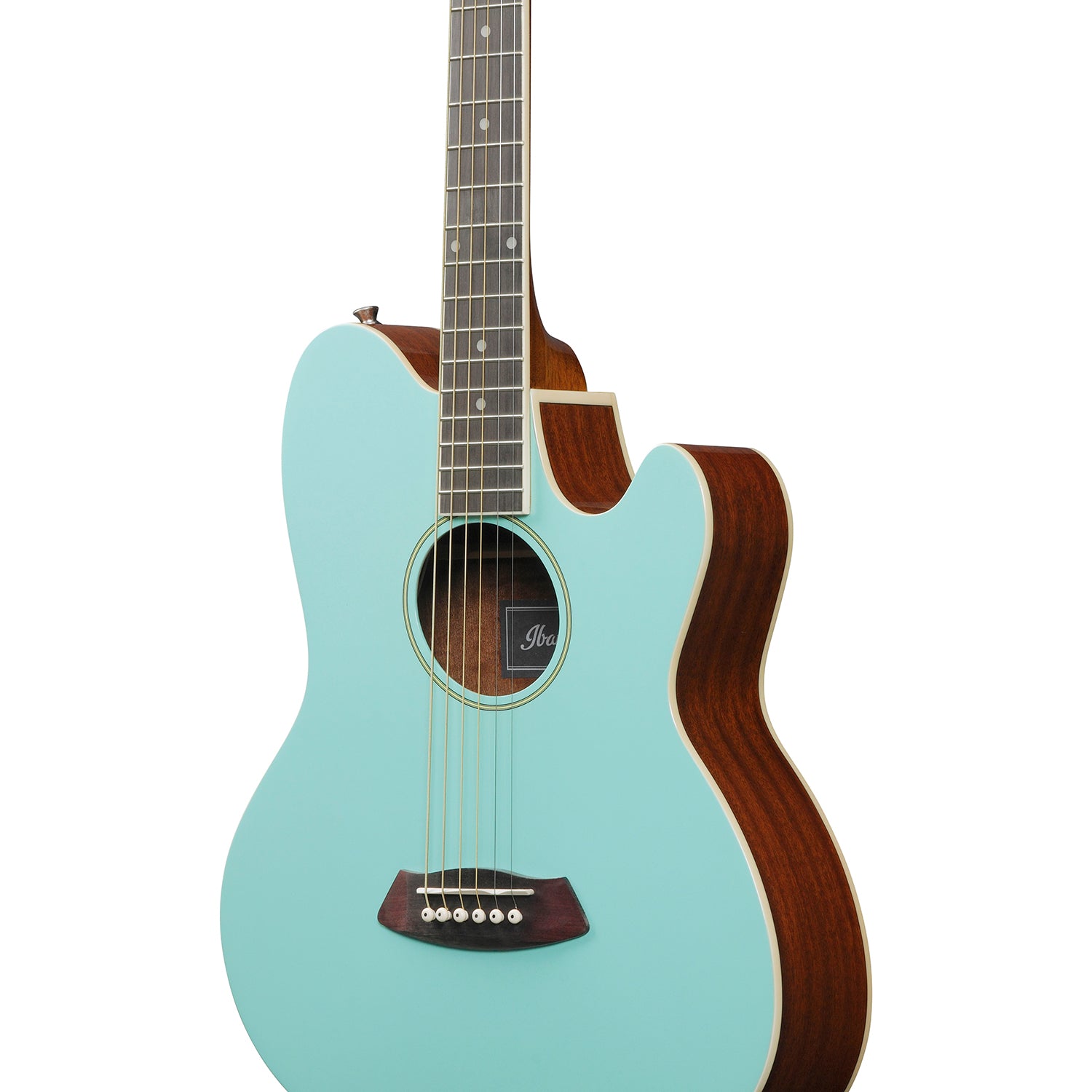

 • body shape Talman Double Cutaway body
 • top Spruce top

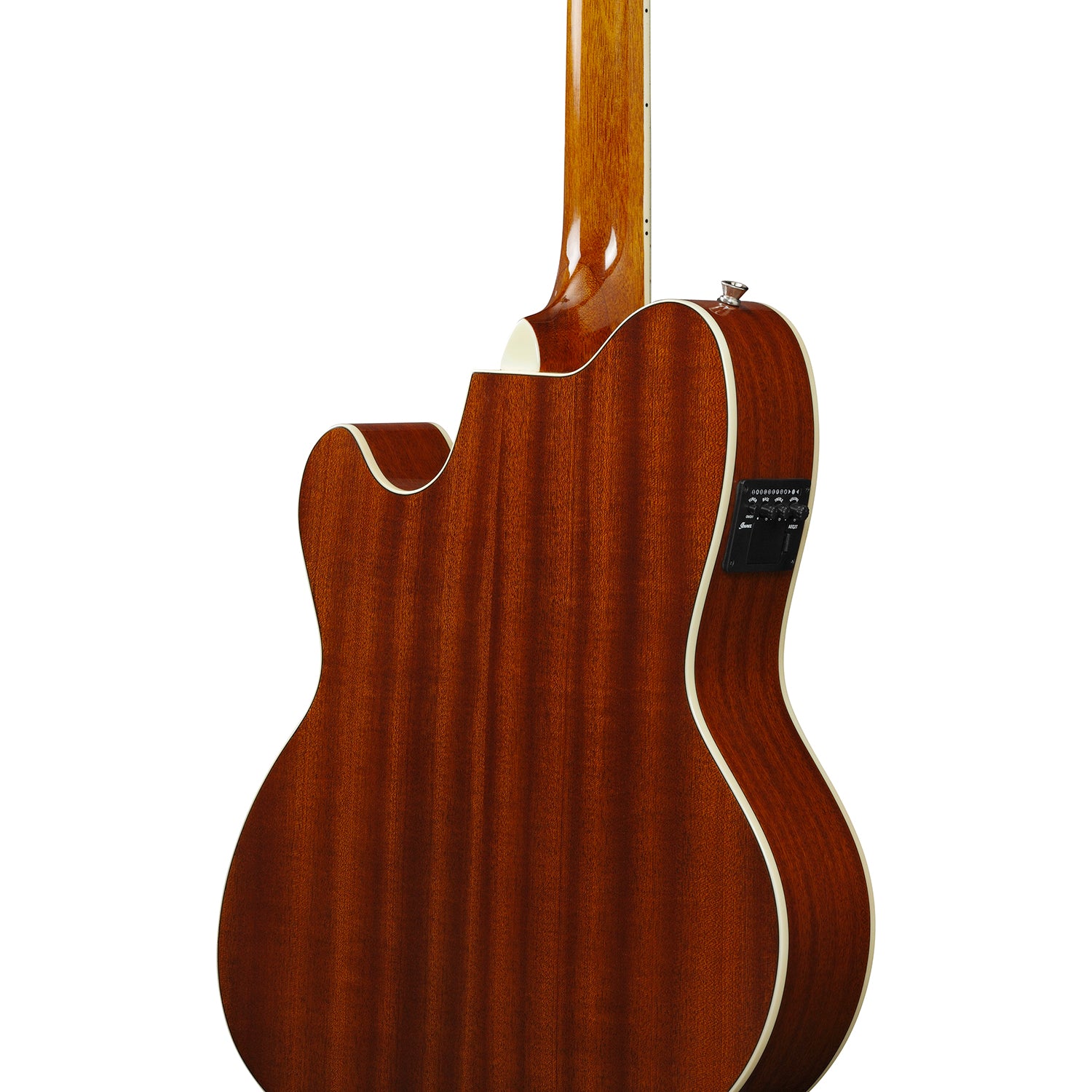

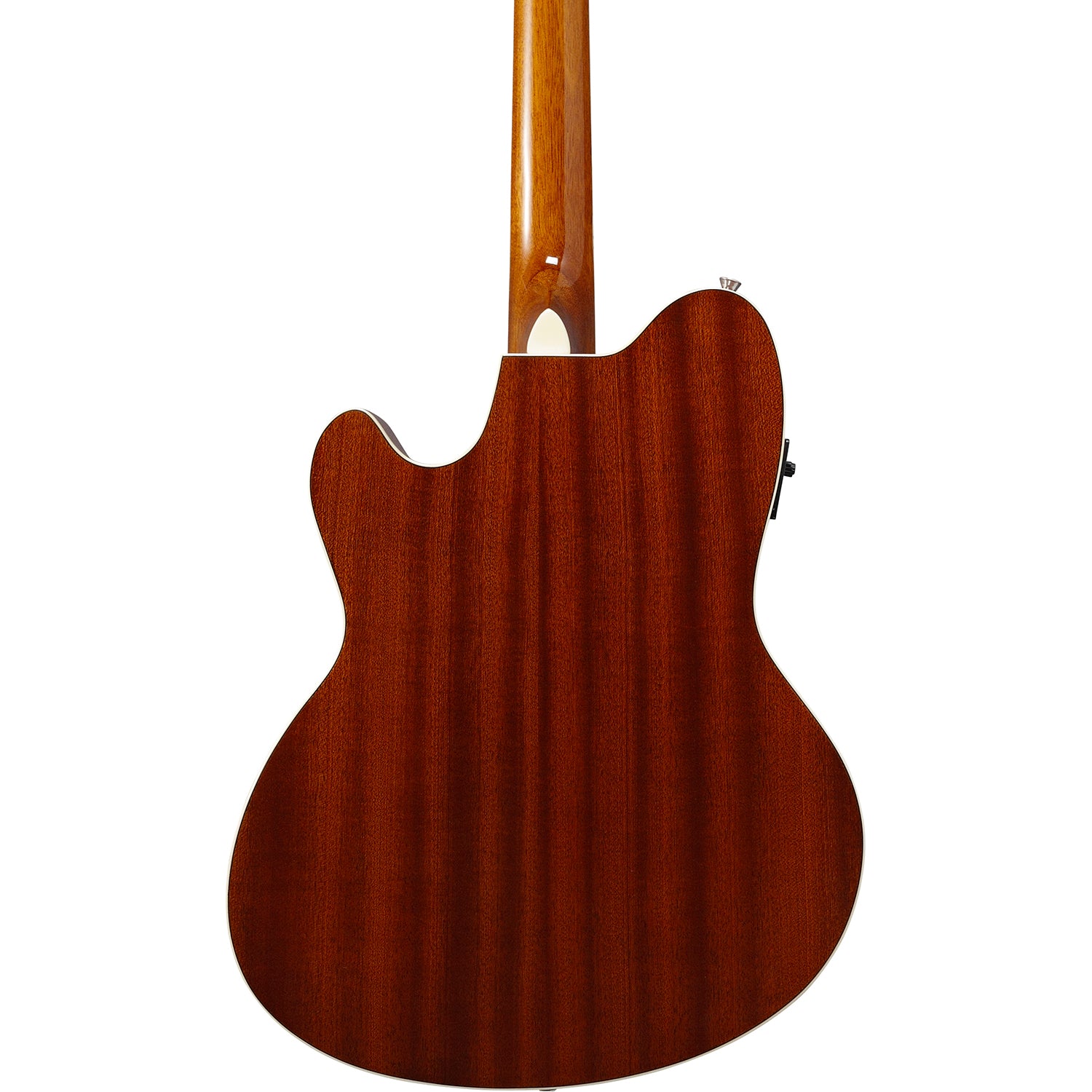

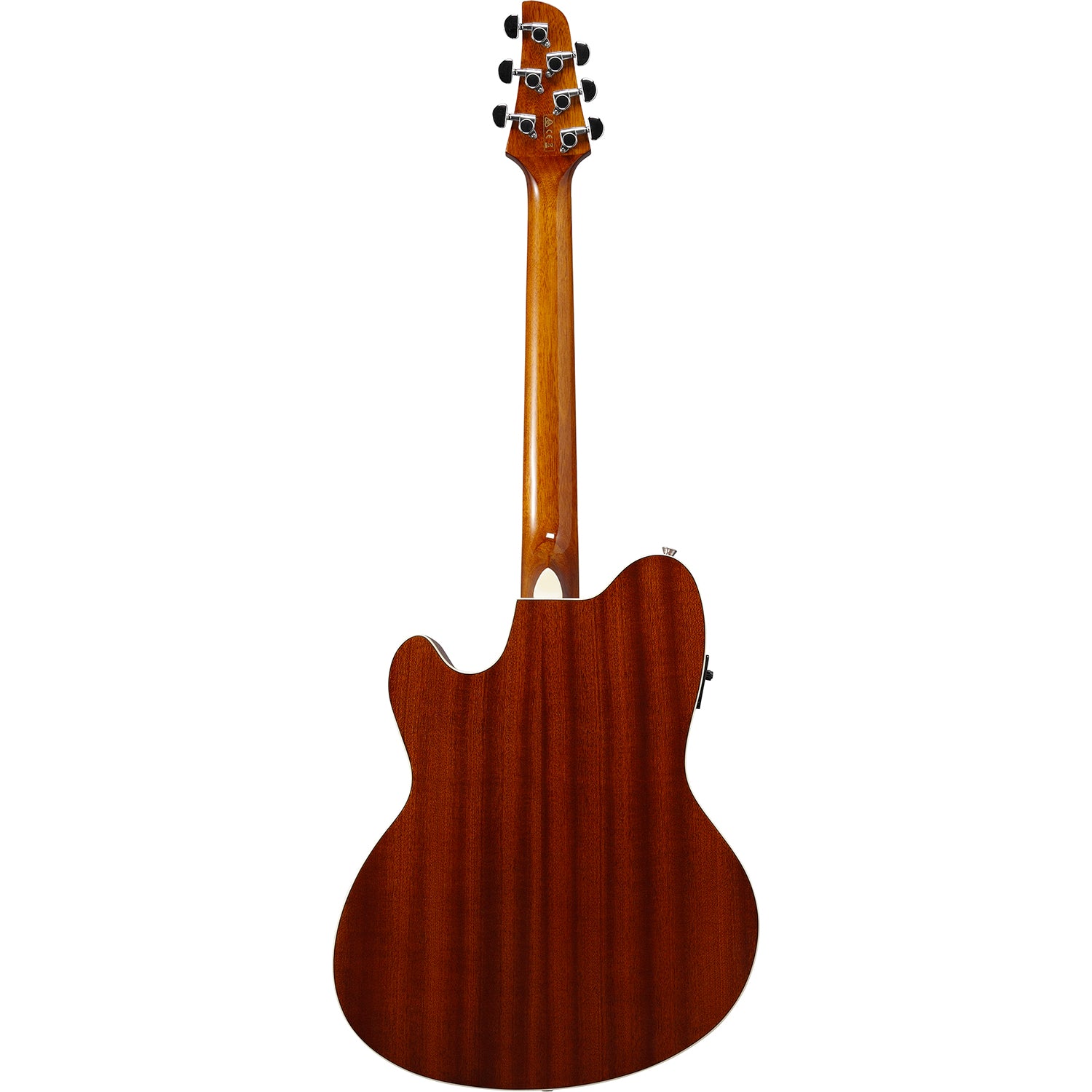

 • back & sides Sapele back & Sapele sides
 • neck TCYOkoume neck
 • fretboard Purpleheart fretboard
 • bridge Purpleheart bridge
 • inlay White dot inlay
 • soundhole rosette Black & White multi

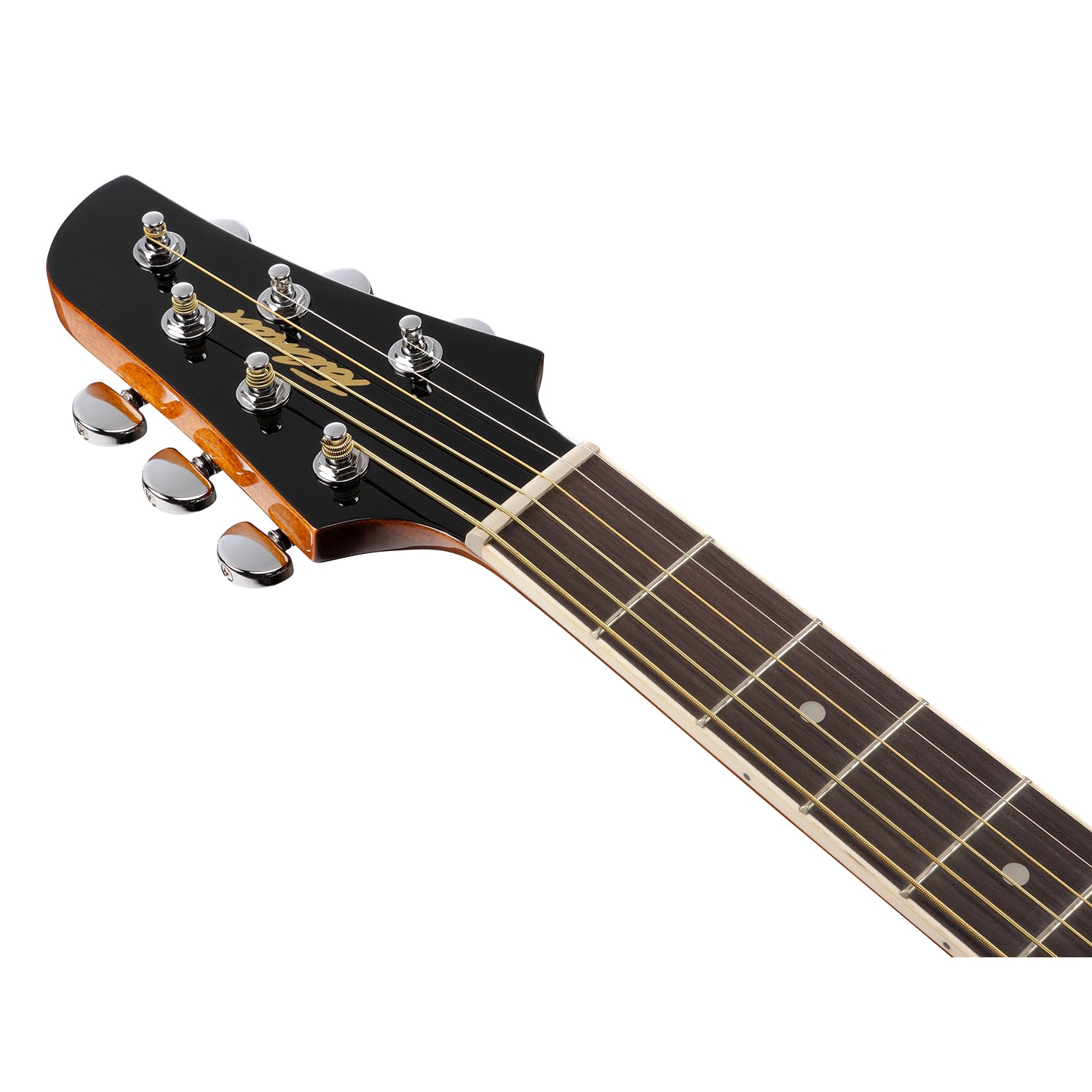

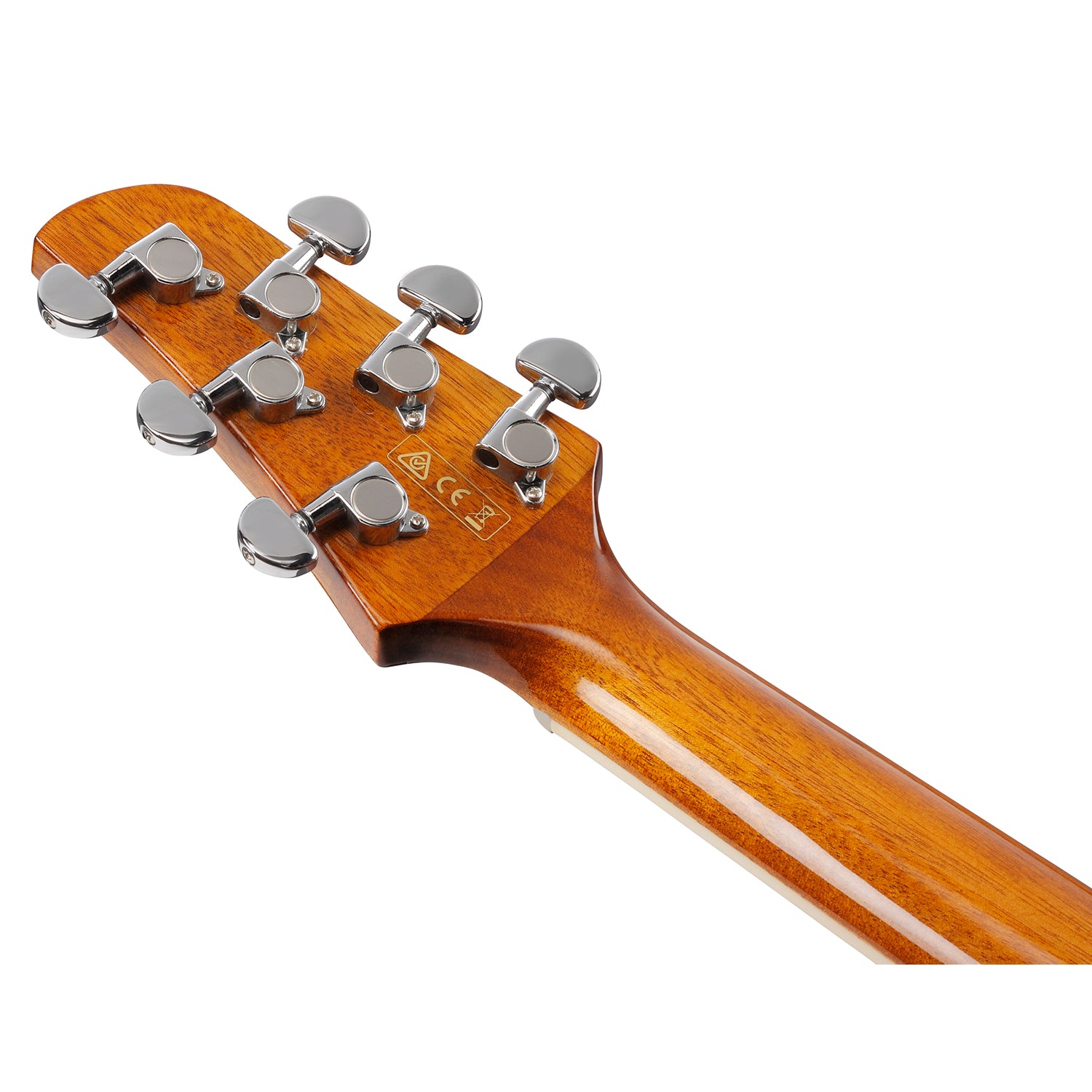

 • tuning machine Chrome Die-cast tuners
 • nut material Plastic
 • number of frets 20
 • saddle material Plastic
 • bridge pins Ibanez Advantage™
 • string gauge .012/.016/.024/.032/.042/.053
 • string space 11mm
 • factory tuning 1E,2B,3G,4D,5A,6E
 • pickup Ibanez Undersaddle
 • preamp Ibanez AEQ-2T preamp w/Onboard tuner

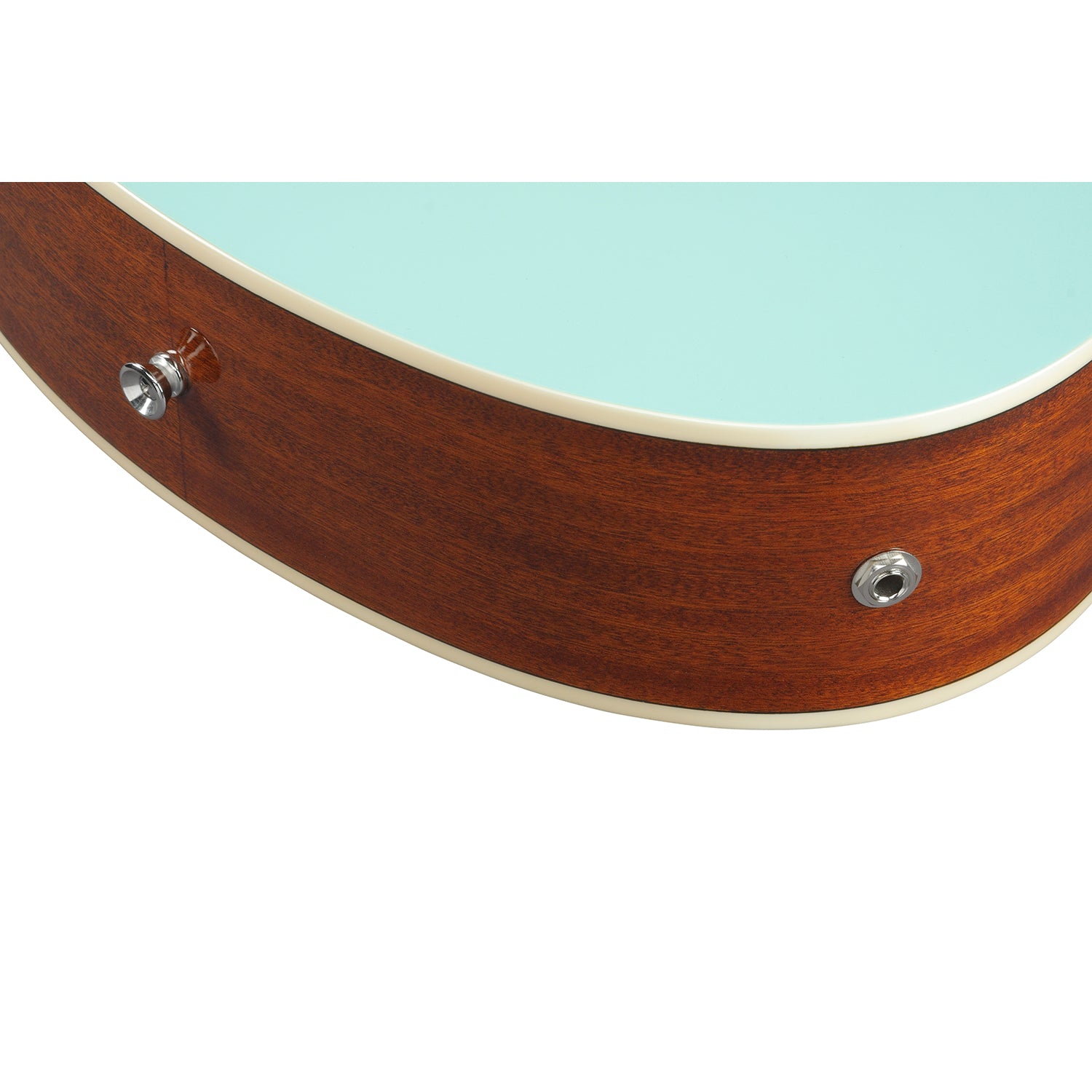

 • output jack 1/4" output

 • NECK DIMENSIONS
 • Scale : 650mm
 • a : Width 42mm at NUT
 • b : Width 54mm at 14F
 • c : Thickness 21.5mm at 1F
 • d : Thickness 23.5mm at 7F
 • Radius : 250mmR

 • BODY DIMENSIONS
 • a : Length 18 1/8"
 • b : Width 14 3/8"
 • c : Max Depth 3 5/8"

 • OTHER FEATURES
 • Recommended Case TM50C

FEATURES

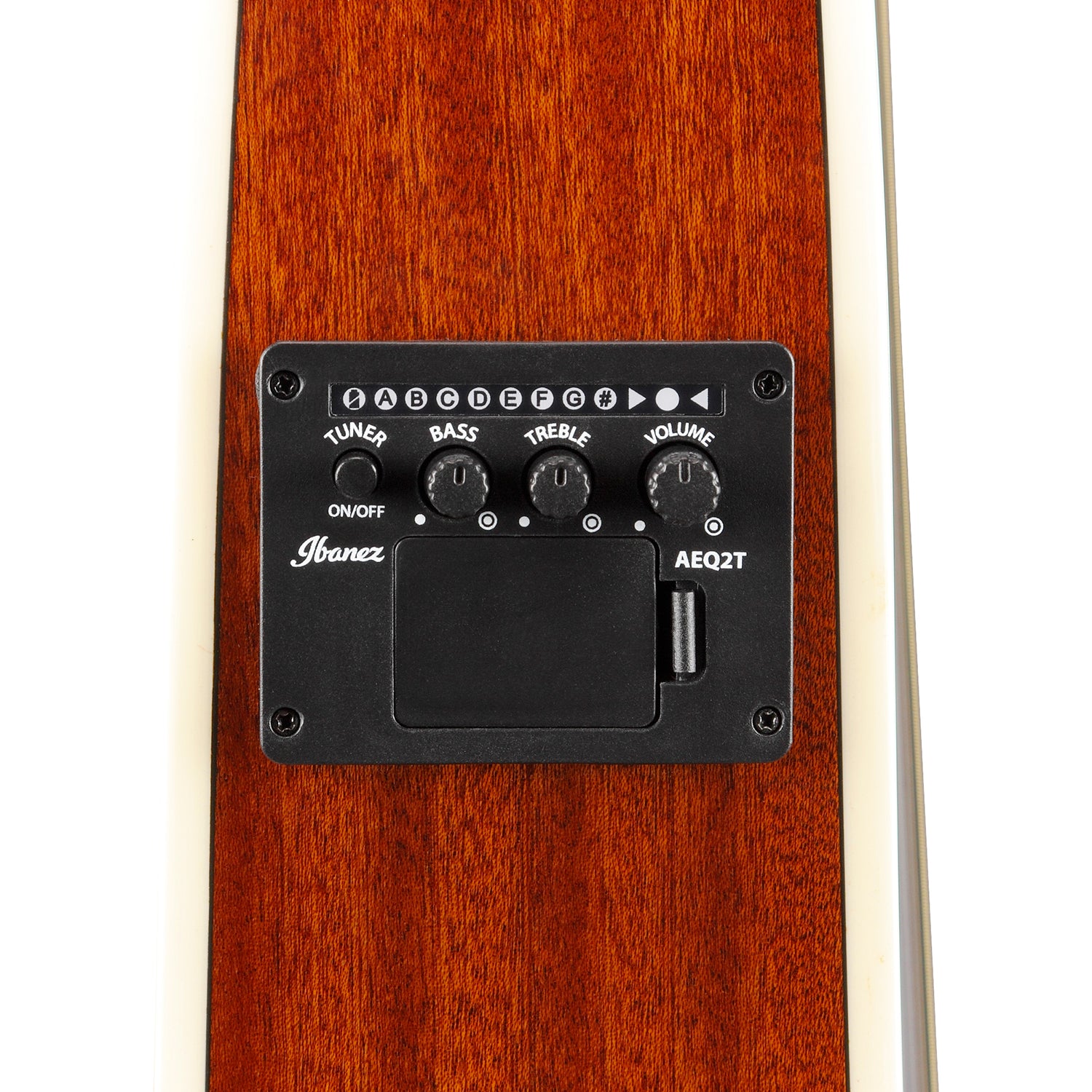

Ibanez AEQ-2T preamp w/Onboard tuner

AEQ-2T preamp is specifically-designed to adjust the frequencies of a bass and Treble, and allows operation of the built-in tuner without the instrument being plugged in.

Purpleheart fretboard & bridge

Purpleheart produces a rich mid range with a crisp high end.

Ibanez Advantage™ bridge pins

These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
