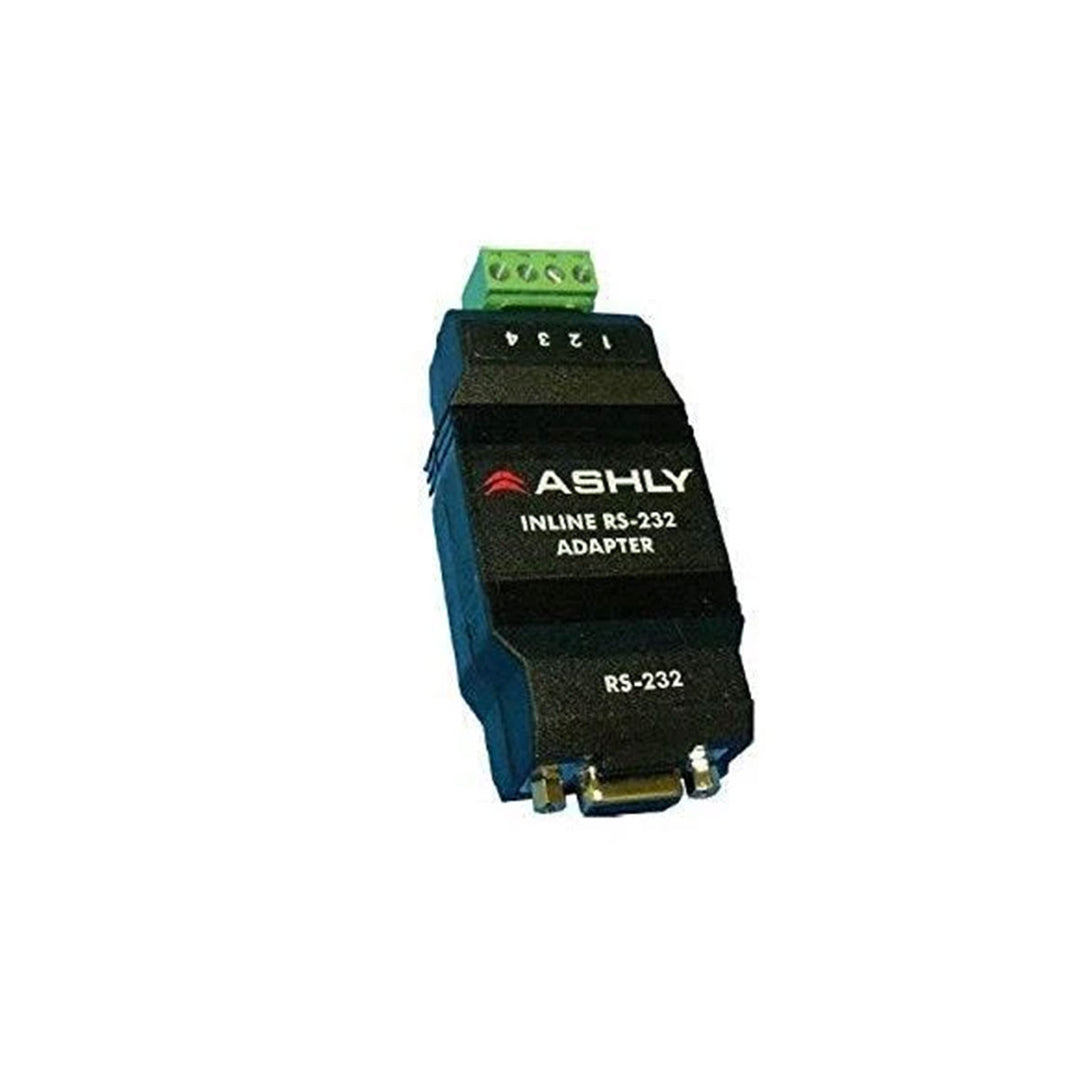

Ashly In-line RS-232 Adaptor provides RS-232 connectivity to Ashly remote data ports.
INA-1
Payment plans from Affirm, learn more
- Ashly
- Shipping Calculated at checkout, most in stock products ship same day
Purpose:
The INA-1 Inline RS-232 Adapter allows Ashly products
without a dedicated RS-232 port but with a Data control port to be
used with standard RS-232 control systems when Ethernet control
is either undesired or unavailable.
Usage:
Wire the euroblock connector pins labelled 1-4 as shown to
the DATA port pins 1-4 on an Ashly product, or to their respectively named port pins on products that do not have data port pins
numbered, such as nXe and nXp amplifiers. The pins (except on
nXe and nXp amplifiers) should be wired 1 to 1, 2 to 2, 3 to 3,
4 to 4. Then wire the RS-232 side of the adapter to the control
system via normal straight through RS-232 cable. (DO NOT USE
A NULL MODEM CABLE). If a longer distance is required, that
distance should be made on the data port (euroblock) side of the
adaptor, up to 1,000 ft (304m). The RS-232 side should be kept to
normal RS232 lengths.
Control System Interface/Programming:
The DATA port supports “Ashly WR Wall Remote Additions”
messages, found in the NE RS-232 Protocol document available
on the Ashly website download section.
