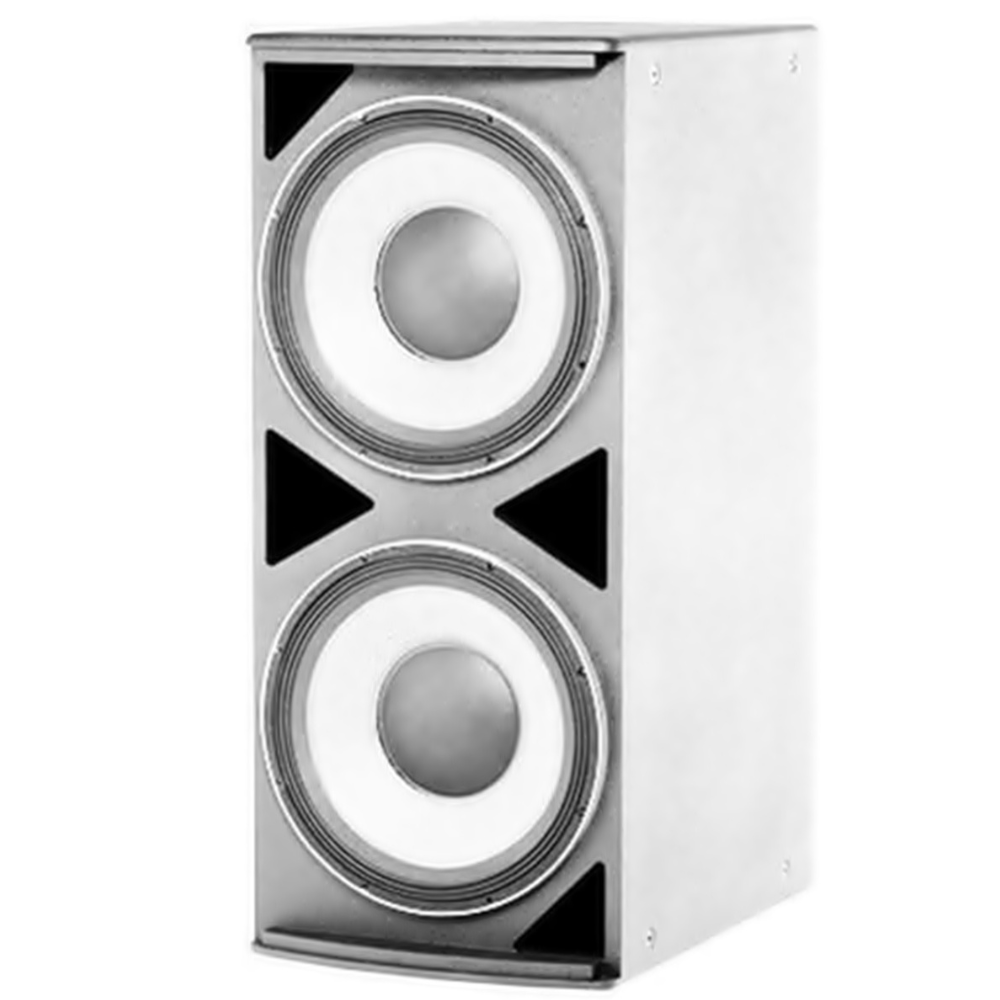

Overview of JBL ASB-6128-WH Dual 18" Subwoofer - White
JBL's ASB6128 is a front-loaded, high-power subwoofer system with a vented configuration for extended bandwidth and high output. It's comprised of two 460 mm (18") SVG Super Vented Gap low-frequency drivers.
Applications
- Performing arts facilities
- Theatrical sound design
- Auditoriums
- Houses of worship
- Live clubs
- Dance clubs
- Sport facilities
- Themed entertainment venues
Features
- Large vent area for high output
- Parallel / Discrete switchable
Specifications
- Frequency Range: 28 Hz - 1 kHz (-10 dB)
- Frequency Response: 35 Hz - 1 kHz (±3 dB)
- Input Modes: Drivers Parallel / Drivers Discrete
- Transducer Power Rating (AES): 2400W (9600W peak), 2 hrs
- Long-Term System Power Rating (IEC): 1600W (6400W peak), 100 hrs
- Maximum SPL:
- 30 Hz - 100 Hz: 136 dB-SPL cont avg (142 dB peak)
- 100 Hz - 500 Hz: 136 dB-SPL cont avg (142 dB peak)
- System Sensitivity:
- 30 Hz - 100 Hz: 102 dB
- 100 Hz - 500 Hz: 102 dB
- Nominal Impedance:
- 4 Ω in Parallel-drive mode
- 2 x 8 Ω in Discrete-drive mode
