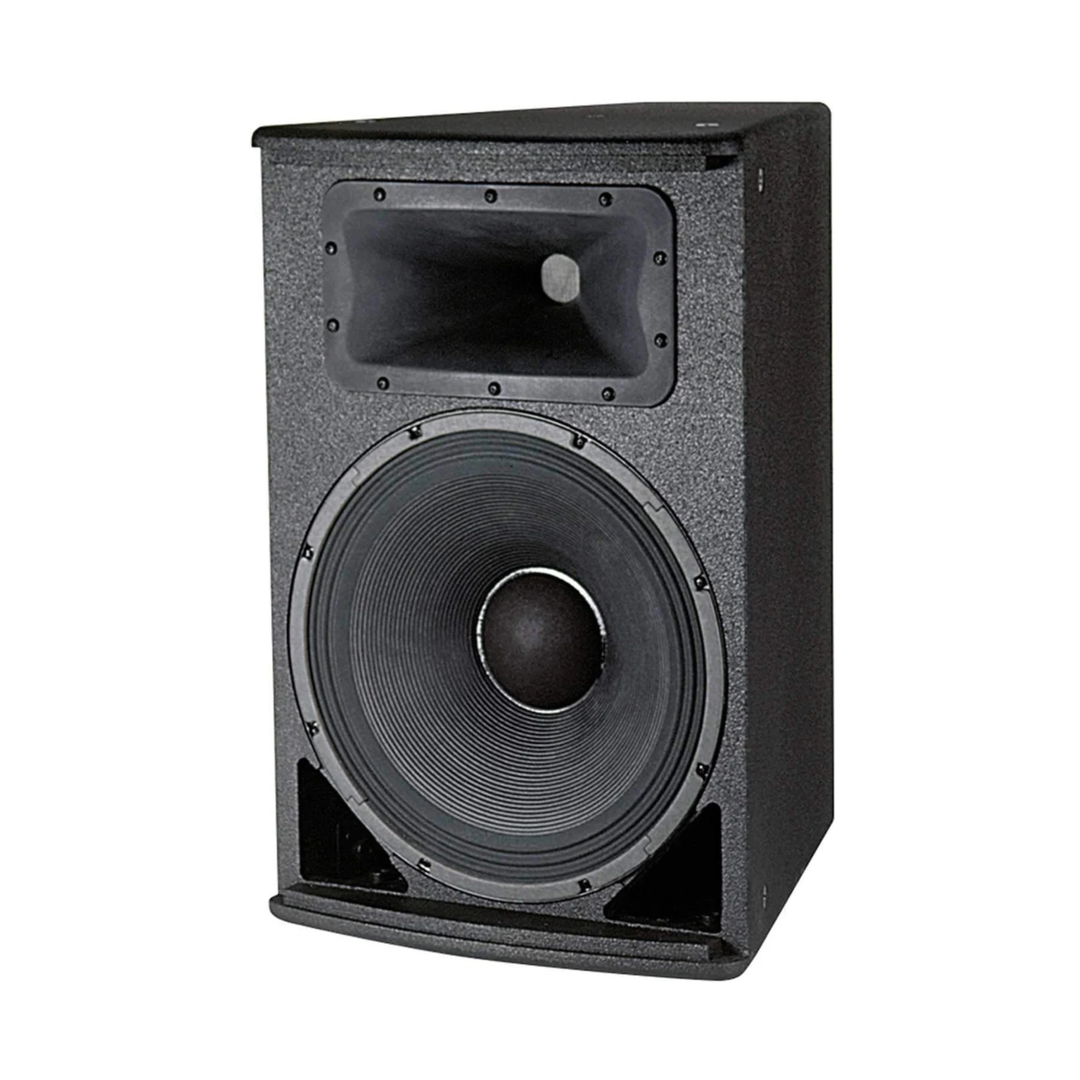

JBL Pro AC2212/00 (demo)

Ideal for fixed installation in houses of worship, theaters, gyms, and more, the JBL AC-2212/00 passive 2-way installation PA loudspeaker offers versatile mounting options and consistent coverage. With a 12" woofer and a horn-loaded compression driver in a ported birch plywood cabinet, the AC2212/00 delivers a 55 Hz to 17 kHz frequency response and a long-term power rating of 250W RMS (1000W peak). The Progressive Transition waveguide yields a coverage pattern of 100° by 100° while keeping distortion low.

The AC2212/00 features Neutrik speakON and barrier strip inputs, which can be switched for bi-amp or passive operation. A host of M10 and M8 points on the cabinet accommodate a variety of suspension- or bracket-based mounting configurations.

• Compact 2-way loudspeaker system for lecture halls, houses of worship, corporate learning centers, performing arts facilities, theaters, auditoriums, sports facilities, and more
• PT (Progressive Transition) waveguide for 100° x 100° coverage, good pattern control, and low distortion
• Long-term (100-hour) power rating of 250W continuous (1000W peak)
• 12" low-frequency driver and 1.5" exit compression driver
• High-slope passive crossovers minimize band overlap
• Bi-amp/passive switchable
• Rear-panel speakON and barrier strip input connectors; speakON wired in parallel with barrier strip for loop-thru connection
• 15 M10 suspension points for flying, and four M8 points for bracket mounts such as the Omnimount (available separately)
• Trapezoidal 11-ply birch plywood cabinet with powder-coated, perforated, 14-gauge steel grille
