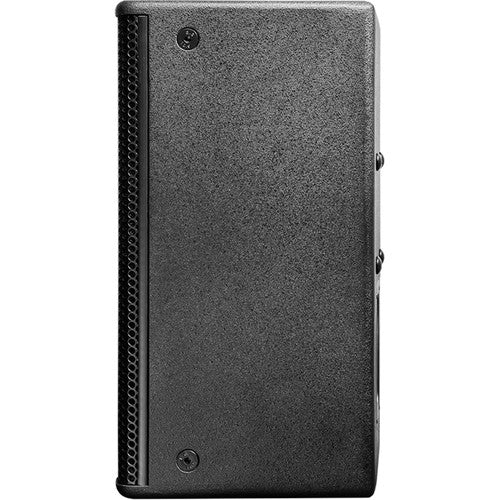

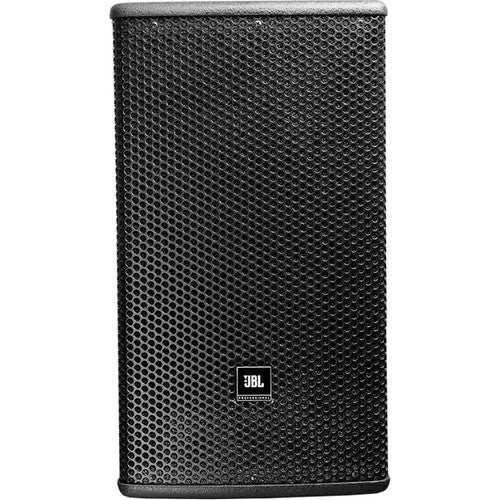

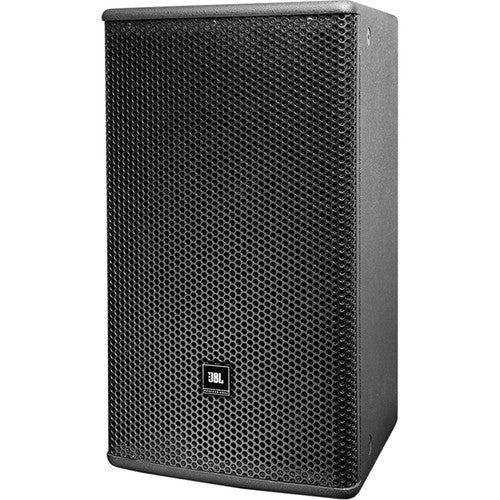

Overview of JBL Pro AC895 8" Two-Way Full-Range Loudspeaker
Two-Way Full-Range Loudspeaker with 1 x 8" LF

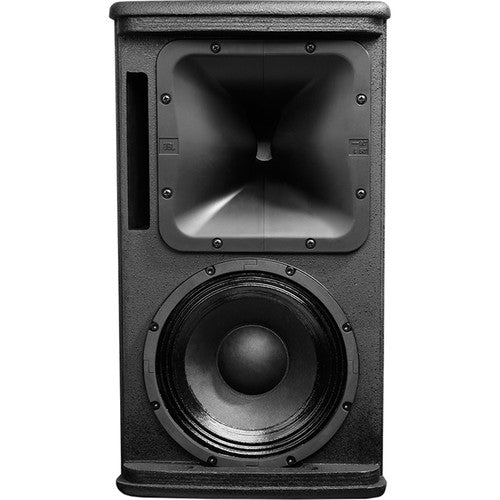

AC895 is a compact 2-way full-range loudspeaker system comprised of one 209 mm (8 in) low frequency driver and one 25 mm (1 in) exit/25 mm (1 in) voice-coil compression driver. The rotatable PT™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC895 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications
- Compact enclosure
- 209 mm (8 in) LF transducer
- 90° x 50° Progressive Transition™ Field Rotatable Waveguide with a 25 mm (1 in) exit 25mm (1") diaphragm compression driver
- Dual Neutrik NL4 connectors plus screw terminals
- Multiple Attachment Points for Ultimate Flexibility
Specifications
Frequency Range (-10dB): 70 Hz - 20 kHz
Frequency Response (±3 dB): 90 Hz - 18 kHz
System Sensitivity (1w @ 1m): 94 dB
Nominal Impedance: 8 ohms
Maximum SPL (1m): 116 dB (122 dB peak)
System Power Rating: 250W (1000W peak), 2 hrs (AES rated)
150 W/300 W/600 W (Continuous/Program/Peak) (IEC rated)
Coverage Pattern: 90° x 50° (H x V)
Crossover: 2 kHz
LF Driver: 1 x 8" woofer (P/N: 5055470), 209 mm (8 in) driver with 50 mm (2 in) voice-coil
HF Driver: 1 x 2414H-C driver with 25 mm (1 in) exit/25 mm (1 in) voice-coil
Input Connector: Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure: 15 mm multi-ply hardwood plywood
Grille: Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
Finish: Textured black paint finish. White (-WH)
Suspension Attachment: 14 x M10 and 4 x M10 for Wall Mount Bracket. Optional U-bracket, L-bracket and wall-mount bracket
Dimensions (H x W x D): 470 mm x 265 mm x 254 mm 18.5 in x 10.4 in x 10.0 in
Net Weight (each): 10.2 kg (22.4 lbs)
Crossover Modes: Passive
Nominal LF Driver Impedance: 8 ohms
Nominal HF Driver Impedance: 8 ohms
